Ice-O-Matic CIM0526HA Elevation Series™ Ice Machines

Ice-O-Matic Elevation Series™ CIM0526A Cube Ice Maker

Built for busy bars, restaurants, healthcare and convenience sites, the CIM0526A delivers up to 555 lb of pure, crystal-clear half-cube ice every day while fitting on just 22 inches of bin space. Dual-exhaust air flow, tool-free food-zone components and smart, one-touch cleaning controls make this ENERGY STAR® cuber as simple to own as it is powerful.

Why You’ll Love It

• High volume in a small footprint – 555 lb @ 70 °F/50 °F or 419 lb @ 90 °F/70 °F, yet only 22.25″ W x 24.25″ D.

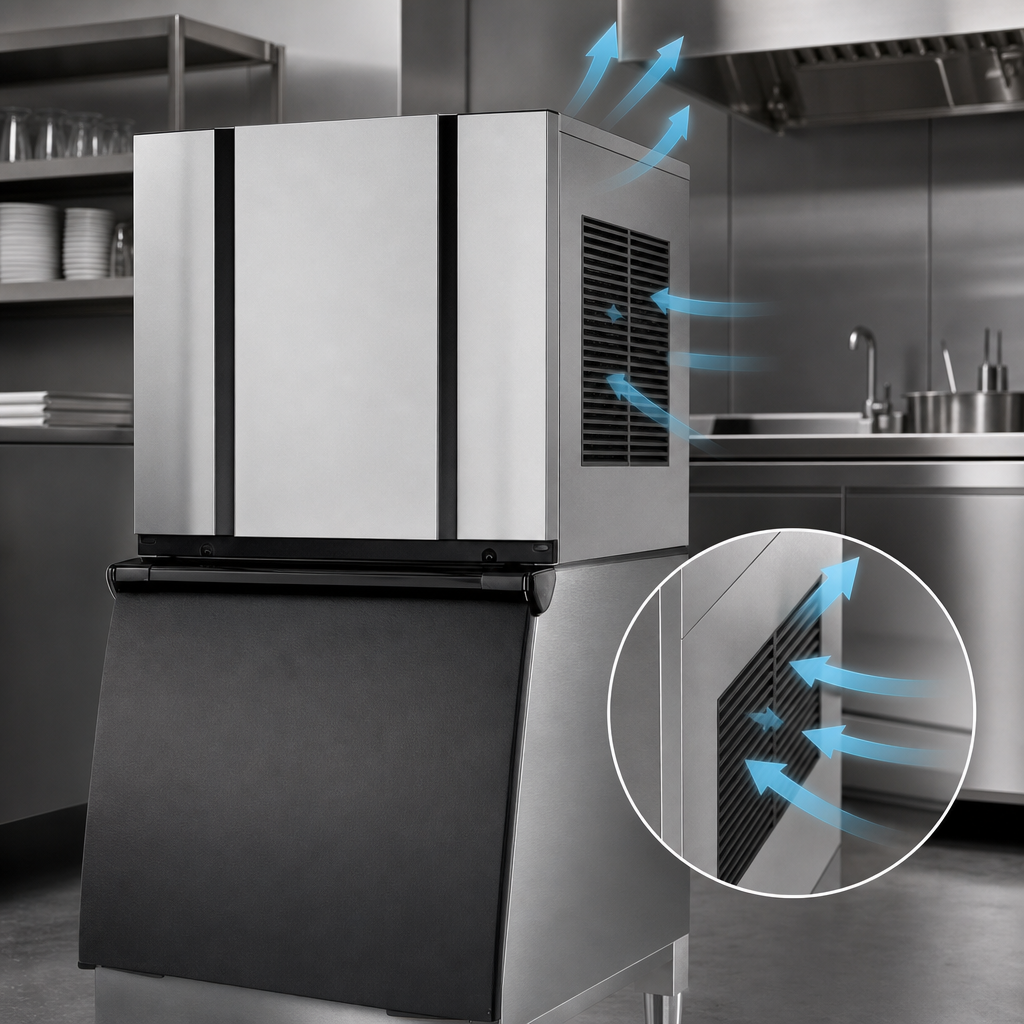

• Dual Exhaust™ design vents hot air from the top and the right side, giving you flexible installation even in tight alcoves.
• PURE ICE® protection – Agion® antimicrobial is molded into key components for round-the-clock sanitation.
• Dishwasher-safe food zone – BPA-free snap-in parts remove in seconds for deep cleaning in any commercial dishmachine.
• One-touch sanitize & descale – LEDs tell you when it’s time, then the machine handles the cycle for you.
• Universal Smart Harness™ control board with digital diagnostics speeds up installation and service.
• Energy & water smart – Only 5.2 kWh & 20 gal of water per 100 lb of ice; exceeds 2018 DOE efficiency standards.

Ice Performance

Technical Specifications

Installation & Bin Pairing

• Requires only 6″ side and top clearance for air flow.
• Compatible 22″-wide Ice-O-Matic bins: B25, B40, B42, B55 (adapter kit may be required).
• 3/8″ FPT potable water inlet & 3/4″ FPT drain.
• Use IFQ1-XL water filtration for best ice taste and to unlock extended evaporator warranty.

Peace-of-Mind Coverage

• 3-year parts & labor on the entire machine
• 5-year parts on compressor & evaporator
• 7-year parts & labor on evaporator when enrolled in Ice-O-Matic filter program (USA & Canada)
