Ice-O-Matic CIM0526FA Elevation Series™ Ice Machines
Description

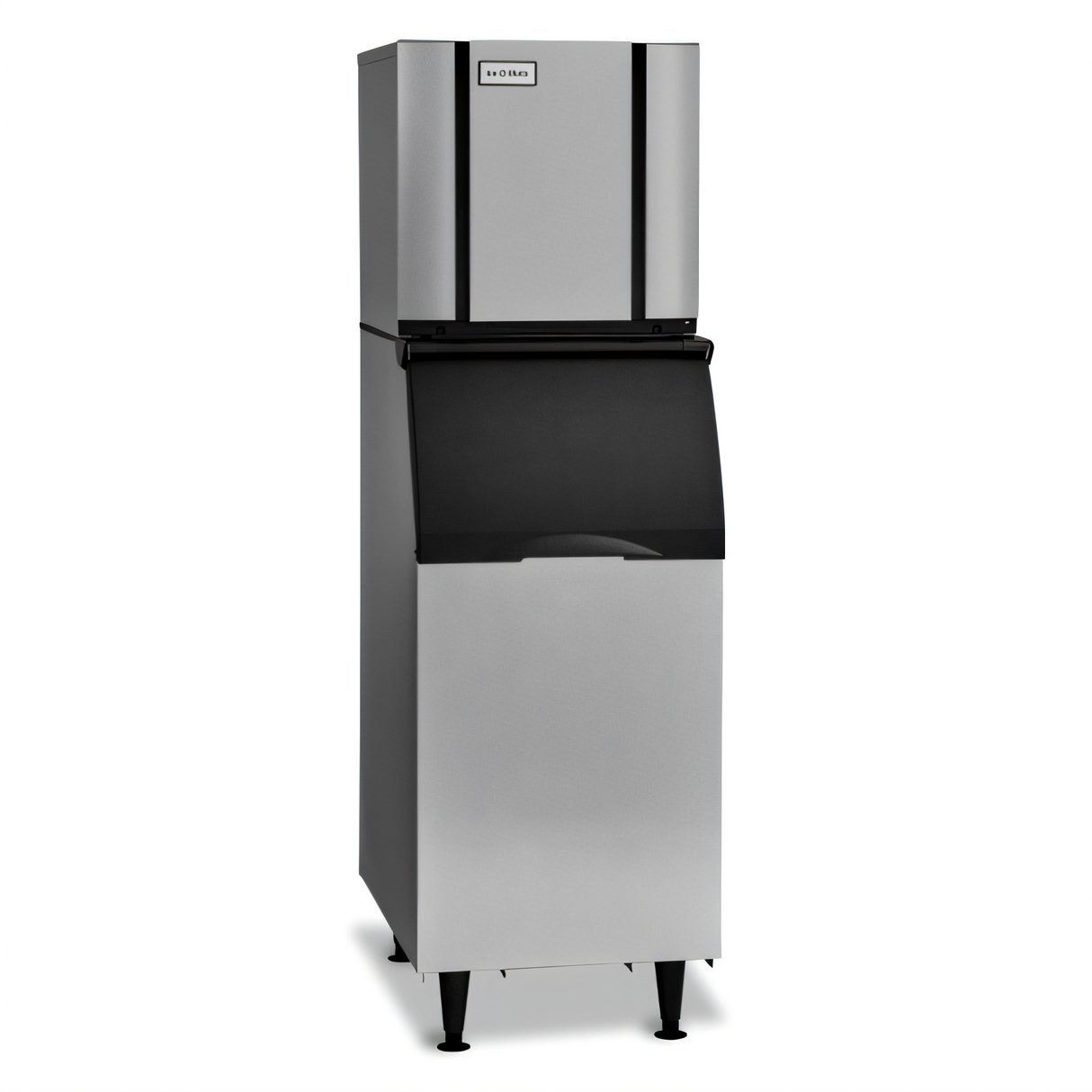

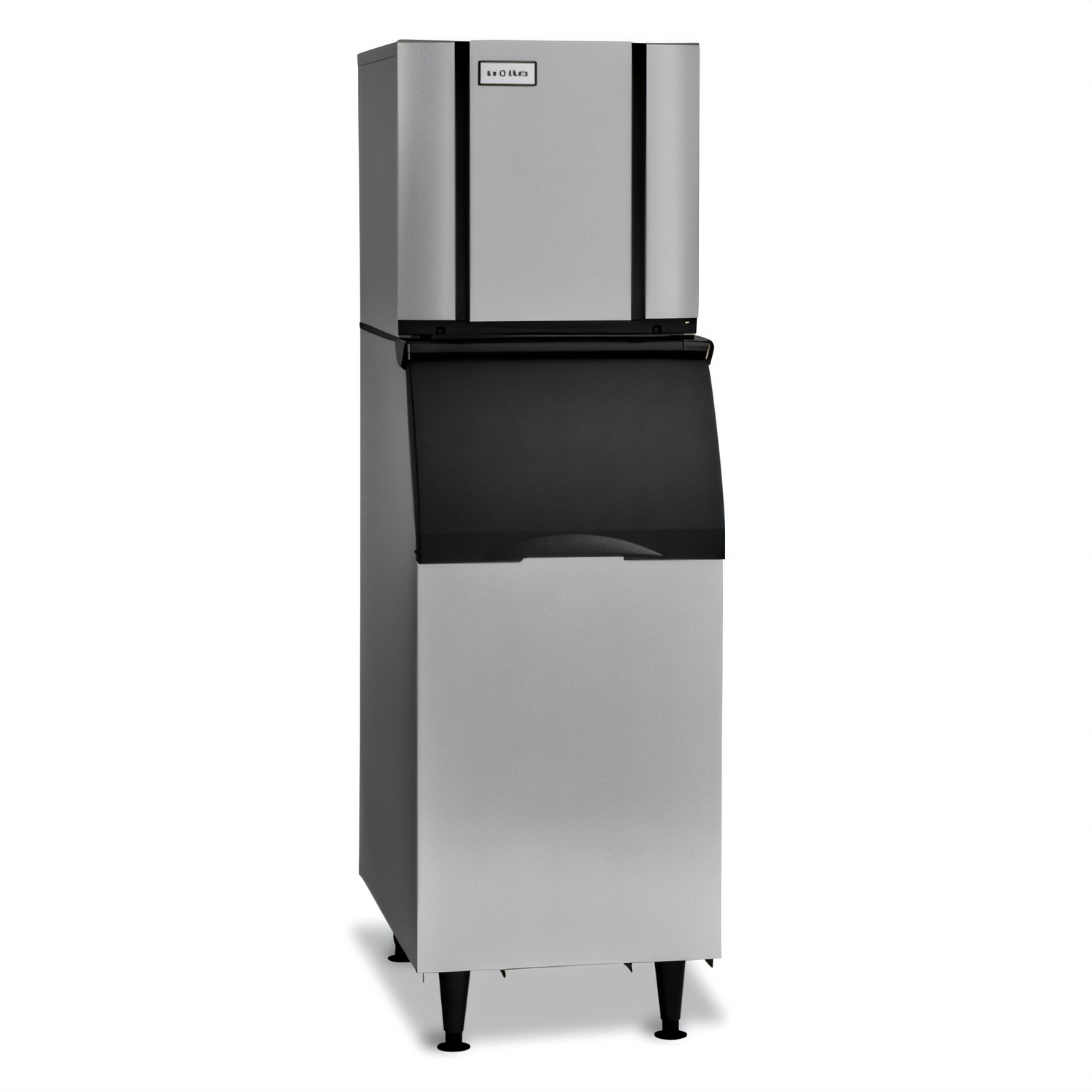

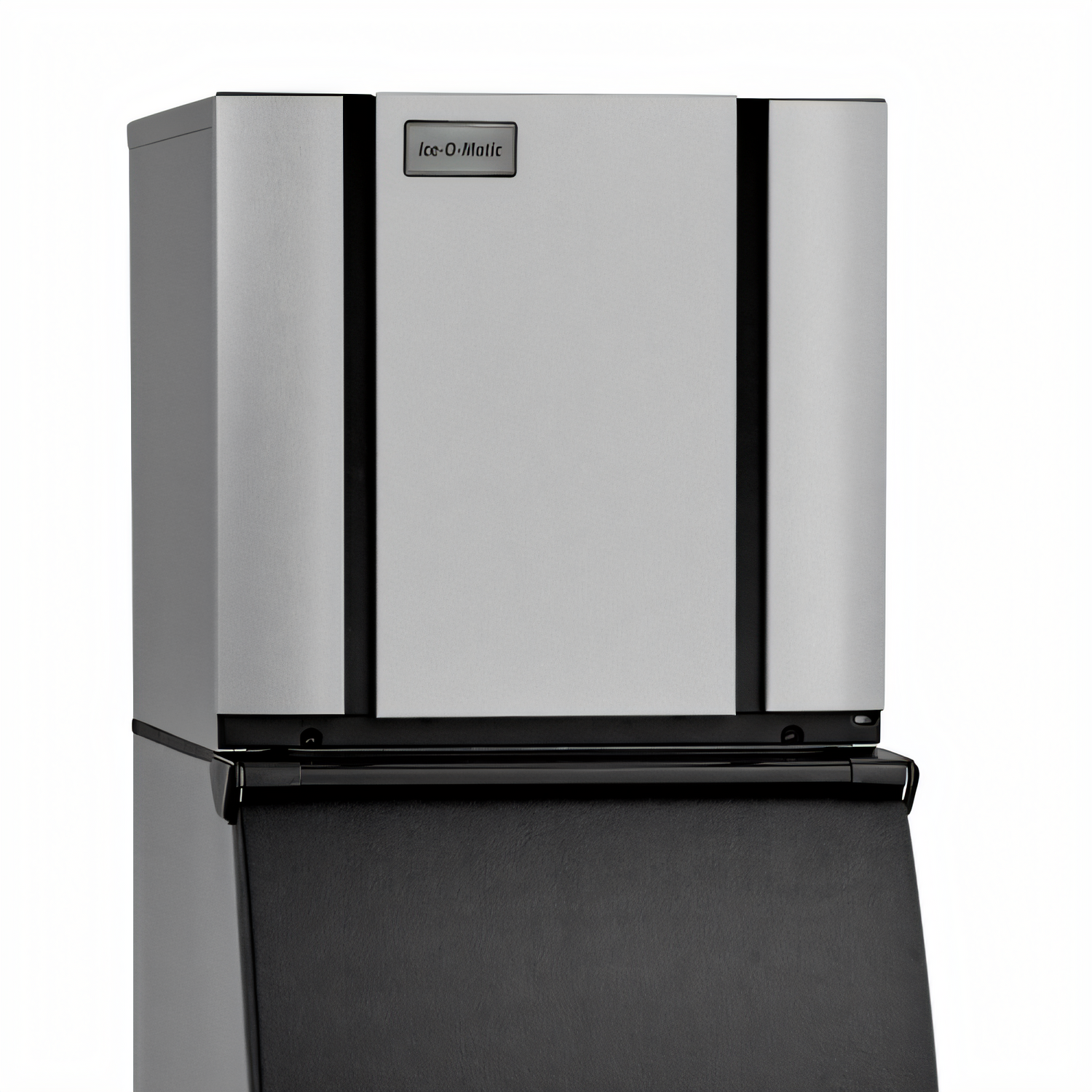

Ice-O-Matic Elevation Series™ 22″ Modular Cube Ice Maker – 555 lb/day
Model CIM0526A • Air-Cooled • Full-CubeEngineered for high-volume food-service, the Ice-O-Matic Elevation Series™ produces up to 555 pounds of crystal-clear ice every 24 hours while using up to 20 % less energy than competing machines. Its 22-inch footprint, dual-exhaust air discharge, and tool-free food zone make installation and daily maintenance remarkably simple.
Key Features
- High-capacity output – 555 lb (252 kg) at 70 °F/50 °F; 445 lb (202 kg) at 90 °F/70 °F.

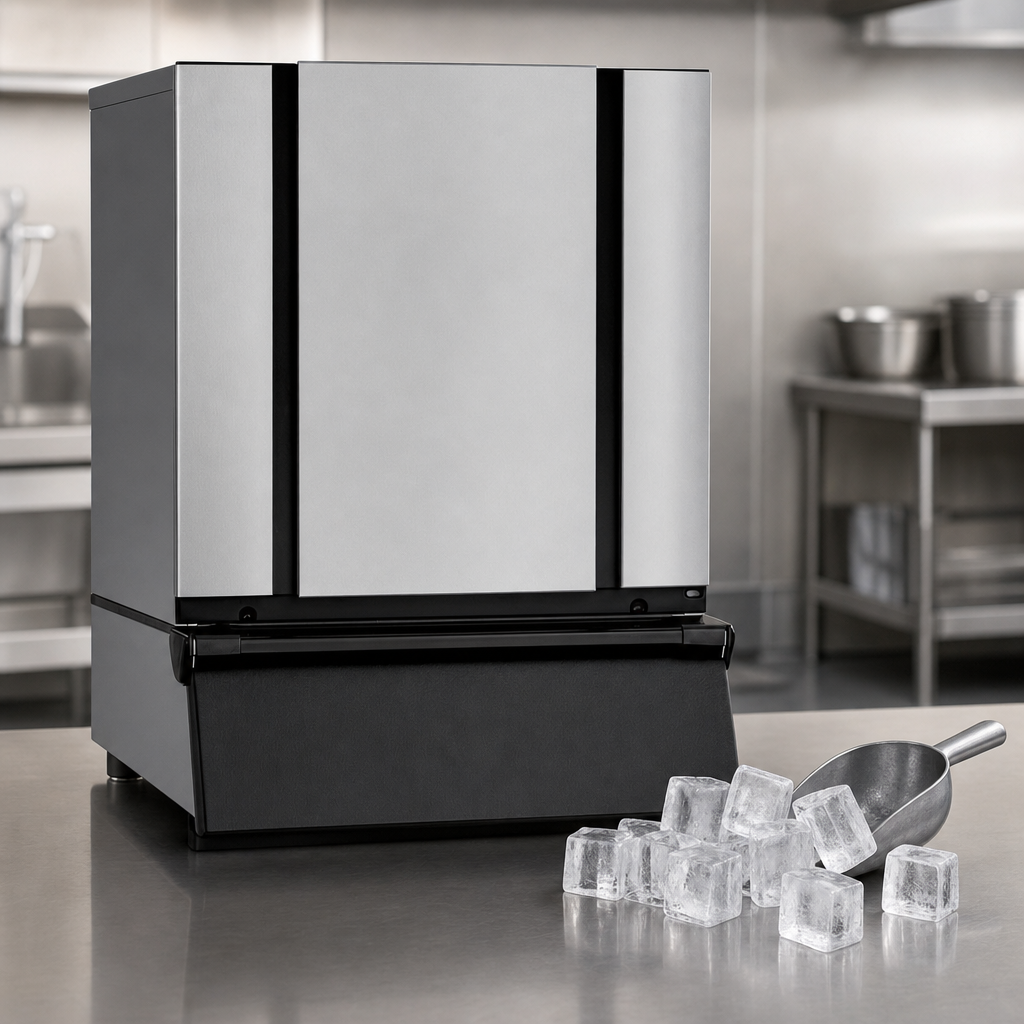

- Pure, full-size cubes (⅞″ × ⅞″ × ⅞″) ideal for soft drinks, cocktails, and displays.
- ENERGY STAR® qualified and exceeds 2018 DOE efficiency standards.

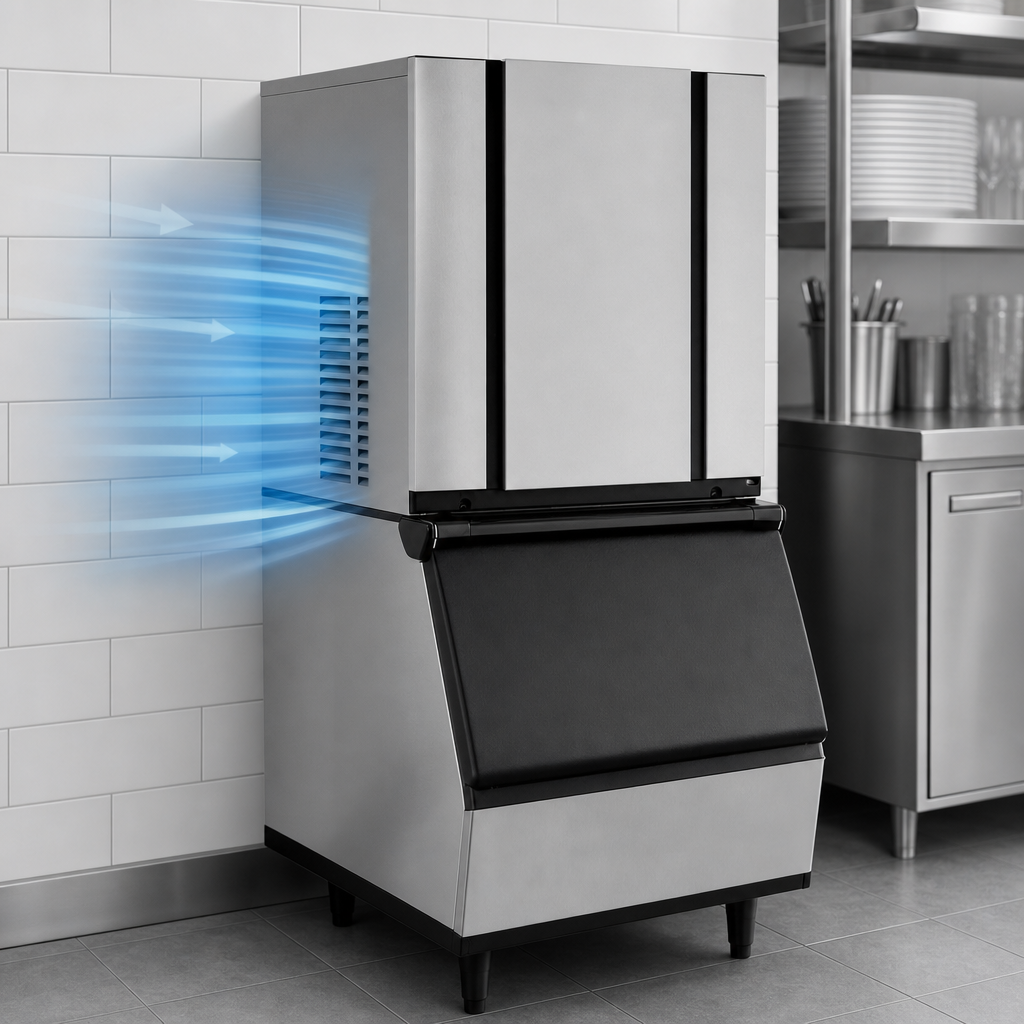

- Air-cooled, self-contained condenser with dual top & side exhaust for flexible placement.
- Plastic food zone with built-in Agion® antimicrobial protection—components snap out and are 100 % dishwasher safe.
- Easy-read LED status panel plus one-touch sanitize and descale controls.
- Universal Smart Harness™ control board delivers digital diagnostics and simplified service.
- Eco-friendly build: BPA-free plastics and recyclable components.
- Third-party certified: cULus, NSF, CE, BPA Free.
Technical Specifications
| Ice production (70 °F air / 50 °F water) | Approx. 555 lb / 252 kg per 24 hr |
|---|---|
| Ice production (90 °F air / 70 °F water) | Approx. 445 lb / 202 kg per 24 hr |
| Ice type | Full Cube – ⅞″ × ⅞″ × ⅞″ (22 × 22 × 22 mm) |
| Width | 22.25″ / 565 mm |
| Depth | 24.25″ / 616 mm |
| Height | 21.25″ / 540 mm |
| Cooling | Air-cooled, self-contained |
| Electrical | 208–230 V, 60 Hz, 1-phase, 8.2 A (max breaker 15 A) |
| Refrigerant | R404A |
| Minimum clearance | 6″ (152 mm) sides & top for airflow |
| Unit weight (shipping) | 165 lb / 75 kg |
| Certifications | ENERGY STAR®, cULus, NSF, CE, BPA Free |
Recommended Ice Bins (sold separately)
- B25 – 242 lb capacity, 30″ wide (requires KBT19 adapter kit)
- B40 – 344 lb capacity, 30″ wide (requires KBT19 adapter kit)
- B42 – 351 lb capacity, 22″ wide (no adapter kit required)
- B55 – 510 lb capacity, 30″ wide (requires KBT19 adapter kit)
Need a different capacity? Ask us about additional Ice-O-Matic bin options.
Warranty Coverage
| Ice maker | 3 years parts & labor |
|---|---|
| Evaporator & compressor | 5 years parts |
| Evaporator (with Ice-O-Matic filter program) | 7 years parts & labor |
Upgrade your beverage program with the hygienic, energy-saving performance of the Ice-O-Matic Elevation Series™—order yours today!
