Ice-O-Matic CIM0520HW Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ Modular Cube Ice Maker
Model CIM0520W • 22" Water-Cooled • Half-CubeProduce more ice in less space. The Elevation Series™ CIM0520W delivers up to 586 lb of crystal-clear half-cube ice every 24 hours while fitting easily on a 22-inch bin or beverage dispenser. Designed for today’s energy- and hygiene-conscious kitchen, it combines industry-leading performance with effortless sanitation.
Key Advantages
- High output – 586 lb/24 hr at 70 °F air / 50 °F water (470 lb at 90 °F / 70 °F)
- Water-cooled, self-contained condenser keeps heat and noise out of the kitchen
- Compact 22.25 in (565 mm) width saves valuable back-of-house real estate
- Dual top/side exhaust for flexible installation against walls or under shelving
- PURE ICE® Agion® antimicrobial protection is built into every food-zone component
- Tool-free, snap-in, dishwasher-safe food zone cuts cleaning time by up to 1/3*
- One-touch sanitize & descale plus smart LED status lights
- Universal Smart Harness™ board offers plug-and-play diagnostics
- BPA-free plastics, cULus, NSF & CE listed
Ice Production & Performance

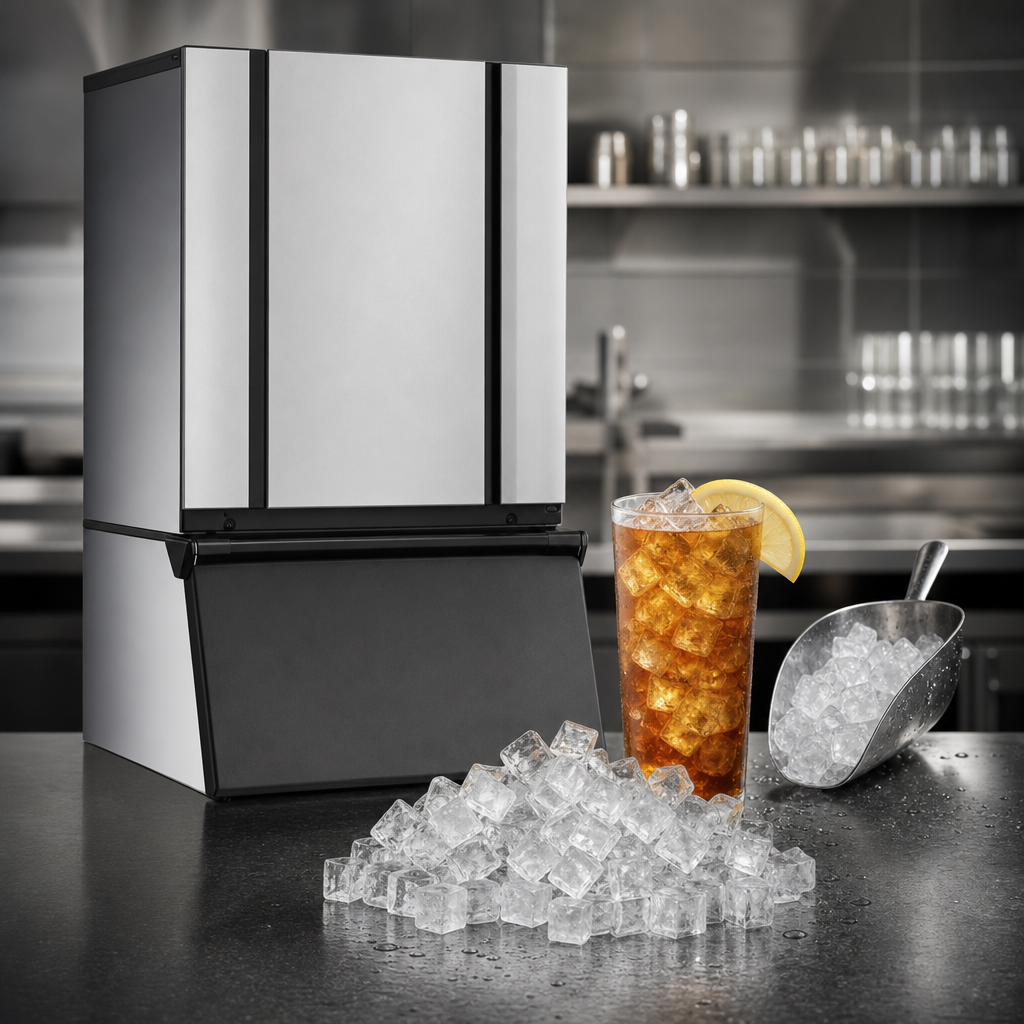

| Ice type | Half-cube (3/8 in × 7/8 in × 7/8 in) |
|---|---|
| Daily capacity | 586 lb @ 70 °F air / 50 °F water 470 lb @ 90 °F air / 70 °F water |
| Energy use | 4.7 kWh per 100 lb of ice |
| Water use | Potable: 20 gal / 100 lb Condenser: 181 gal / 100 lb |
Dimensions & Utilities
| Width | 22.25 in / 565 mm |
|---|---|
| Depth | 24.25 in / 616 mm |
| Height | 21.25 in / 540 mm |
| Electrical | 115 V / 60 Hz / 1-phase • Min. ampacity 17.4 A • Max. breaker 30 A |
| Refrigerant | R404A |
| Shipping weight | 175 lb / 79 kg (approx.) |
Recommended Pairings
- Ice-O-Matic B42PS slope-front bin • 351 lb storage (adapter kit not required)
- IFQ1-XL manifold & IOMQXL cartridge for filtration & extended evaporator warranty
- Factory-approved ozone sanitation system for added peace of mind
Commercial Warranty
3 years parts & labor on the entire machine
5 years parts on the evaporator & compressor
7 years parts & labor on the evaporator when enrolled in the Ice-O-Matic filter program
*Compared with previous Ice-O-Matic cube ice makers under similar conditions. Production ratings are based on half-cube configuration; actual results will vary with site conditions. Ice storage bin, filtration and accessories sold separately.
