Ice-O-Matic

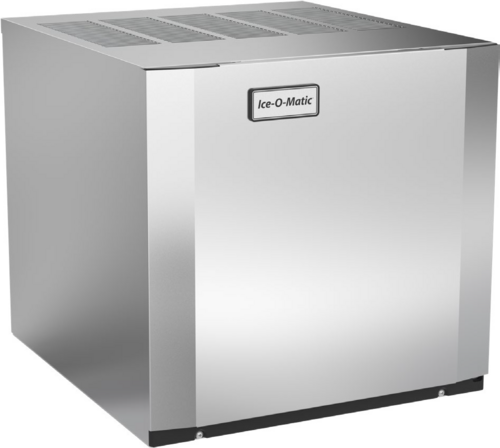

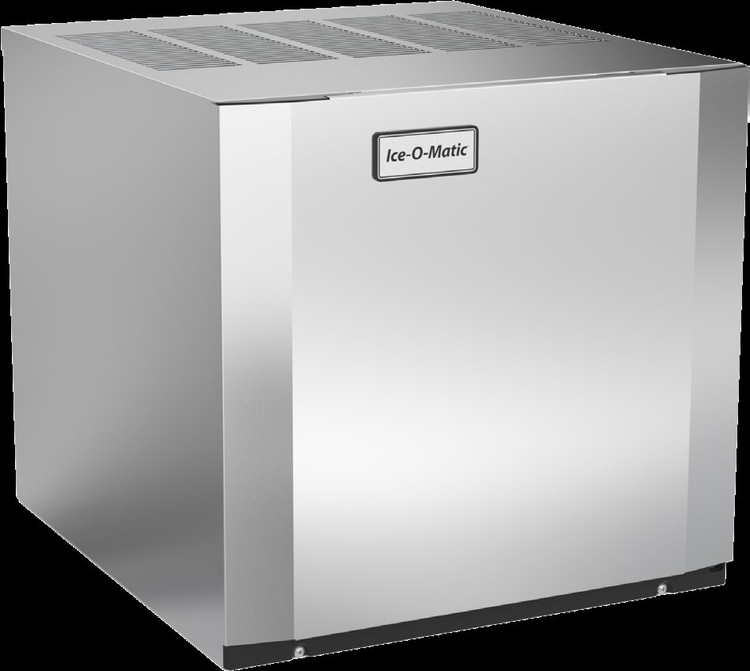

Ice-O-Matic Elevation Series Modular Half Size Cube Ice Maker, Air-Cooled, Self-Contained Condenser, Top Air Discharge, 525 lb/24 Hr

SKU: CIM0520HT90
$3,919.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Machines & Ice Equipment Ice Makers & Bins Ice-O-Matic New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment

Ice-O-Matic Elevation Series Modular Half Size Cube Ice Maker, Air-Cooled, Self-Contained Condenser, Top Air Discharge, 525 lb/24 Hr

R290 Refrigerant, LED Status Display, ENERGY STAR

Built for busy beverage service, this modular half-size cube ice maker pairs high daily output with efficient R290 refrigeration and easy-clean controls.

  • Produces approximately 525 lb of half-size cube ice per day at 70°F air / 50°F water.
  • Air-cooled, self-contained refrigeration helps deliver efficient, straightforward installation.
  • Top air discharge and modular design support flexible use on bins or dispensers.
  • LED status display and one-touch sanitize/descale controls simplify daily operation.
  • Dishwasher-safe food-zone components and a front-facing evaporator make cleaning easier.
  • Harvest Assist technology helps maintain consistent ice production while reducing energy use.

Overall Dimensions:

27.0"W x 25.0"D x 27.0"H

Product Weight:

141.0 lb

Half-Size Cube Ice

Produces half-size cube ice for versatile beverage service and fast cooling.

High Daily Output

Delivers approximately 525 lb of ice per 24 hours at 70°F air / 50°F water, or 400 lb at 90°F air / 70°F water.

R290 Refrigerant

Uses R290 refrigerant for a more efficient and environmentally friendly refrigeration system.

Air-Cooled, Self-Contained Design

Self-contained refrigeration with air cooling supports simpler installation and operation.

Top Air Discharge

Top air discharge and dual exhaust provide flexible installation options on bins or dispensers.

Easy-Clean Food Zone

Front-facing evaporator and dishwasher-safe food-zone components help speed cleaning; components are safe up to 180°F.

LED Status Display and Cleaning Controls

LED status display plus one-touch sanitize/descale controls help simplify monitoring and maintenance.

Durable Construction

Corrosion-resistant, fingerprint-proof aluminum construction and electroless nickel-plated evaporator plates are built for long-term use.

Harvest Assist Technology

Harvest Assist helps maintain consistent ice production while reducing energy consumption and increasing capacity.

Type Cube Ice Maker
Style Modular
Ice Type Half Size Cubes
Condenser Type Air-Cooled
Refrigeration Type Self-Contained
Refrigerant Type R290
Production Per 24 Hours 525 lb at 70°F Air / 50°F Water; 400 lb at 90°F Air / 70°F Water
Voltage 115 Volts
Amps 11.9 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 20 Amps
BTU 8,200 BTU/Hr
Material Aluminum
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor; 7 years parts and labor on the evaporator if enrolled in the filter program.

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Slope front storage bins PDF Download PDF Brochure PDF Download PDF Diagram PDF Download PDF Owner's manual PDF Download PDF Web site PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half-size cube ice, sized 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).
Approximately 525 lb per 24 hours at 70°F air / 50°F water, or 400 lb per 24 hours at 90°F air / 70°F water.
The machine requires 115V / 60Hz / 1-phase power, draws 11.9 amps, and uses a maximum 20 amp breaker.
It includes a front-facing evaporator, dishwasher-safe food-zone components, and one-touch sanitize/descale controls.
The ice maker has a 3-year parts and labor warranty, the evaporator and compressor have a 5-year parts warranty, and the evaporator has a 7-year parts and labor warranty if enrolled in the filter program.
Yes. The modular design is made for flexible installation on bins or dispensers, and the KCUBEDISPB accessory is listed for mounting to a dispenser.
