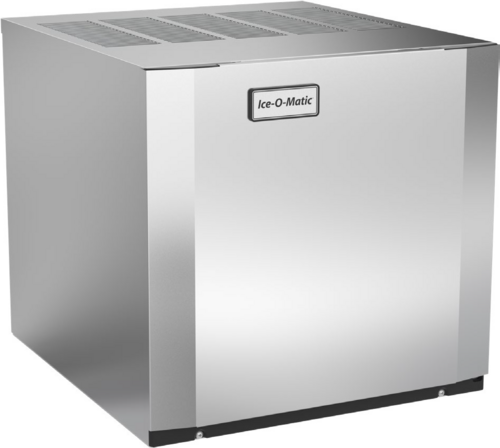

Ice-O-Matic Elevation Series Modular Air-Cooled Half Cube Ice Maker with Self-Contained Condenser, 22 Inch Wide

115V, 1-Phase, Dual Exhaust Top/Side Air Discharge

A compact 22-inch modular ice maker built for flexible installation, easier cleaning, and dependable half-cube production.

  • Produces half cube ice with Harvest Assist technology for consistent output and improved efficiency.
  • Self-contained, air-cooled design with dual top/side exhaust supports flexible installation.
  • Built-in PURE ICE antimicrobial protection helps keep the food zone cleaner.
  • Front-facing evaporator, dishwasher-safe food zone components, and one-touch sanitize/descale controls simplify maintenance.
  • LED status display gives operators quick machine feedback at a glance.
  • R290 refrigerant and corrosion-resistant aluminum construction support efficient, durable operation.

Overall Dimensions:

27.0"W x 25.0"D x 27.0"H

Product Weight:

141.0 lb

Harvest Assist Technology

Helps deliver consistent ice production while reducing energy consumption.

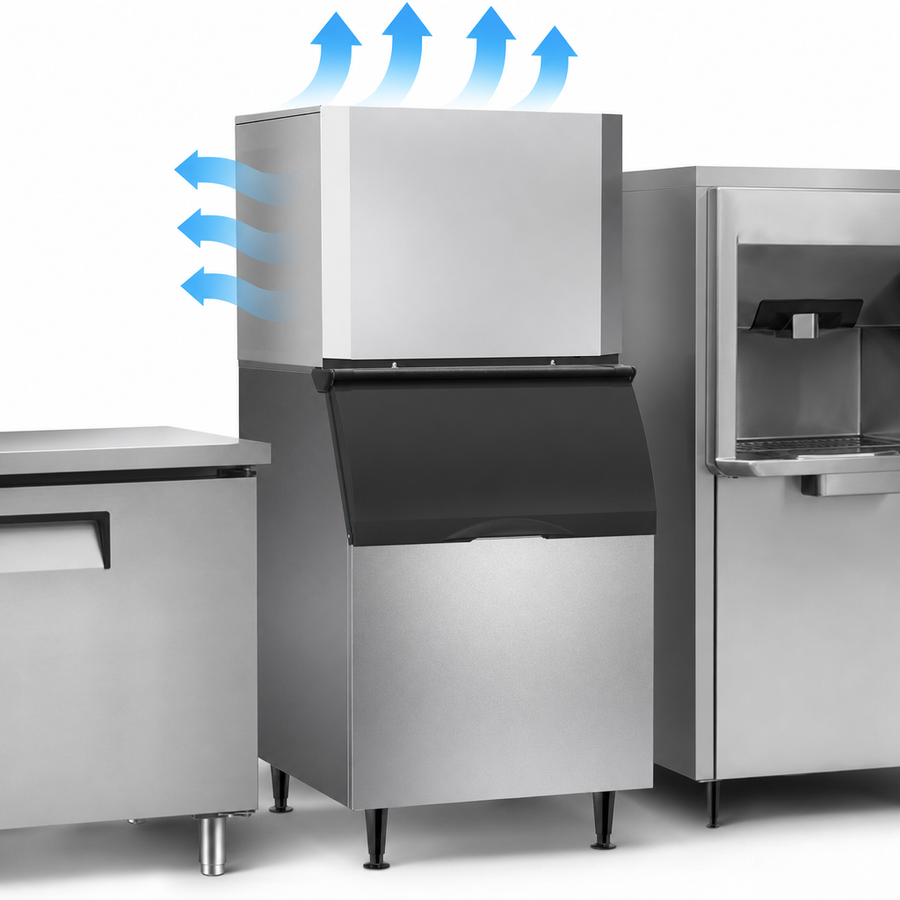

Dual Exhaust Air Discharge

Top and side exhaust options provide added flexibility for installation around bins and dispensers.

PURE ICE Antimicrobial Protection

Built-in antimicrobial protection helps maintain a cleaner food zone.

Dishwasher-Safe Food Zone Components

Removable food-zone parts are dishwasher safe up to 180°F for easier cleaning.

One-Touch Sanitize/Descale Controls

Simplifies routine maintenance and cleaning cycles.

LED Status Display

Provides a quick visual check of machine status.

Front-Facing Evaporator

Designed for easier access and faster cleaning.

Corrosion-Resistant Aluminum Construction

Durable aluminum build with a fingerprint-proof finish.

R290 Refrigerant

Uses an efficient, environmentally friendlier refrigerant.

Type Cube Ice Maker
Style Modular
Ice Type Half Cube
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 11.9 Amps
Breaker Size 20 Amps
BTU 8,200 BTU/Hour
Refrigerant Type R290
Refrigerant Charge 130 g
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Water Connection Required
Drain Connection Required
Ice Production per 24 Hr 525 lb. per 24 Hours at 70°F Air / 50°F Water; 400 lb. per 24 Hours at 90°F Air / 70°F Water
Shipping Width 25 Inches
Shipping Depth 27 Inches
Shipping Height 27 Inches
Shipping Weight 132 Pounds
Material Aluminum
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download PDF Slope front storage bins PDF Download PDF Diagram PDF Download PDF Web site PDF Download PDF Brochure PDF Download PDF Service manual PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half cube ice, measuring 3/8 x 7/8 x 7/8 inches.
Yes. It is an air-cooled, self-contained ice maker with dual exhaust air discharge.
The unit operates on 115 Volts, 60 Hz, 1-Phase power and requires a 20 amp maximum breaker.
It uses a 3/8 inch FPT potable water inlet and a 3/4 inch FPT ice maker drain connection.
It includes a front-facing evaporator, dishwasher-safe food zone components, and one-touch sanitize/descale controls.
The documentation mentions the KCUBEDISPB dispenser mounting kit, the B42 storage bin, and the IFQ1-XL water filter manifold system with IOMQXL replacement filter.
