Ice-O-Matic CIM0520HA Elevation Series™ Ice Machines
Description

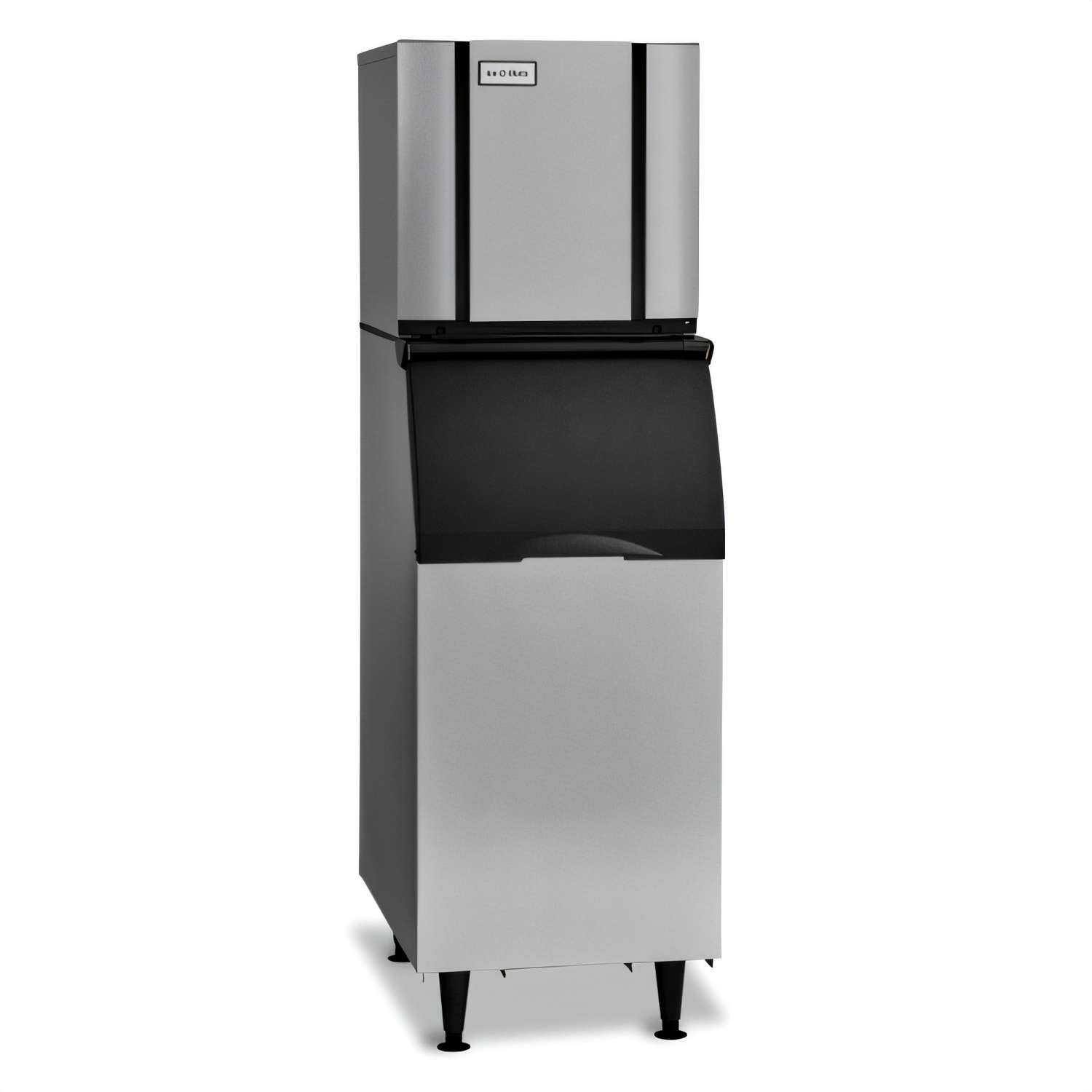

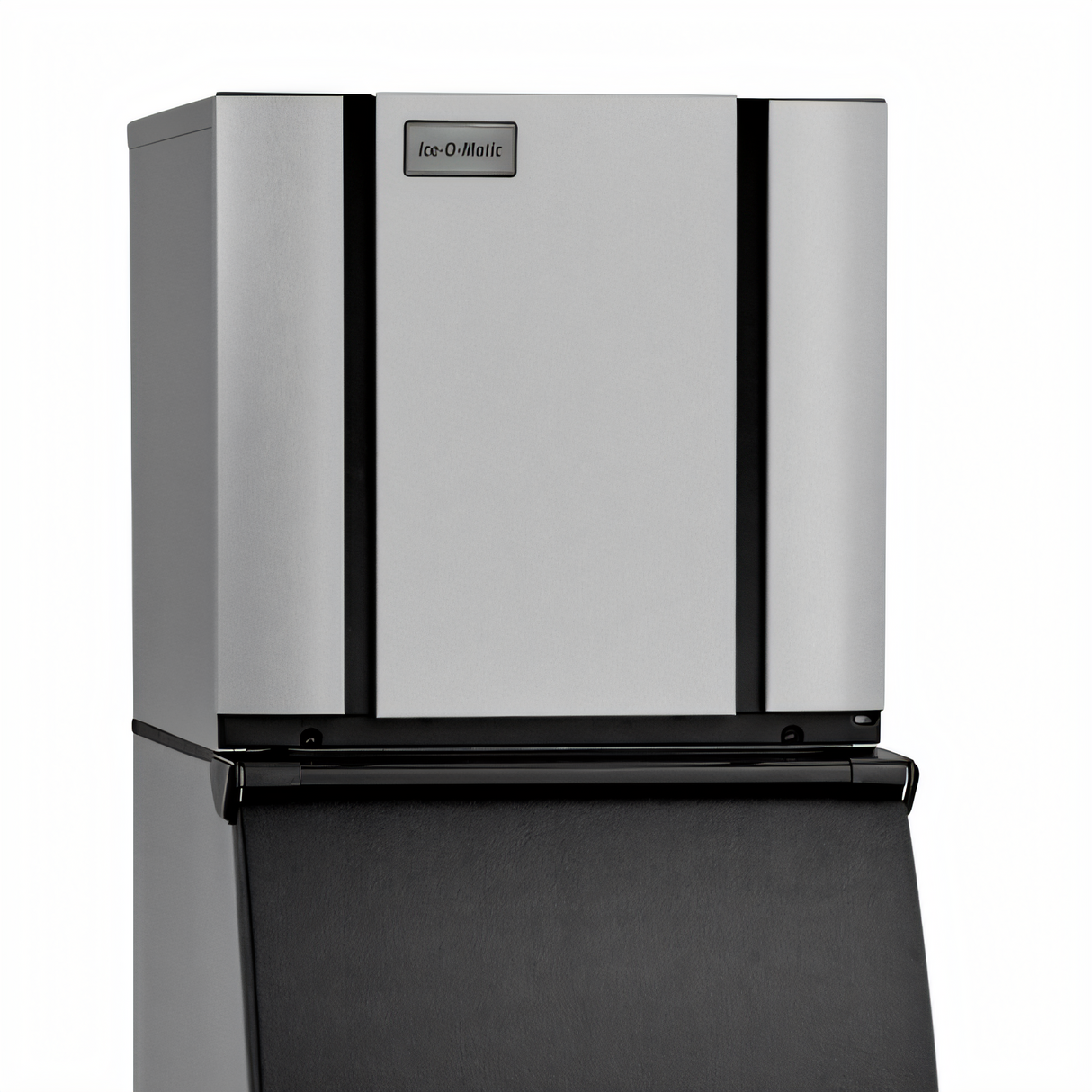

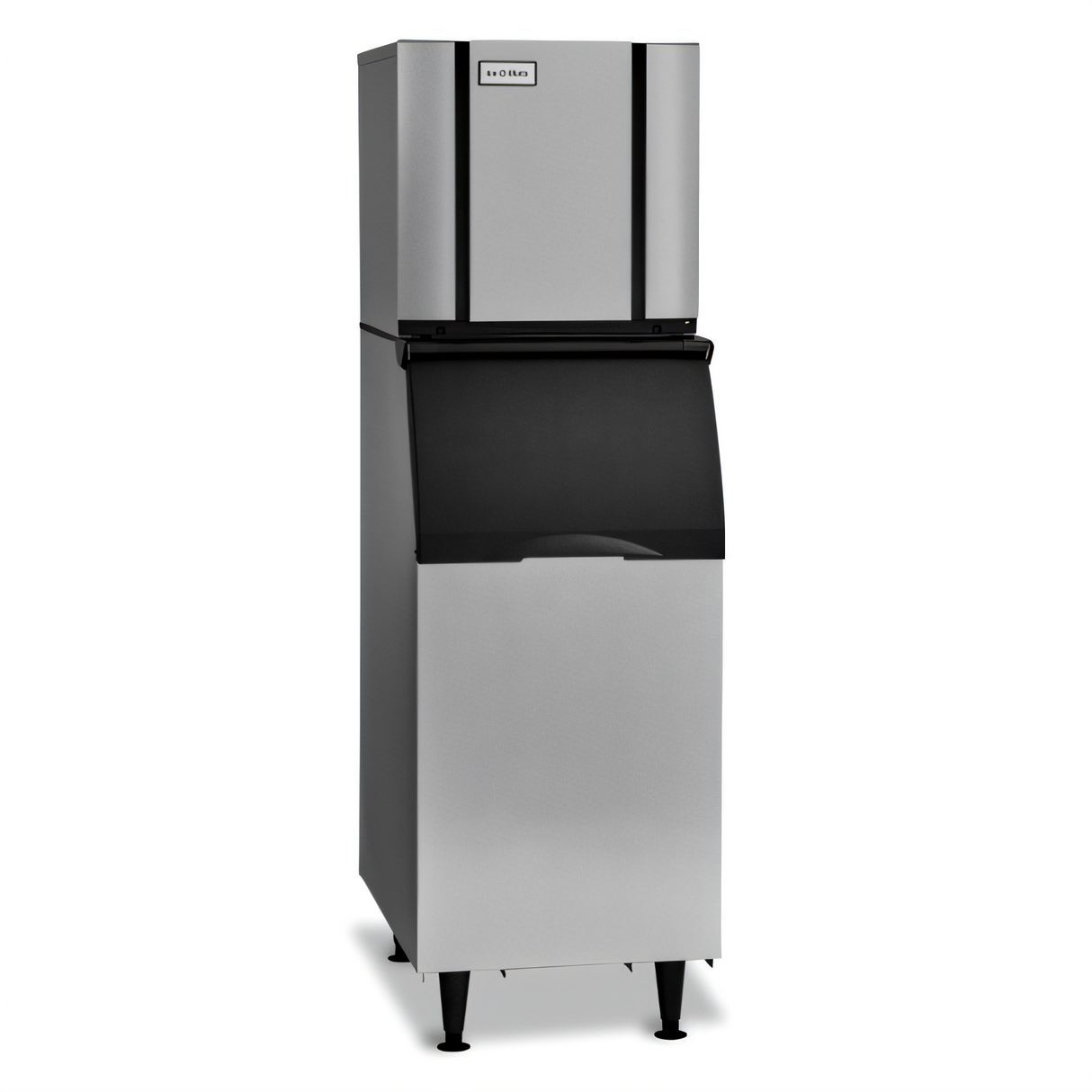

Ice-O-Matic Elevation Series™ CIM0520A Modular Cube Ice Maker
22" Air-Cooled • 561 lb / 24 hr • Half-Size CubesEngineered for high-volume output in a compact 22" footprint, the CIM0520A delivers more ice, easier cleaning, and lower utility costs—perfect for restaurants, bars, healthcare, and convenience stores.
Why You’ll Love It
- Produces up to 561 lb (254 kg) of crystal-clear half cubes in 24 hours (420 lb at 90 °F / 70 °F).
- Space-saving 22.25" wide design fits narrow 22" bins & beverage dispensers.
- Dual top & side exhaust increases placement flexibility and prevents hot-air recirculation.
- Patented PURE ICE® Agion® antimicrobial protection is built into all food-zone components.
- One-touch sanitize & descale plus snap-in, dishwasher-safe parts cut cleaning time by 1/3.
- Smart LED status lights and Universal Smart Harness™ control board for quick diagnostics.
- ENERGY STAR® qualified—exceeds 2018 DOE standards and uses BPA-free, recyclable materials.
- cULus, NSF & CE listed for global code compliance.
Ice Production
| Cube type | Half-Size Cube – 3/8" W × 7/8" D × 7/8" H (10 × 22 × 22 mm) |
|---|---|
| 70 °F air / 50 °F water | Approx. 561 lb (254 kg) / 24 hr |
| 90 °F air / 70 °F water | Approx. 420 lb (190 kg) / 24 hr |
| Energy use | 5.5 kWh per 100 lb of ice |
| Water use | 19.9 gal potable water per 100 lb of ice |
Specifications
| Model | CIM0520A (air-cooled, self-contained) |
|---|---|
| Dimensions (W × D × H) | 22.25" × 24.25" × 21.25" (565 × 616 × 540 mm) |
| Electrical | 115 V / 60 Hz / 1-phase • 17.8 A • Dedicated circuit |
| Refrigerant | R404A |
| Air clearance | 6" (152 mm) intake & exhaust |
| Shipping weight | 165 lb (75 kg) |
| Certifications | ENERGY STAR®, cULus, NSF, CE, BPA-Free |
Compatible 22" Ice Bins
- B25PP — 242 lb storage
- B40PS — 344 lb storage
- B42PS — 351 lb storage (no adapter kit required)
- B55PS — 510 lb storage (requires KBT19 adapter)
Ice bin or beverage dispenser sold separately.
Warranty Coverage
3 years parts & labor on the complete ice maker • 5 years parts on compressor & evaporator • 7 years parts & labor on evaporator when enrolled in Ice-O-Matic’s filter program.
