Ice-O-Matic CIM0520FW Elevation Series™ Ice Machines
Description

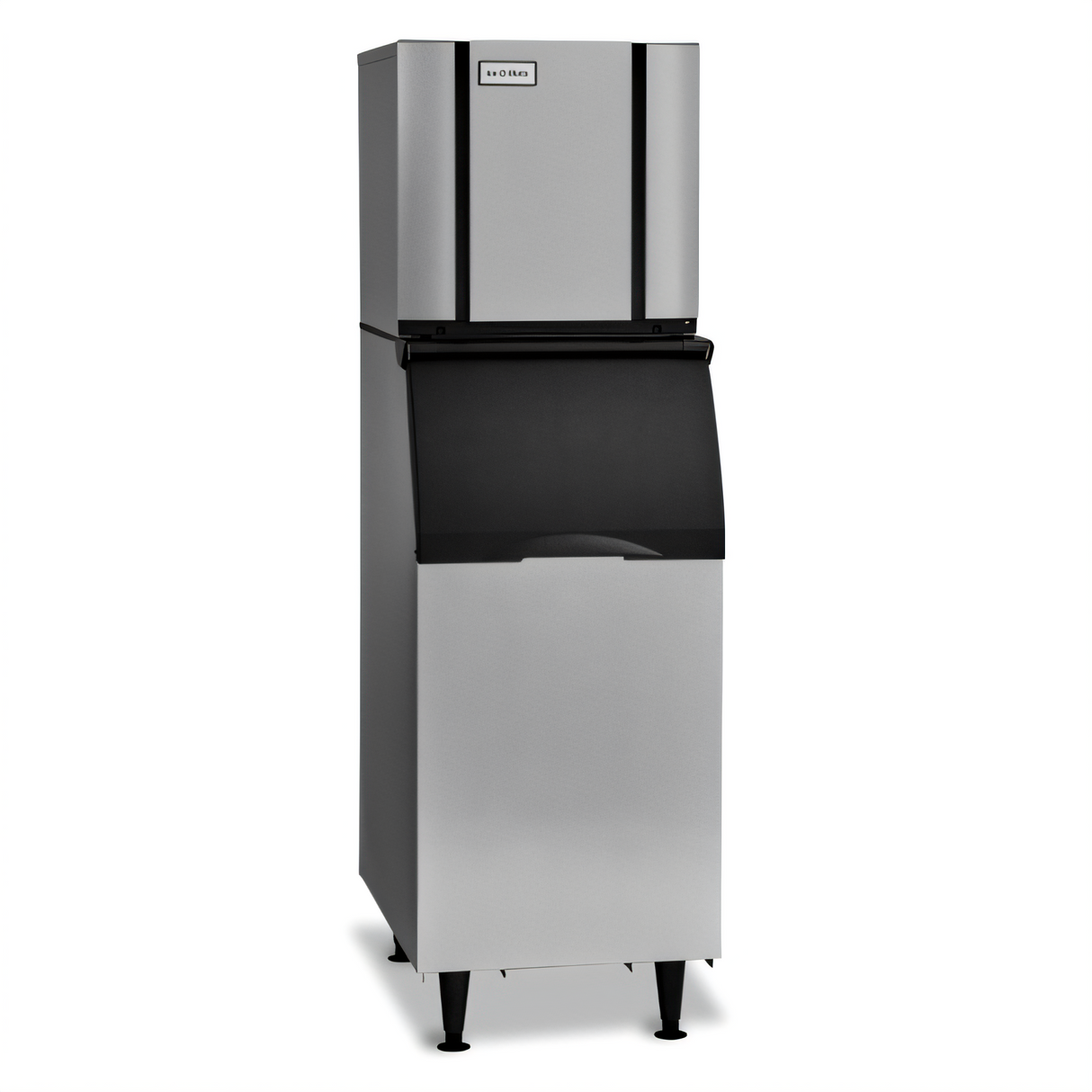

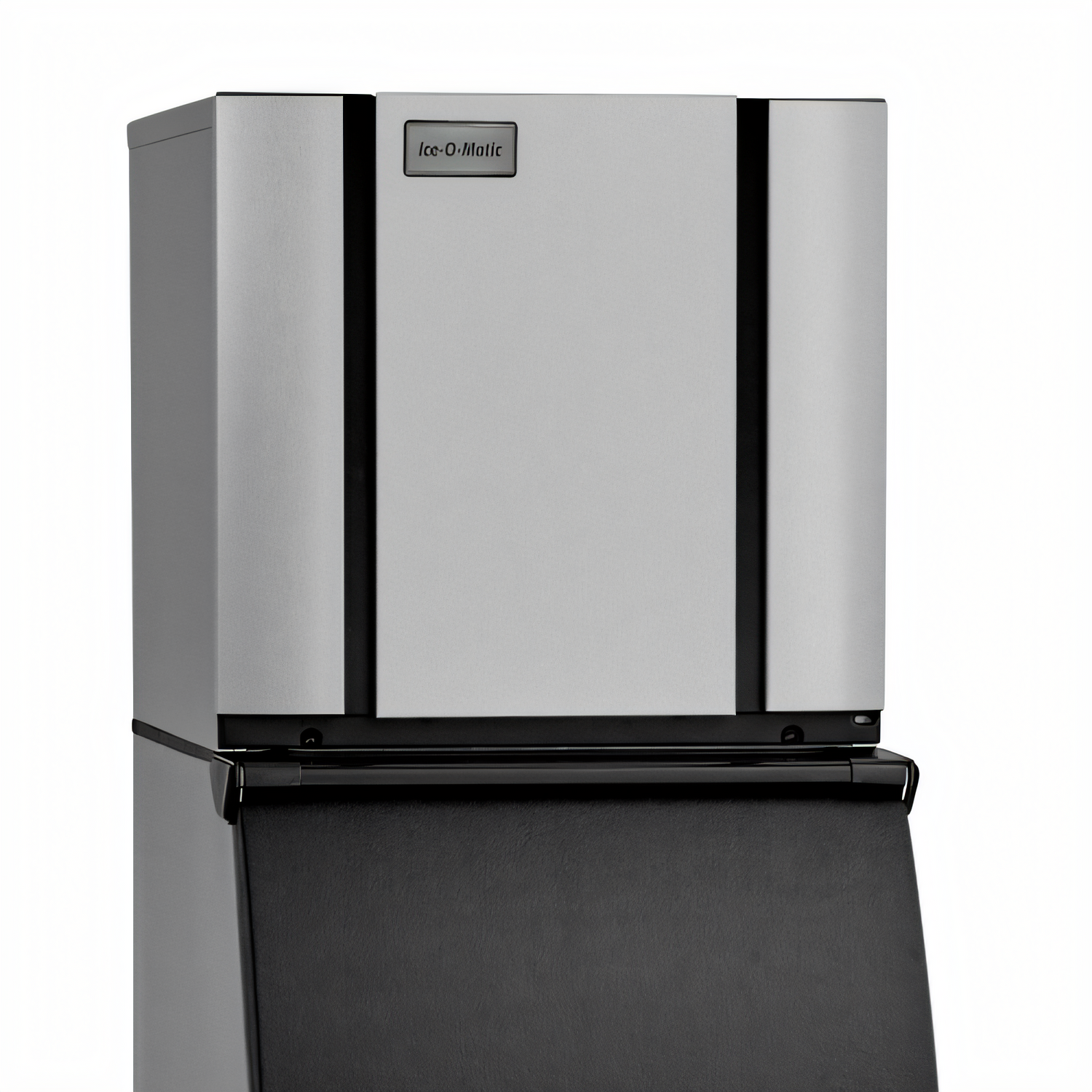

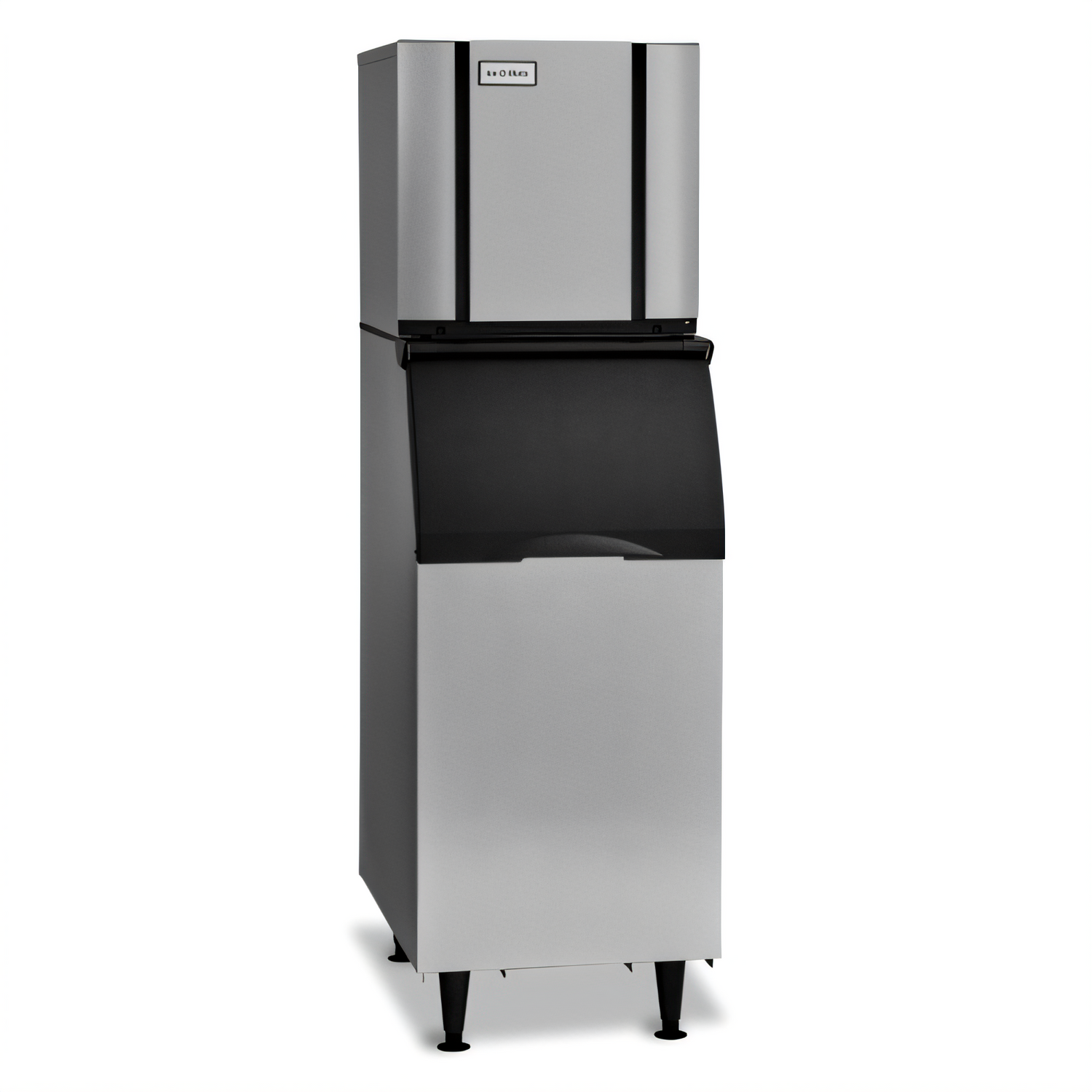

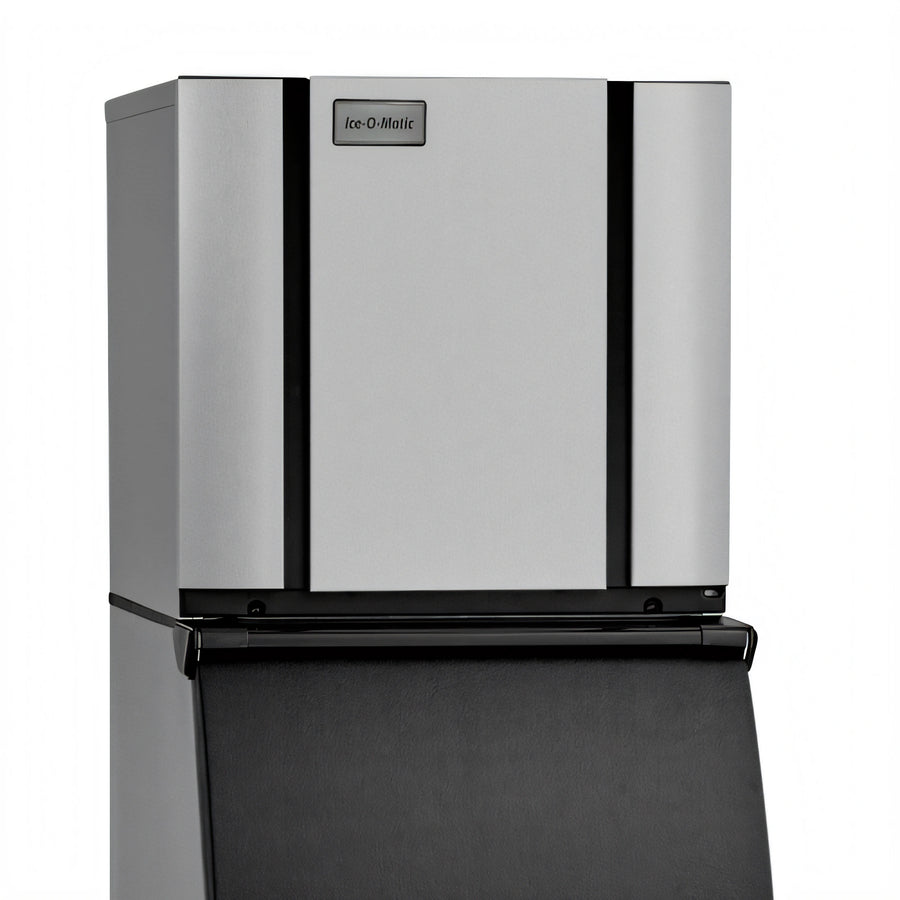

Elevation Series™ Modular Cube Ice Maker – 22" Water-Cooled
Ice-O-Matic Model CIM0520W • Up to 586 lb of full-size cubes every 24 hoursEngineered for high-volume, high-heat kitchens, the Ice-O-Matic Elevation Series CIM0520W delivers PURE ICE® quality without adding hot air to the room. A self-contained water-cooled condenser, built-in antimicrobial protection and one-touch cleaning controls make it the smartest—and easiest—way to keep full-cube ice flowing all day.
Why you’ll love it

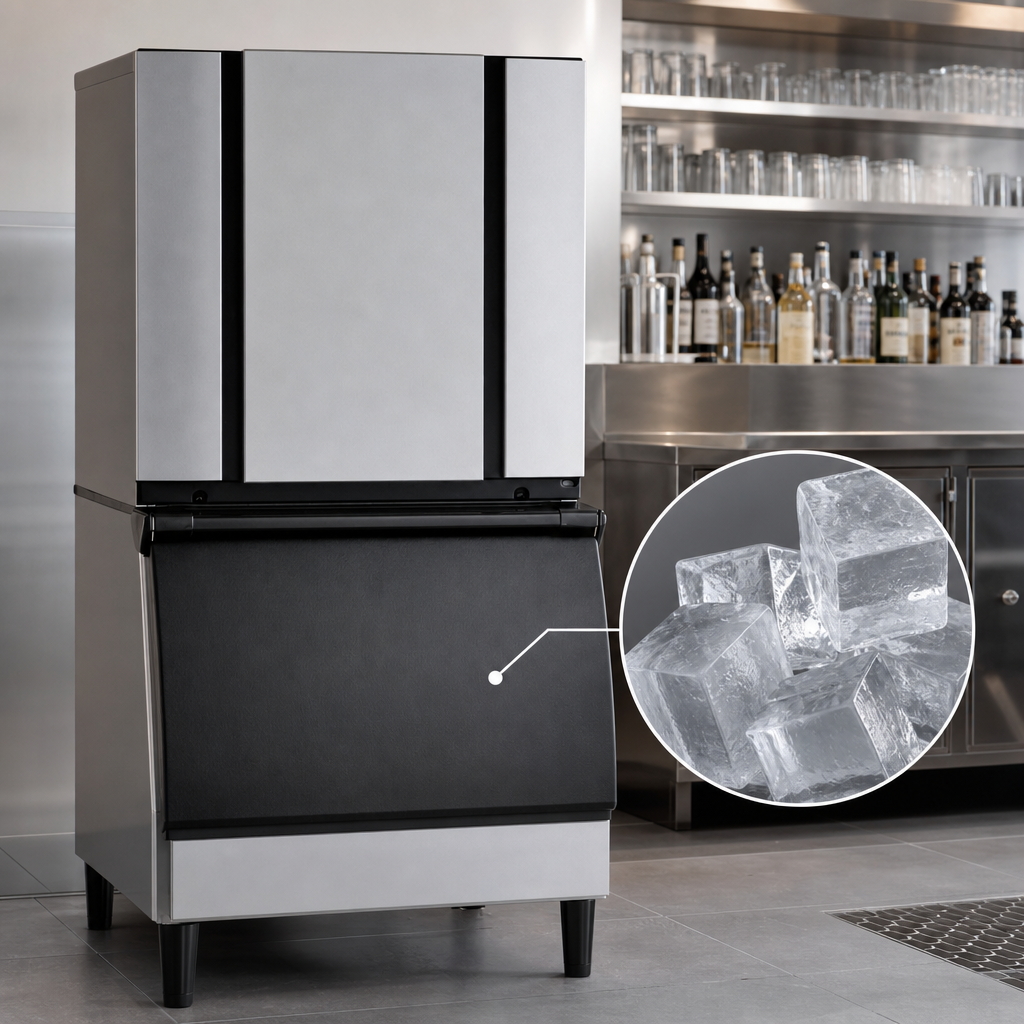

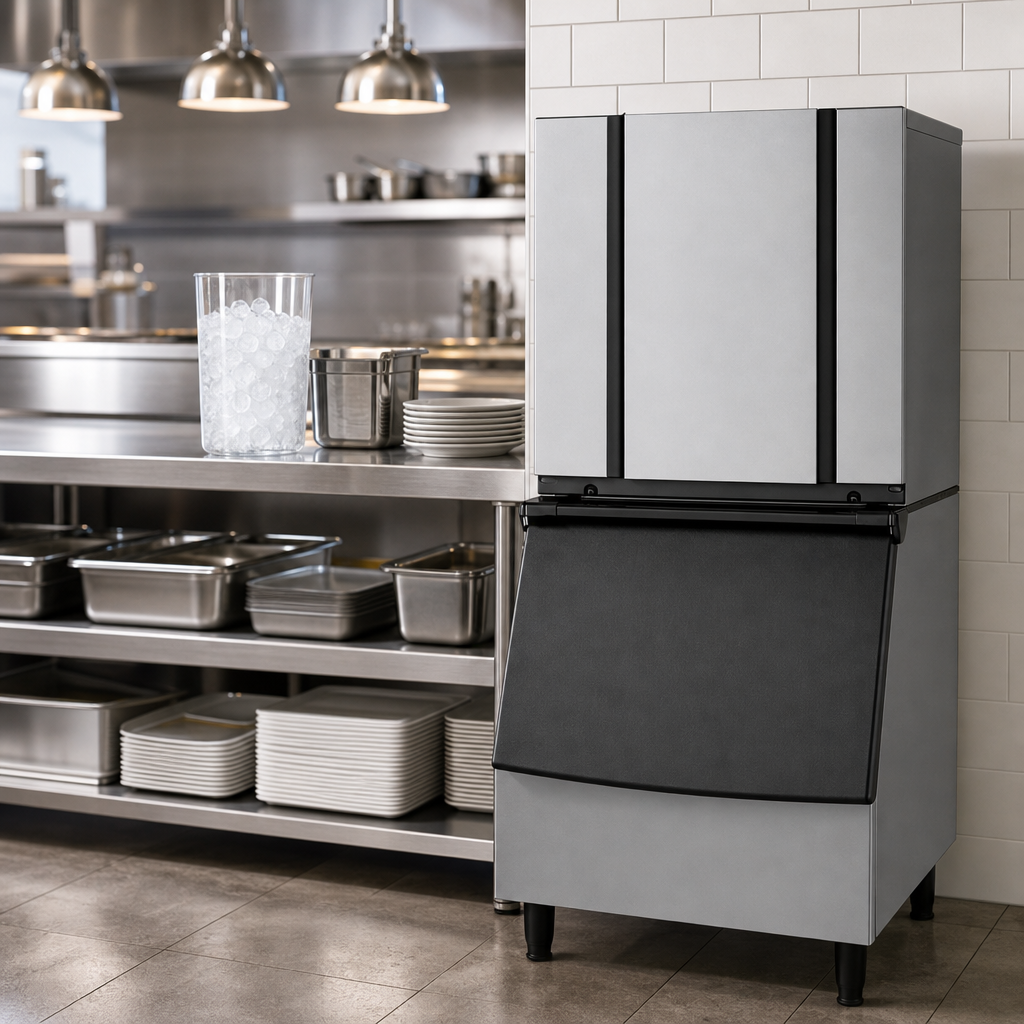

- Massive output: Produces ≈ 586 lb (266 kg) of crystal-clear full-size cubes per day (7⁄8" × 7⁄8" × 7⁄8").
- Water-cooled, self-contained condenser keeps heat and noise out of the kitchen—perfect for hot, restricted or low-ceiling spaces.
- PURE ICE® antimicrobial protection with Agion® fights bacteria & slime 24/7, baked right into the food-zone plastics.
- Tool-free food zone: BPA-free snap-in components are dishwasher safe for fast turn-around cleaning.
- One-touch sanitize & descale cycles and a smart LED status light drastically cut maintenance time.
- Universal Smart Harness™ board with digital diagnostics speeds up installation and service.
- DOE 2018 compliant & up to 20 % more efficient than earlier generations.
- Dual top/side air discharge for flexible installation (exhaust fans cool electrical compartment).
- Environmentally conscious construction—recyclable materials & BPA-free plastics.
- Certified safe: cULus, NSF, CE & BPA Free.
Technical specifications
| Ice production (70 °F air / 50 °F water) | 586 lb / 24 hr (266 kg) |
|---|---|
| Ice production (90 °F air / 70 °F water) | 470 lb / 24 hr (213 kg) |
| Ice type | Full Cube (7/8" × 7/8" × 7/8") |
| Condenser | Water-cooled, self-contained |
| Energy use | 4.7 kWh / 100 lb of ice |
| Water use – Potable | 20 gal / 100 lb of ice |
| Water use – Condenser | 181 gal / 100 lb of ice |
| Dimensions (W × D × H) | 22.25" × 24.25" × 21.25" (565 × 616 × 540 mm) |
| Electrical | 115 V / 60 Hz / 1-phase – 17.4 A (MCA) / 30 A (max breaker) |
| Refrigerant | R404A |
| Net / Shipping weight | ≈ 165 lb / 75 kg |
Popular ice-storage bin pairings
- B25 – 242 lb capacity, 30" wide (use kit KBT19)
- B40 – 344 lb capacity, 30" wide (use kit KBT19)
- B42 – 351 lb capacity, 22" wide (no kit required)
- B55 – 510 lb capacity, 30" wide (use kit KBT19)
Need more storage? Upright bins up to 1,660 lb are also compatible—ask our team for the right adapter kit.
Peace-of-mind coverage
| Ice maker | 3-year parts & labor |
|---|---|
| Compressor & evaporator | 5-year parts |
| Evaporator (with IOM filter program) | 7-year parts & labor |
Looking for an air-cooled or half-cube version? Explore the full Elevation Series in our Ice-O-Matic collection.
