Ice-O-Matic

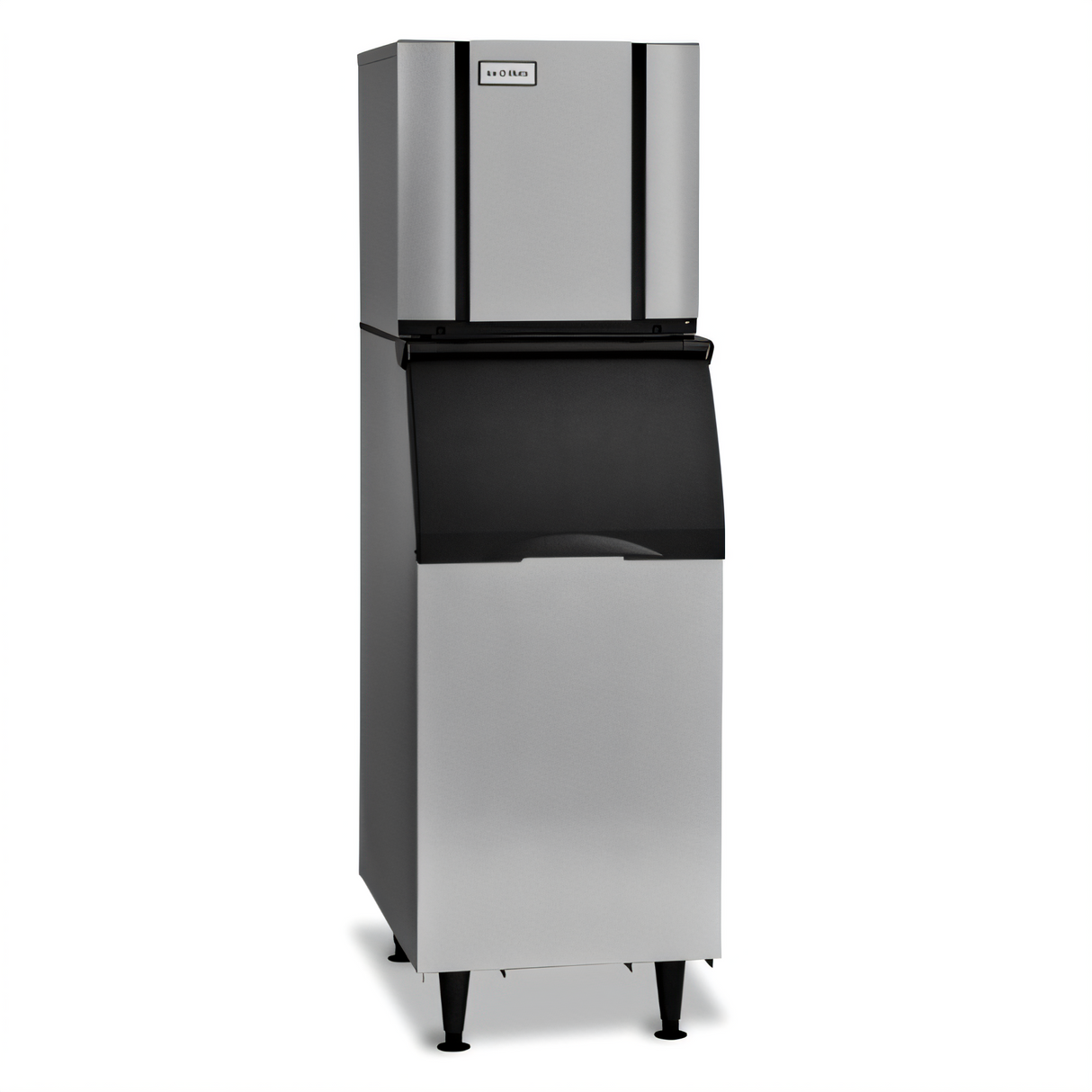

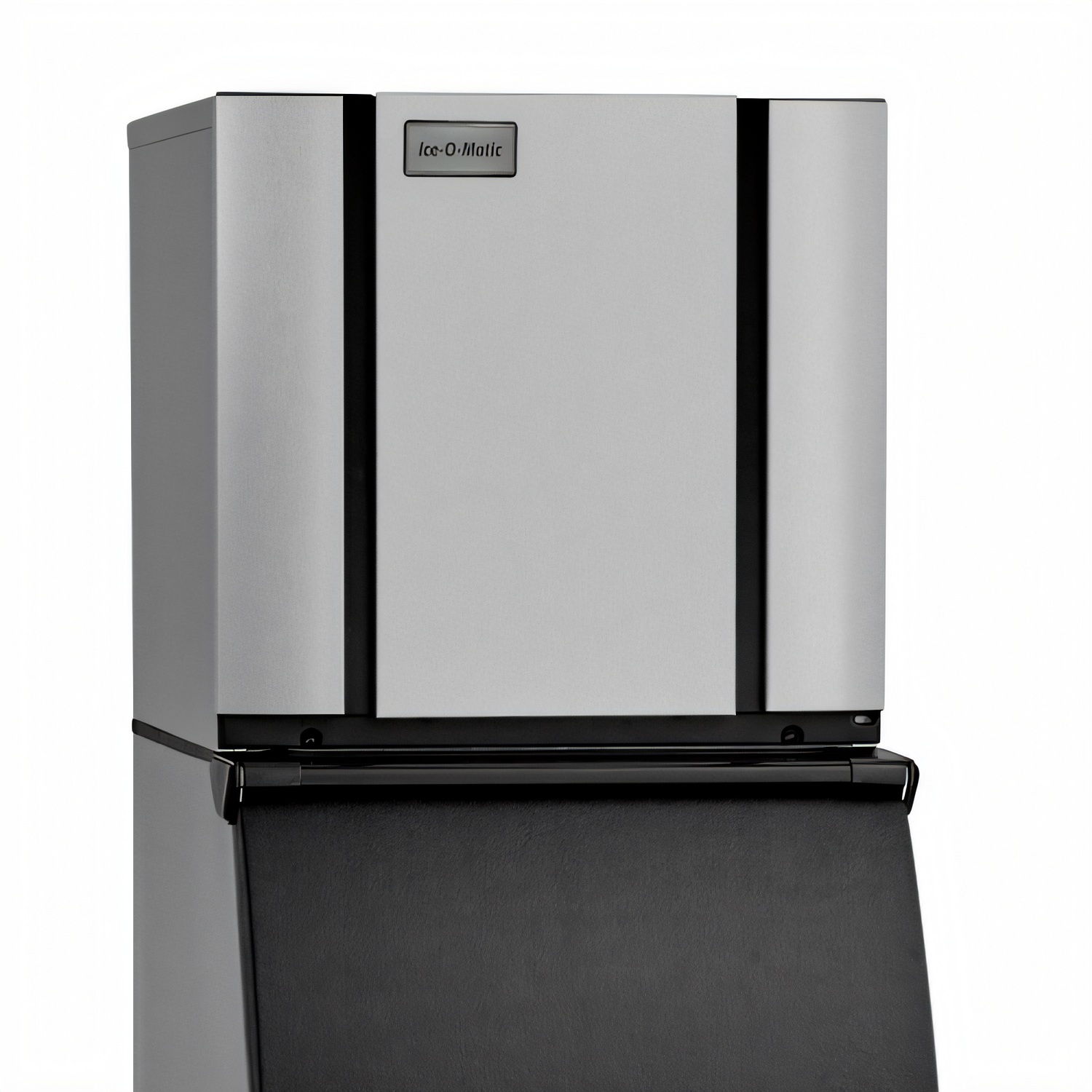

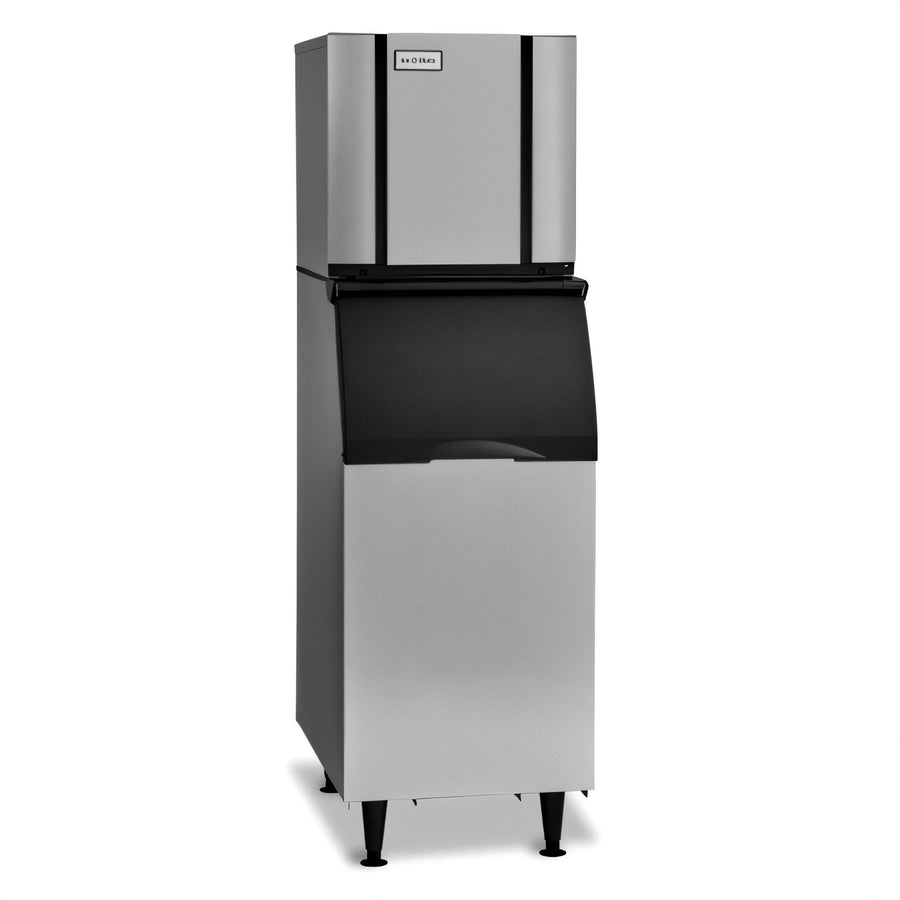

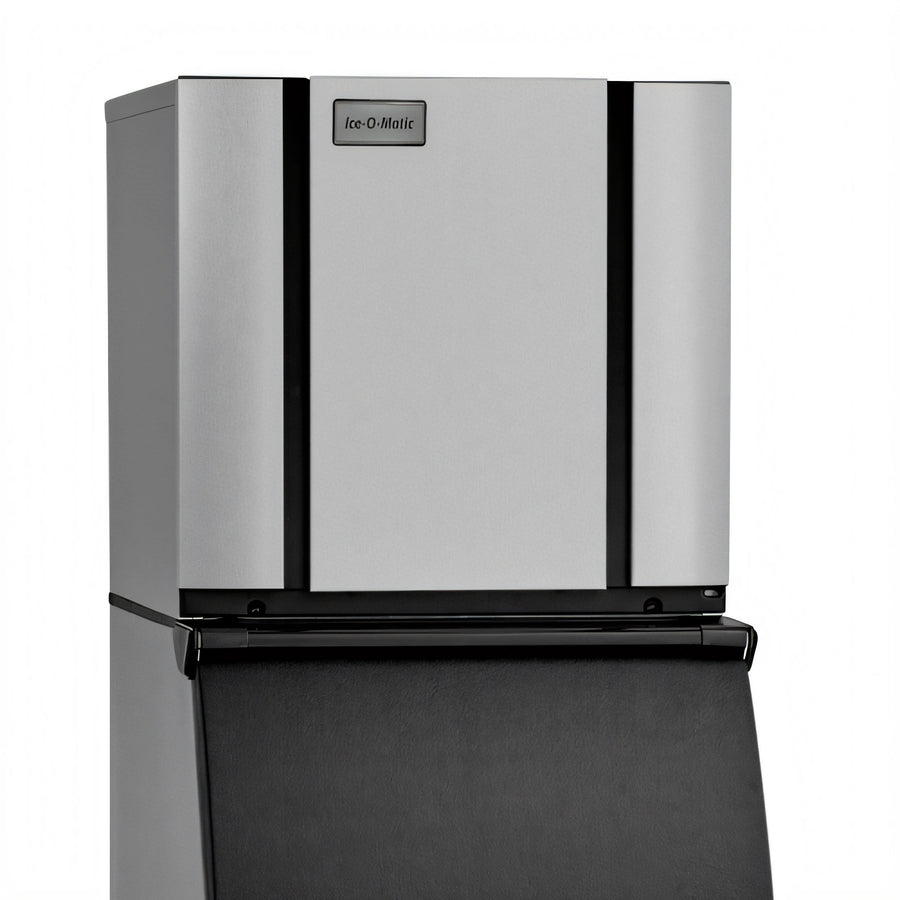

Ice-O-Matic CIM0520FA Elevation Series™ Ice Machines

SKU: CIM0520FA
$3,904.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Ice-O-Matic New Arrivals

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker

Model CIM0520A • 22 in (565 mm) air-cooled • full-cube

Produce up to 561 lb of crystal-clear, full-size cubes every 24 hours* while slashing energy costs, simplifying cleaning, and fitting in the tightest kitchen footprints. The Elevation Series™ is engineered for food-safe performance and effortless maintenance.

Why You’ll Love It

  • High output, compact footprint — 22 in wide chassis delivers 561 lb/day at 70°/50°.
  • Dual Exhaust™ design — vent hot air from the top or the side; no more corner placement headaches.
  • PURE ICE® antimicrobial protection — food-zone plastic is infused with Agion® to inhibit bacteria for the life of the machine.
  • Snap-in, dishwasher-safe food-zone parts eliminate scrubbing and speed up routine cleaning.
  • Intuitive LED status display plus one-touch sanitize & descale buttons keep sanitation on schedule.
  • Energy Star® qualified – exceeds 2018 DOE efficiency standards by up to 20 %.
  • BPA-free, recyclable materials support greener operations.

Performance at a Glance

Daily production* 561 lb (254 kg) at 70 °F air / 50 °F water
432 lb (196 kg) at 90 °F air / 70 °F water
Cube size Full cube ⅞ in × ⅞ in × ⅞ in (22 mm × 22 mm × 22 mm)
Cooling type Air-cooled, self-contained condenser
Dimensions (W × D × H) 22.25 in × 24.25 in × 21.25 in
(565 mm × 616 mm × 540 mm)
Electrical 115 V / 60 Hz / 1-ph • 17.8 A MCA • 30 A max breaker
Water usage 19.9 gal potable water per 100 lb ice
Energy usage 5.5 kWh per 100 lb ice
Refrigerant R404A

Certifications & Approvals

  • ENERGY STAR®
  • cULus & NSF listed
  • CE marked
  • BPA Free

Rock-Solid Warranty

• 3 years parts & labor on the entire ice maker
• 5 years parts on the evaporator & compressor
• 7 years parts & labor on the evaporator when enrolled in Ice-O-Matic’s filter program

Pair It With

  • Ice-O-Matic B42PS 351-lb slope-front bin (no adapter kit required).
  • IFQ1-XL water-filter manifold for extended evaporator warranty.

*Ice production ratings are based on ambient air/water temperatures of 70 °F/50 °F. Actual performance will vary with site conditions.
Storage bin, water filter, and installation hardware sold separately. Maintain 6 in (152 mm) air clearance on both exhaust sides.

Overall Dimensions:

27.0"W x 25.0"D x 27.0"H

Product Weight:

139.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus", "BPA Free", "ENERGY STAR"]
Height 27.0in
Width 27.0in
Depth 25.0in
Shipping Weight 139.0lbs
Width (side - side) 20 - 29" wide
Refrigeration self-contained refrigeration
Condenser Type air-cooled
Ice Type full size / dice cubes
Energy Efficiency ENERGY STAR®
Production per 24 hr 501 - 600 lb = 228 - 272 kg
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Slope front storage bins PDF Download PDF Diagram PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Web site PDF Download PDF Warranty sheet PDF Download
