Ice-O-Matic CIM0436HW Elevation Series™ Ice Machines
Description

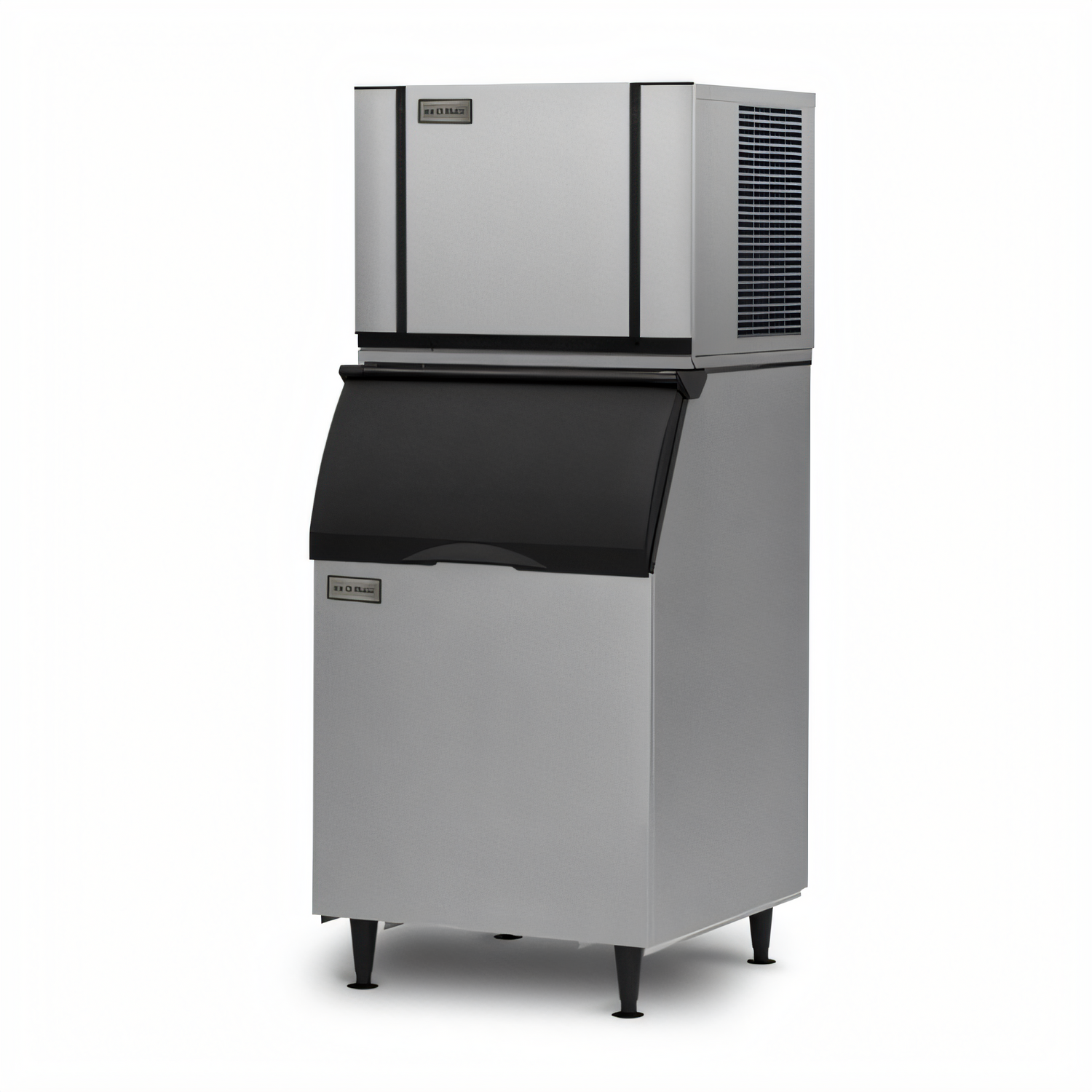

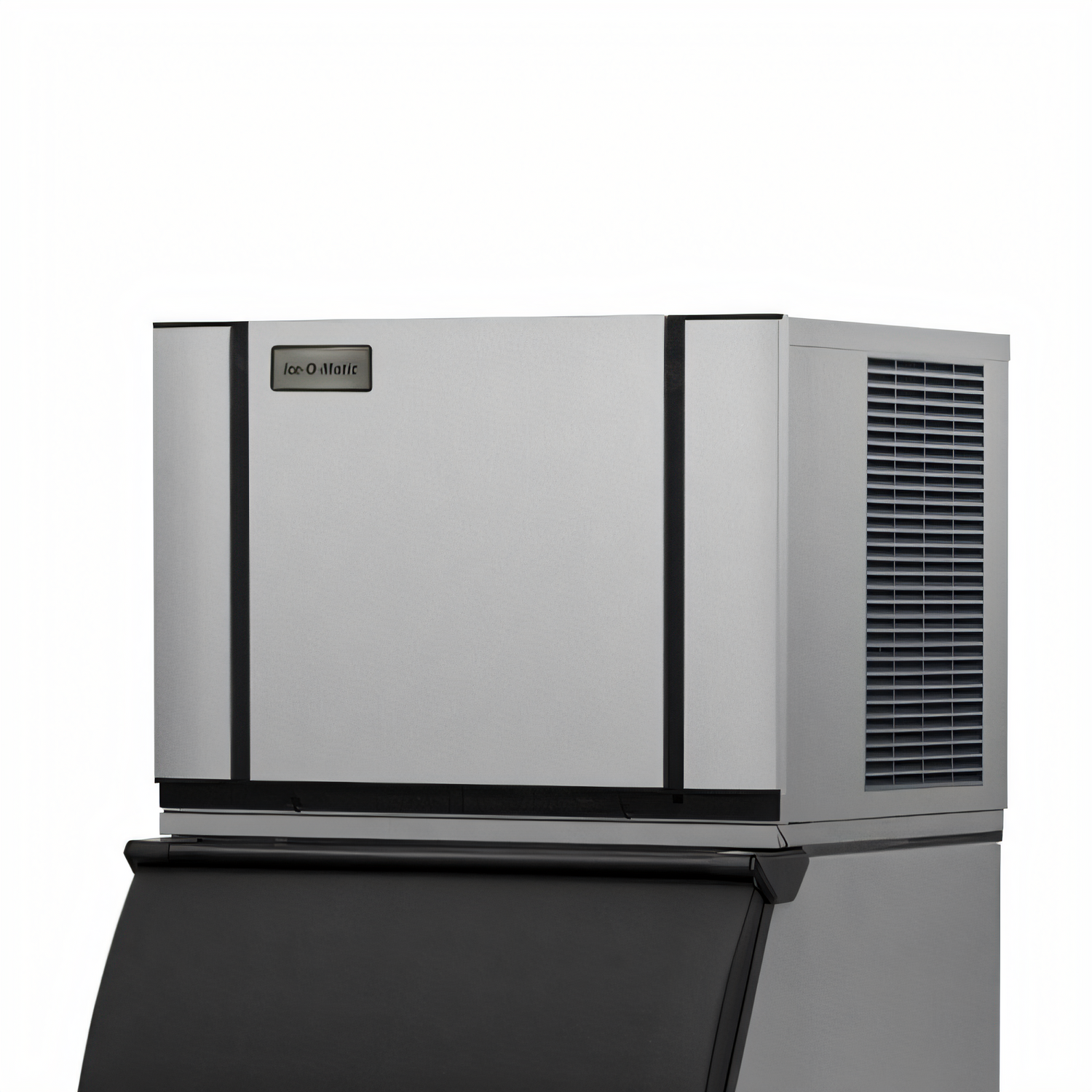

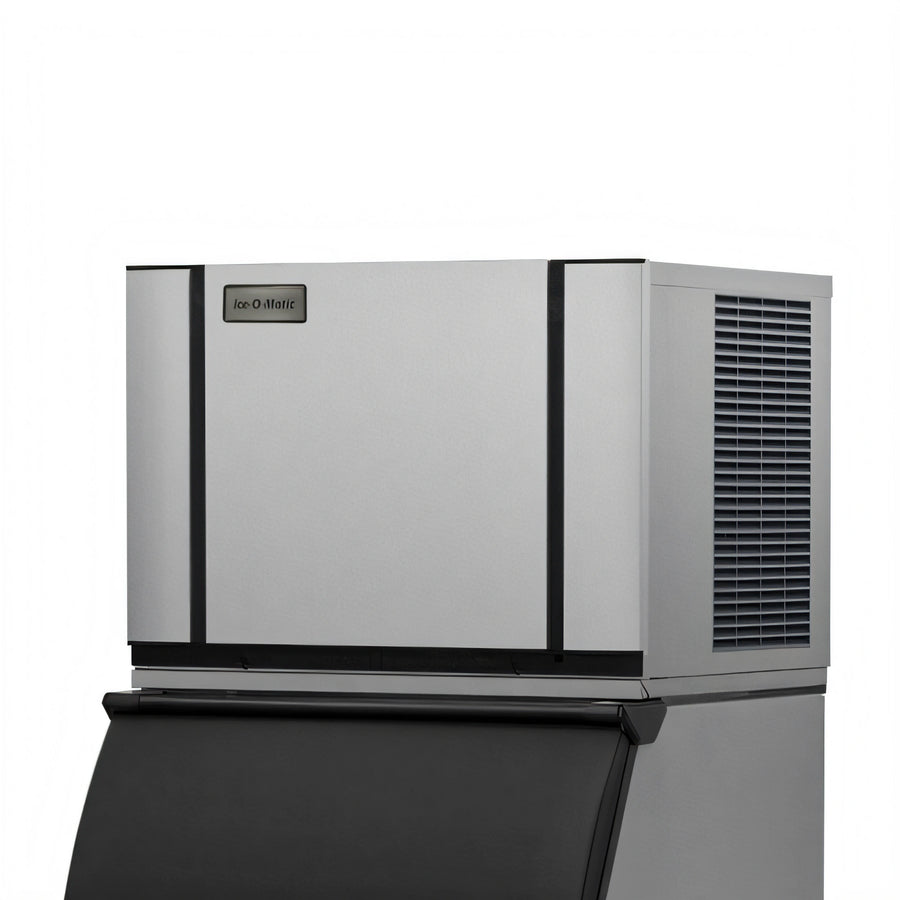

Ice-O-Matic Elevation Series™ 30″ Modular Cube Ice Maker – Water-Cooled
Model CIM0436W • Half-Cube Production • 500 lb/24 hr*Designed for high–volume beverage service, the Elevation Series™ water-cooled cube ice maker delivers up to 500 lb of pure, crystal-clear half-size cubes every 24 hours while setting a new benchmark for sanitation, energy efficiency and operator-friendly maintenance.
Key Advantages
- PURE ICE® antimicrobial protection is molded directly into every food-zone component for round-the-clock defense against mold, mildew and bacteria.
- One-touch cleaning – dedicated buttons activate automated sanitize and descale cycles, verified by an easy-read LED status display.
- Dishwasher-safe food zone – BPA-free, snap-in/snap-out parts remove in seconds for worry-free cleaning; no tools, no brushes.

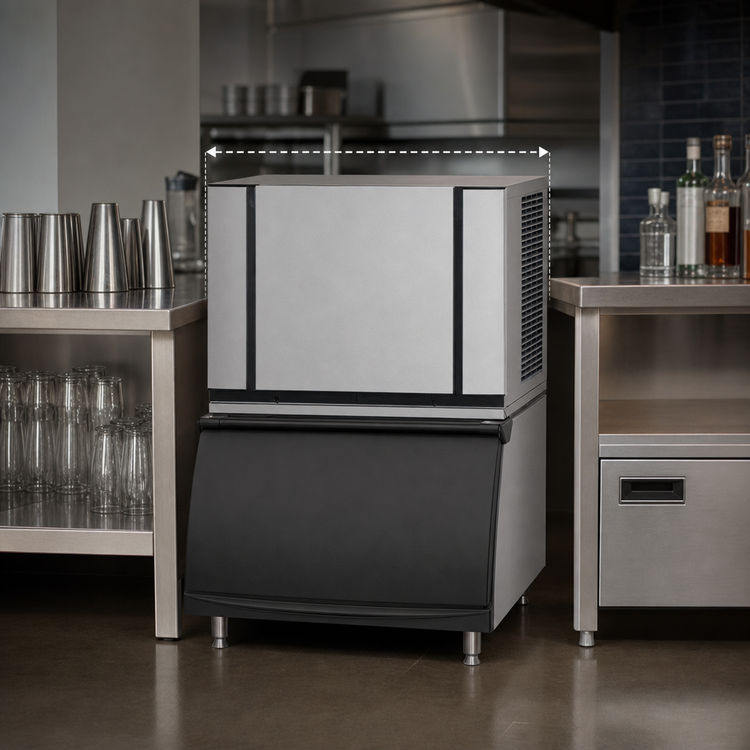

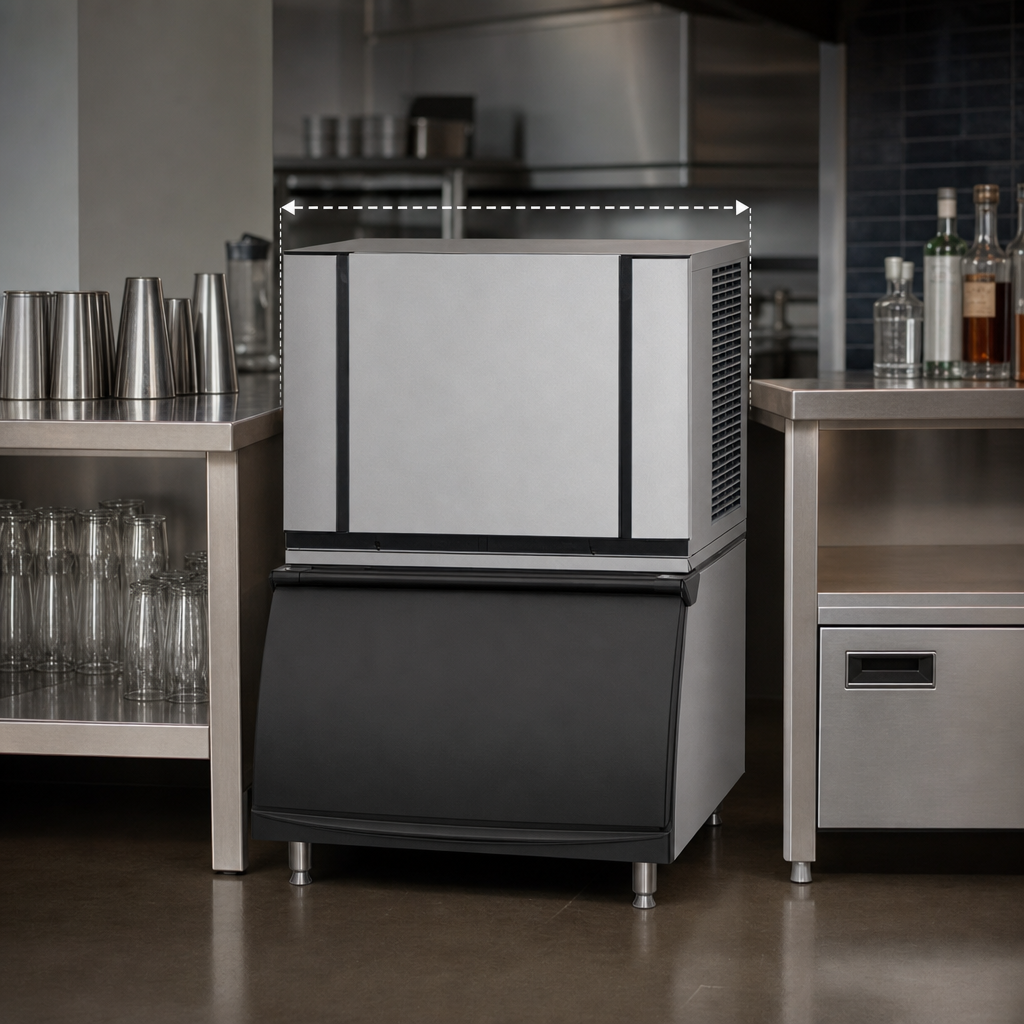

- Compact 30″ (762 mm) footprint pairs with most 30″ Ice-O-Matic bins and beverage dispensers for maximum back-of-house flexibility.
- Exceeds 2018 DOE efficiency standards – up to 20 % more energy efficient than similar models.
- Universal Smart Harness™ simplifies installation and service with digital diagnostics and common components.
- Certified safe – cULus, NSF, CE listed & BPA-Free construction.
Performance & Specifications
| 24-Hr Production | 500 lb (227 kg) @ 70 °F air / 50 °F water 420 lb (191 kg) @ 90 °F air / 70 °F water |
|---|---|

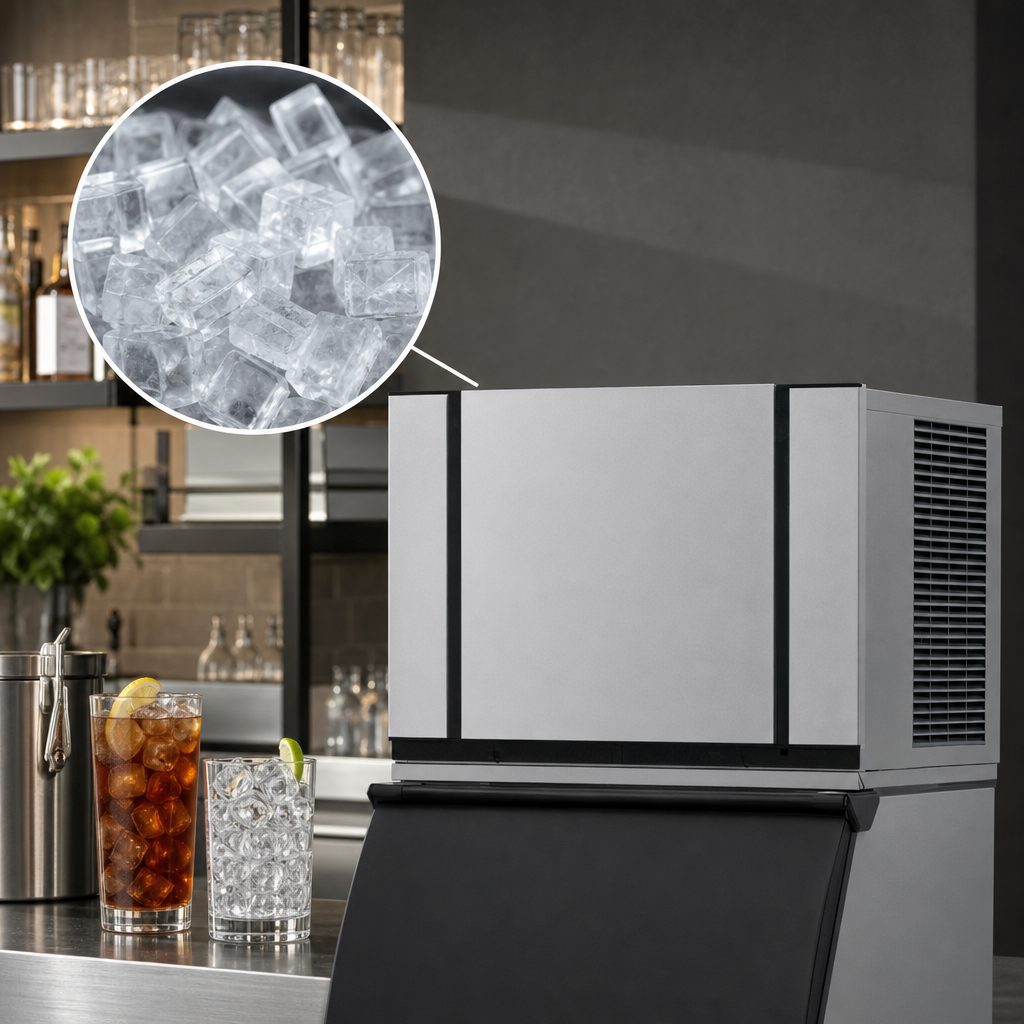

| Ice Style | Half-size cubes – ⅜″ × ⅞″ × ⅞″ (10 × 22 × 22 mm) |
| Cooling System | Self-contained water-cooled condenser |
| Dimensions (W × D × H) | 30.25″ × 24.25″ × 21.25″ (768 × 616 × 540 mm) |
| Electrical | 208-230 V / 60 Hz / 1-ph • MCA 6.1 A • Max breaker 15 A |
| Energy Use | 3.9 kWh per 100 lb of ice |
| Water Use | Potable: 17.7 gal / 100 lb • Condenser: 185 gal / 100 lb |
| Operating Limits | Ambient 50-100 °F • Water 40-90 °F • Water pressure 20-80 psi |
| Certifications | cULus, NSF, CE, BPA-Free |
Compatible Ice Storage Bins *
- B25, B40, B42, B55 slope-front bins (242-510 lb capacity)
- B110 upright bin (680 lb capacity)
- Dispenser applications: use adapter kit
KCUBEDISPB
*Bins and adapter kits sold separately.
Why Water-Cooled?

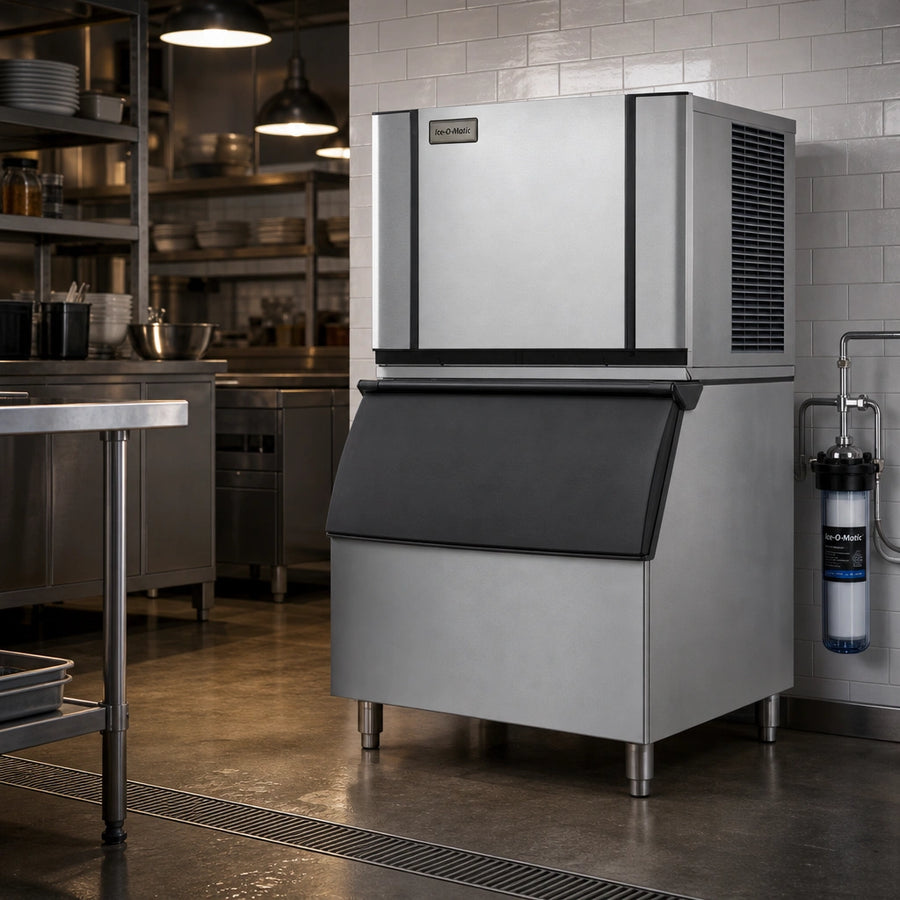

Water-cooled systems excel in hot kitchens and tight spaces where ventilation is limited, ensuring full-capacity ice production without the noise or heat of air discharge.
*Daily production ratings are AHRI-tested under standard conditions. Actual output may vary based on installation and ambient factors.
