Ice-O-Matic CIM0436HA Elevation Series™ Ice Machines
Ice-O-Matic CIM0436HA Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM0436HA Elevation Series™ Ice Machines
Description

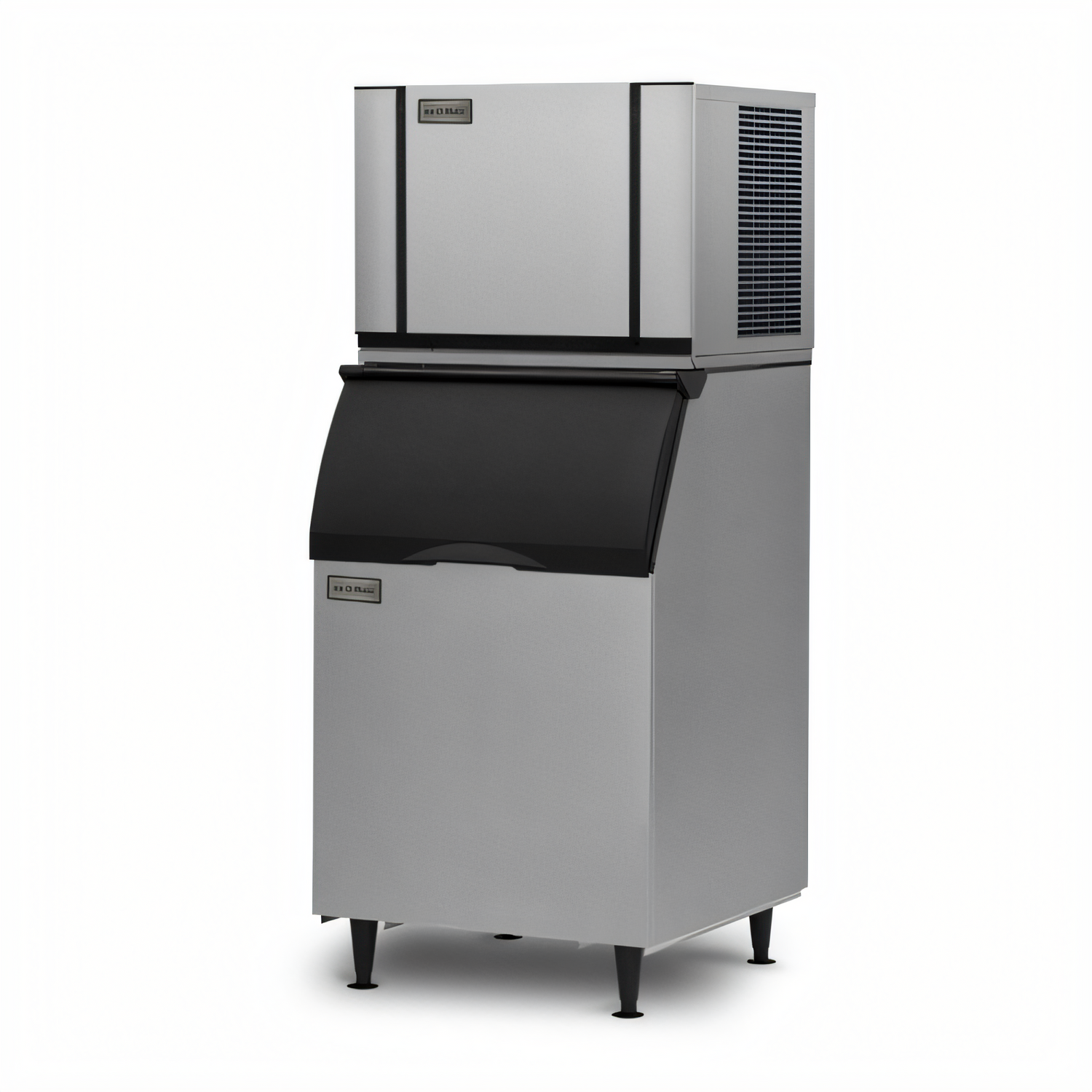

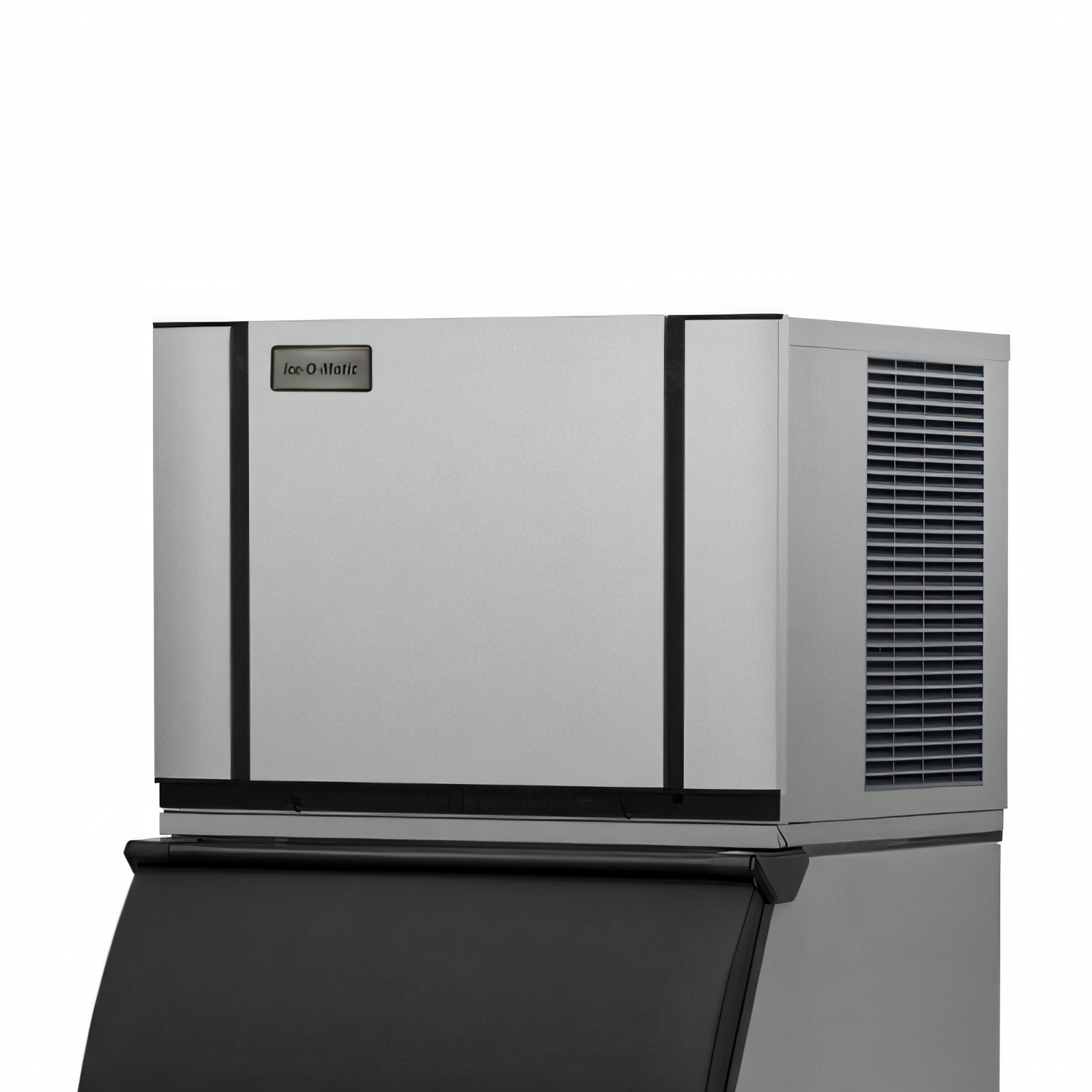

Ice-O-Matic Elevation Series™ CIM0436A Modular Cube Ice Maker

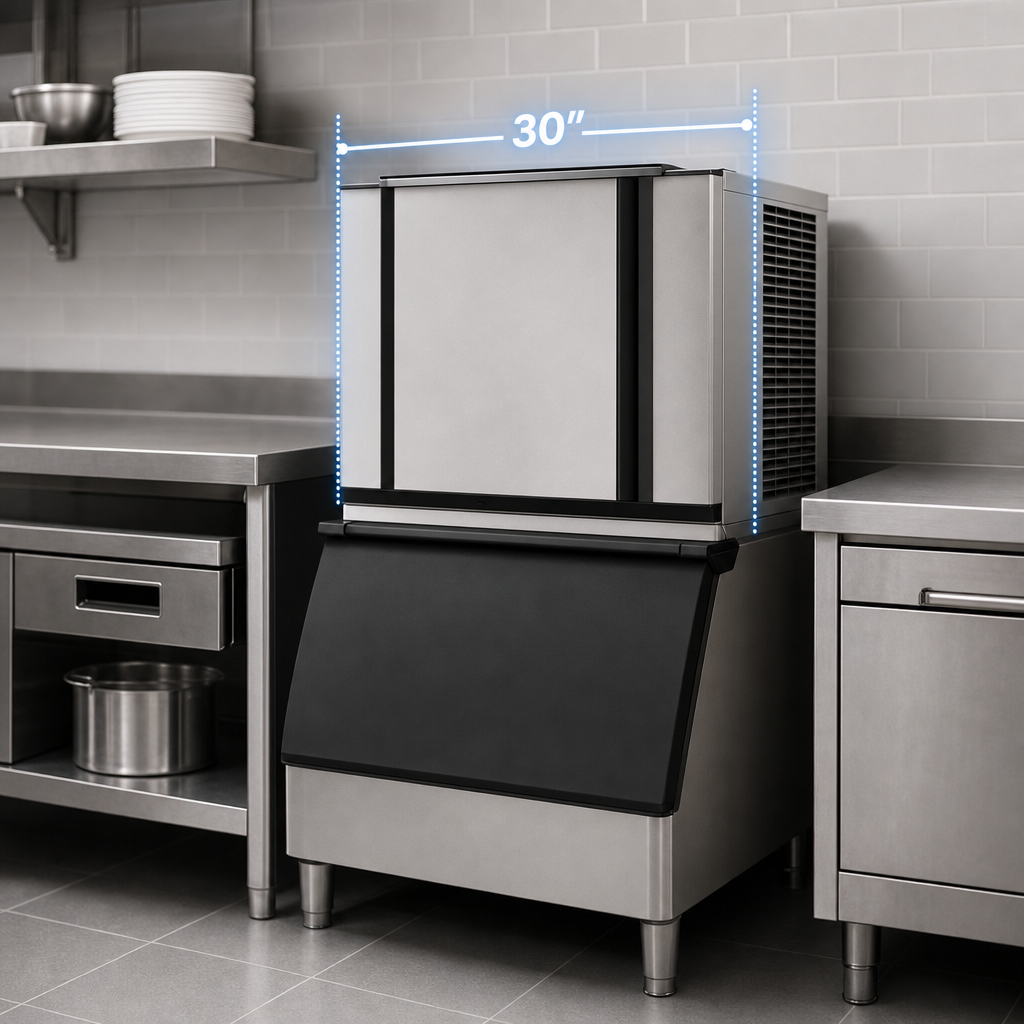

Air-Cooled • 30 in. Wide • Up to 465 lb of Half-Cube Ice Every 24 HoursEngineered for busy kitchens, bars and beverage stations, the Elevation Series CIM0436A delivers dependable, great-tasting ice while slashing energy, water and labor costs. Its patent-pending Dual Exhaust design, built-in antimicrobial protection and one-touch cleaning put productivity and food-safety on autopilot—all in a compact 30 inch footprint that fits the bins and dispensers you already own.
Key Features
- 465 lb daily ice production (375 lb at 90 °F/70 °F) of industry-preferred half-cube ice for soft drinks, tea and blended beverages.

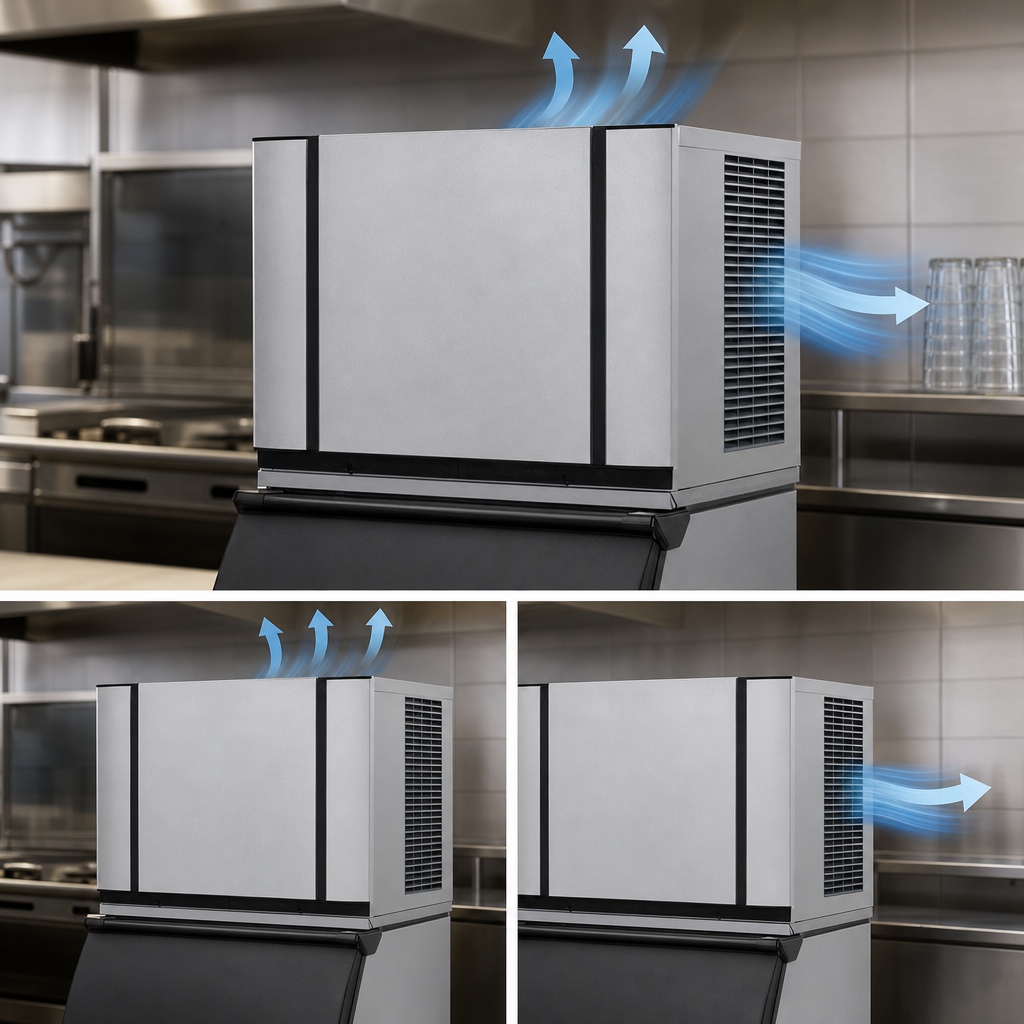

- Dual Exhaust™ sends hot air out the side or the top automatically—perfect for tight spaces with limited clearance.
- PURE ICE® antimicrobial protection (Agion®) is molded directly into food-zone components for 24/7 defense against slime and bacteria.
- One-touch sanitize & descale buttons plus a smart LED that tells staff exactly when cleaning is due.
- Snap-in, snap-out parts—the water distribution tube, curtain, bin shield and other food-zone pieces are dishwasher safe and BPA-Free.
- ENERGY STAR® certified; exceeds 2018 DOE standards and uses just 5 kWh per 100 lb of ice.
- Universal Smart Harness™ control board with digital diagnostics shortens installation and service calls.
- Flexible bin compatibility: mounts flawlessly on Ice-O-Matic B25, B40, B42, B55 or B110 bins (B110 requires BPF-1 kit).
Specifications
| Ice production (70 °F air / 50 °F water) | 465 lb (211 kg) / 24 hr |
|---|---|
| Ice production (90 °F air / 70 °F water) | 375 lb (170 kg) / 24 hr |
| Ice type / size | Half Cube • 3/8 in × 7/8 in × 7/8 in (10 × 22 × 22 mm) |
| Condenser | Self-contained, air-cooled with Dual Exhaust |
| Dimensions (W × D × H) | 30.25 in × 24.25 in × 21.25 in (768 × 616 × 540 mm) |
| Clearance | 6 in (152 mm) air intake / exhaust |
| Electrical | 208–230 V / 60 Hz / 1-Phase • 6.3 MCA |
| Energy use | 5.0 kWh per 100 lb of ice |
| Water use (potable) | 18 gal per 100 lb of ice |
| Operating ambient | 50–100 °F (10–38 °C) |
| Water pressure | 20–80 psi (1.4–5.5 bar) |
| Certifications | cULus • NSF • CE • ENERGY STAR® • BPA-Free |
| Warranty | 3-yr parts & labor on ice maker 5-yr parts on evaporator & compressor 7-yr parts & labor on evaporator (with Ice-O-Matic filter program) |
Ice storage bin, water filter system and installation kit sold separately. Professional installation and regular sanitization are required to maintain warranty coverage.
