Ice-O-Matic  |  Elevation Series™  |  SKU: CIM0436FA

Ice-O-Matic CIM0436FA Elevation Series™ Ice Machines

$4,329.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Service manual Slope front storage bins Diagram Brochure Owner's manual Web site Warranty sheet
Related Searches
Ice Machines Ice Makers & Bins

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

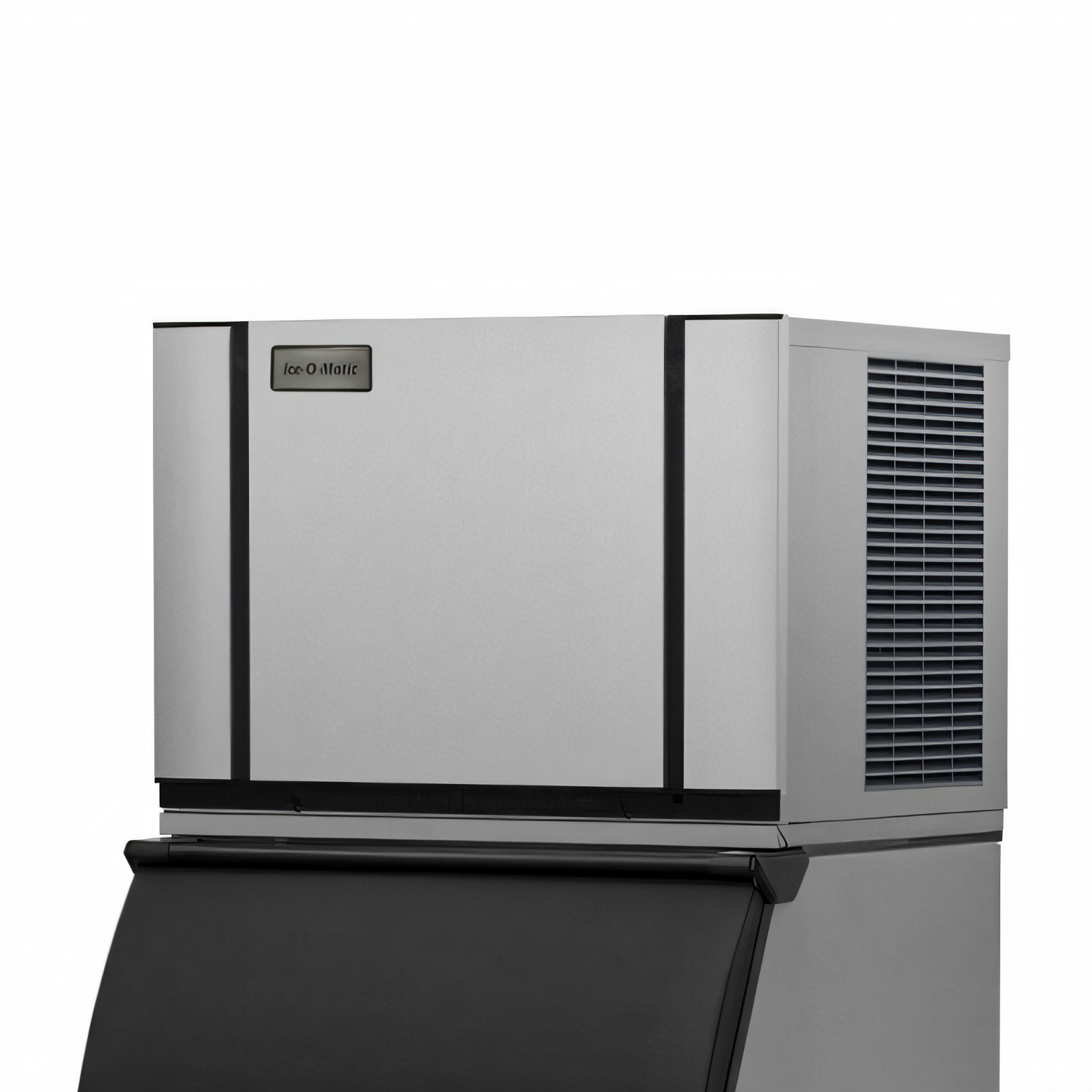

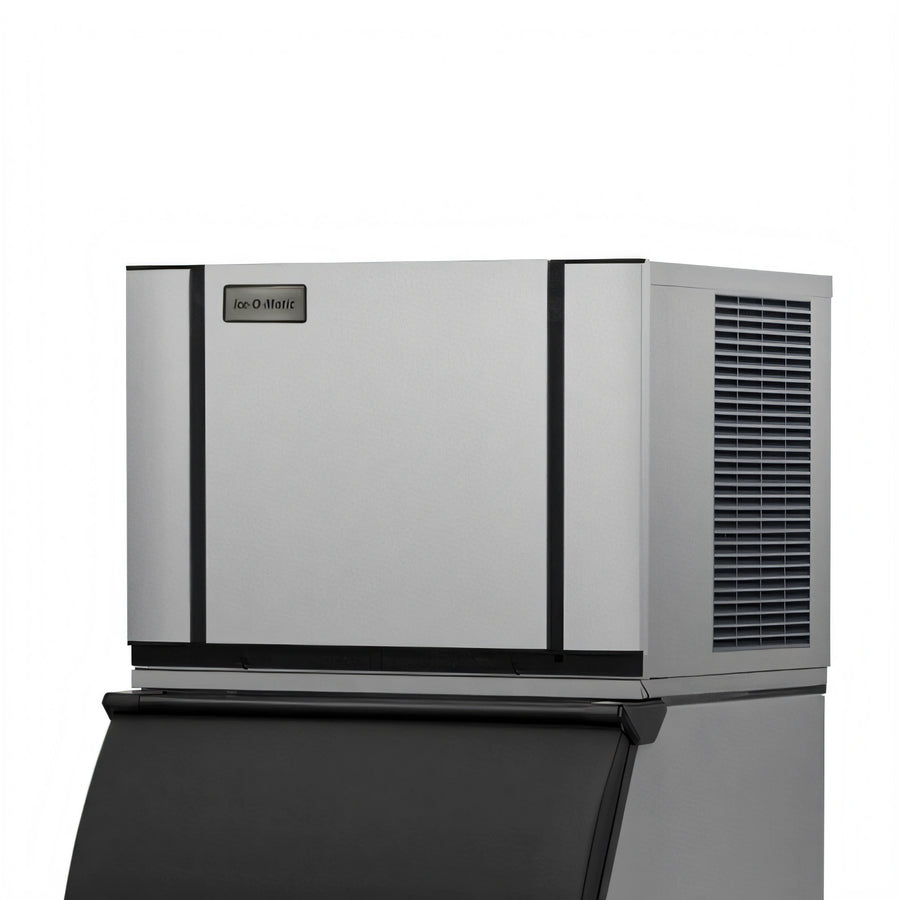

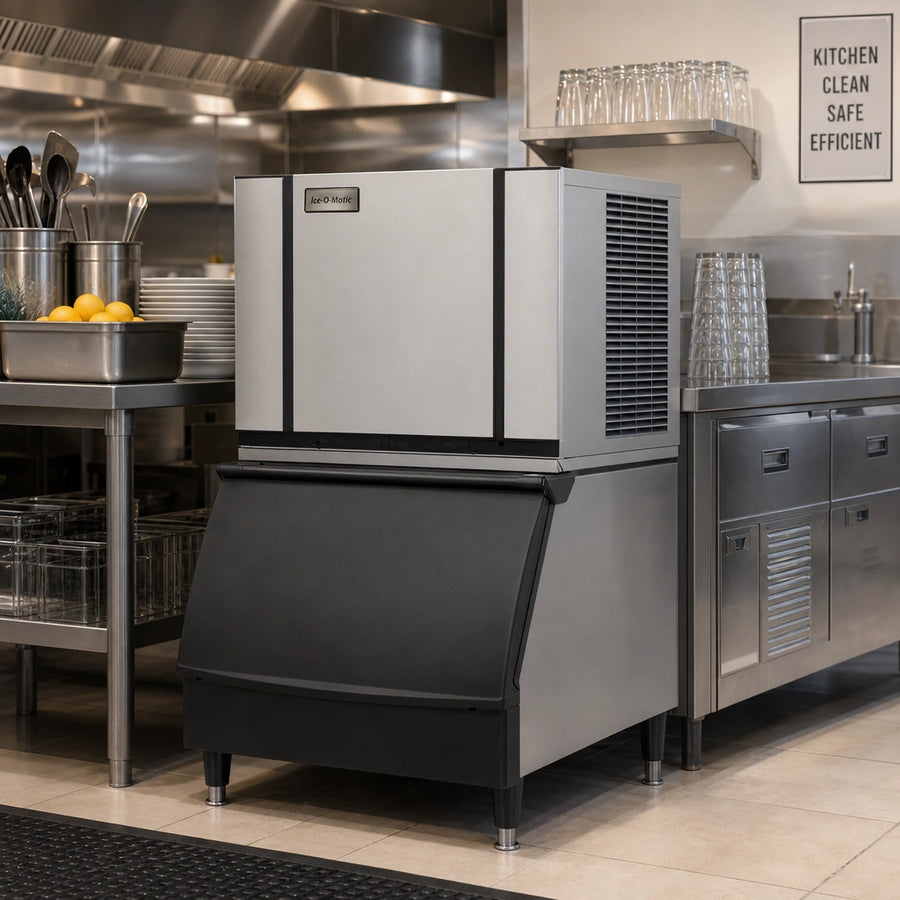

Ice-O-Matic Elevation Series™ CIM0436A Modular Full-Cube Ice Maker

30" • Air-Cooled • Dual Exhaust • ENERGY STAR®

Produce crystal-clear, full-size cubes with an ice maker engineered for today’s high-volume kitchens and beverage programs. The CIM0436A delivers up to 465 lb of ice every 24 hours (70°F/50°F) while maintaining a compact 30-inch footprint and best-in-class energy efficiency.

Built to Boost Your Bottom Line

  • High Output, Small Space: 465 lb/day at optimal conditions; approx. 350 lb/day at 90°F/70°F.

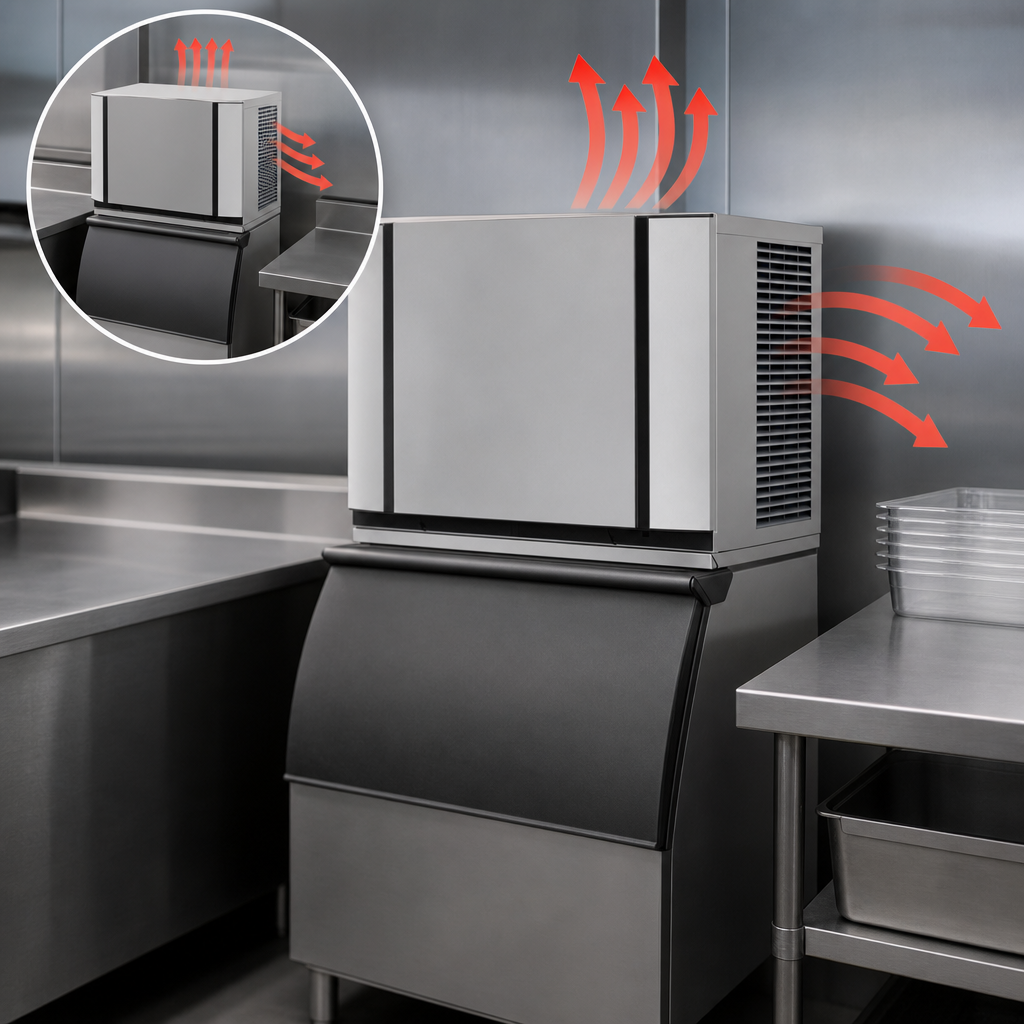

  • Dual Exhaust™ sends hot air out the top or side, letting you tuck the unit against walls or under low ceilings without overheating.
  • ENERGY STAR® qualified — exceeds 2018 DOE regulations and is up to 20 % more efficient than earlier models.
  • PURE ICE® antimicrobial protection (Agion®) is molded into key components for ongoing defense against bacteria and slime.
  • One-Touch Cleaning: separate sanitize and descale buttons cut labour time and keep ice tasting fresh.
  • Plastic Food Zone: BPA-free, crevice-free parts snap in/out and are 100 % dishwasher safe.
  • Universal Smart Harness™ control board with LED status simplifies installation and service diagnostics.

Performance & Utilities

Ice production (70°F air / 50°F water) Approx. 465 lb / 211 kg per 24 h
Ice production (90°F air / 70°F water) Approx. 350 lb / 159 kg per 24 h
Ice type & size Full cube  –  ⅞" × ⅞" × ⅞" (22 × 22 × 22 mm)

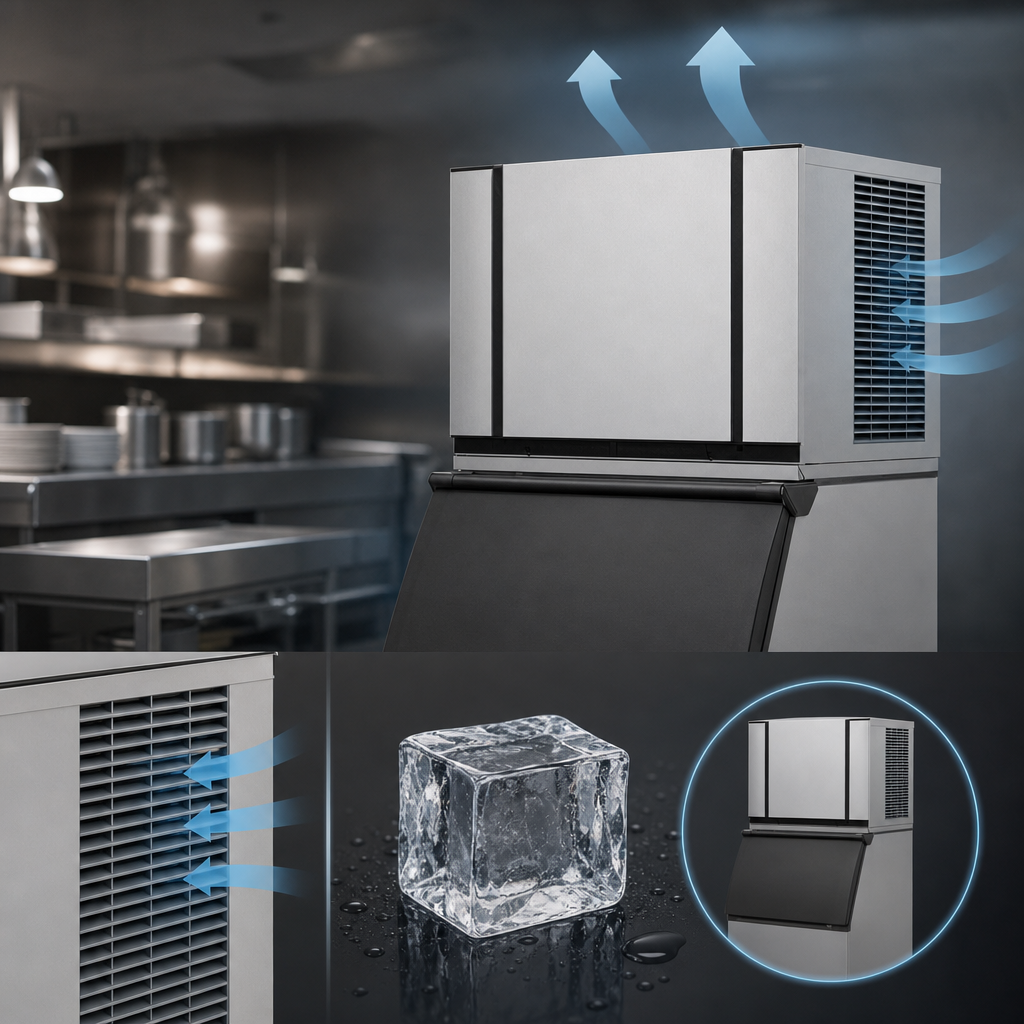

Condenser / Refrigerant Self-contained air-cooled  •  R404A
Electrical 208-230 V / 60 Hz / 1-ph  •  6.3 A MCA
Energy use 5.0 kWh per 100 lb of ice
Water use 18 gal potable water per 100 lb ice
Connections 3⁄8" FPT water in  •  ¾" FPT drain
Clearance (air intake / exhaust) 6" left & right sides
Exterior dimensions (W × D × H) 30.25" × 24.25" × 21.25" (768 × 616 × 540 mm)
Certifications cULus • NSF • CE • BPA-Free • ENERGY STAR®

Sustainable by Design

  • BPA-free, fully recyclable plastic components.
  • Factory committed to zero-waste initiatives and carbon-offset reforestation.
  • Low-GWP refrigerant option (R449A) available by special order.

Installation Ready

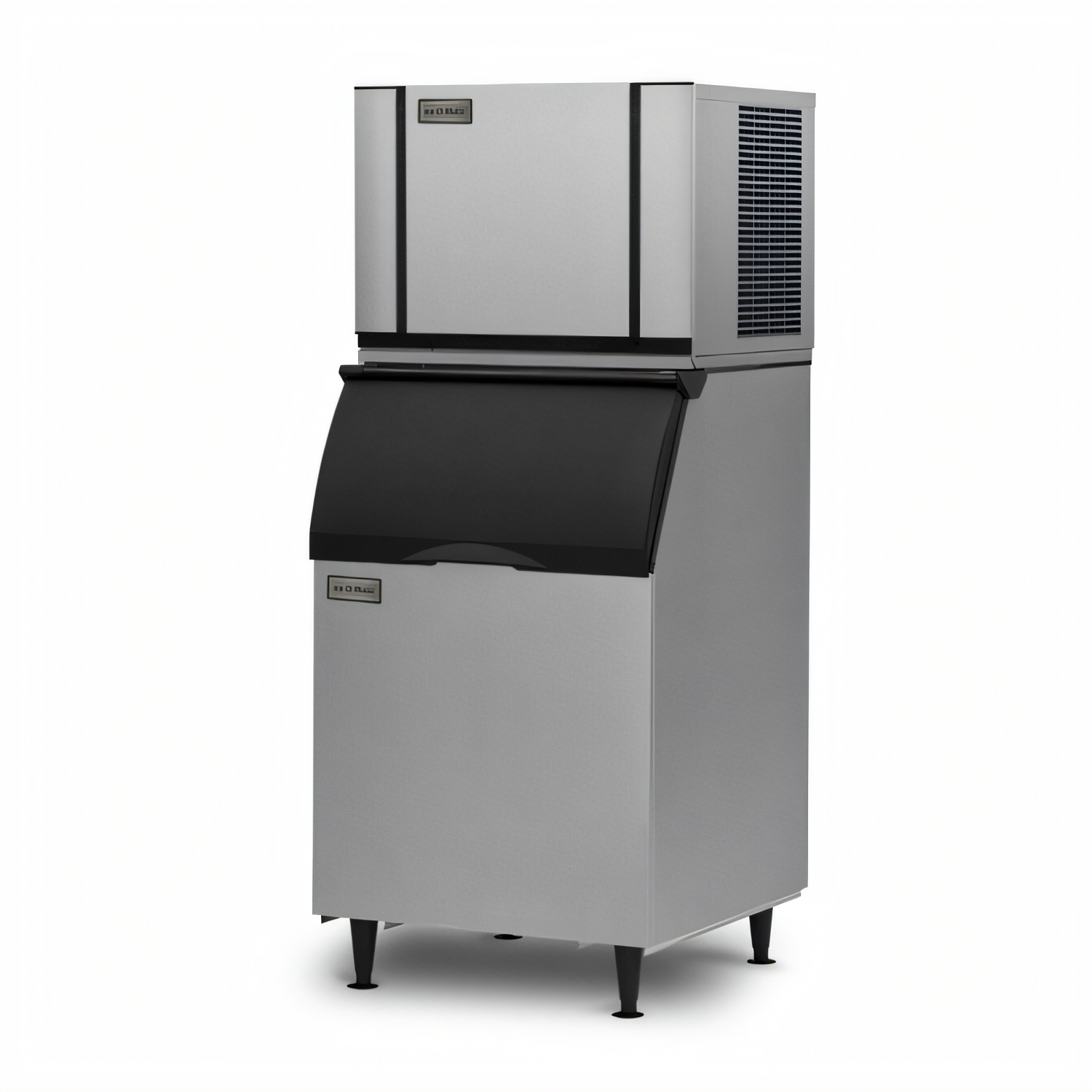

  • Compatible with Ice-O-Matic B-series slope-front and upright bins (bin sold separately).
  • Universal adapter kits available for common fountain/beverage dispensers.
  • Optional IFQ1 manifold filter extends warranty to 7 years (enroll & replace on schedule).

Industry-Leading Warranty

  • 3 years parts & labour on the entire ice maker.
  • 5 years parts on compressor & evaporator.
  • 7 years parts & labour on evaporator when enrolled in Ice-O-Matic filter program.

Ice storage bin, water filter, and SafeIce™ ozone purification system sold separately. Performance will vary based on installation conditions.

Features & Specs

Manufacturer

Ice-O-Matic

Brand_name

Elevation Series™

Certifications

NSF, CE, cULus, BPA Free, ENERGY STAR

Height

27.0in

Width

27.0in

Depth

33.0in

Shipping Weight

158.0lbs

Condenser Type

air-cooled

Width (side - side)

30 - 39" wide

Production per 24 hr

401 - 500 lb = 183 - 227 kg

Refrigeration

self-contained refrigeration

Energy Efficiency

ENERGY STAR®

Ice Type

full size / dice cubes

Specifications

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 465 lb production/24 hours at 70°/50° (350 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®
