Ice-O-Matic CIM0430HW Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ Modular Cube Ice Maker
30" Water-Cooled • Model CIM0430W • Half-Size CubesUpgrade your beverage program with the Elevation Series™ by Ice-O-Matic. Engineered for high-volume applications, this 30-inch modular head quietly turns out up to 460 lb of crystal-clear PURE ICE® every 24 hours while meeting the industry’s toughest energy, sanitation and environmental standards.
Key benefits at a glance
- Consistent output: 460 lb @ 70 °F air / 50 °F water (≈380 lb @ 90 °F / 70 °F).

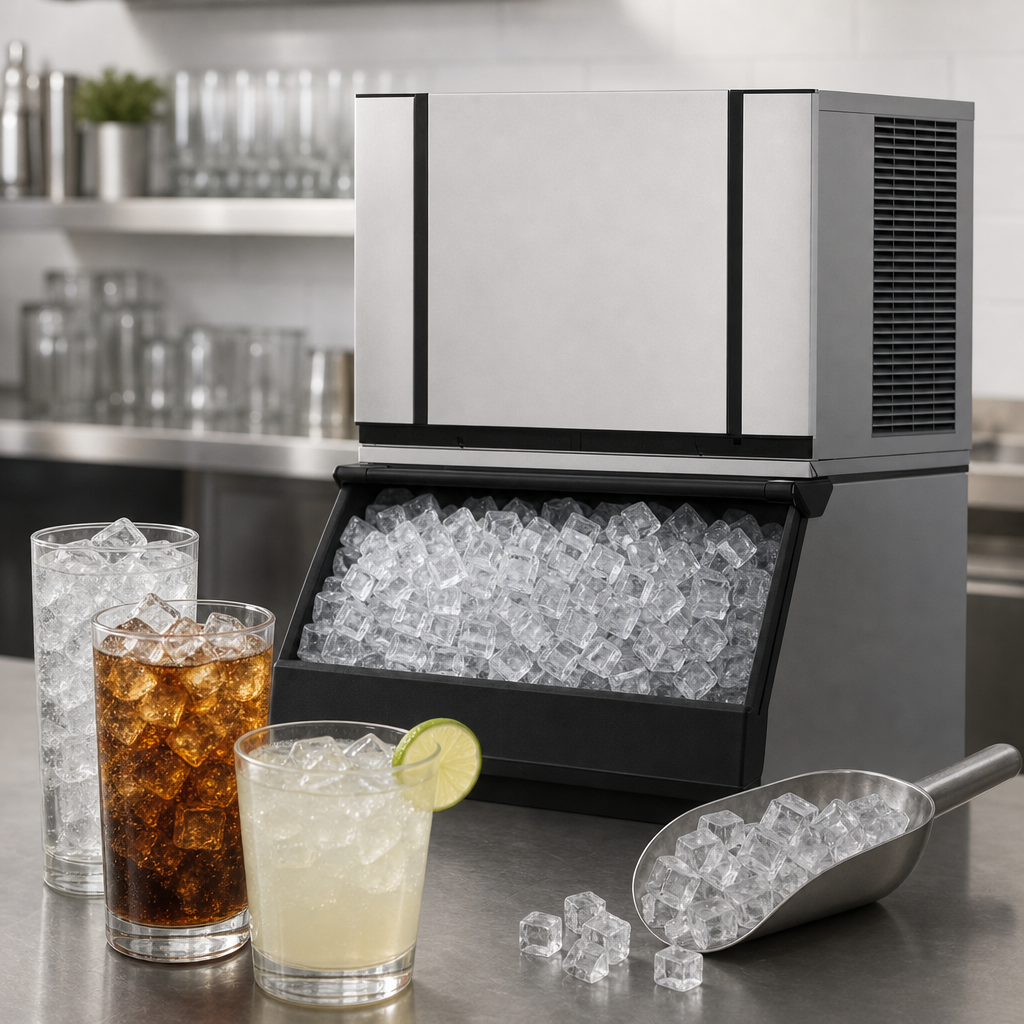

- Half-size cubes: ⅜ × ⅞ × ⅞ in. (10 × 22 × 22 mm) – the perfect balance of dilution and chill.

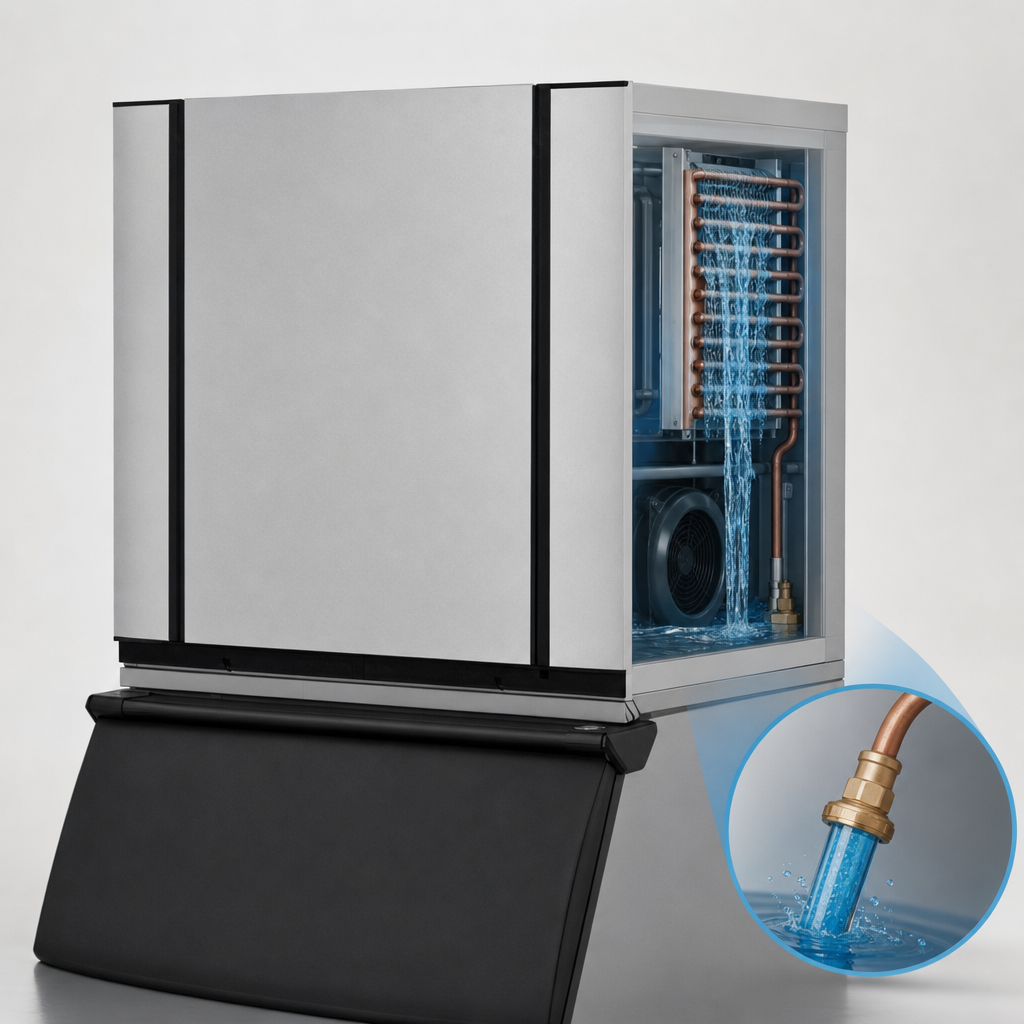

- Water-cooled, self-contained condenser for quiet, heat-free operation and flexible installation locations.
- PURE ICE® antimicrobial protection (Agion®) is molded into the food zone to inhibit bacteria for the life of the machine.
- One-touch sanitize & descale cycles plus LED status lights tell staff exactly when cleaning is needed.
- Snap-in/snap-out components are 100 % BPA-free and dishwasher safe—no brushes, no hassle.
- Universal Smart Harness™ control board provides digital diagnostics for faster service and reduced downtime.
- DOE 2018 compliant and up to 20 % more energy-efficient than previous models.
- cULus, NSF, CE listed for global regulatory peace of mind.
Technical specifications
| Ice production (70 °F air / 50 °F water) | 460 lb / 24 hr (209 kg) |
|---|---|
| Ice production (90 °F air / 70 °F water) | ≈380 lb / 24 hr (172 kg) |
| Ice style | Half-size cube – ⅜ × ⅞ × ⅞ in. |
| Condenser type | Self-contained, water-cooled |
| Refrigerant | R404A |
| Energy use | 4.3 kWh per 100 lb of ice |
| Water use (potable) | 17.8 gal per 100 lb of ice |
| Water use (condenser) | 169 gal per 100 lb of ice |
| Electrical | 115 V / 60 Hz / 1-ph • 10.7 A • 15 A breaker |
| Dimensions (W × D × H) | 30.25 × 24.25 × 21.25 in. (768 × 616 × 540 mm) |
| Shipping weight | 155 lb (70 kg) |
| Certifications | cULus • NSF • CE • BPA-Free |
Installation & compatibility
- 30-inch modular head pairs with Ice-O-Matic slope-front bins (B25, B40, B55, B110, etc.) or beverage dispensers using the appropriate adapter kit.
- Bin or dispenser sold separately.
- 3⁄8" FPT potable water in • ¾" FPT drain • 3⁄8" & ½" FPT condenser water connections.
- Factory-approved ozone (SafeIce) system available for additional sanitation assurance.
Need help sizing a bin or dispenser? Our team is happy to assist—just click “Ask a Question” or call us!
