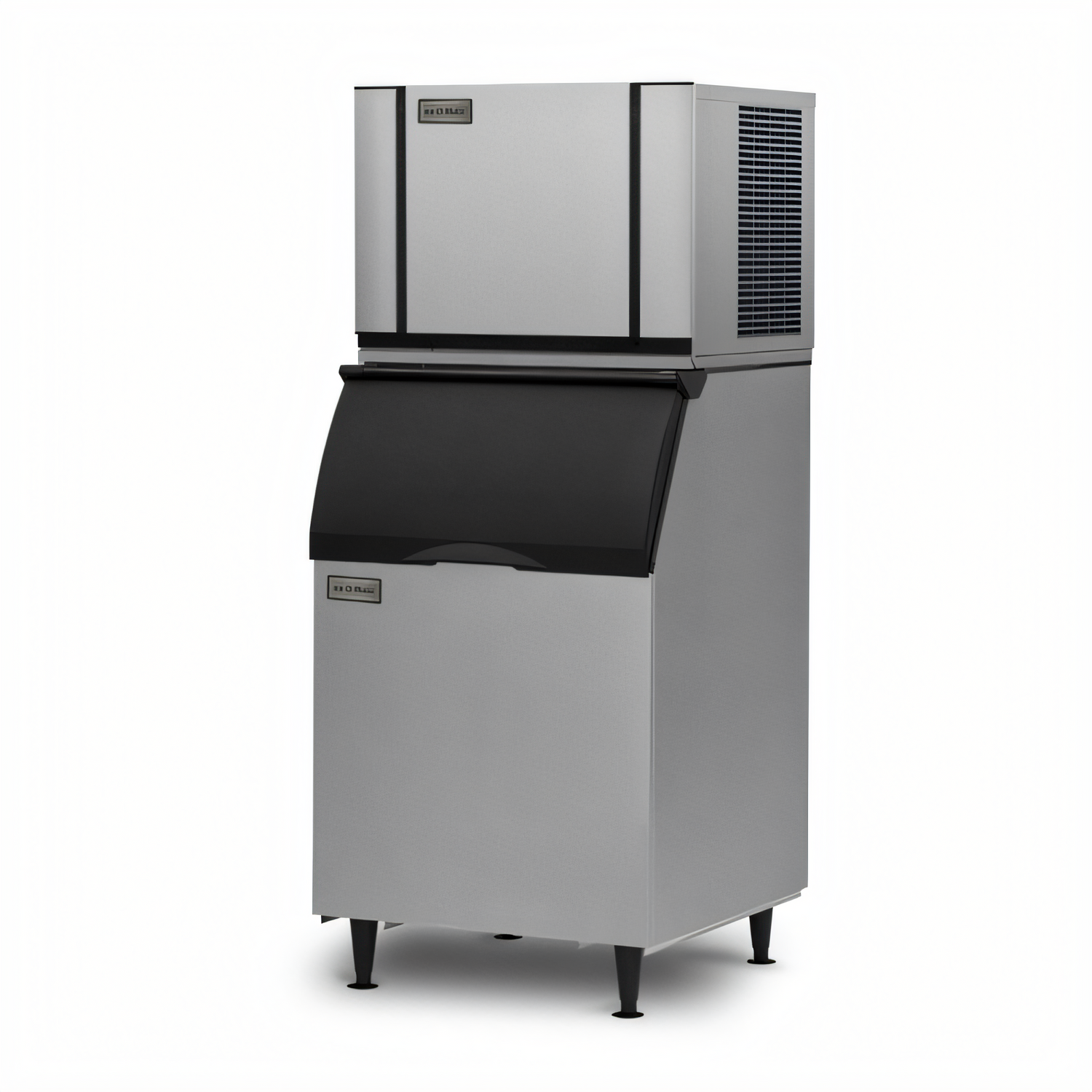

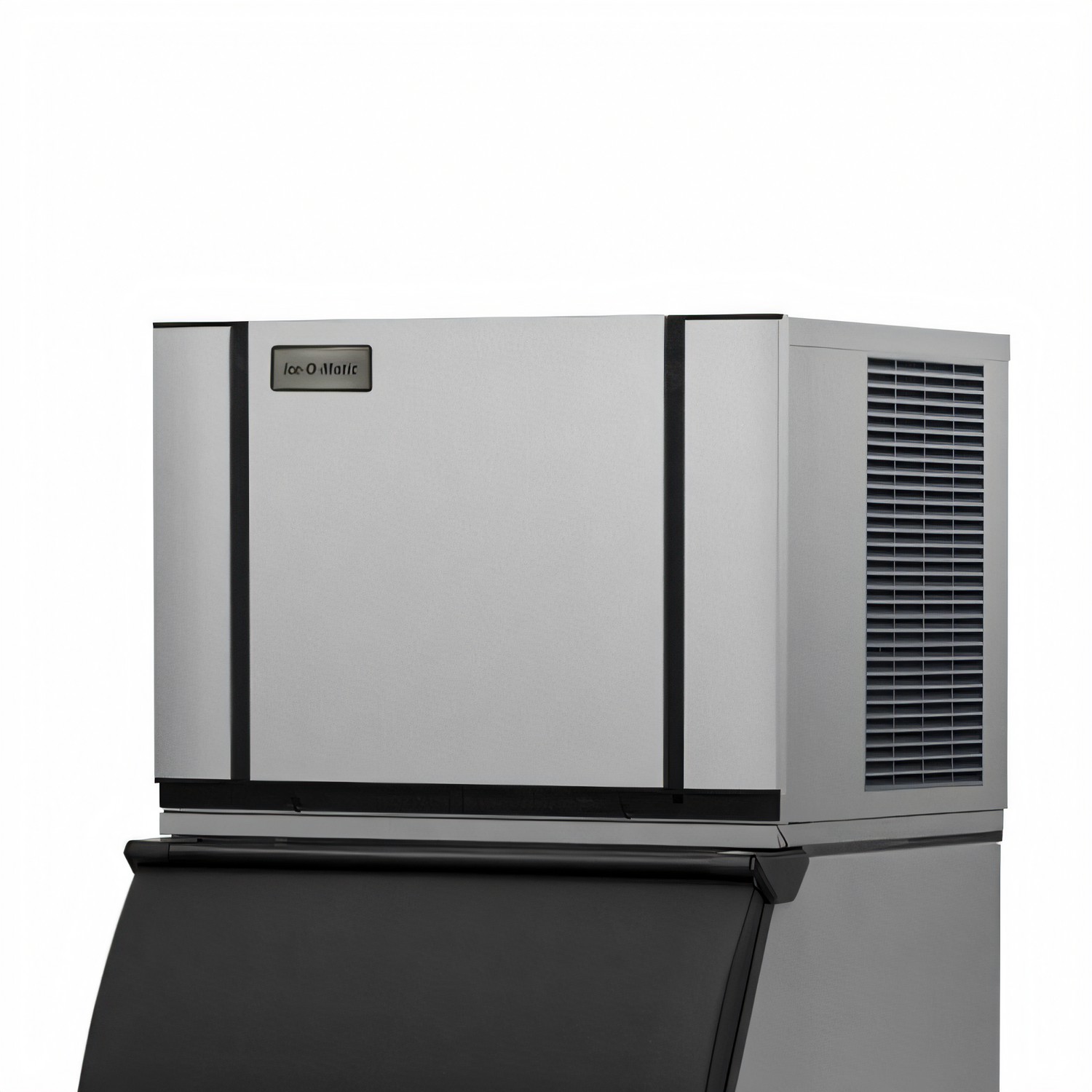

Ice-O-Matic Elevation Series™ CIM0430A Modular Half-Cube Ice Maker
30"-wide • Air-cooled Dual Exhaust • ENERGY STAR® certifiedProduce up to 435 lb of pure, great-tasting half-cube ice every 24 hours in a machine that’s built for easier cleaning, simpler service and superior energy efficiency. From its space-saving 30" footprint to its BPA-free, antimicrobial food zone, the Elevation Series™ helps you serve safer ice, save money on utilities, and install almost anywhere thanks to exclusive Dual Exhaust top/side air discharge.
Why You’ll Love It
- High production, small space – up to 435 lb/24 hr at 70 °F air/50 °F water (≈320 lb at 90 °F/70 °F).
- Dual Exhaust™ – hot air vents from the side or the top, eliminating clearance headaches in tight installs.
- PURE ICE® antimicrobial protection – Agion®-treated food zone inhibits bacterial growth for the life of the machine.
- One-Touch Sanitize & Descale – automatic cleaning cycle at the push of a button; LED lights tell you when it’s time.
- Dishwasher-safe food-zone parts – snap-in/snap-out plastics mean no tools and no bottle brushes.
- ENERGY STAR® & 2018 DOE compliant – up to 20 % more efficient than previous models; BPA-free & fully recyclable components.
- Universal Smart Harness™ – common control board with digital diagnostics speeds installation & service calls.
- Self-contained, air-cooled condenser – no remote parts to buy or maintain.
- cULus, NSF & CE listed for worldwide code compliance.
Technical Specifications
| Model | CIM0430A (Air-cooled) |
|---|---|
| Ice type | Half-cube – ⅜" × ⅞" × ⅞" (10 × 22 × 22 mm) |
| Daily production |
435 lb / 197 kg @ 70 °F air / 50 °F water ≈ 320 lb / 145 kg @ 90 °F air / 70 °F water |
| Energy usage | 5.4 kWh per 100 lb of ice |
| Water usage | 19.8 gal potable per 100 lb of ice |
| Electrical | 115 V / 60 Hz / 1 ph • 11.0 A MCA • NEMA 5-15P cord |
| Dimensions (W×D×H) | 30.25″ × 24.25″ × 21.25″ (768 × 616 × 540 mm) |
| Refrigerant | R404A |
| Approx. shipping weight | 155 lb (70 kg) |
| Compatible bins | B25, B40, B42, B55, B110 & larger (adapter kit may be required) |
| Warranty |
3 yr parts & labor on ice maker 5 yr parts on evaporator & compressor 7 yr parts & labor on evaporator (with Ice-O-Matic filter program) |
| Certifications | ENERGY STAR®, cULus, NSF, CE, BPA-Free |
Included With Your Purchase
- Factory-installed antimicrobial PURE ICE® food-zone components
- Universal Smart Harness™ control board with LED status display
- User manual & quick-start cleaning guide
Popular Add-Ons (Sold Separately)
- Ice-O-Matic slope-front bin – B55PS (510 lb capacity) for a perfect 30″ match
- IFQ1 water-filter manifold & IOMQ replacement cartridge
- Safelce™ Ozone Purification System for automatic, chemical-free sanitation
- 82-oz scoop (model KLSCO) or 16-oz scoop (model KSSCO)
Need help sizing a bin or adding filtration? Our team is ready to assist – simply reach out via chat or contact us.
Overall Dimensions:
27.0"W x 33.0"D x 27.0"HProduct Weight:
157.0 lbCertifications & Compliance
