Ice-O-Matic CIM0430FW Elevation Series™ Ice Machines
Description

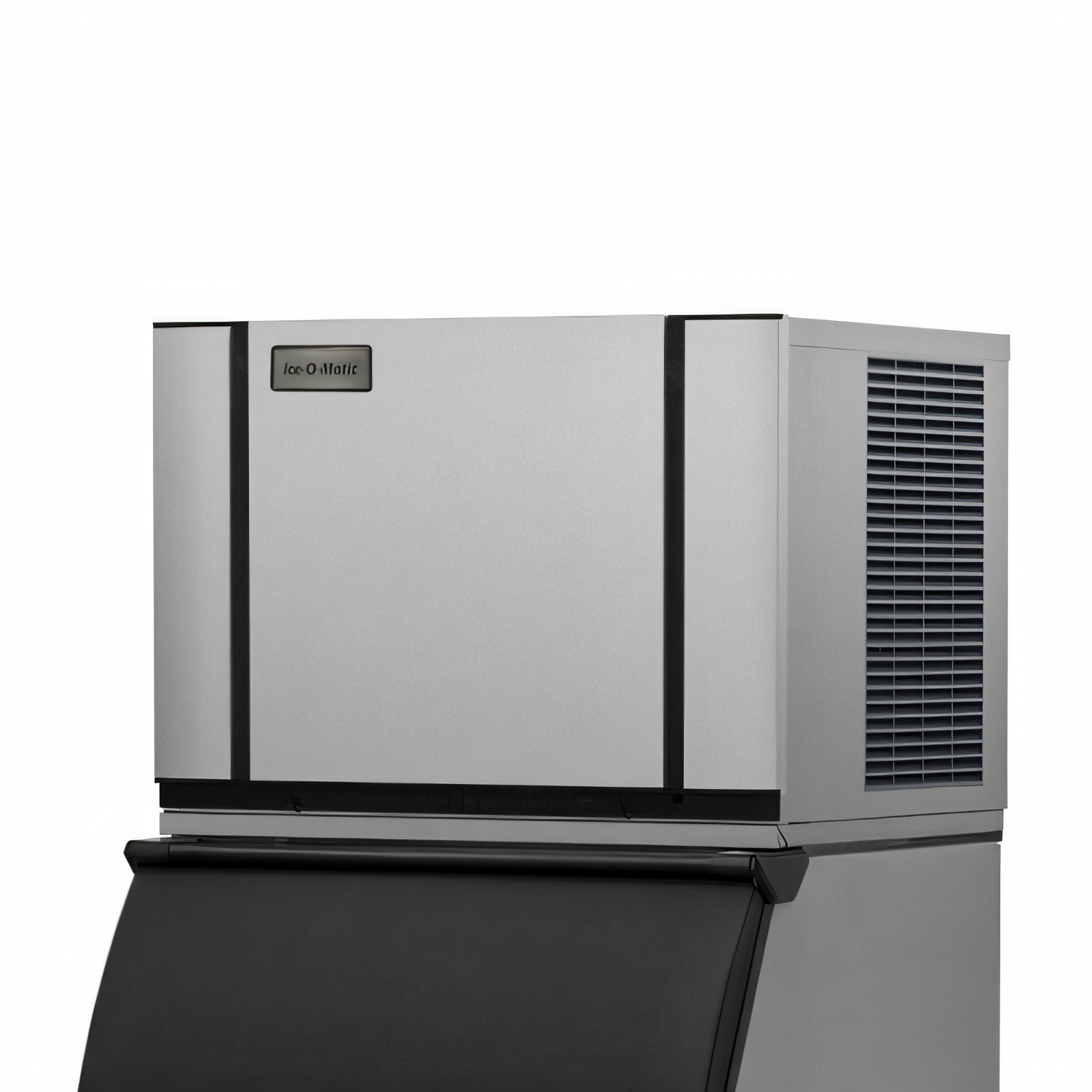

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker – Water-Cooled, 460 lb

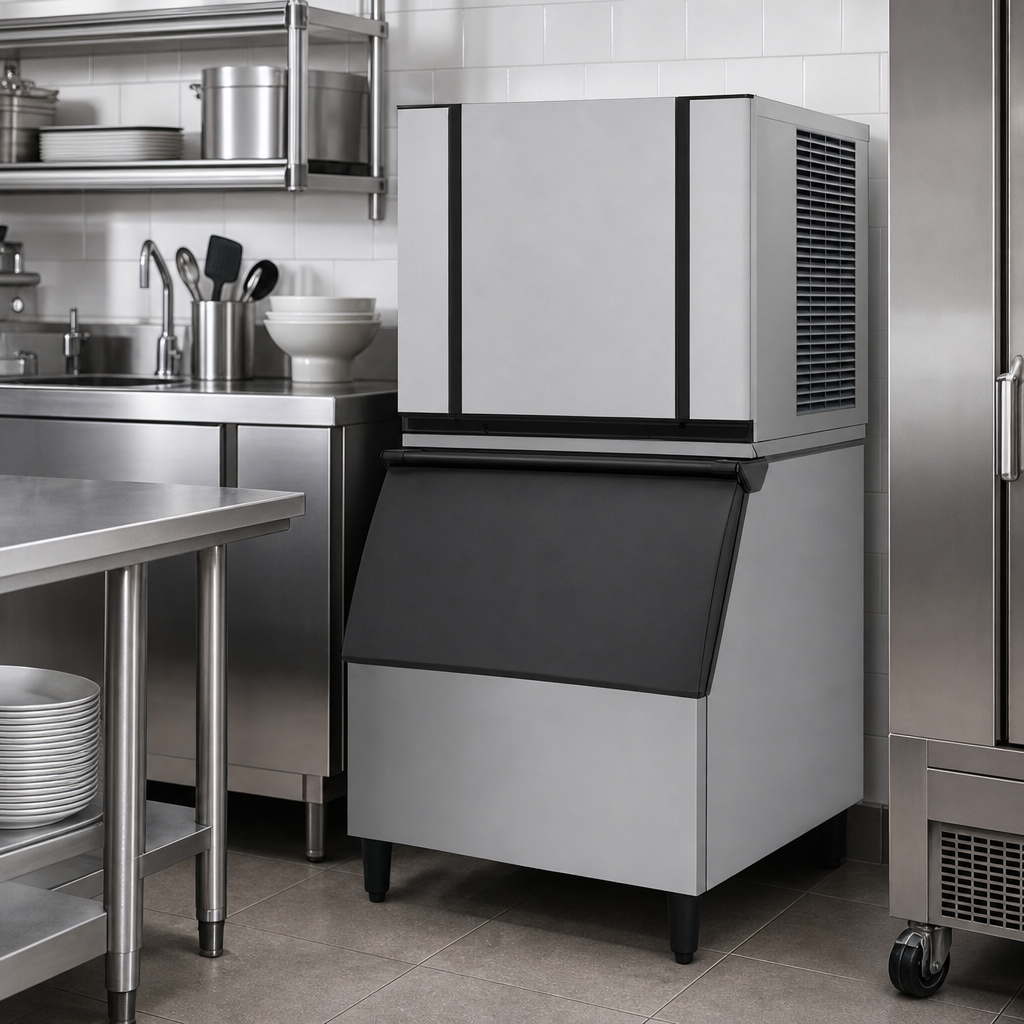

Model CIM0430W • Full-Size CubesDeliver a steady flow of crystal-clear, great-tasting ice without the heat or noise of an air-cooled system. The 30″-wide Elevation Series™ CIM0430W produces up to 460 lb of full-cube ice every day, yet cleans in minutes thanks to its removable, dishwasher-safe food zone. Built-in PURE ICE® antimicrobial protection and one-touch sanitize/descale cycles keep every cube as fresh as the first.
Key Benefits
- High capacity, compact footprint – 460 lb @ 70 °F/50 °F (380 lb @ 90 °F/70 °F).

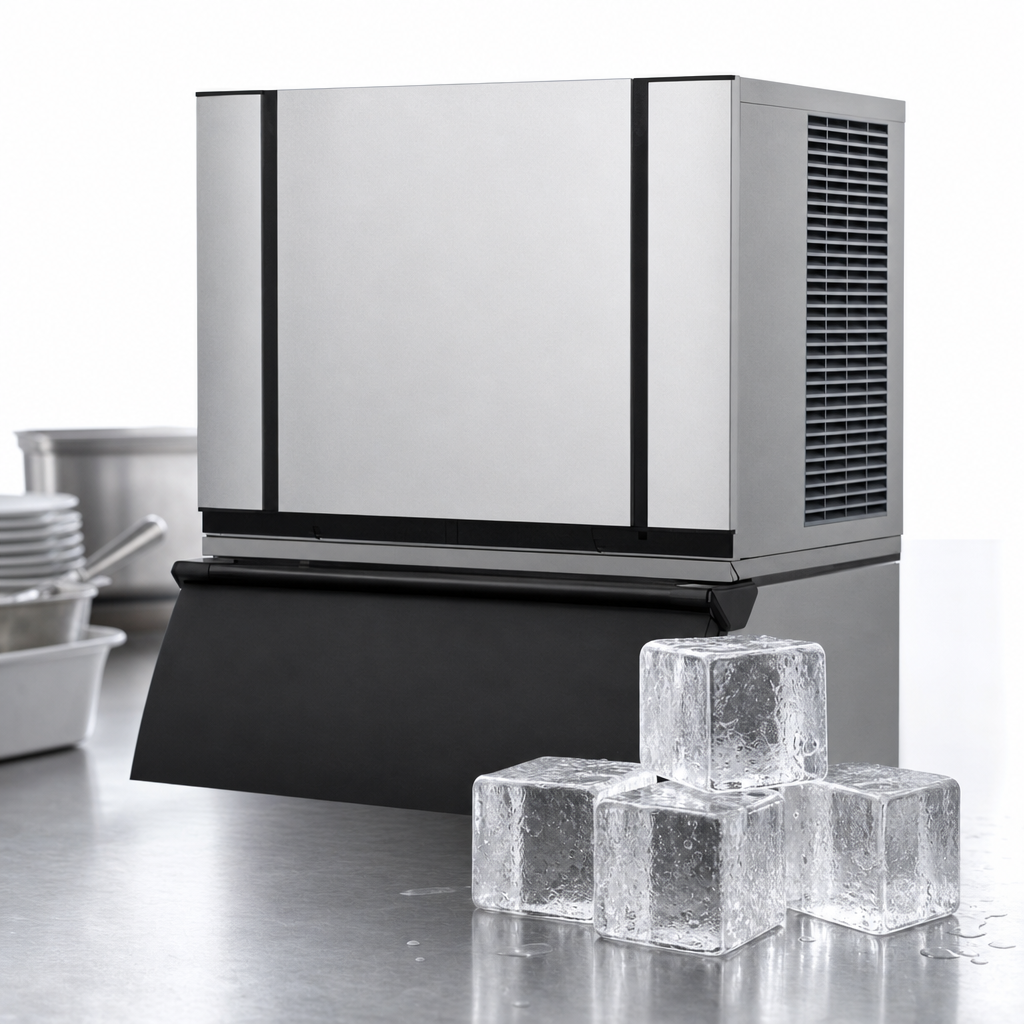

- Creates slow-melting ⅞″ x ⅞″ x ⅞″ full cubes ideal for cocktails, soft drinks and ice displays.
- Water-cooled, self-contained condenser eliminates hot-air exhaust—perfect for confined or high-heat kitchens.
- PURE ICE® antimicrobial (Agion®) is molded into key components for lifetime bacteria inhibition.
- Smooth Plastic Food Zone snaps out and is 100 % dishwasher safe—no tools, no brushes.
- One-touch sanitize & descale buttons with LED status lights make maintenance fool-proof.
- Universal Smart Harness™ control board offers digital diagnostics for faster service calls.
- Made with recyclable, BPA-free parts and exceeds 2018 DOE energy standards.
- Third-party certified: cULus, NSF, CE & BPA-Free.
Performance & Utilities
| Daily Production | Approx. 460 lb (209 kg) @ 70 °F air / 50 °F water |
|---|---|
| Daily Production – Peak Load | Approx. 380 lb (172 kg) @ 90 °F air / 70 °F water |
| Ice Shape | Full cube – ⅞″ x ⅞″ x ⅞″ (22 x 22 x 22 mm) |
| Condenser Type | Water-cooled, self-contained |
| Electrical | 115 V / 60 Hz / 1-phase, 10.7 A minimum circuit |
| Energy Usage | 4.3 kWh per 100 lb of ice |
| Potable Water | 17.8 gal per 100 lb of ice |
| Condenser Water | 169 gal per 100 lb of ice |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 30.25″ × 24.25″ × 21.25″ (768 × 616 × 540 mm) |
| Shipping Weight | 155 lb (70 kg) |

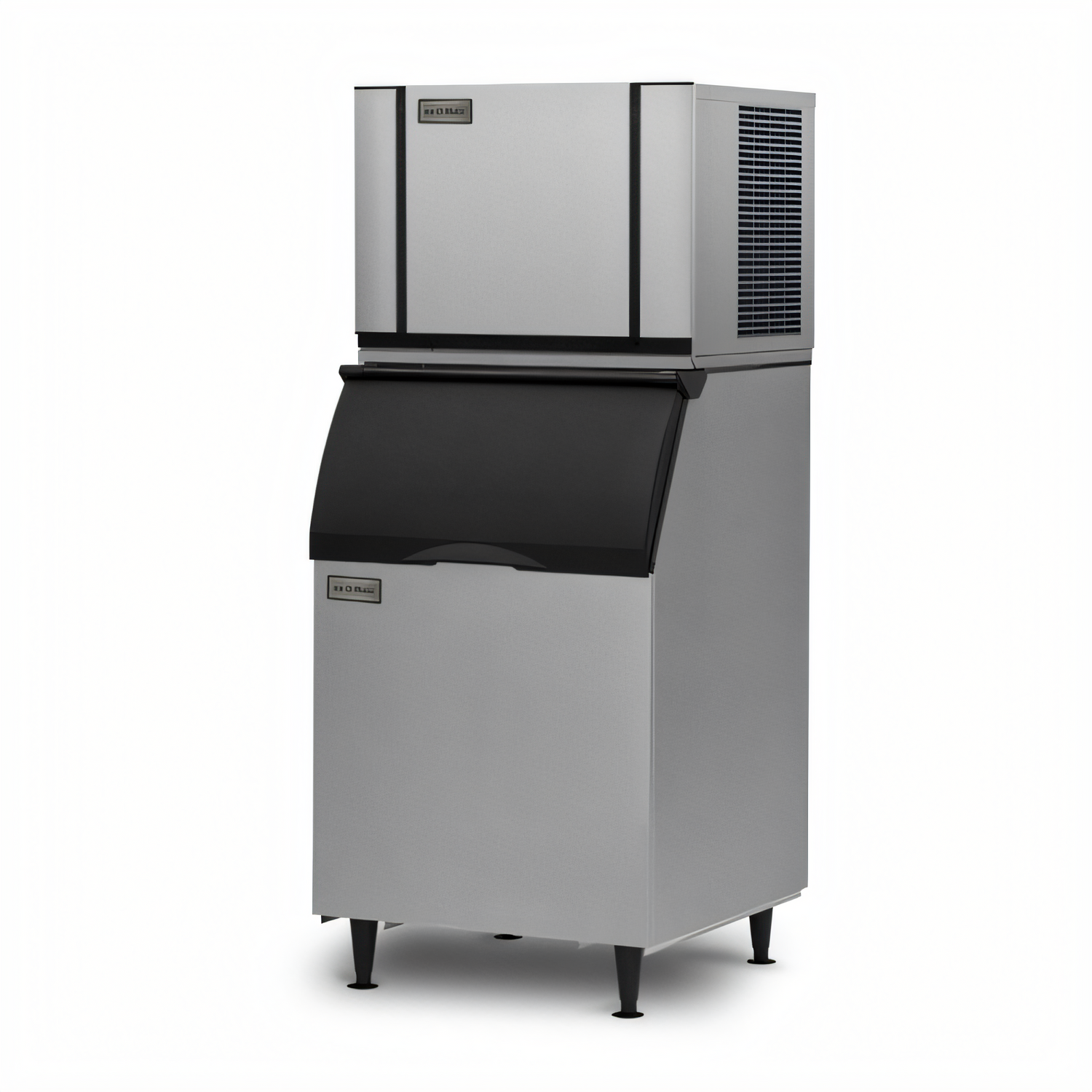

Pair It With the Perfect Bin
Ice storage bin required – sold separately.
- B25, B40, B42 or B55 slope-front bins: 242 – 510 lb ice storage.
- B700, B1000 or larger upright bins for high-volume operations.
- No adapter kit needed for 30″ bins; use Ice-O-Matic BPF-1 kit when mounting on 48″ B110 bins.
Invest in the Ice-O-Matic Elevation Series™ and enjoy cleaner cubes, easier maintenance and lower operating costs, shift after shift.
