Ice-O-Matic CIM0430FA Elevation Series™ Ice Machines
Description

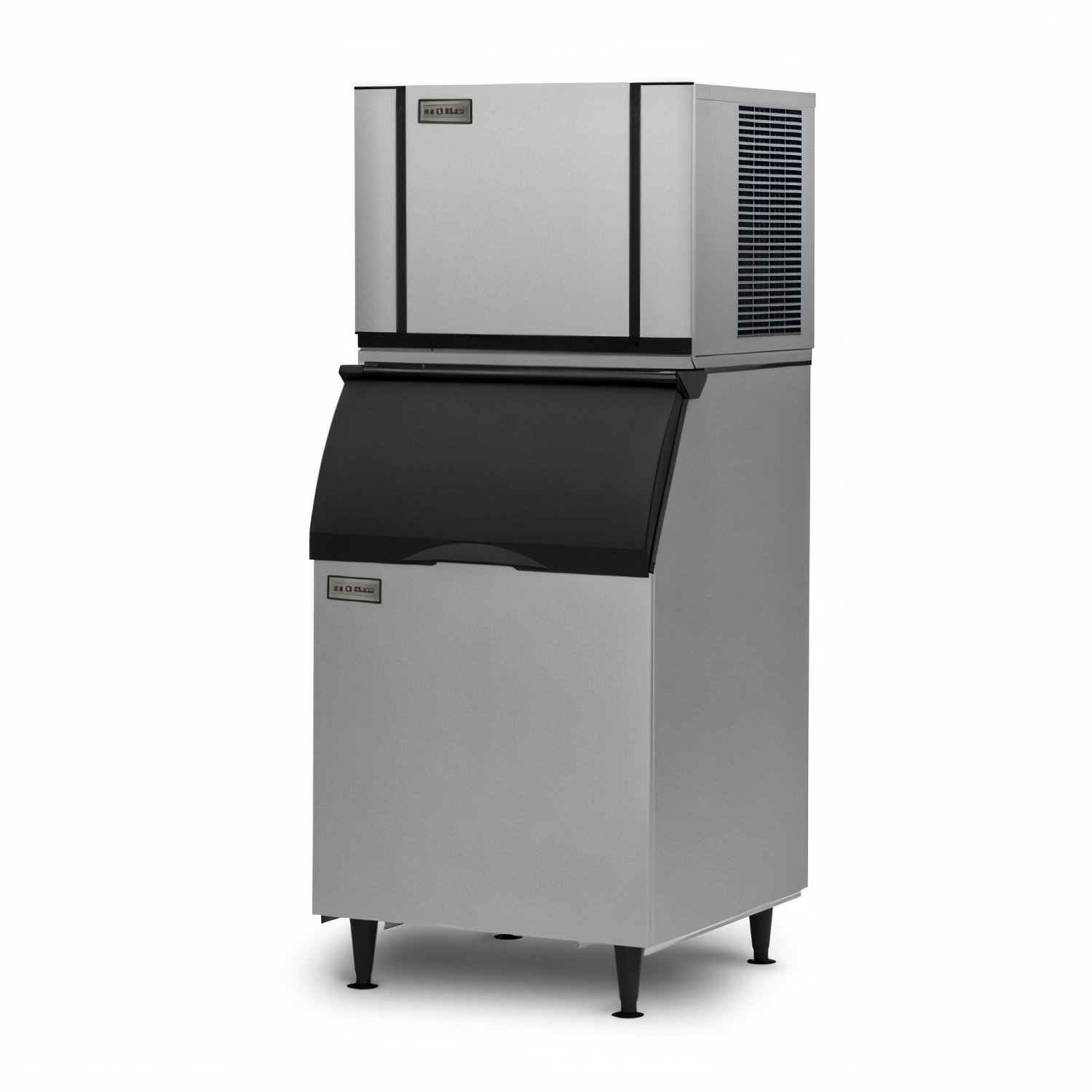

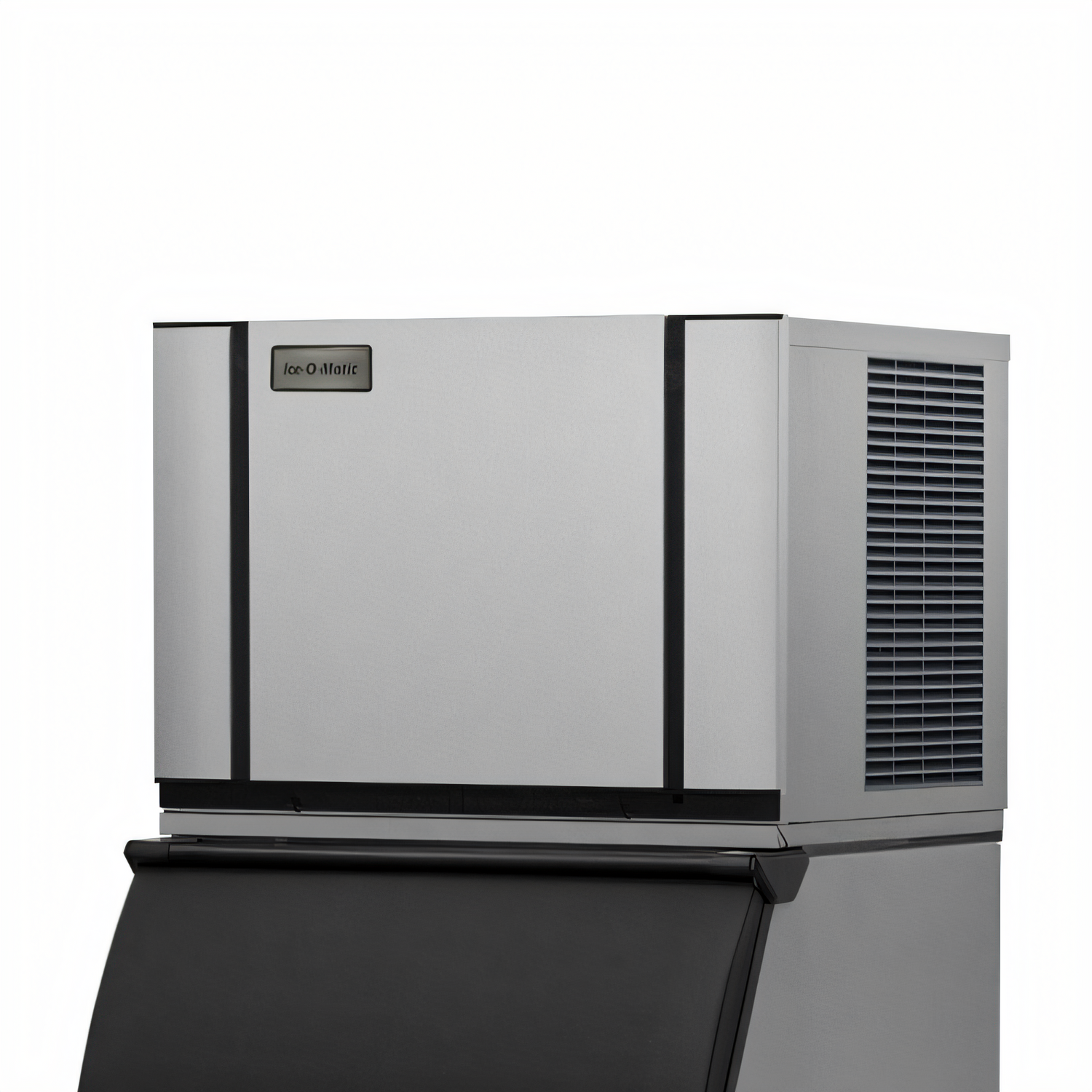

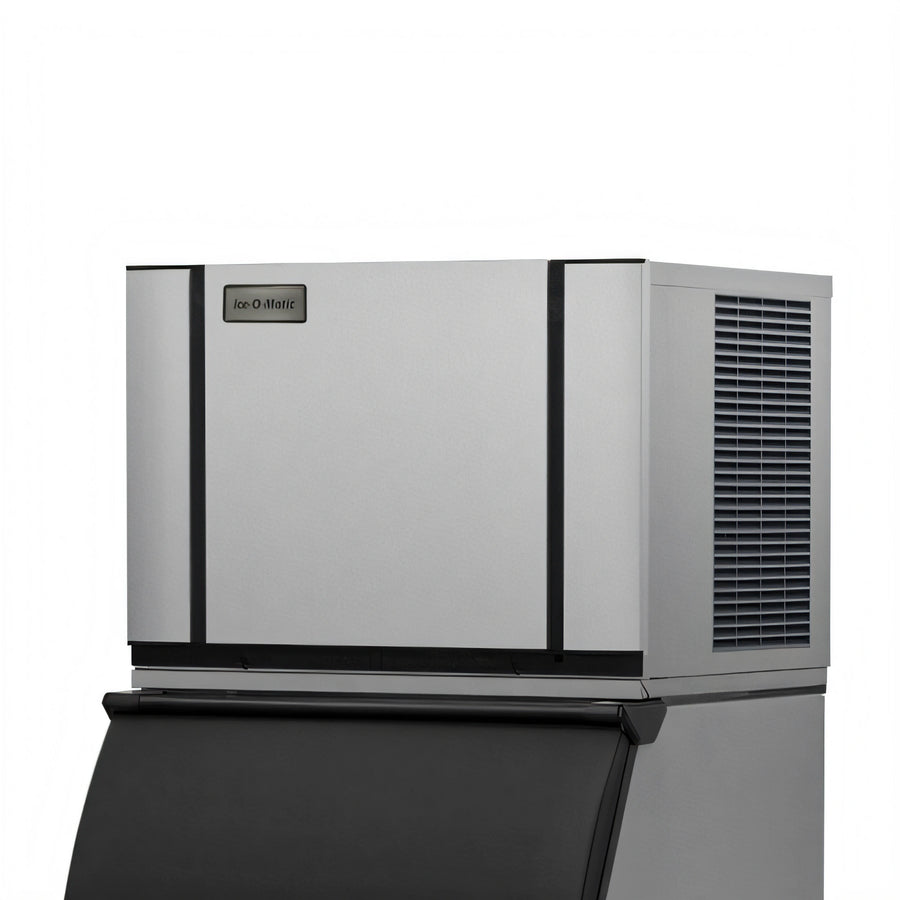

Elevation Series™ Modular Cube Ice Maker
Model CIM0430A | 30 in Wide • Air-Cooled • Full-Size CubesProduce up to 435 lb of crystal-clear, full-size cubes every day in a compact 30-inch footprint. Built for modern kitchens, the Ice-O-Matic Elevation Series™ delivers game-changing dual exhaust, one-touch sanitizing and PURE ICE® antimicrobial protection—all while exceeding the latest ENERGY STAR® and DOE efficiency standards.
Why Choose This Ice Maker
- Impressive output: ~435 lb/24 hr at 70 °F air / 50 °F water (≈320 lb at 90 °F / 70 °F).
- Dual hot-air exhaust: Side or top discharge increases installation flexibility in tight spaces.
- PURE ICE® protection: Agion® antimicrobial guards the food zone for safer, cleaner ice.
- Food-safe & fast to clean: Seamless, BPA-free plastic food zone components snap out and go straight into the dishwasher.
- One-touch sanitize / descale: Integrated LEDs alert you when it’s time—just press a button.
- Universal Smart Harness™: Digital diagnostics and common parts simplify service & reduce downtime.
- Eco-efficient: Exceeds 2018 DOE regulations and is up to 20 % more energy-efficient than previous models.
At-a-Glance Specs
| Ice type | Full cube 7/8 in × 7/8 in × 7/8 in (22 × 22 × 22 mm) |
|---|---|
| Daily production | 435 lb (197 kg) @ 70 °F/50 °F 320 lb (145 kg) @ 90 °F/70 °F |
| Condenser | Self-contained, air-cooled |
| Energy consumption | 5.4 kWh per 100 lb of ice |
| Water usage | 19.8 gal (75 L) per 100 lb of ice |
| Electrical | 115 V / 60 Hz / 1-phase • 11 A (cord & plug not included) |
| Dimensions (W × D × H) | 30.25 in × 24.25 in × 21.25 in (768 mm × 616 mm × 540 mm) |
| Refrigerant | R404A |
| Certifications | cULus, NSF, CE, ENERGY STAR®, BPA-Free |
| Warranty | 3 yr parts & labor (ice maker) • 5 yr parts (evaporator & compressor) |
Installation Requirements
- Minimum 6 in (152 mm) clearance on right & top for air intake/exhaust.
- 3/8 in potable water inlet • 3/4 in gravity drain.
- Ambient: 50 – 100 °F (10 – 38 °C) • Water: 40 – 90 °F (4 – 32 °C).
- Compatible Ice-O-Matic bins: B25, B40, B42, B55, B110 (adapter kits may apply).
Ice storage bin sold separately. Production figures are approximate and will vary based on installation conditions.
