Ice-O-Matic  |  Elevation Series™  |  SKU: CIM0330HW

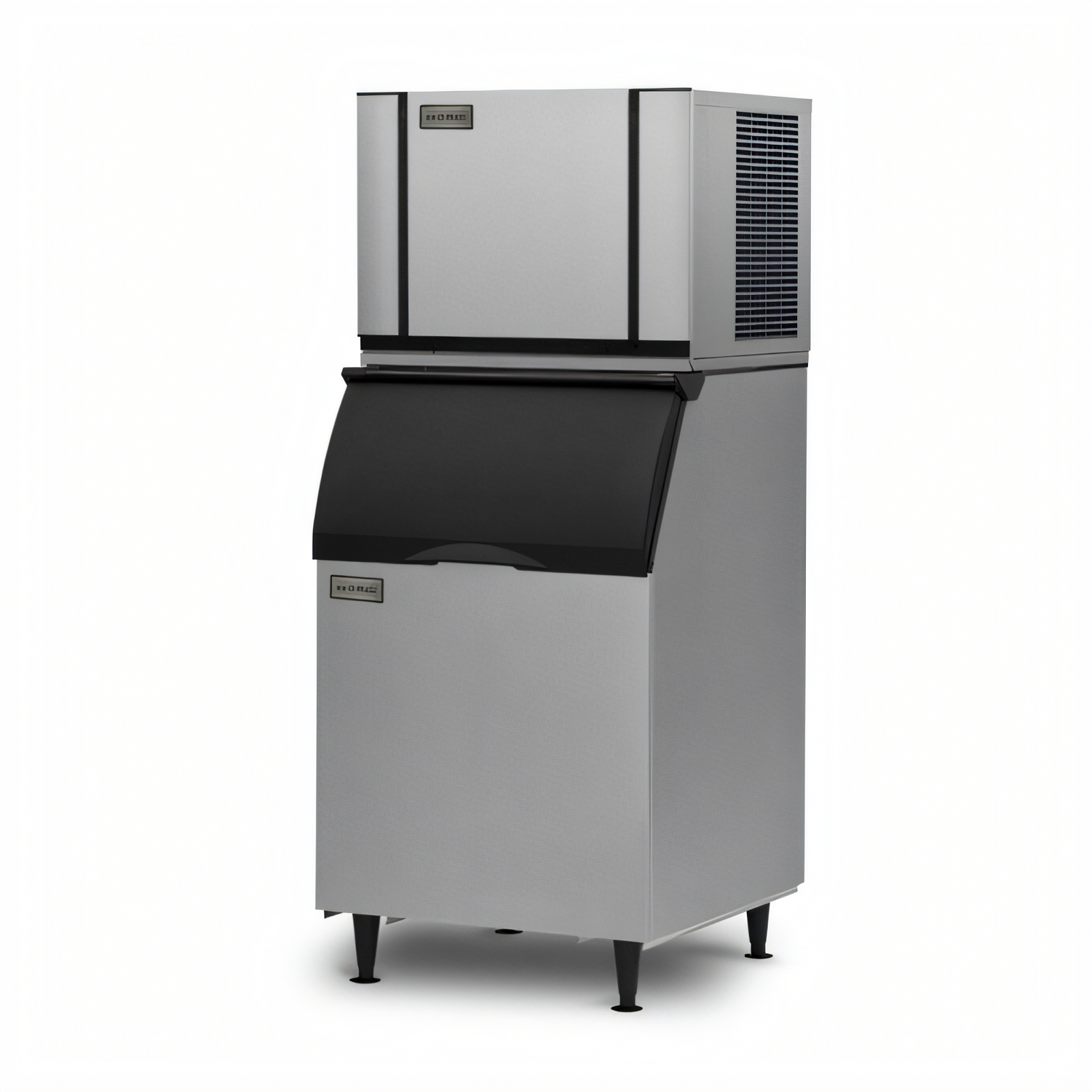

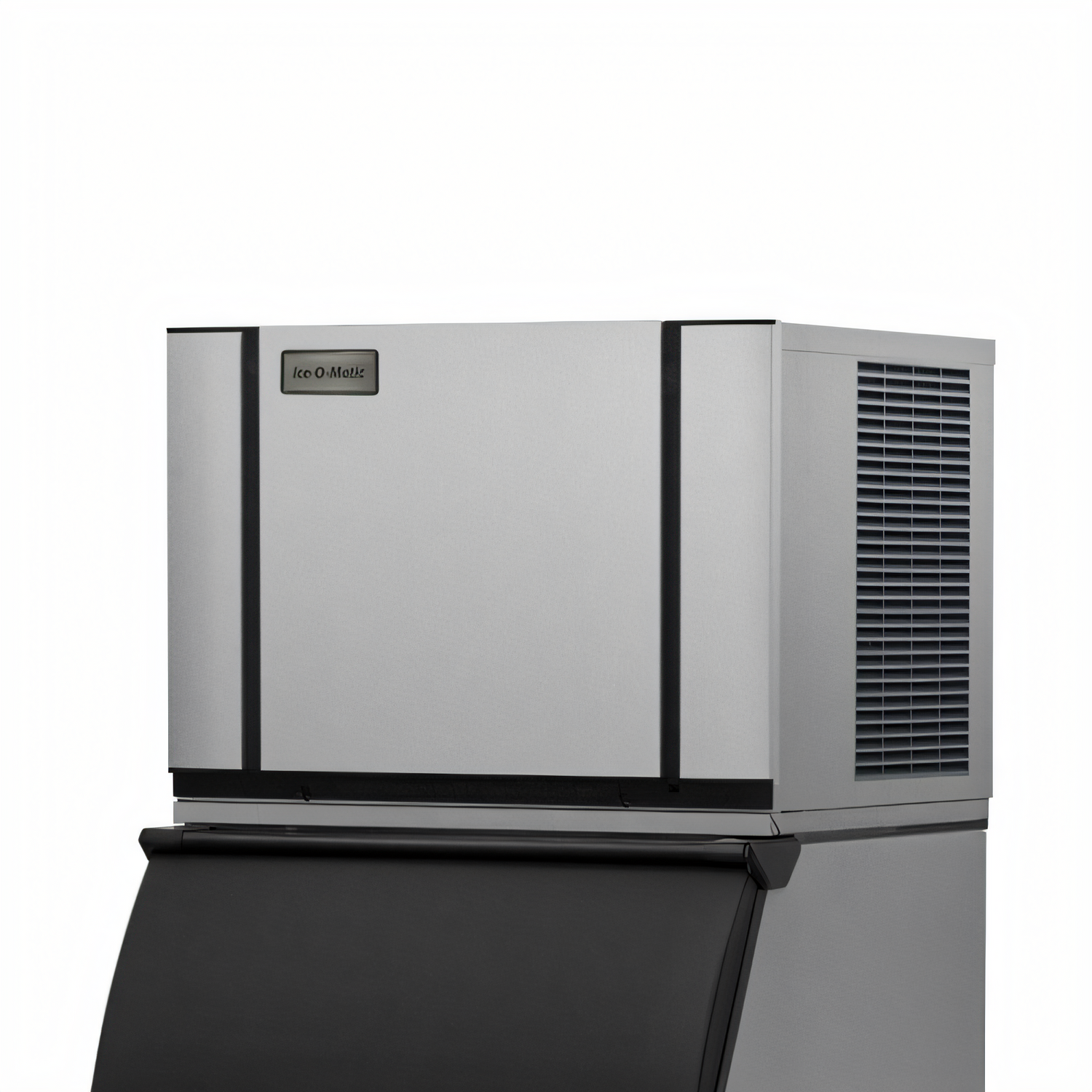

Ice-O-Matic CIM0330HW Elevation Series™ Ice Machines

$3,871.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Web site Owner's manual Brochure Service manual Slope front storage bins Diagram Warranty sheet
Related Searches
Ice Machines Ice Makers & Bins

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker – Water-Cooled

Model CIM0330W • 30 in W • Half-Cube

Produce crystal-clear ice with less hassle, less downtime, and more peace-of-mind. The Elevation Series™ CIM0330W packs up to 316 lb of half-cube ice into a space-saving 30-inch footprint while its PURE ICE® antimicrobial interior and one-touch cleaning keep every batch food-safe and great-tasting.

Performance & Benefits

  • Outputs approx. 316 lb at 70 °F air / 50 °F water (274 lb at 90 °F / 70 °F).
  • Half-Cube size – ⅜ × ⅞ × ⅞ in for maximum beverage displacement and rapid cooling.
  • PURE ICE® Agion® antimicrobial protection is molded into the food zone.
  • One-touch sanitize and de-scale; all BPA-free food-zone parts snap out and are dishwasher safe.
  • Smart LED status lights show machine health and cleaning alerts at a glance.
  • Universal Smart Harness™ control board with digital diagnostics simplifies service.
  • Exceeds 2018 DOE efficiency standards; constructed with recyclable, BPA-free components.
  • cULus, NSF, and CE certified for global code compliance.

Key Specifications

Model CIM0330W
Condenser Water-cooled, self-contained
Daily Ice Production* 316 lb @ 70 °F/50 °F
274 lb @ 90 °F/70 °F
Ice Type Half-Cube (⅜ × ⅞ × ⅞ in)
Dimensions (W × D × H) 30.25 × 24.25 × 21.25 in  (768 × 616 × 540 mm)
Electrical 115 V / 60 Hz / 1φ
Min. Circuit Ampacity 10.7 A
Max. Fuse/Breaker 15 A
Water Use / 100 lb 19.6 gal potable  |  179 gal condenser
Energy Use 5.3 kWh / 100 lb
Approx. Shipping Weight 145 lb (65.7 kg)
Certifications cULus • NSF • CE • BPA Free

*Production values based on half-cube configuration. Actual output will vary with ambient conditions.

Compatible Ice Storage Bins (sold separately)

  • B25   | 242 lb capacity
  • B40   | 344 lb capacity
  • B42   | 351 lb capacity
  • B55   | 510 lb capacity
  • B110 | 854 lb capacity — Hold-Down Kit recommended
Heads-Up: This listing is for the ice maker head only. A storage bin, approved water filter, and professional installation are required and sold separately.

Features & Specs

Manufacturer

Ice-O-Matic

Brand_name

Elevation Series™

Certifications

NSF, CE, cULus, BPA Free

Height

27.0in

Width

27.0in

Depth

33.0in

Shipping Weight

148.0lbs

Width (side - side)

30 - 39" wide

Condenser Type

water-cooled

Ice Type

half size / half dice cubes

Production per 24 hr

301 - 400 lb = 137 - 182 kg

Refrigeration

self-contained refrigeration

Specifications

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30" W, approximately 316 lb production/24 hours at 70°/50° (274 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
