Ice-O-Matic CIM0330HA Elevation Series™ Ice Machines
Description

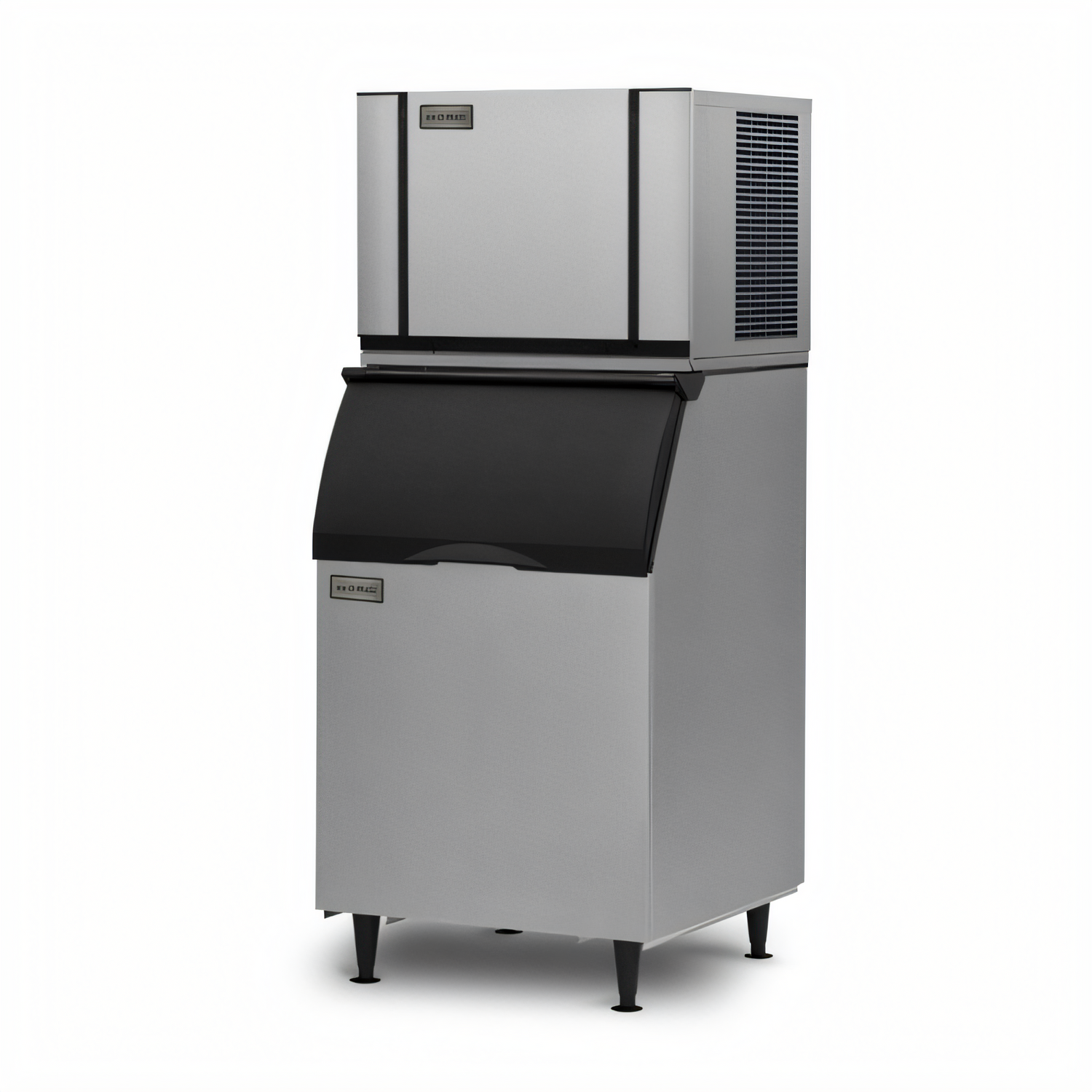

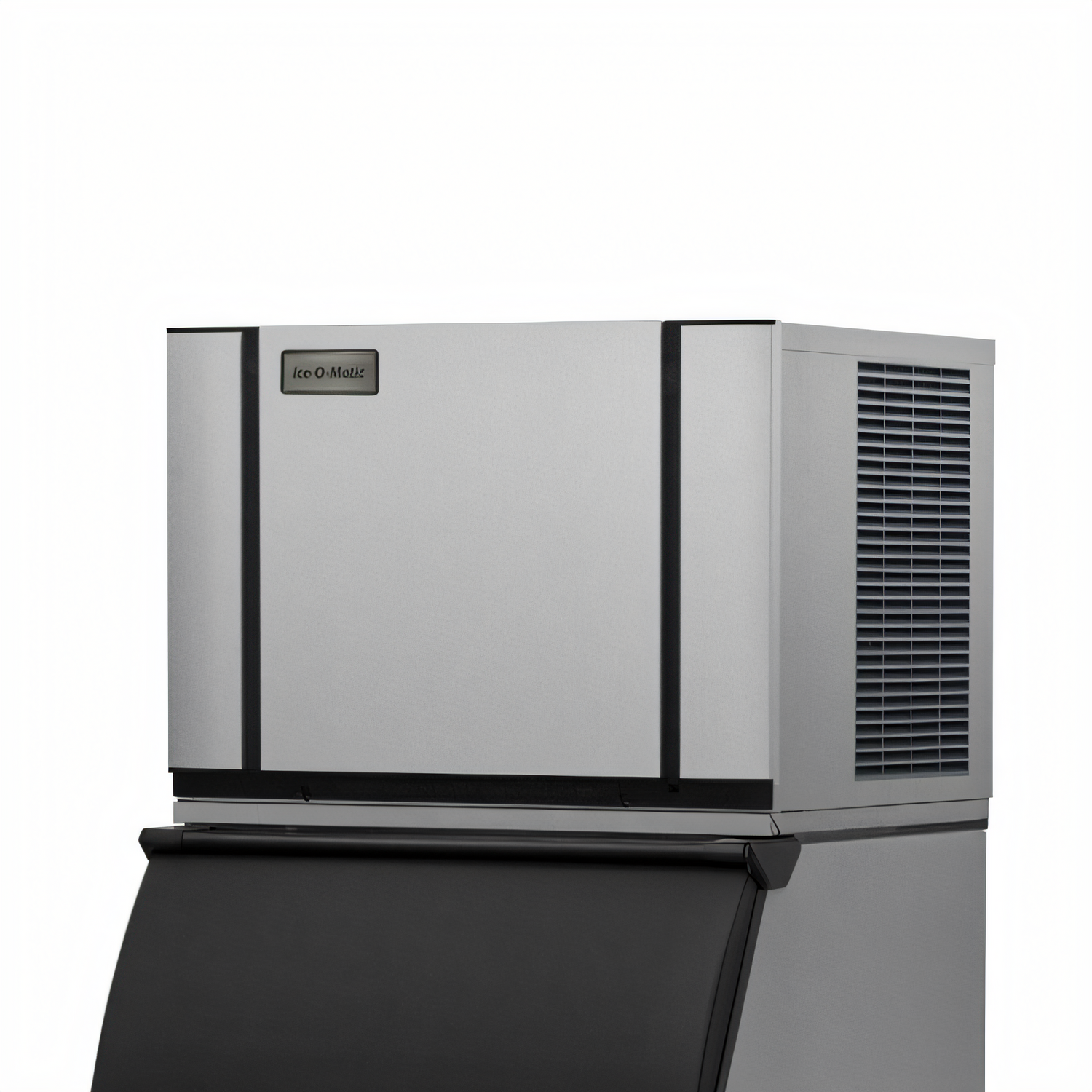

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker – 30″, Air-Cooled
Model CIM0330A • Half-Cube ProductionProduce up to 313 lb of crystal-clear half-cube ice every day in a space-saving machine that cleans itself, fits almost anywhere and exceeds the latest energy and food-safety standards.
Top Reasons to Choose Elevation
- Dual-Exhaust design vents hot air from the top or side for unmatched installation flexibility.
- PURE ICE® antimicrobial protection and a seamless plastic Food Zone keep ice fresh & safe.
- One-touch sanitize & de-scale cycles with intuitive LED status lights.
- BPA-free, snap-in components are dishwasher safe—no brushes, no hassle.
- Up to 20 % more energy-efficient and fully compliant with 2018 DOE regulations.
- Universal Smart Harness™ control board simplifies installation and digital diagnostics.
- Backed by an industry-leading 3-Year parts & labor warranty.
Daily Ice Output*
| Ambient / Water Temp | 70 °F / 50 °F | 90 °F / 70 °F |
|---|---|---|
| Production Capacity | Up to 313 lb (142 kg) | Approx. 244 lb (111 kg) |
*Production values are approximate and will vary with site conditions.
Key Specifications
| Ice style | Half Cube – 3⁄8″ × 7⁄8″ × 7⁄8″ (10 × 22 × 22 mm) |
|---|---|
| Dimensions (W × D × H) | 30.25″ × 24.25″ × 21.25″ (768 × 616 × 540 mm) |
| Condenser | Self-contained, air-cooled |
| Electrical | 115 V / 60 Hz / 1-ph, 11 A (15 A minimum circuit) |
| Energy use | 6.8 kWh per 100 lb of ice |
| Refrigerant | R404A |
| Water connections | 3⁄8″ FPT potable water in • 3⁄4″ FPT gravity drain |
| Clearance | 6″ (152 mm) for air intake & exhaust |
| Shipping weight | 145 lb (65.7 kg) |
| Certifications | cULus, NSF, CE, BPA Free |
Compatible Ice Bins*
- B25, B40, B42, B55 slope-front bins (242 – 510 lb storage)
- B110 upright bin (854 lb) (BPF-1 hold-down kit recommended)
*Adapter kits may be required; ask our team for details.
Popular Accessories
- IFQ1 water filter manifold with IOMQ cartridges
- SafeIce™ ozone purification system (factory or field install)
Warranty Coverage
| Ice Maker | 3 Years parts & labor |
|---|---|
| Compressor & Evaporator | 5 Years parts |
| Evaporator (with Ice-O-Matic filter program) | 7 Years parts & labor |
Ice-O-Matic®, Elevation Series™ and PURE ICE® are registered trademarks of Ice-O-Matic.
