Ice-O-Matic CIM0330FW Elevation Series™ Ice Machines
Description

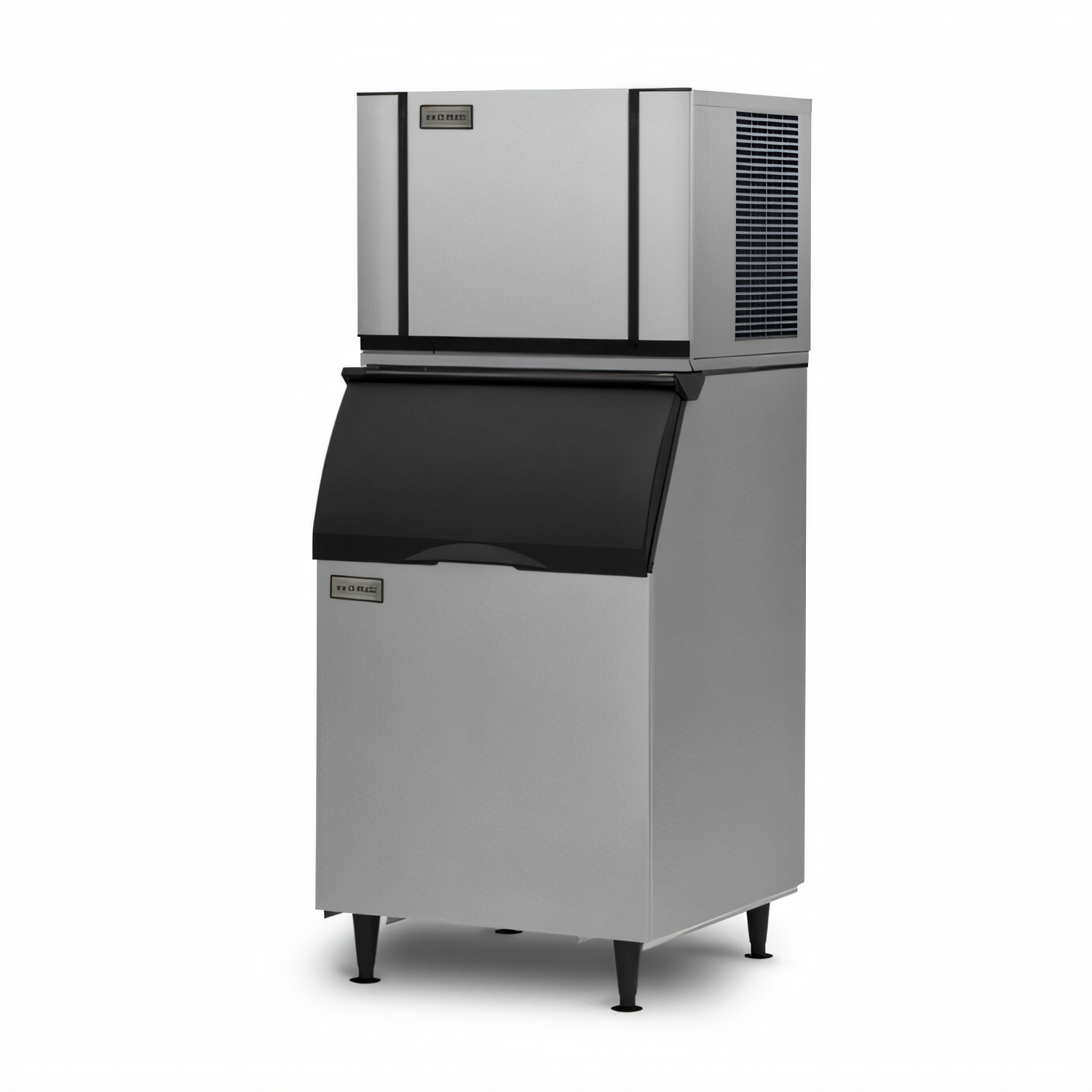

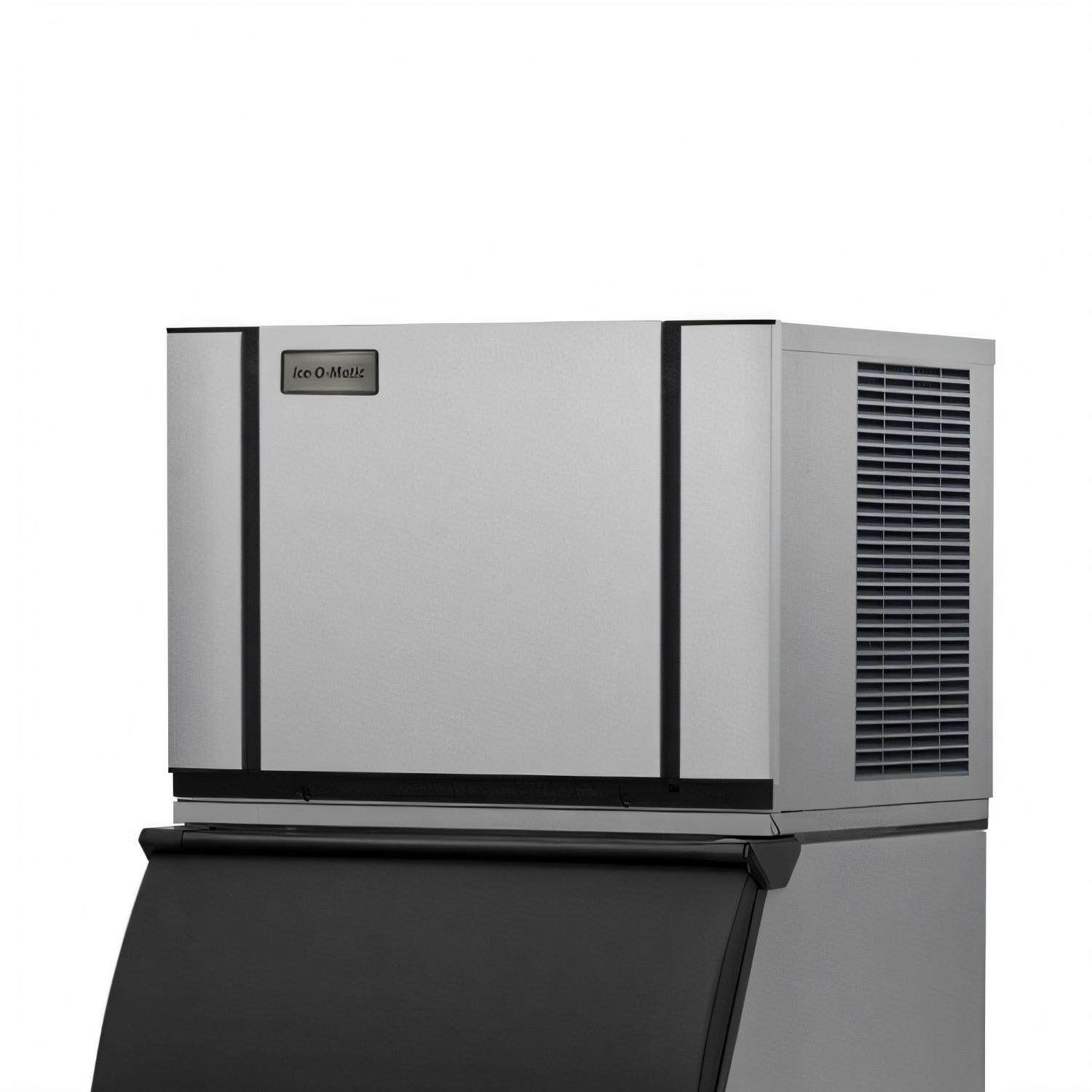

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker
Water-Cooled • Full-Size Cubes • 30 in. Wide • ~316 lb / 24 hrBuilt for operators who demand reliable output and worry-free sanitation, the Elevation Series™ delivers up to 316 lb of crystal-clear, full-size cubes every day—without the hot-air challenges of air-cooled systems. Its PURE ICE® antimicrobial protection, tool-free food-zone and one-touch cleaning keep ice safe, employees happy, and downtime to an absolute minimum.
Key Advantages
- High performance: produces ~316 lb at 70 °F air / 50 °F water (274 lb at 90 °F / 70 °F).
- Food-safe design: seamless BPA-free plastic food zone with built-in Agion® antimicrobial (PURE ICE®).
- Hands-off cleaning: LED status panel plus one-touch sanitize & descale—components snap out and are dishwasher safe.
- Smart operation: Universal Smart Harness™ board provides digital diagnostics and quick service access.
- Energy stewardship: exceeds 2018 DOE regulations and is up to 20 % more energy efficient than previous models.
- Self-contained water-cooled condenser: no hot-air discharge—ideal for tight, un-ventilated installations.

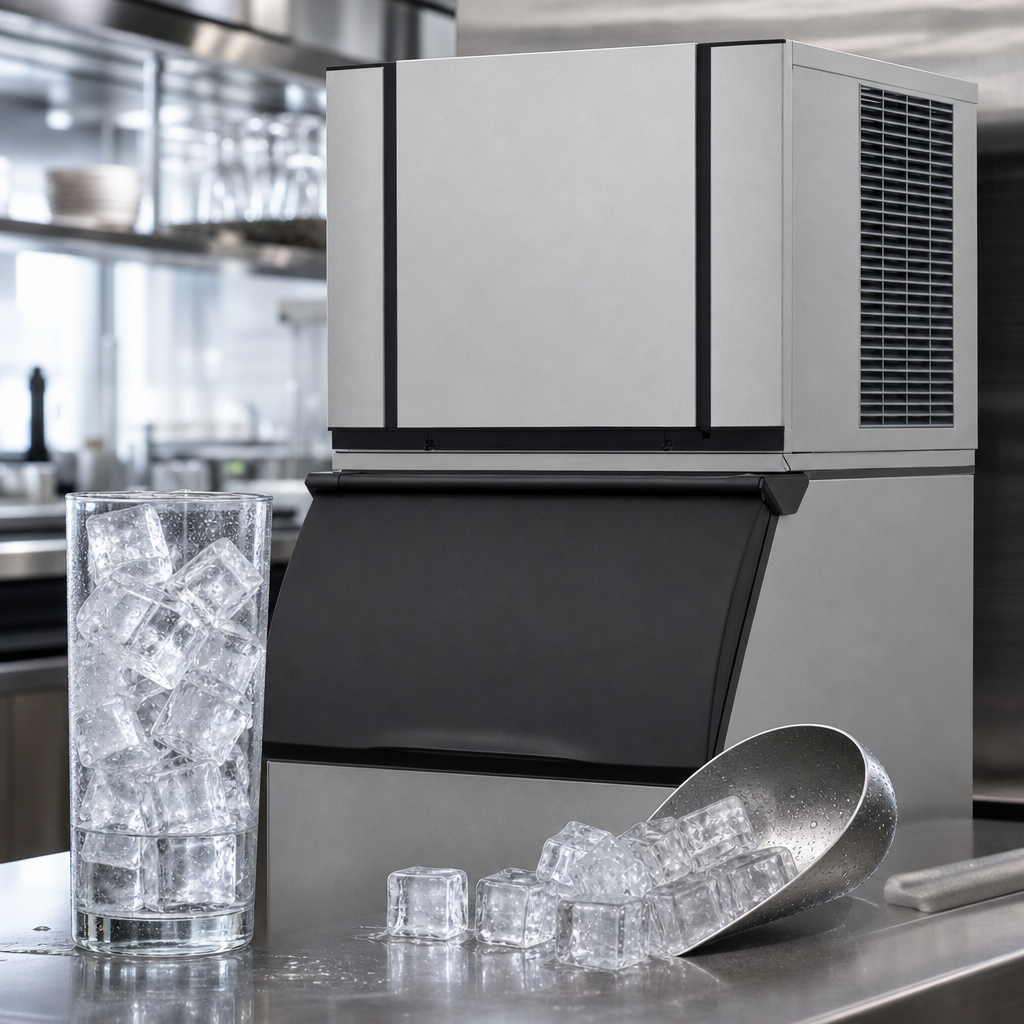

Perfect Full-Size Cubes
Each ⅞ in. cube (22 × 22 × 22 mm) is slow-melting and crystal clear—ideal for cocktails, banquet service, or bagging.
Technical Specifications
| Ice production @ 70 °F air / 50 °F water | Approx. 316 lb (143 kg) / 24 hr |
|---|---|
| Ice production @ 90 °F air / 70 °F water | Approx. 274 lb (124 kg) / 24 hr |
| Ice type | Full cube, ⅞ in. (22 × 22 × 22 mm) |
| Condenser | Self-contained, water-cooled |
| Exterior dimensions (W × D × H) | 30.25 × 24.25 × 21.25 in. (768 × 616 × 540 mm) |
| Potable water use | 19.6 gal / 100 lb ice |
| Condenser water use | 179 gal / 100 lb ice |
| Energy consumption | ~5.3 kWh / 100 lb ice |
| Voltage / Phase | 115 V / 60 Hz / 1-ph |
| Minimum circuit ampacity | 10.7 A |
| Ships weight | 145 lb (65.7 kg) |
| Certifications | cULus, NSF, CE, BPA-Free |
Ice-storage bin sold separately. Compatible 30-inch Ice-O-Matic slope-front bins (B25, B40, B55, etc.) require no adapter kit.
Peace-of-Mind Warranty
- Ice maker: 3 years parts & labor
- Compressor & evaporator: 5 years parts
- Evaporator: 7 years parts & labor when enrolled in Ice-O-Matic filter program
Optional Upgrades
- SafeIce™ UV/ozone purification system – destroys viruses, mold & odors, extending machine life.
- IFQ1 water filtration manifold with IOMQ cartridge.
