Ice-O-Matic

Ice-O-Matic CIM0330FA Elevation Series™ Ice Machines

SKU: CIM0330FA
$3,640.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Ice-O-Matic New Arrivals

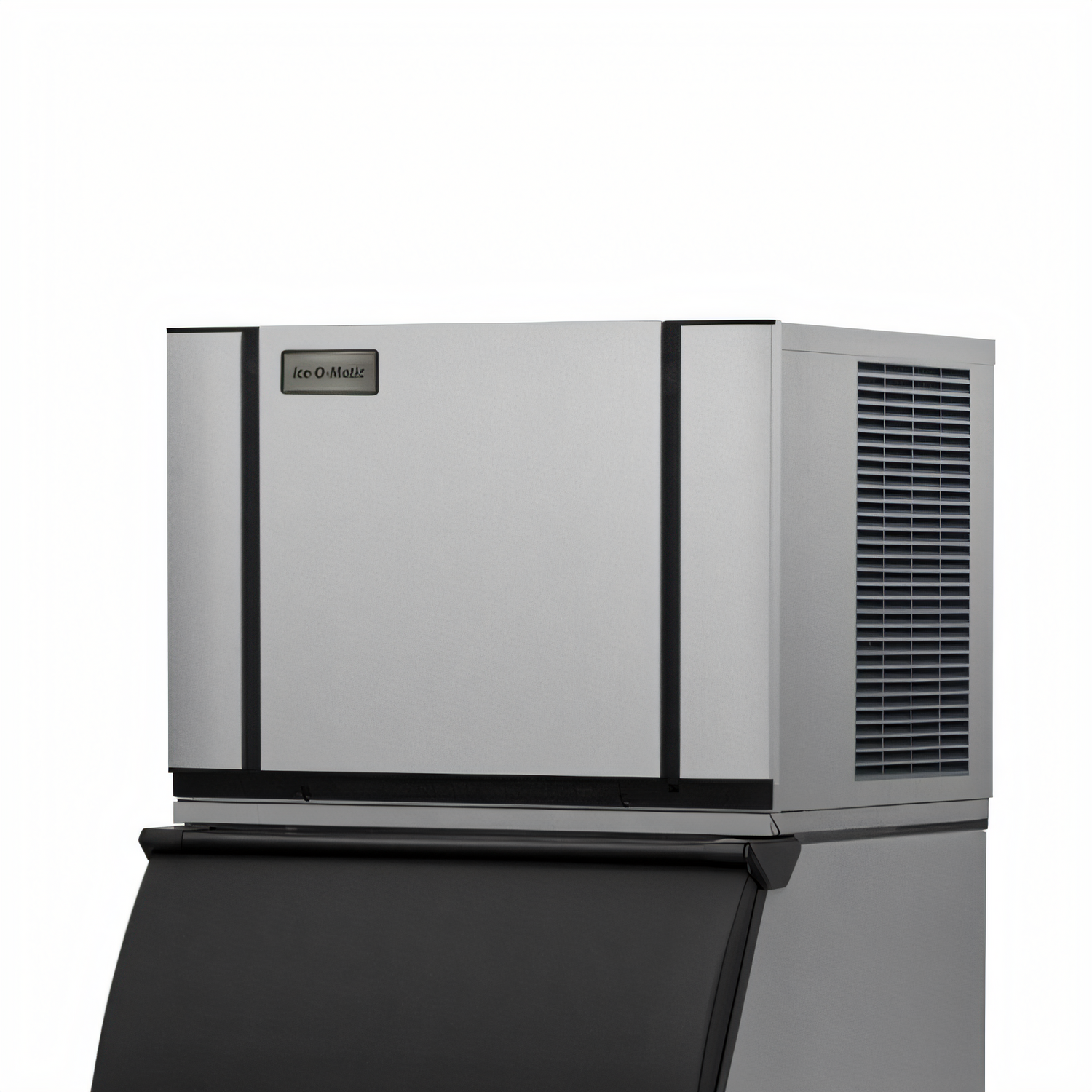

Ice-O-Matic Elevation Series™ CIM0330A Modular Cube Ice Maker

Air-Cooled • Dual-Exhaust • 30 in. Wide • Full-Cube

Built for busy kitchens, bars and beverage stations, the Elevation Series CIM0330A delivers up to 316 lb of crystal-clear full cubes every 24 hours while fitting perfectly on any 30 in. bin or beverage dispenser. Energy-smart, simple to sanitize and designed for tight spaces, this is the ice maker that keeps service flowing.

Why you’ll love it

  • True 30 in. footprint – pairs with popular 30 in. Ice-O-Matic slope-front bins such as B55PS.
  • Dual-Exhaust™ design vents hot air out the side or the top, eliminating clearance headaches.
  • PURE ICE® antimicrobial protection with Agion® guards the food zone 24/7.
  • Plastic Food Zone – crevice-free, BPA-free components snap in/out and are dishwasher safe.
  • One-touch clean – dedicated sanitize & descale buttons plus an LED status bar that calls for cleaning.
  • Universal Smart Harness™ control board for plug-and-play installation and digital diagnostics.
  • DOE 2018 compliant; up to 20 % more energy efficient than previous models.
  • Optional SafeIce™ UV purification system destroys viruses, mold and odors (factory or field install).

Ice production

Ice type Full Cube  |  ⅞ in. x ⅞ in. x ⅞ in. (22 mm x 22 mm x 22 mm)
At 70 °F air / 50 °F water ≈ 316 lb / 24 hr (143 kg)
At 90 °F air / 70 °F water ≈ 244 lb / 24 hr (111 kg)
Energy use 6.8 kWh per 100 lb of ice (90 °F/70 °F)
Water use 20 gal per 100 lb of ice

Specifications

Model CIM0330A (air-cooled, self-contained)
Dimensions (W x D x H) 30.25 in. x 24.25 in. x 21.25 in. (768 mm x 616 mm x 540 mm)
Electrical 115 V / 60 Hz / 1-ph  |  11.0 A  |  15 A breaker
Refrigerant R404A
Heat rejection ≈ 4,400 BTU / hr
Operating ambient 50 °F – 100 °F (10 °C – 38 °C)
Water temperature 40 °F – 100 °F (4 °C – 38 °C)
Water pressure 20 psi – 80 psi (1.4 – 5.5 bar)
Minimum clearance 6 in. (152 mm) each side/top for air flow
Shipping weight 145 lb (66 kg)
Certifications cULus, NSF, CE, BPA-Free

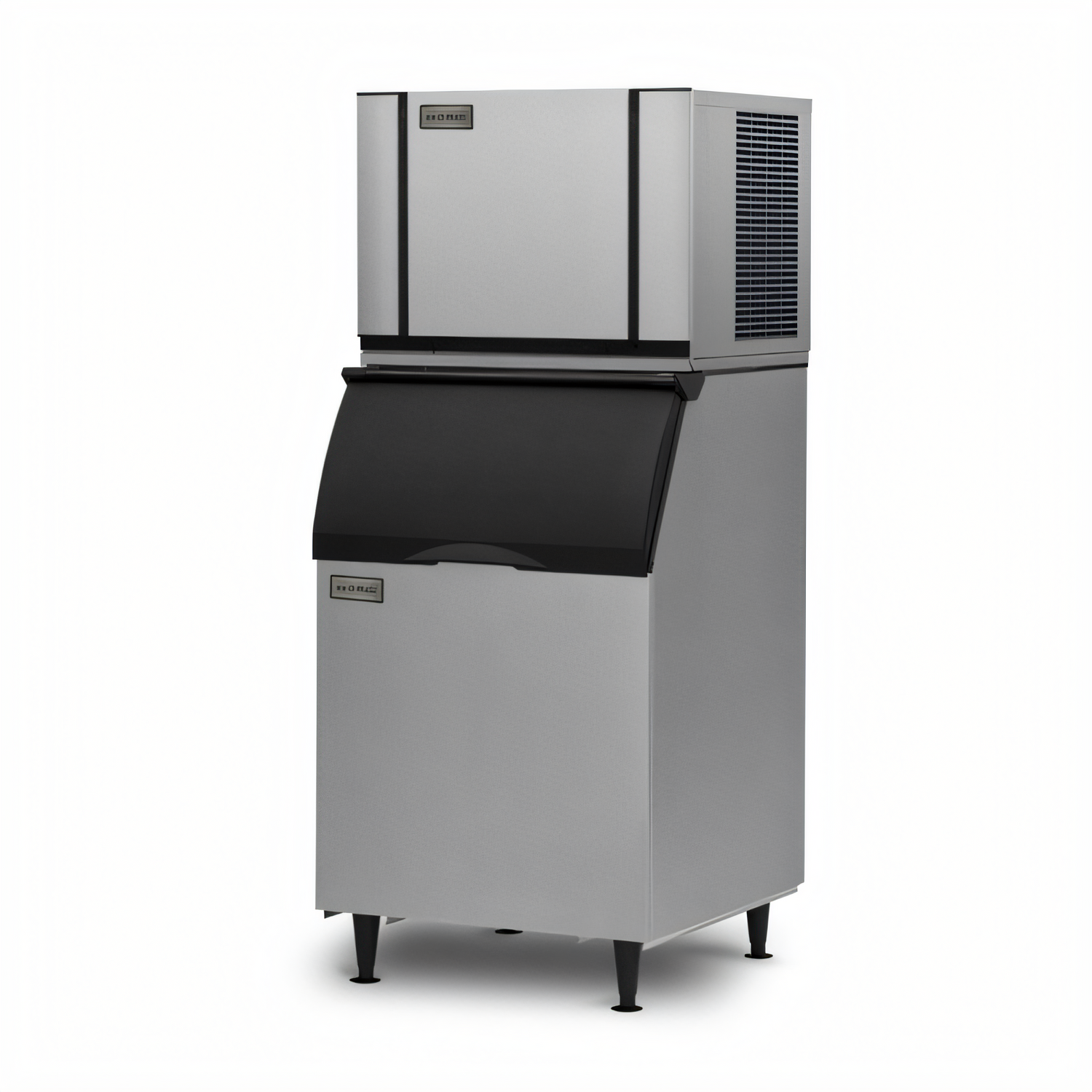

Popular bin pairings

  • B25PP – 242 lb storage, 22 in. wide (adapter kit not required).
  • B55PS – 510 lb storage, 30 in. wide (perfect match, no kit required).
  • B110PS – 854 lb storage, 48 in. wide (use adapter kit BPF-1).

Need help sizing a bin? Chat with us and we’ll make sure you never run out of ice.

Peace-of-mind warranty

  • Ice maker: 3-year parts & labor
  • Compressor & evaporator: 5-year parts
  • Evaporator enrolled in Ice-O-Matic filter program: 7-year parts & labor
Important: Production measurements are based on under-counter conditions of 70 °F air / 50 °F water. Higher temperatures will reduce daily output. Always allow proper airflow and use a potable water connection.

Overall Dimensions:

27.0"W x 33.0"D x 27.0"H

Product Weight:

148.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus", "BPA Free"]
Height 27.0in
Width 27.0in
Depth 33.0in
Shipping Weight 148.0lbs
Refrigeration self-contained refrigeration
Production per 24 hr 301 - 400 lb = 137 - 182 kg
Width (side - side) 30 - 39" wide
Condenser Type air-cooled
Ice Type full size / dice cubes
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 316 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Brochure PDF Download PDF Web site PDF Download PDF Diagram PDF Download PDF Owner's manual PDF Download PDF Slope front storage bins PDF Download PDF Warranty sheet PDF Download
