Ice-O-Matic CIM0326HA Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ CIM0326A
22" Modular Half-Cube Ice Maker – Air-Cooled, ENERGY STAR®Produce a mountain of exceptionally pure ice from a machine that fits almost anywhere. The Elevation Series™ CIM0326A cranks out up to 330 lb of half-size cubes every 24 hours while using up to 20 % less energy than comparable models. With built-in antimicrobial protection, one-touch cleaning, and dishwasher-safe components, it’s the easiest way to keep your drinks—and your reputation—crystal clear.
Why Operators Love It
- High output, small footprint: Only 22.25" wide yet delivers 330 lb/day at 70 °F air / 50 °F water.
- PURE ICE® antimicrobial protection: Agion®-treated Food Zone inhibits microbes for the life of the machine.
- One-touch sanitize & descale: Simplifies maintenance and keeps ice tasting fresh.
- Plastic Food Zone: Smooth, BPA-free surfaces snap out for the dishwasher—no tools, no hassle.
- Smart LED status display: At-a-glance alerts for power, production, and cleaning reminders.

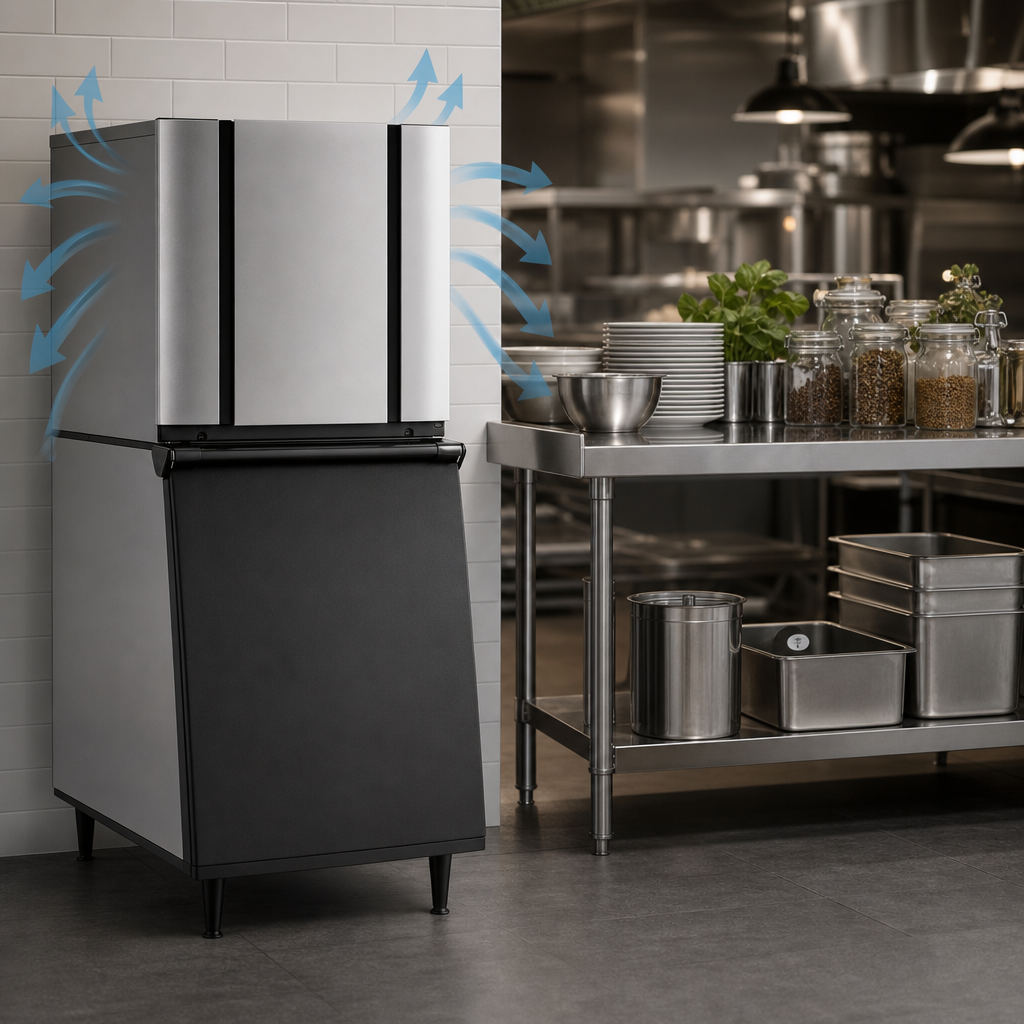

- Dual Exhaust design: Hot air vents from the side and top, giving you more placement options and preventing recirculated heat.
- Energy & water efficient: ENERGY STAR® certified and exceeds 2018 DOE standards.
Performance at a Glance
| Model | CIM0326A (Air-Cooled, Self-Contained) |
|---|---|

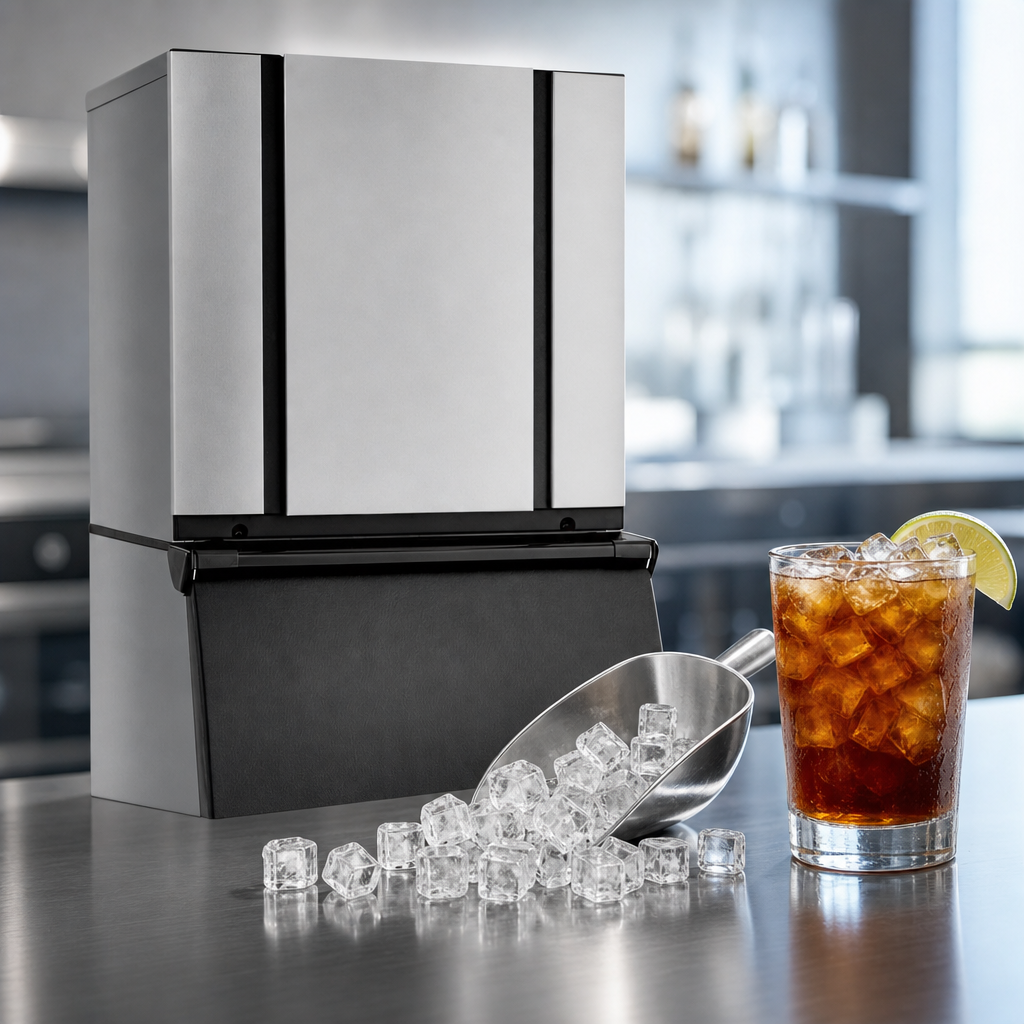

| Ice Type | Half-Size Cubes | ⅜" × ⅞" × ⅞" (10 × 22 × 22 mm) |
| 24 hr Production | 330 lb (150 kg) @ 70 °F air / 50 °F water 236 lb (107 kg) @ 90 °F air / 70 °F water |
| Energy Consumption | 6.5 kWh per 100 lb of ice |
| Water Usage | 19.5 gal per 100 lb of ice |
| Electrical | 208-230 V / 60 Hz / 1-ph | 6.5 A MCA | 15 A breaker |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 22.25" × 24.25" × 21.25" (565 × 616 × 540 mm) |
| Net / Shipping Weight | ≈ 150 lb (68 kg) |
| Clearance Required | 6" (152 mm) air intake/exhaust |

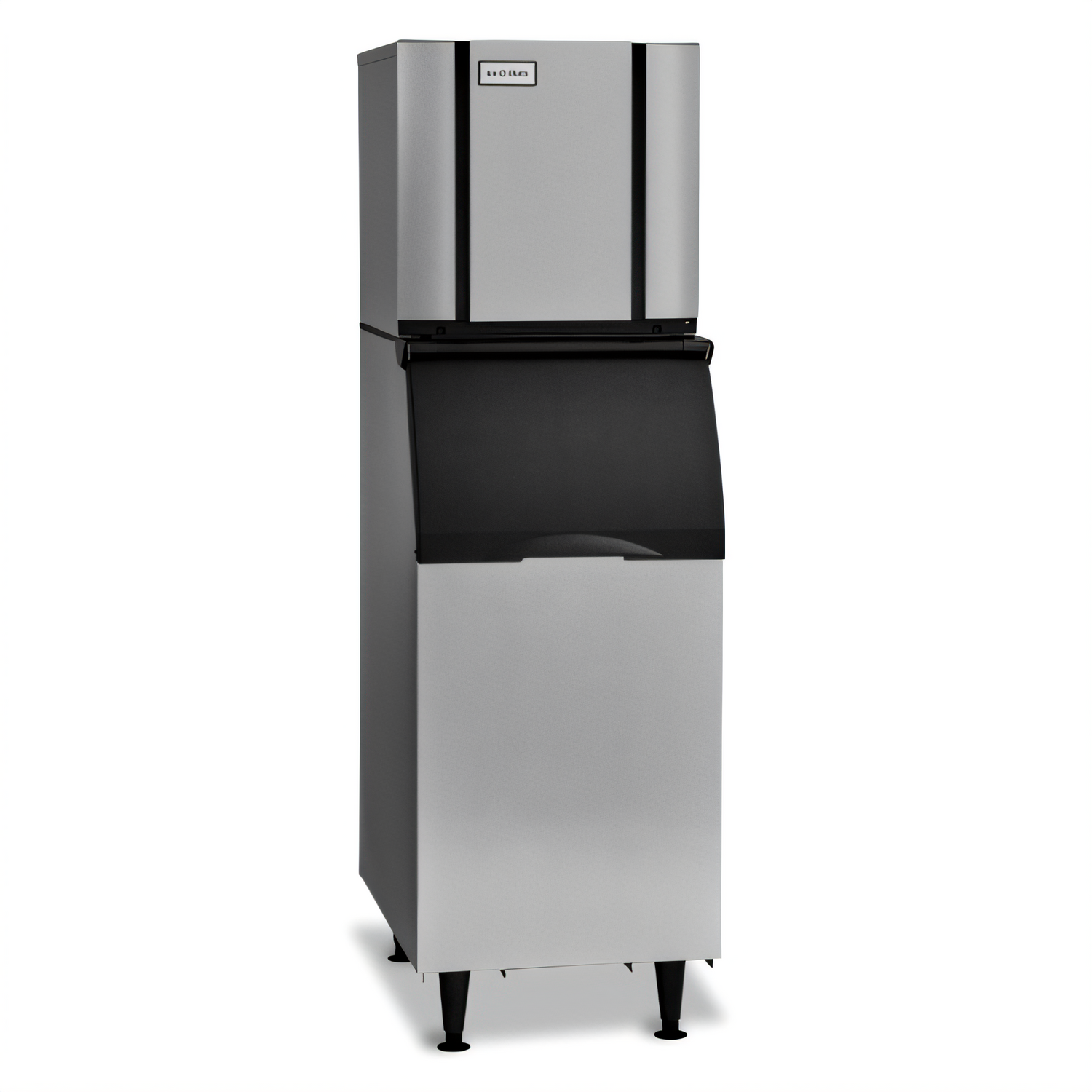

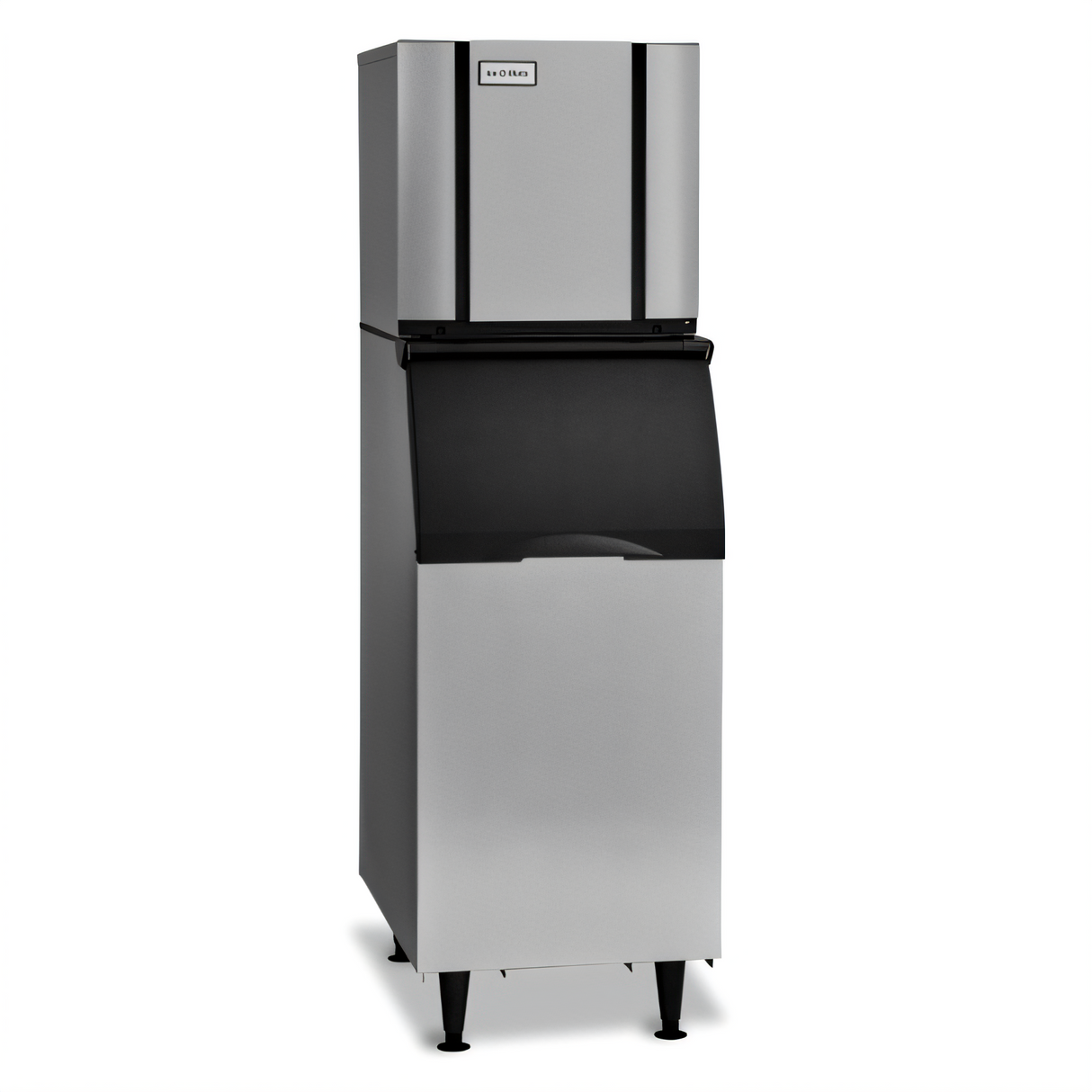

Pair It With the Perfect Bin
| Ice-O-Matic Bin | Storage Capacity | Adapter Kit |
|---|---|---|
| B25 | 242 lb (110 kg) | KBT19 |
| B40 | 344 lb (156 kg) | KBT19 |
| B42 | 351 lb (160 kg) | Not required |
| B55 | 510 lb (232 kg) | KBT19 |
Need a different setup? Contact us for upright or side-by-side bin options up to 1,660 lb.
Certifications & Warranty
- ENERGY STAR®, cULus, NSF, CE, BPA-Free
- 3-year parts & labor on the entire ice maker
- 5-year parts on compressor & evaporator
- 7-year parts & labor on the evaporator when enrolled in Ice-O-Matic’s filter program
Performance figures are per Ice-O-Matic factory testing. Actual results may vary based on water quality, ambient conditions, and installation practices.
