Ice-O-Matic CIM0326FA Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ Modular Cube Ice Maker
Model CIM0326A · Air-Cooled · 22 in (565 mm) WideProduce a mountain of crystal-clear ice with a machine that is as easy to own as it is to install. The Elevation Series™ CIM0326A turns out up to 330 lb of full-size cubes every 24 hours while using up to 20 % less energy than previous generations. A PURE ICE® antimicrobial food-zone, tool-free cleaning, and one-touch sanitizing mean you’ll spend less time on maintenance and more time serving perfectly chilled drinks.
Why You’ll Love It
- High Volume: 330 lb/24 hr at 70 °F air / 50 °F water (247 lb at 90 °F / 70 °F).
- Full-Size Cubes: ⅞ in × ⅞ in × ⅞ in (22 mm × 22 mm × 22 mm) for maximum cooling with minimal dilution.
- PURE ICE® Protection: Agion® antimicrobial is permanently molded into key components to inhibit bacteria and slime.
- Sanitation Made Simple: One-touch sanitize and descale buttons plus BPA-free, snap-in parts that go straight into the dishwasher.
- Universal Smart Harness™: Digital diagnostics and common components streamline installation and service.

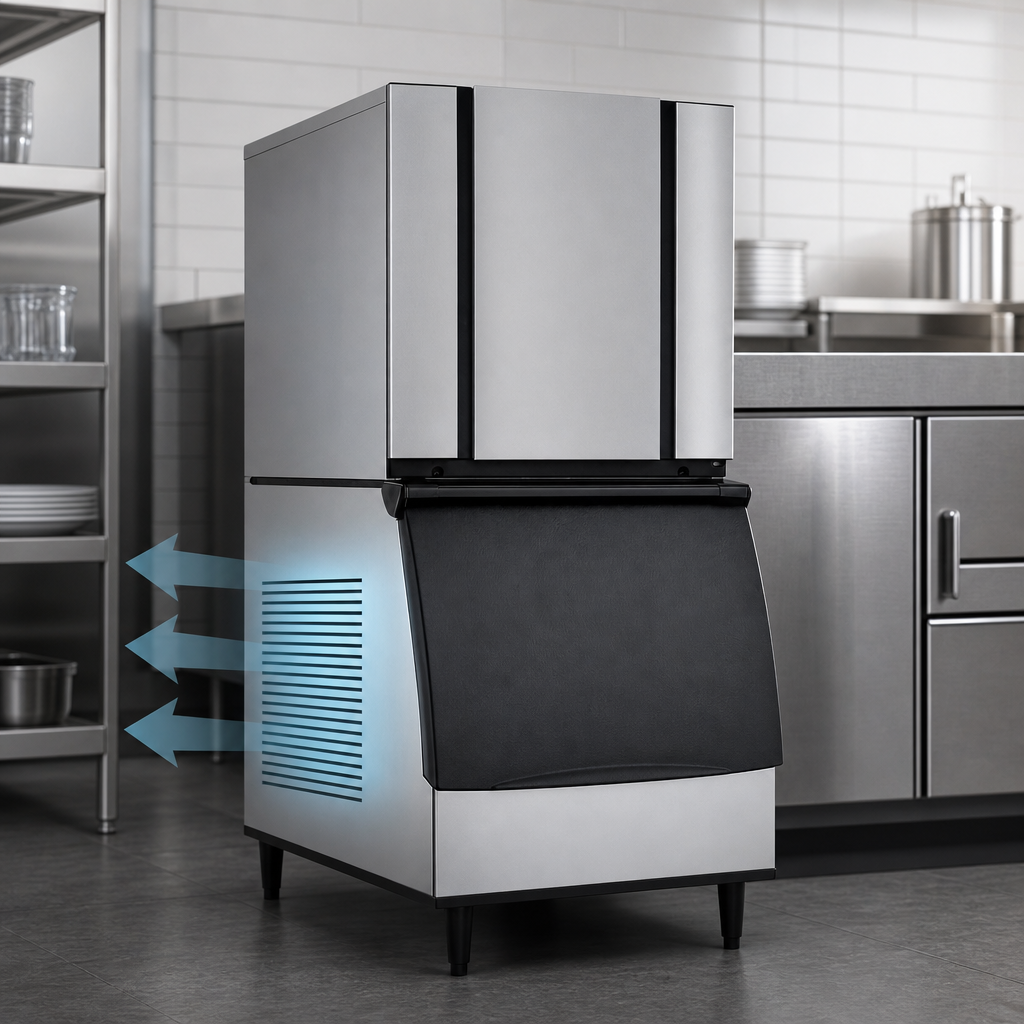

- Dual Exhaust: Hot air exits from the side and the top, giving you more placement options and less risk of blocked vents.
- ENERGY STAR® Certified: Exceeds 2018 DOE standards for energy and water efficiency.
Technical Specifications
| Daily Production | 330 lb (150 kg) @ 70 °F air / 50 °F water 247 lb (112 kg) @ 90 °F air / 70 °F water |
|---|---|
| Ice Type | Full-size cube – ⅞ in × ⅞ in × ⅞ in (22 mm × 22 mm × 22 mm) |
| Condenser | Air-cooled, self-contained |

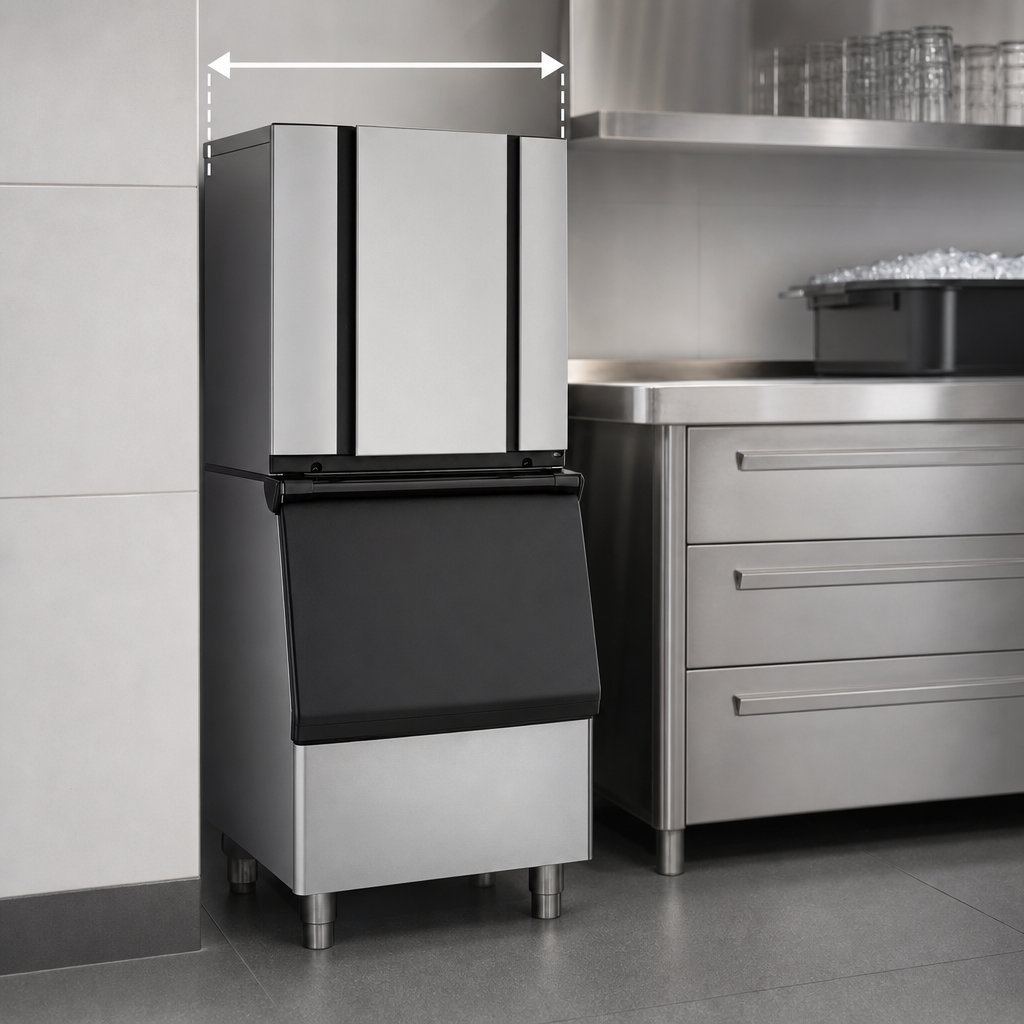

| Dimensions (W×D×H) | 22.25 in × 24.25 in × 21.25 in (565 × 616 × 540 mm) |
| Electrical | 208–230 V / 60 Hz / 1 ph, 6.5 A (15 A breaker recommended) |
| Energy Use | 6.5 kWh per 100 lb of ice |
| Water Use | 19.5 gal potable water per 100 lb of ice |
| Refrigerant | R404A |
| Operating Limits | Ambient 50 °F–100 °F (10 °C–38 °C) Water 40 °F–90 °F (4 °C–32 °C) Water pressure 20–80 PSI (1.4–5.5 bar) |
| Compatible Bins (22 in width) | B25PP, B40PS, B42PS, B55PS — adapter KBT19 recommended where noted |
| Certifications | cULus, NSF, CE, ENERGY STAR®, BPA Free |
| Warranty | 3 yr parts & labor on entire machine 5 yr parts on evaporator & compressor 7 yr parts & labor on evaporator when enrolled in IOM filter program |
Perfect For
- Full-service & quick-service restaurants
- Bars, cocktail lounges, nightclubs
- Hotels & hospitality suites
- Healthcare & corporate cafeterias
Need a larger bin or a twin-machine setup? Ask our team about the full line of Ice-O-Matic storage solutions and adapter kits.
