Ice-O-Matic  |  Elevation Series™  |  SKU: CIM0320HW

Ice-O-Matic CIM0320HW Elevation Series™ Ice Machines

$4,029.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Diagram Slope front storage bins Brochure Web site Parts manual Owner's manual Warranty sheet
Related Searches
Commercial Ice Makers Ice Machines Ice Makers & Bins Ice-O-Matic Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

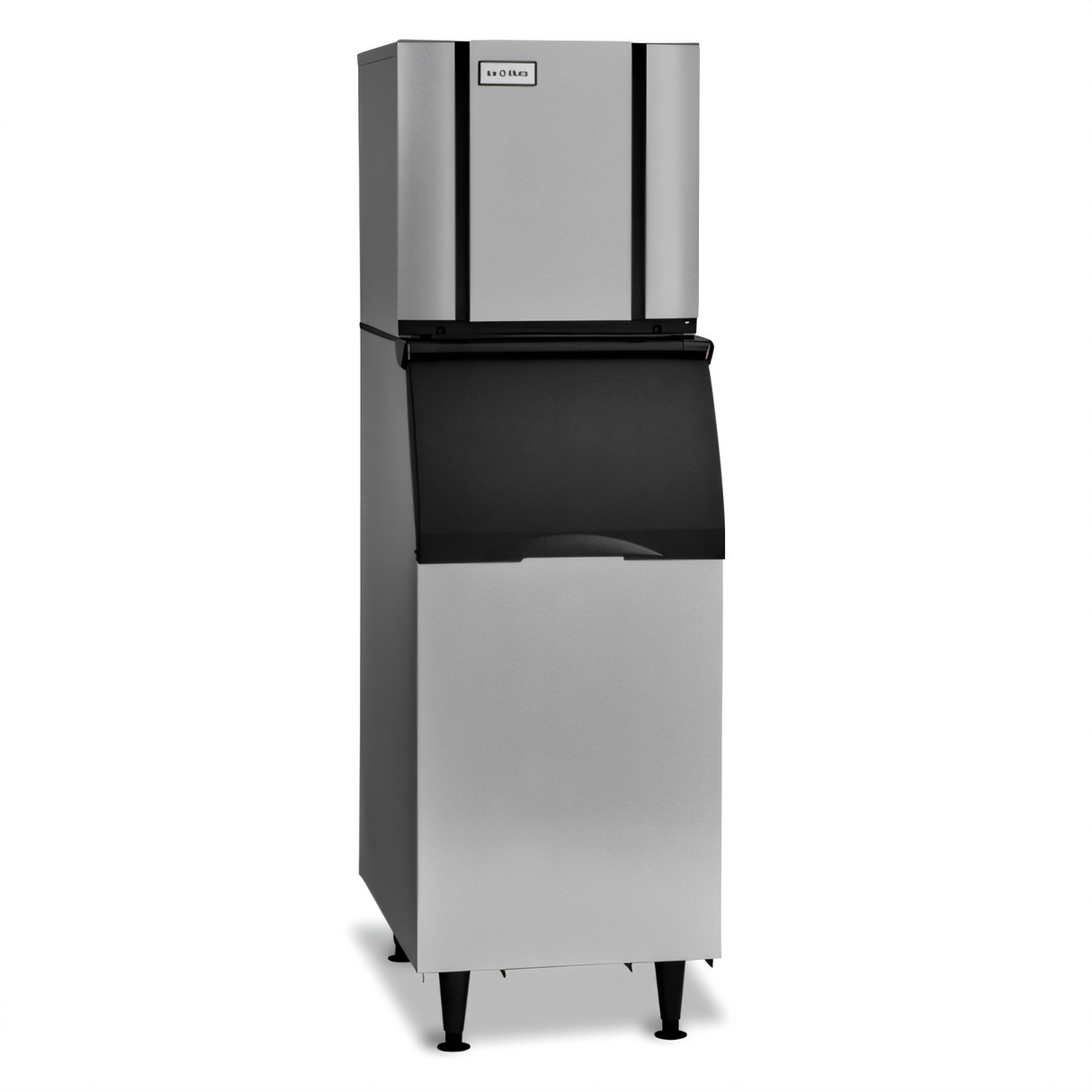

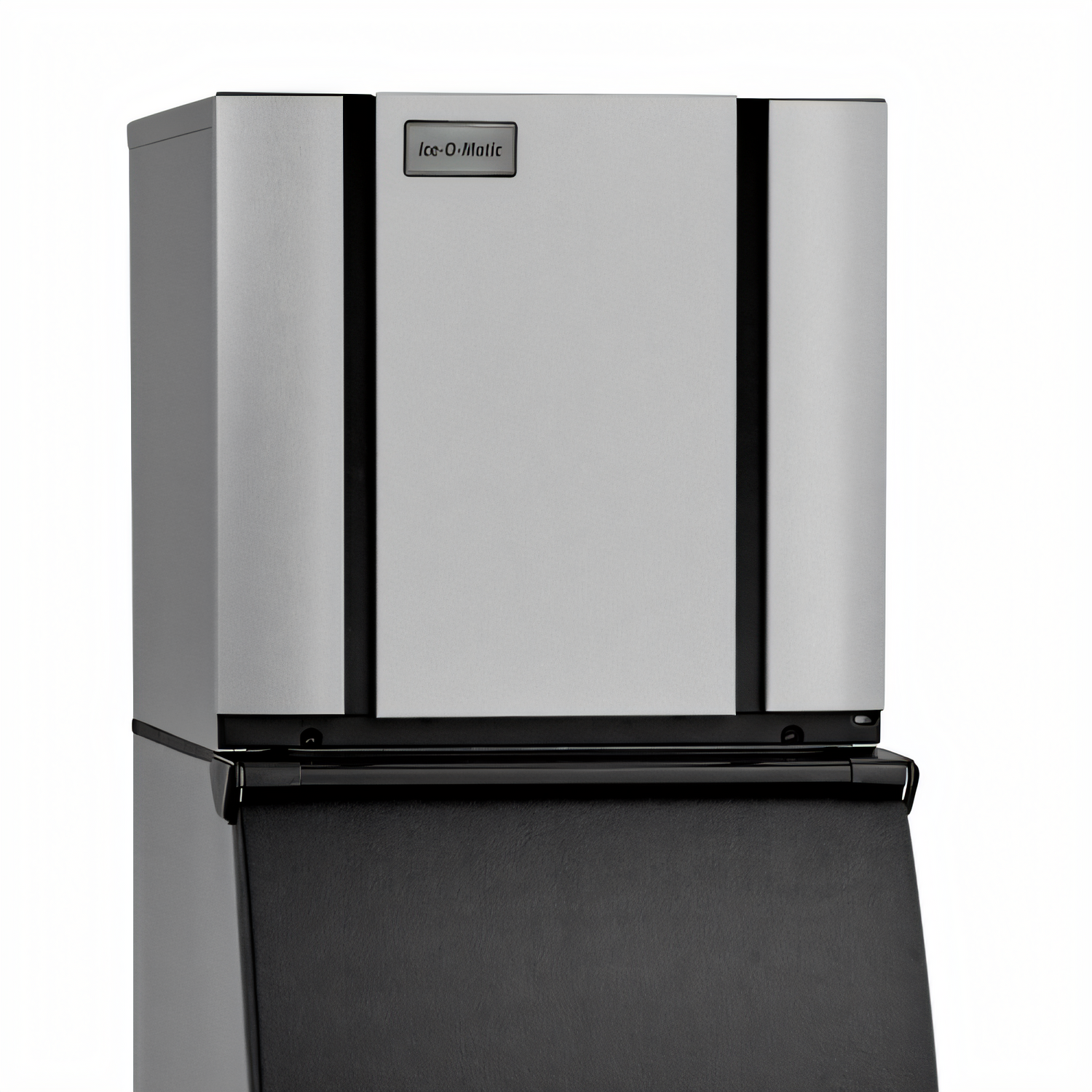

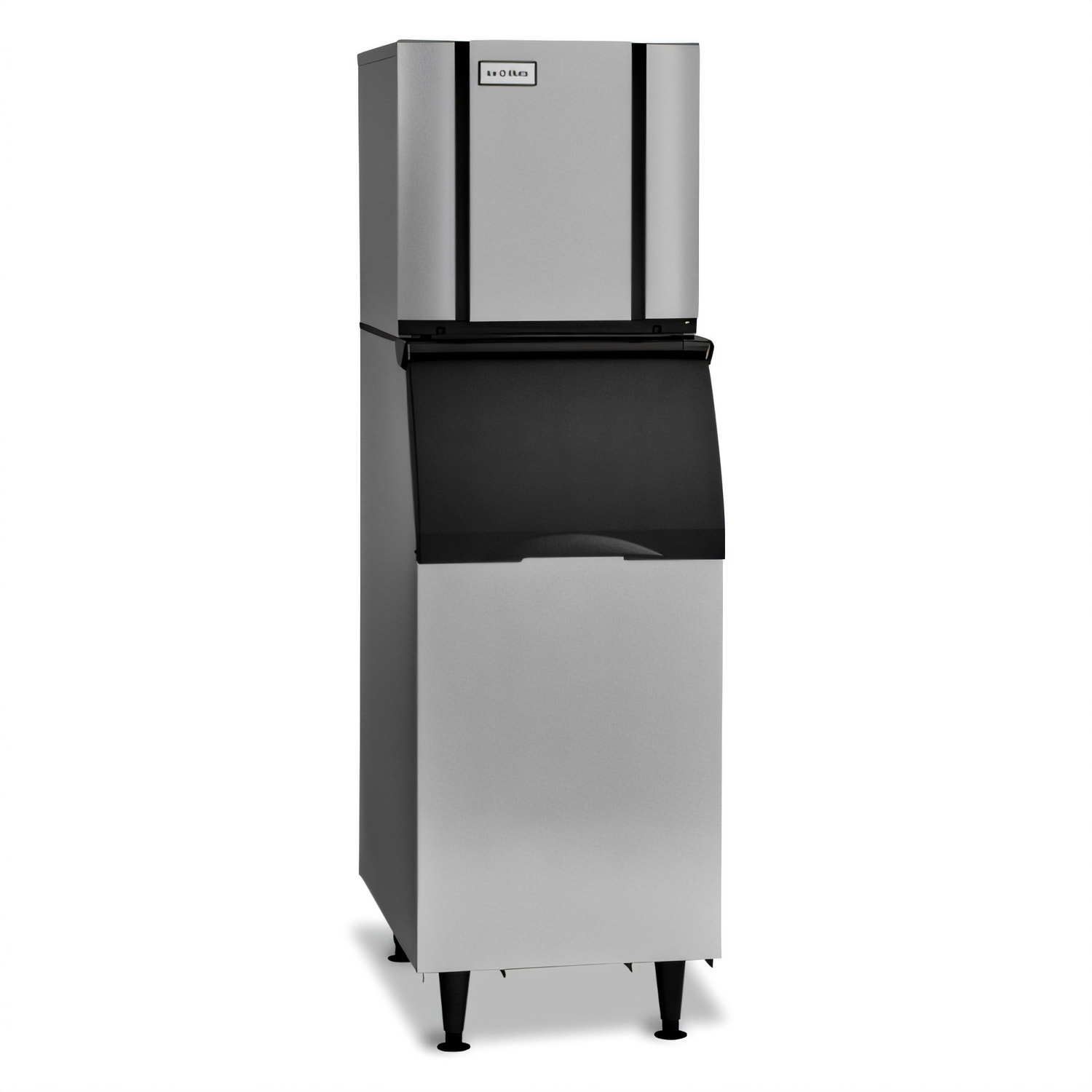

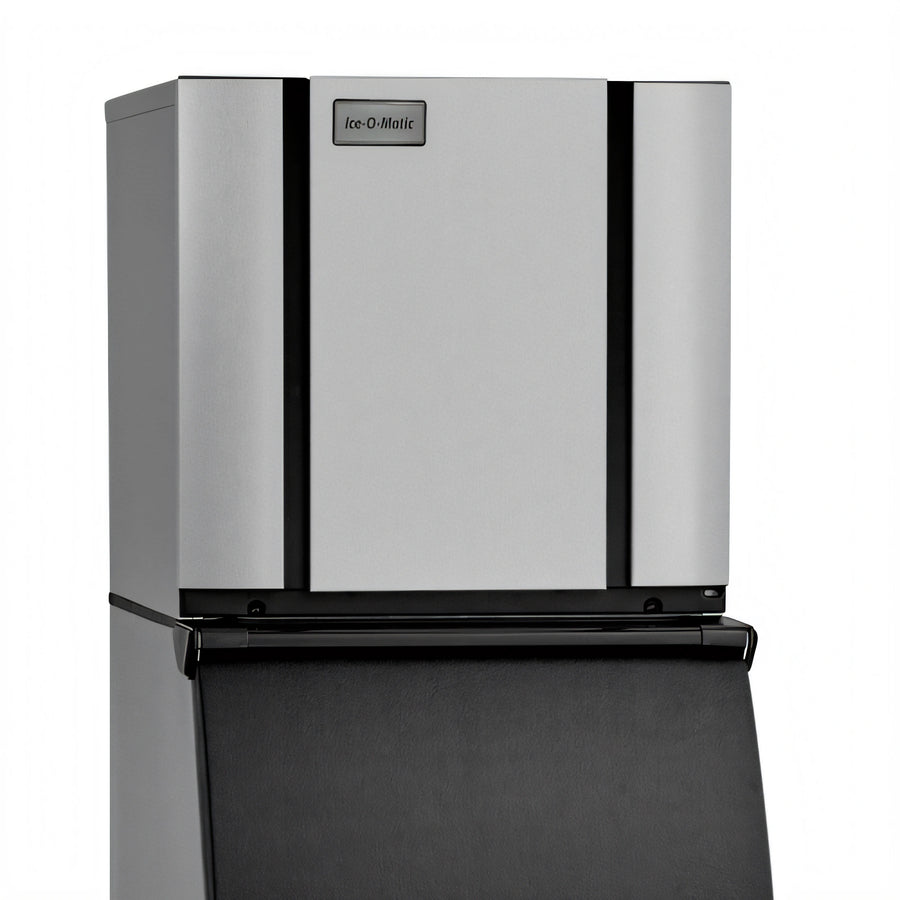

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker

Model CIM0320W • 316 lb / 24 hr • Half-Cube • Water-Cooled

Get crystal-clear, half-cube ice without the headaches. Engineered for tight spaces, effortless sanitation and maximum reliability, the 22 inch-wide Elevation Series™ CIM0320W keeps drinks cold – and your crew happy – shift after shift.

Top Reasons You’ll Love It

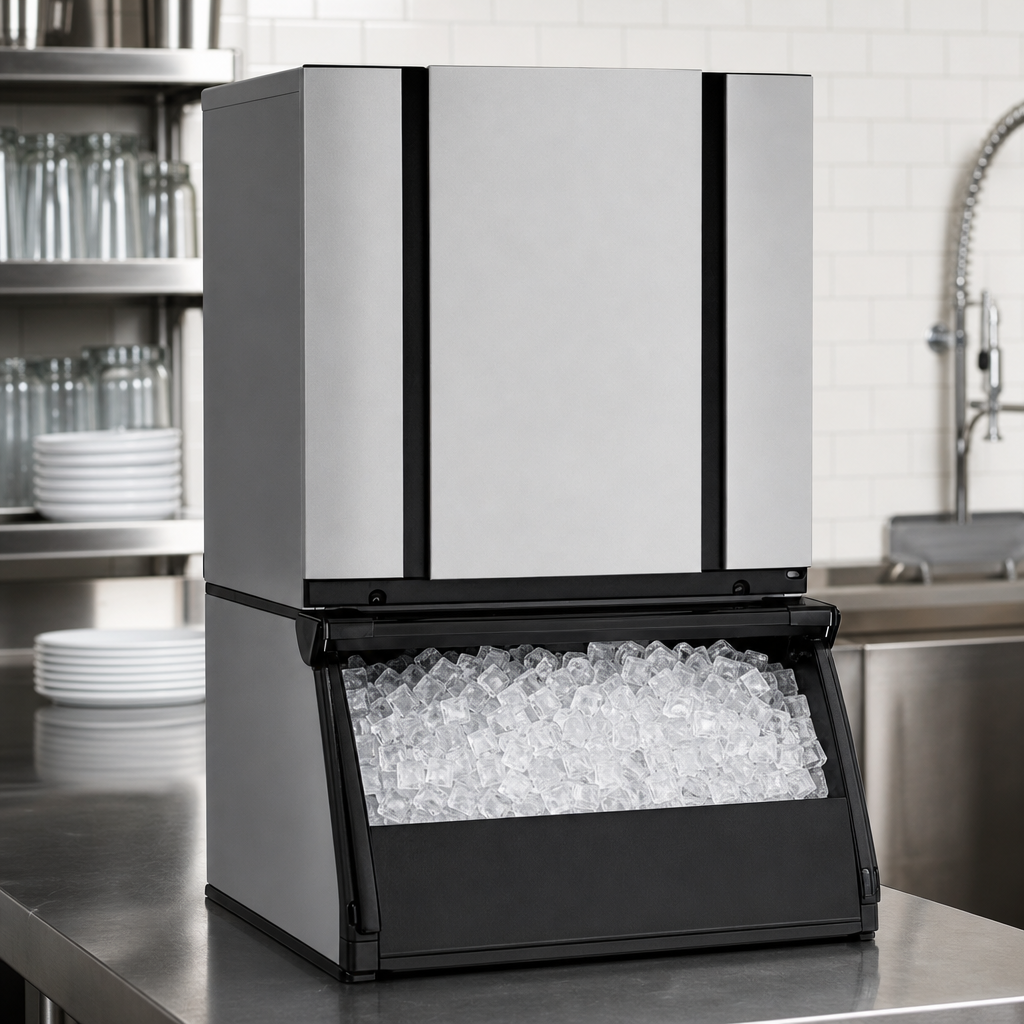

  • Produces up to 316 lb of ice per day (70 °F air / 50 °F water) while staying whisper-quiet thanks to its self-contained water-cooled condenser.
  • Half-cube (3/8 in × 7/8 in × 7/8 in) ice packs glasses densely—perfect for cocktails, soft drinks and blended beverages.
  • Patented PURE ICE® antimicrobial protection and Agion®-treated plastics inhibit bacterial growth for the life of the unit.
  • Snap-in/snap-out Food Zone components are dishwasher-safe for the fastest possible clean-ups.
  • One-touch sanitize & descale buttons slash service time and keep ice tasting fresh.
  • Bright LED status display tells staff when it’s time to clean or call for service—no guesswork.
  • Dual top / side air discharge increases installation flexibility in tight alcoves or low-ceiling applications.
  • Constructed from BPA-free, recyclable materials and exceeds 2018 DOE energy standards.
Key Specifications
Ice type Half-Cube (10 mm × 22 mm × 22 mm)
Daily production @ 70 °F / 50 °F Approx. 316 lb (143 kg)
Daily production @ 90 °F / 70 °F Approx. 274 lb (124 kg)
Cooling method Self-contained water-cooled condenser
Energy use 5.3 kWh per 100 lb of ice
Water use (per 100 lb) Potable: 19.6 gal • Condenser: 179 gal
Dimensions (W×D×H) 22.25 in × 24.25 in × 21.25 in (565 × 616 × 540 mm)
Electrical 115 V / 60 Hz / 1-phase • 10.7 A MCA • 15 A max breaker
Refrigerant R404A
Operating limits Ambient 50–100 °F • Water 40–100 °F • Water pressure 20–80 PSI
Certifications cULus, NSF, CE, BPA-Free
Warranty 3 yrs parts & labor (machine) • 5 yrs parts (evaporator & compressor)
7 yrs parts & labor on evaporator when enrolled in Ice-O-Matic filter program
Built for Faster Maintenance
  • Universal Smart Harness™ control board offers digital diagnostics and common components for quick service calls.
  • Plastic Food Zone has no hard-to-reach corners—just wipe, rinse, reinstall.
  • Tool-free removals mean less downtime and lower labor costs.
Perfect For
  • Bars & nightclubs
  • Fast casual & full-service restaurants
  • Hotel pantries & hospitality suites
  • Corporate cafeterias & break rooms
  • Healthcare nourishment stations
Heads-up: Ice storage bin, water filter system and installation kits are sold separately. Match this 22-inch ice head with an Ice-O-Matic B25, B40 or B42 bin, or see our adapter kits for use with beverage dispensers.

Need help with bin sizing, water filtration or OEM parts? Chat with our food-service team or call 1-866-PURE-ICE.

Features & Specs

Manufacturer

Ice-O-Matic

Brand_name

Elevation Series™

Certifications

NSF, CE, cULus, BPA Free

Height

27.0in

Width

27.0in

Depth

25.0in

Shipping Weight

130.0lbs

Condenser Type

water-cooled

Ice Type

half size / half dice cubes

Production per 24 hr

301 - 400 lb = 137 - 182 kg

Refrigeration

self-contained refrigeration

Width (side - side)

20 - 29" wide

Specifications

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 316 lb production/24 hours at 70°/50° (274 lb at 90°/70°), half-size cubes, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
