Ice-O-Matic CIM0320HA Elevation Series™ Ice Machines
Description

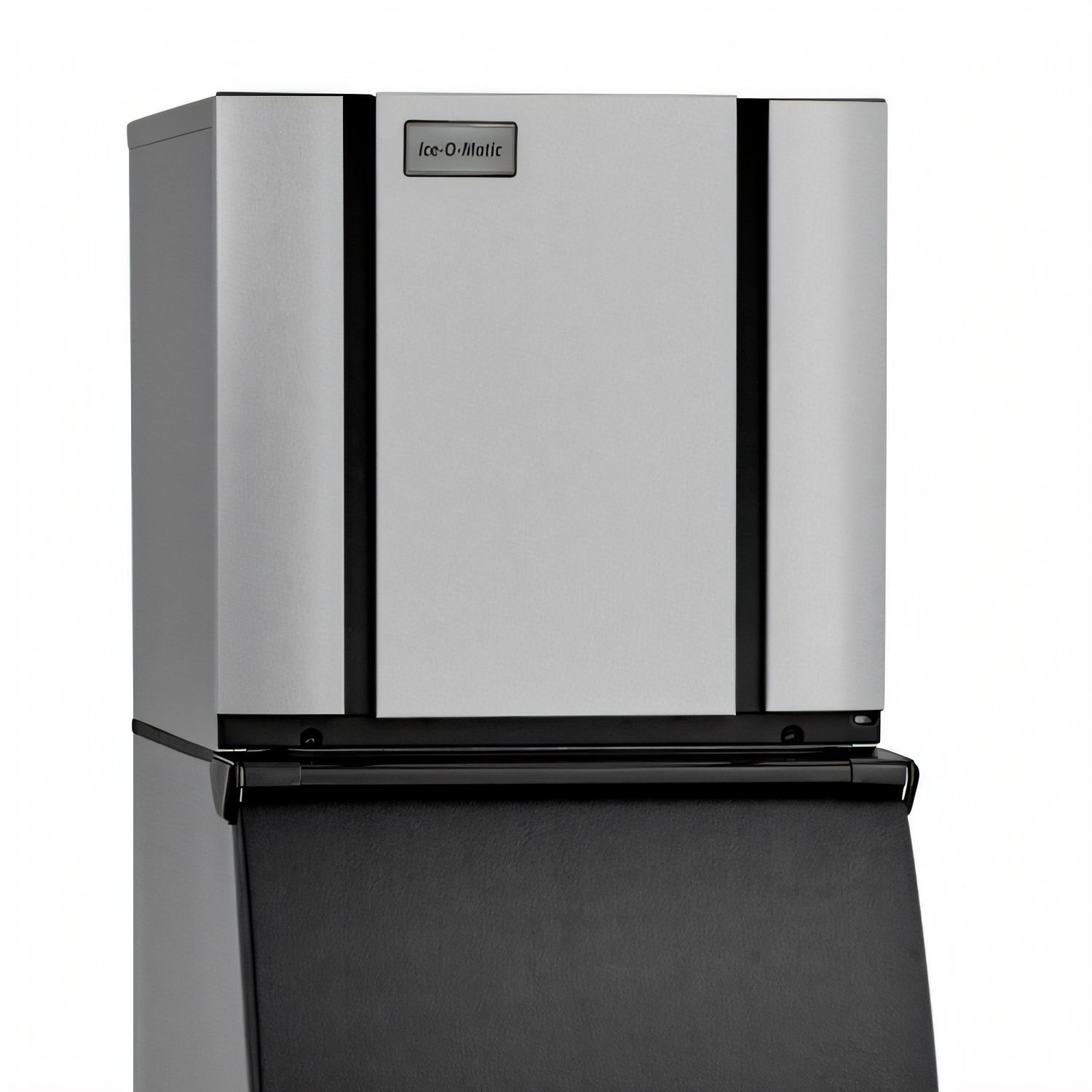

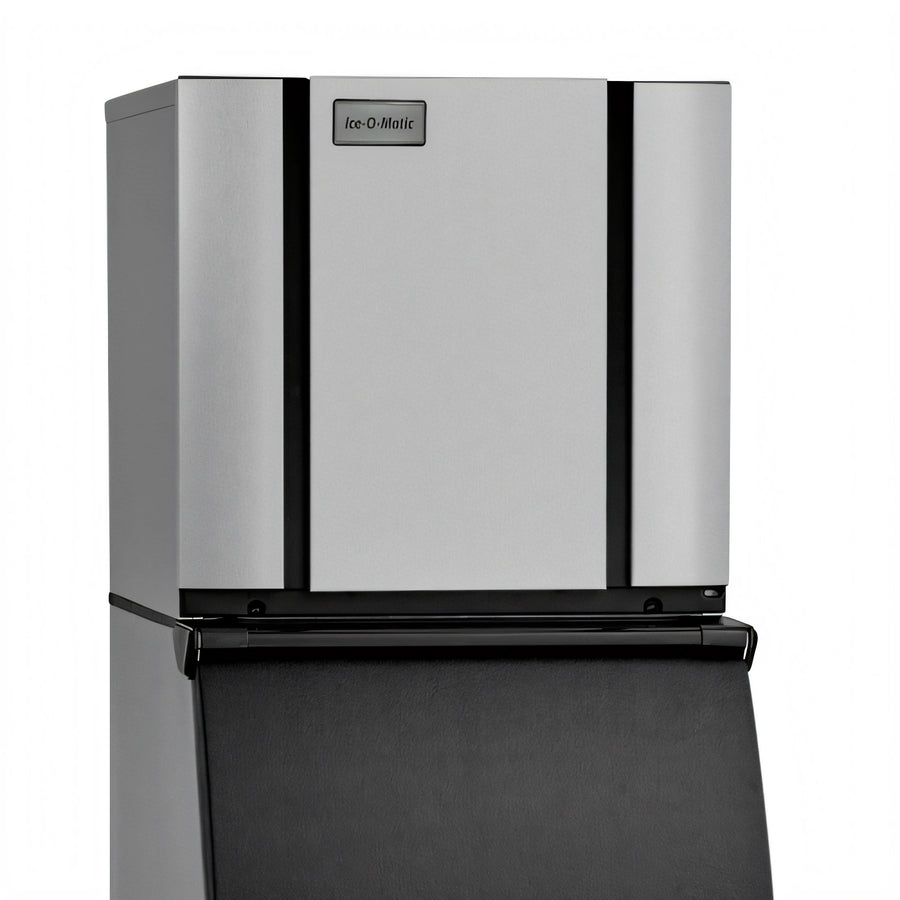

Ice-O-Matic Elevation Series™ CIM0320A Modular Cube Ice Maker
Air-Cooled • 22" Head • Up to 313 lb Half-Cube Ice / 24 hrDeliver a dependable supply of crystal-clear half-cube ice while saving space, energy, and labor. The 22-inch Elevation Series™ CIM0320A pairs industry-leading food-safety features with true plug-and-play simplicity, making it the perfect ice head for cafés, bars, and quick-service kitchens that demand Pure Ice®—pure and simple.
Why You’ll Love It
- Powerful Production – ≈ 313 lb (142 kg) per 24 hr at 70 °F air / 50 °F water.
- Compact Footprint – Just 22.25 W × 24.25 D × 21.25 H in. fits 22-inch Ice-O-Matic bins and most beverage dispensers.
- Dual Exhaust – Patented top & side air discharge gives greater installation flexibility and reduces the risk of obstructed airflow.
- PURE ICE® Protection – Built-in Agion® antimicrobial defense plus BPA-free food-zone components.
- Tool-Free Sanitation – Snap-in plastic food-zone parts pop out for the dishwasher; one-touch sanitize & descale programs slash downtime.
- Smart LED Display – Intuitive lights show machine status and cleaning reminders at a glance.
- Energy & Water Efficient – Exceeds 2018 DOE regulations and uses just 6.8 kWh / 20 gal per 100 lb of ice.
Daily Ice Output
| Condition | Approx. Yield |
|---|---|
| 70 °F air / 50 °F water | 313 lb (142 kg) / 24 hr |
| 90 °F air / 70 °F water | 244 lb (111 kg) / 24 hr |
| Ice form | Half cube – 3/8" × 7/8" × 7/8" (10 × 22 × 22 mm) |
Technical Specifications
| Model | CIM0320A (Modular Head Only – bin sold separately) |
|---|---|
| Dimensions (W × D × H) | 22.25 × 24.25 × 21.25 in. / 565 × 616 × 540 mm |
| Condenser | Air-cooled, self-contained |
| Electrical | 115 V / 60 Hz / 1-phase – 11 A MCA – 15 A max. fuse/breaker |
| Energy Usage | 6.8 kWh per 100 lb of ice |
| Water Usage (potable) | 20 gal per 100 lb of ice |
| Refrigerant | R404A |
| Operating Ambient | 50 – 100 °F (10 – 38 °C) |
| Water Temp Range | 40 – 100 °F (4 – 38 °C) |
| Water Pressure | 20 – 80 psi (1.4 – 5.5 bar) |
| Clearance (air-cooled) | 6 in. (152 mm) top & sides for airflow |
| Approx. Shipping Weight | 150 lb (68 kg) |
Compliance & Warranty
- cULus, NSF, CE, BPA-Free materials
- Meets/exceeds 2018 DOE energy standards
- Commercial warranty: 3 yr parts & labor on entire machine
- 5 yr parts on evaporator & compressor (7 yr parts & labor with Ice-O-Matic filter program)
Bin & Dispenser Pairing

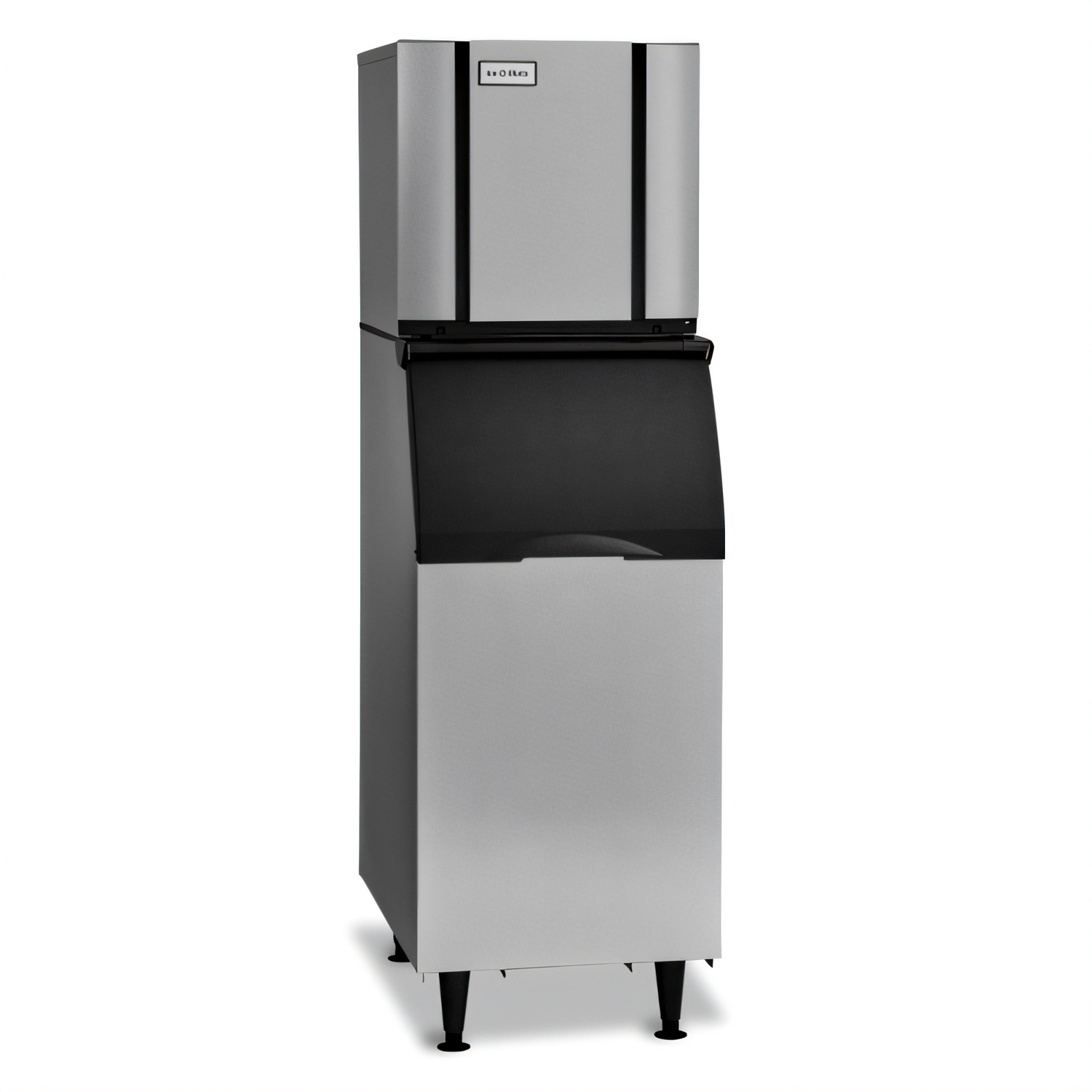

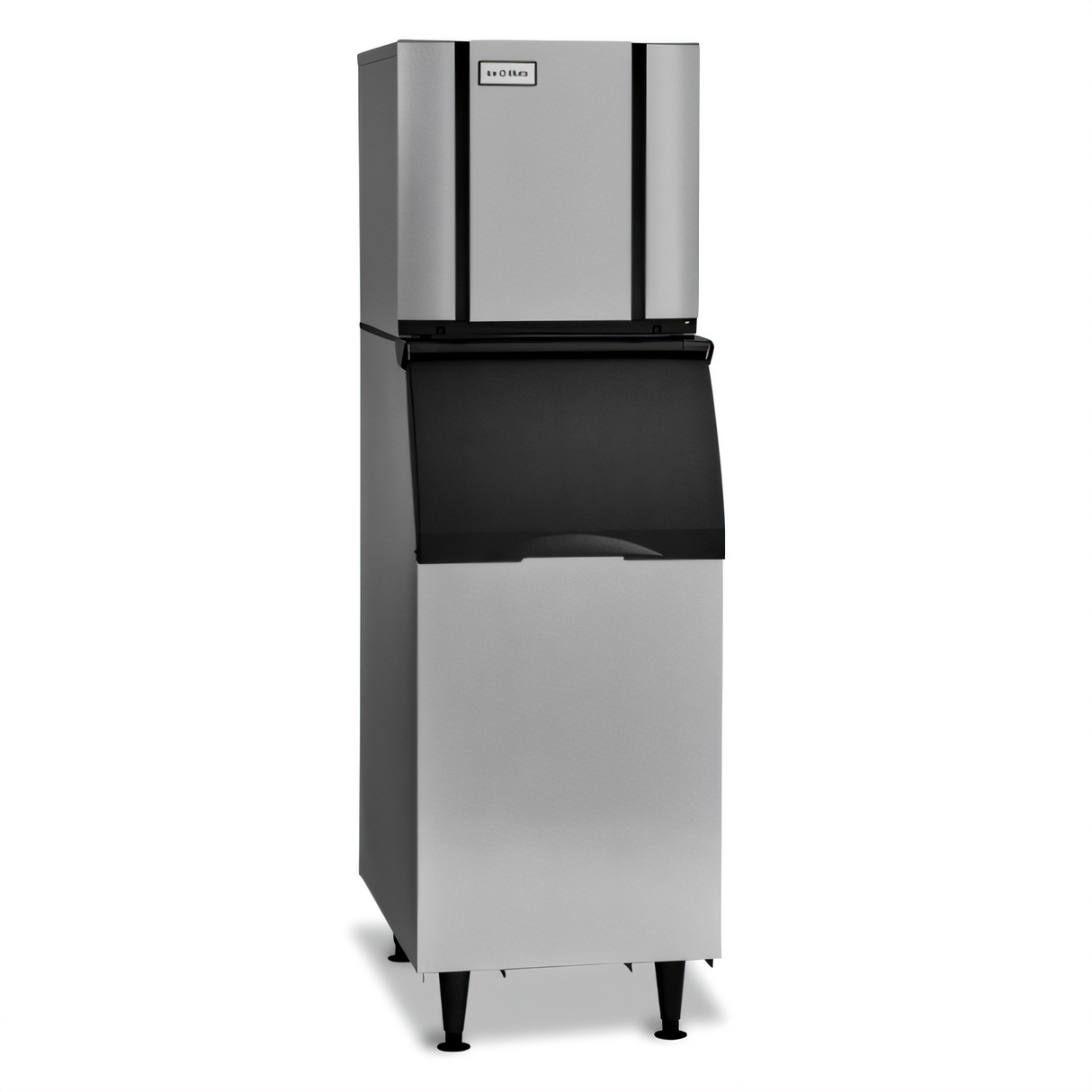

Add a 22-inch Ice-O-Matic bin such as the B25, B40, or B42 series (Bin Top Kit KBT19 may be required). Larger upright bins and beverage dispensers are also compatible.
Ice production figures are based on factory testing and may vary with site-specific water and ambient conditions. Installation must follow local codes and manufacturer guidelines.
