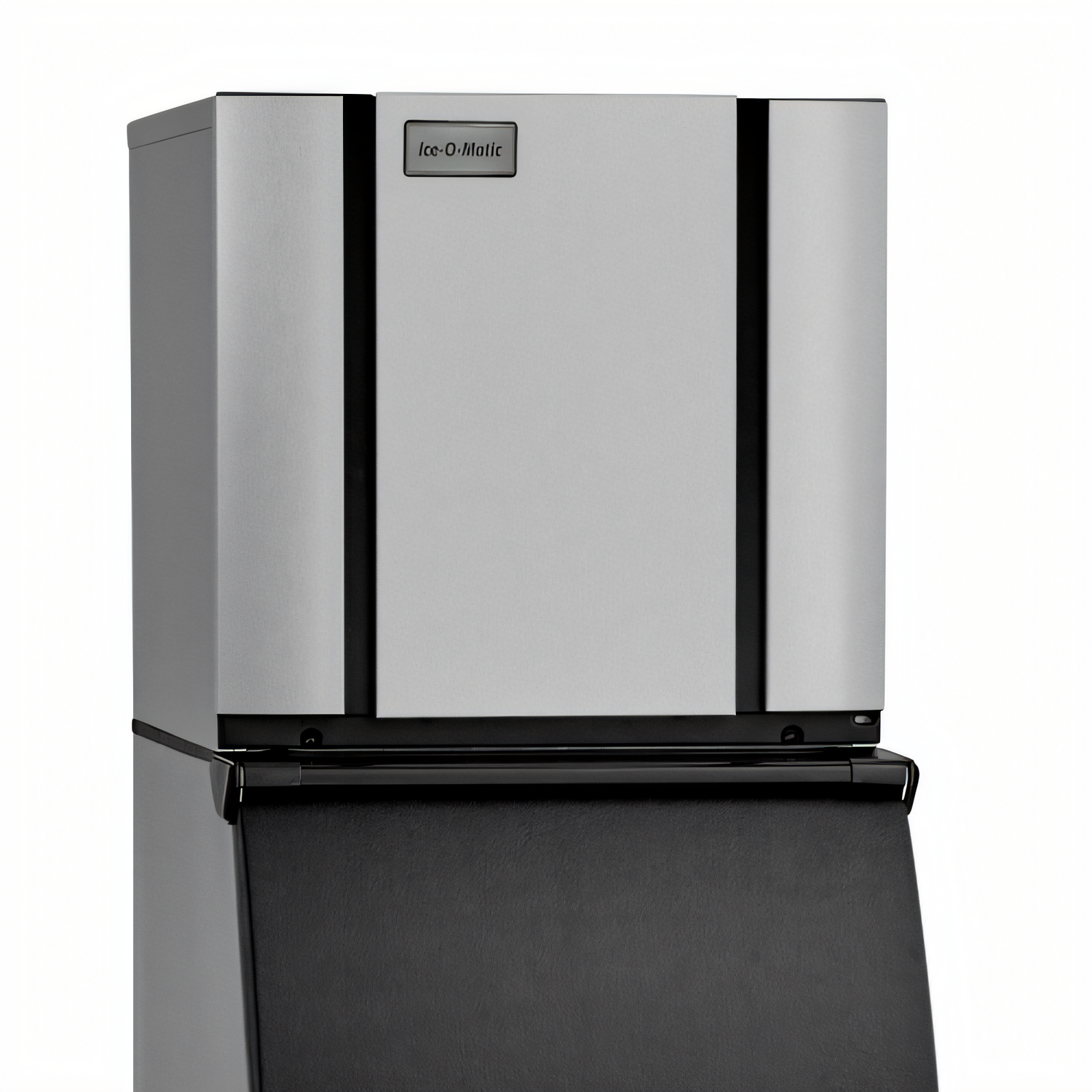

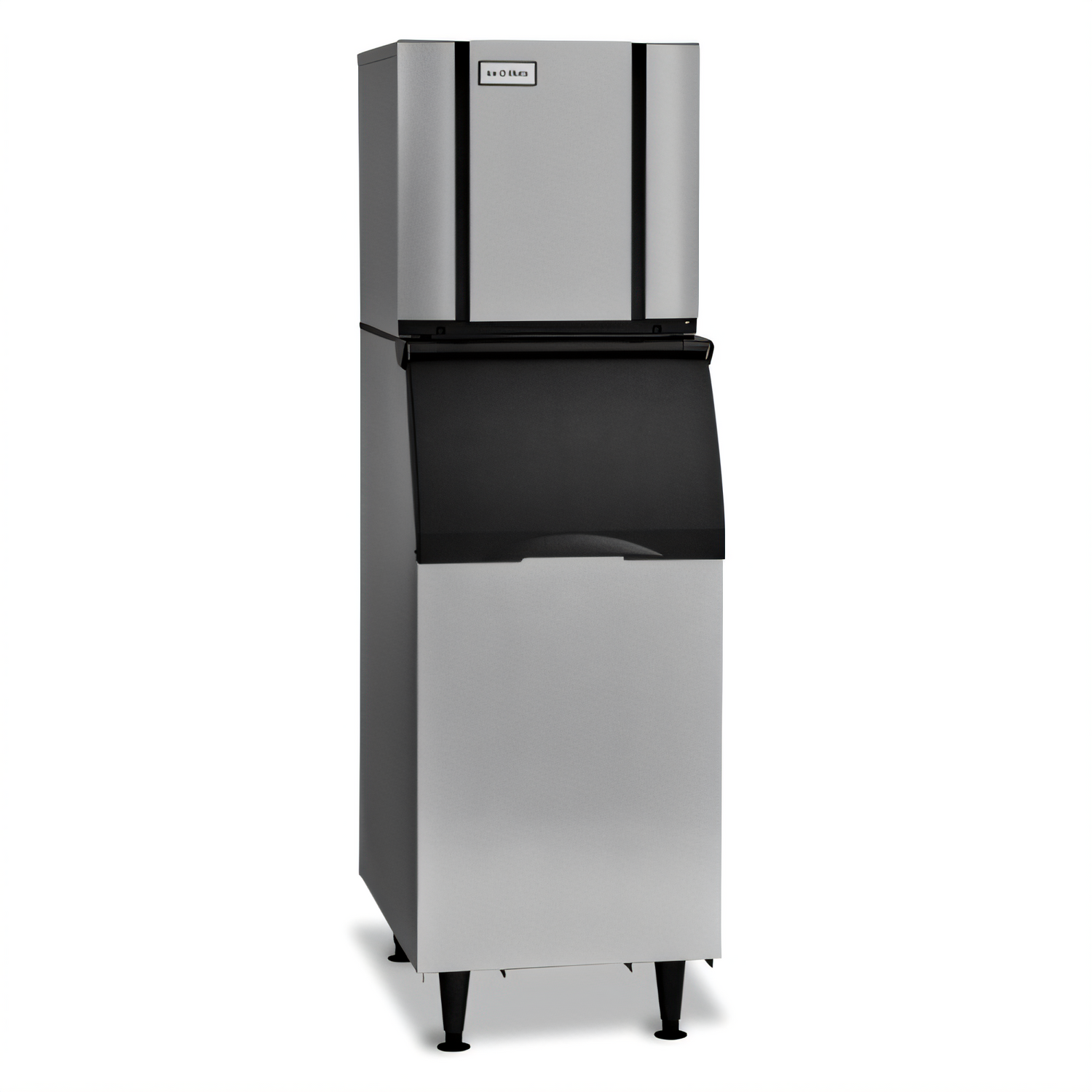

Ice-O-Matic Elevation Series™ 22-Inch Modular Full Cube Ice Maker, Water-Cooled, 320 lb/24 Hr

SKU: CIM0320FW90
$3,994.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Makers & Bins Ice-O-Matic New Arrivals Restaurant Equipment

Ice-O-Matic Elevation Series™ 22-Inch Modular Full Cube Ice Maker, Water-Cooled, 320 lb/24 Hr

Self-Contained Refrigeration, R290, LED Status Display

A compact, water-cooled modular cube ice maker that delivers up to 320 lb of full cubes per day with easy-clean sanitation features.

  • Produces up to 320 lb of full cube ice per 24 hours at 70°F air / 50°F water.
  • Water-cooled, self-contained design is built for flexible installation on bins or dispensers.
  • LED status display and one-touch sanitize/descaling controls simplify operation.
  • Dishwasher-safe food-zone components and a front-facing evaporator make cleaning easier.
  • Harvest Assist helps maintain consistent production while reducing energy use.
  • R290 refrigerant and durable aluminum construction support efficient, long-term performance.

Overall Dimensions:

27.0"W x 25.0"D x 27.0"H

Product Weight:

129.0 lb

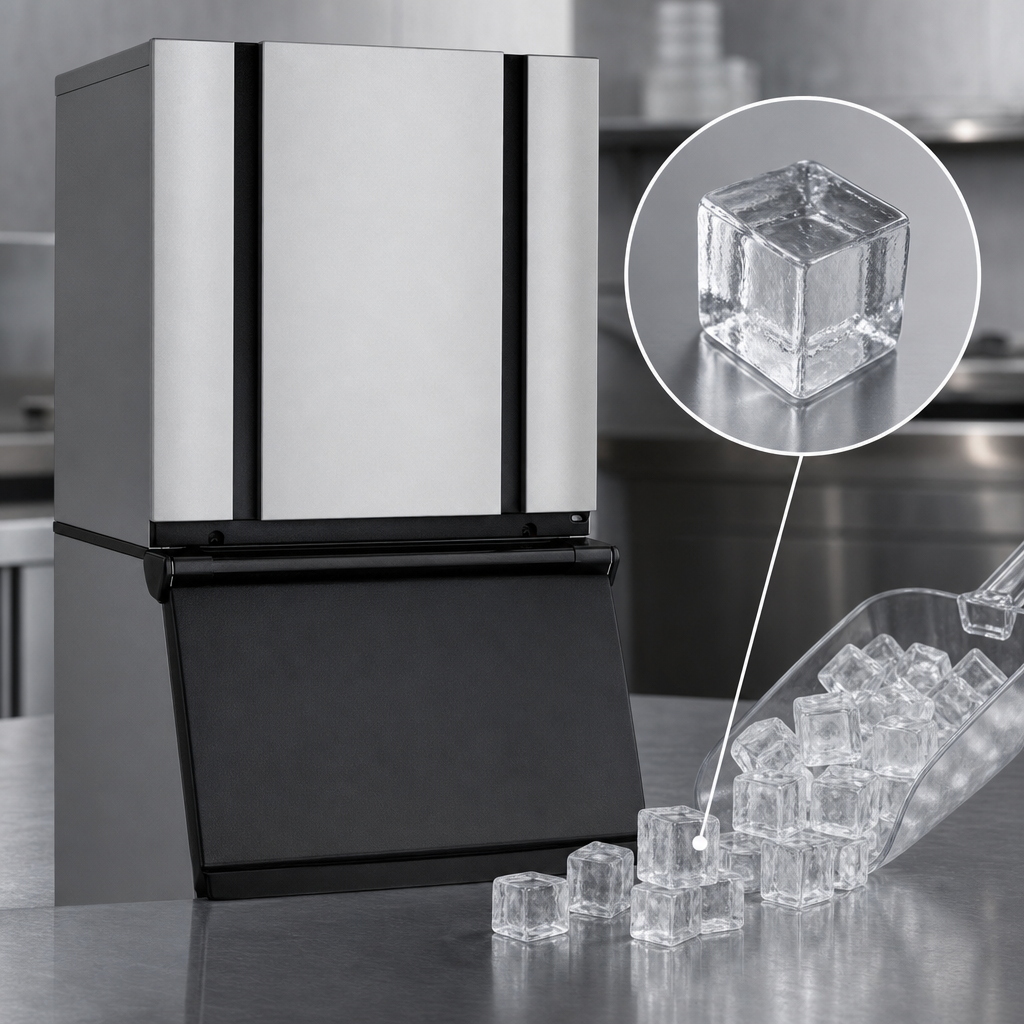

Full Cube Ice Form

Produces 7/8 x 7/8 x 7/8 in. full cubes.

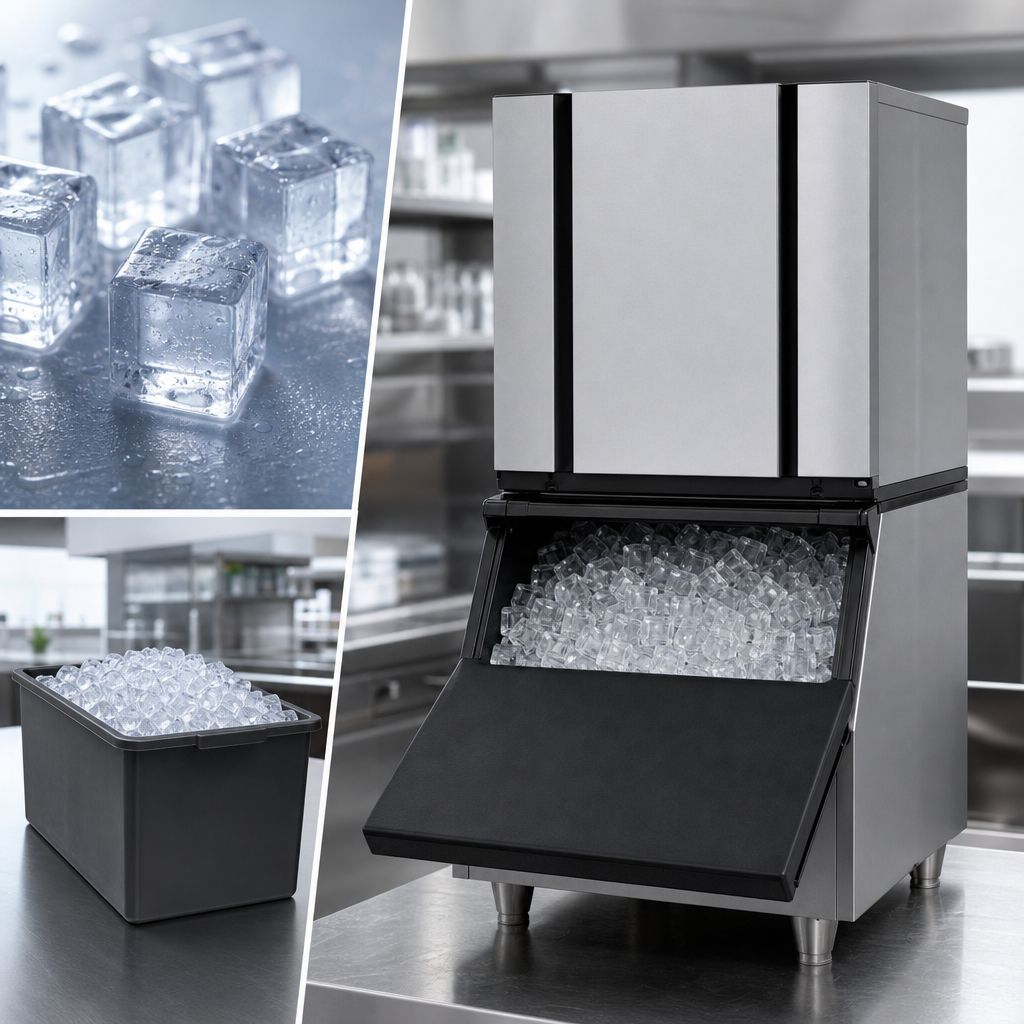

Daily Ice Production

Produces approximately 320 lb per 24 hours at 70°F air / 50°F water and 270 lb per 24 hours at 90°F air / 70°F water.

Water-Cooled Self-Contained Condenser

Built-in refrigeration system uses a water-cooled condenser for flexible installation.

LED Status Display

Provides at-a-glance operating status.

One-Touch Sanitize & Descaling Controls

Simplifies routine maintenance and cleaning.

Dishwasher-Safe Food Zone Components

Removable food-zone parts are dishwasher safe up to 180°F.

Harvest Assist

Helps maintain consistent ice production while reducing energy consumption and increasing capacity.

R290 Refrigerant

Uses an environmentally friendlier and efficient refrigerant.

Corrosion-Resistant Aluminum Construction

Durable, fingerprint-proof aluminum construction supports long service life.

Electroless Nickel-Plated Evaporator Plates

Adds durability and reliability to the evaporator assembly.

Type Modular Cube Ice Maker
Style Full Cube
Refrigeration Type Self-Contained
Condenser Type Water-Cooled
Controls Electronic
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 11 Amps
Breaker Size 15 Amps
BTU 5,650 BTU/hr
Refrigerant Type R290
Material Aluminum
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Ice Production 320 lb/24 Hours at 70°F Air / 50°F Water
Ice Production At 90°F Air / 70°F Water 270 lb/24 Hours
Shipping Width 25 Inches
Shipping Depth 27 Inches
Shipping Height 27 Inches
Shipping Weight 148 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor; extended evaporator and compressor coverage available.

Documents

PDF Cutsheet PDF Download PDF Web site PDF Download PDF Owner's manual PDF Download PDF Slope front storage bins PDF Download PDF Brochure PDF Download PDF Parts manual PDF Download PDF Diagram PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces full cubes measuring 7/8 x 7/8 x 7/8 in.
It produces about 320 lb per 24 hours at 70°F air / 50°F water, or 270 lb per 24 hours at 90°F air / 70°F water.
This model uses a self-contained water-cooled condenser.
It requires 115V/60Hz/1-phase power, 11A minimum circuit, and a 15A maximum breaker.
It includes a front-facing evaporator, dishwasher-safe food-zone components, and one-touch sanitize/descaling controls.
