Ice-O-Matic

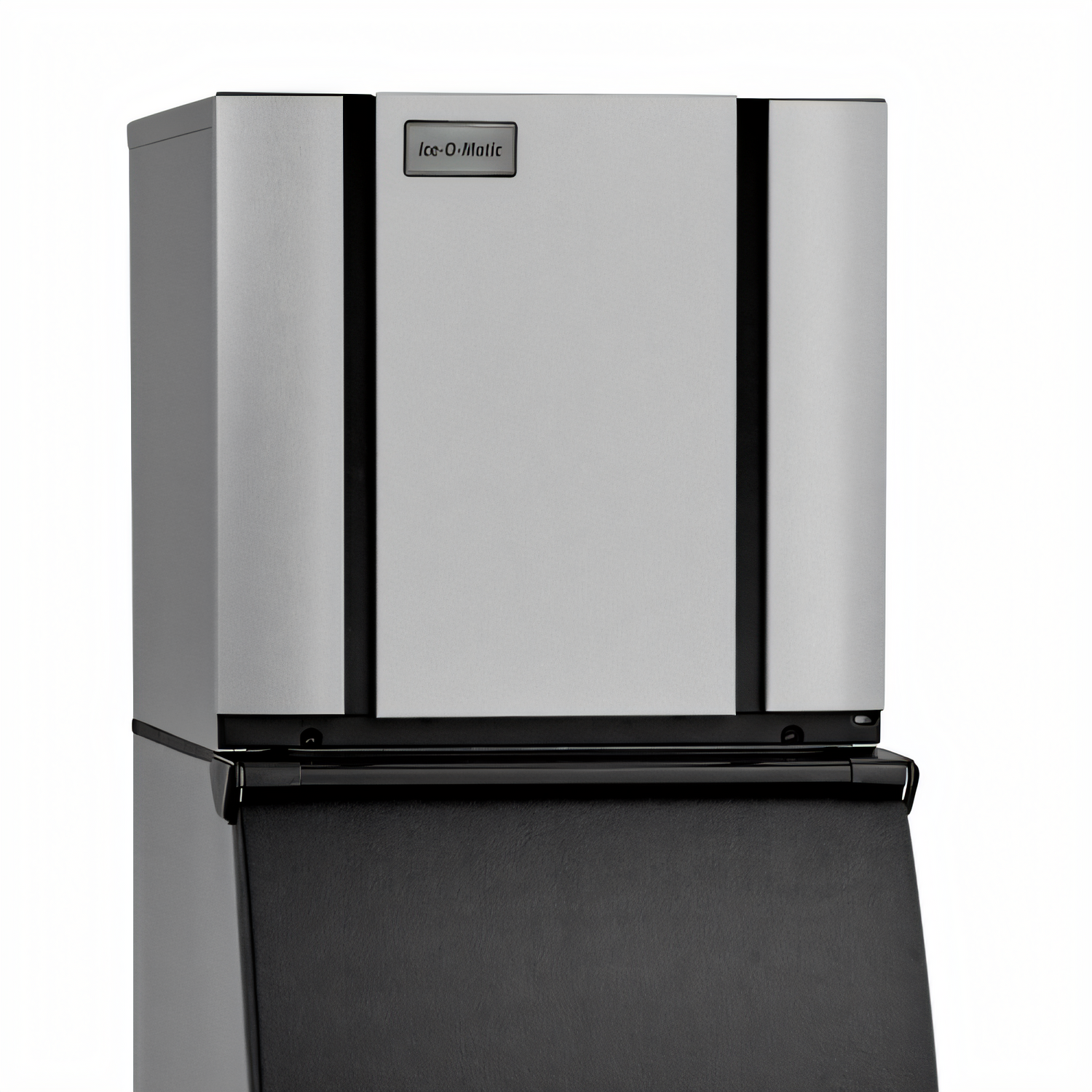

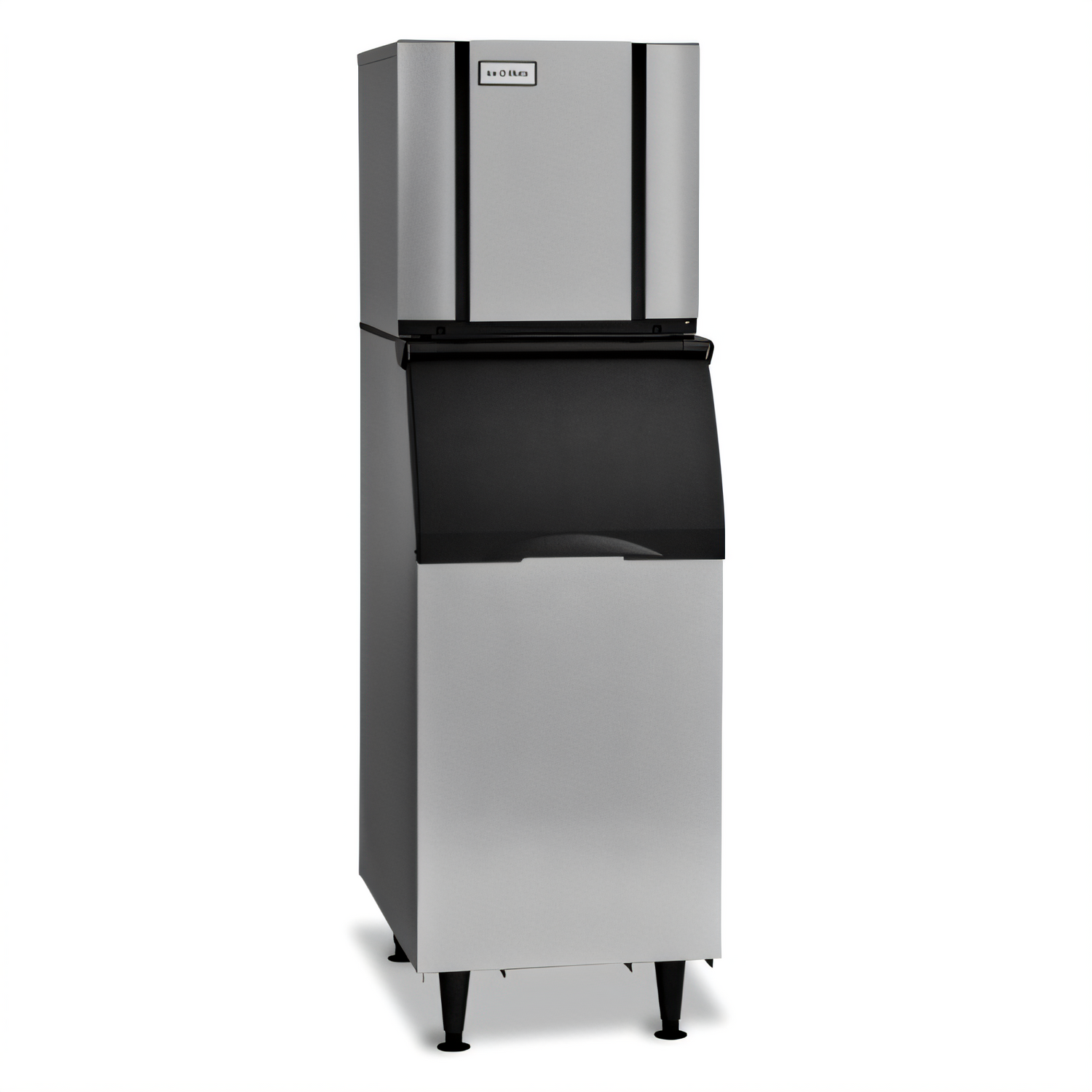

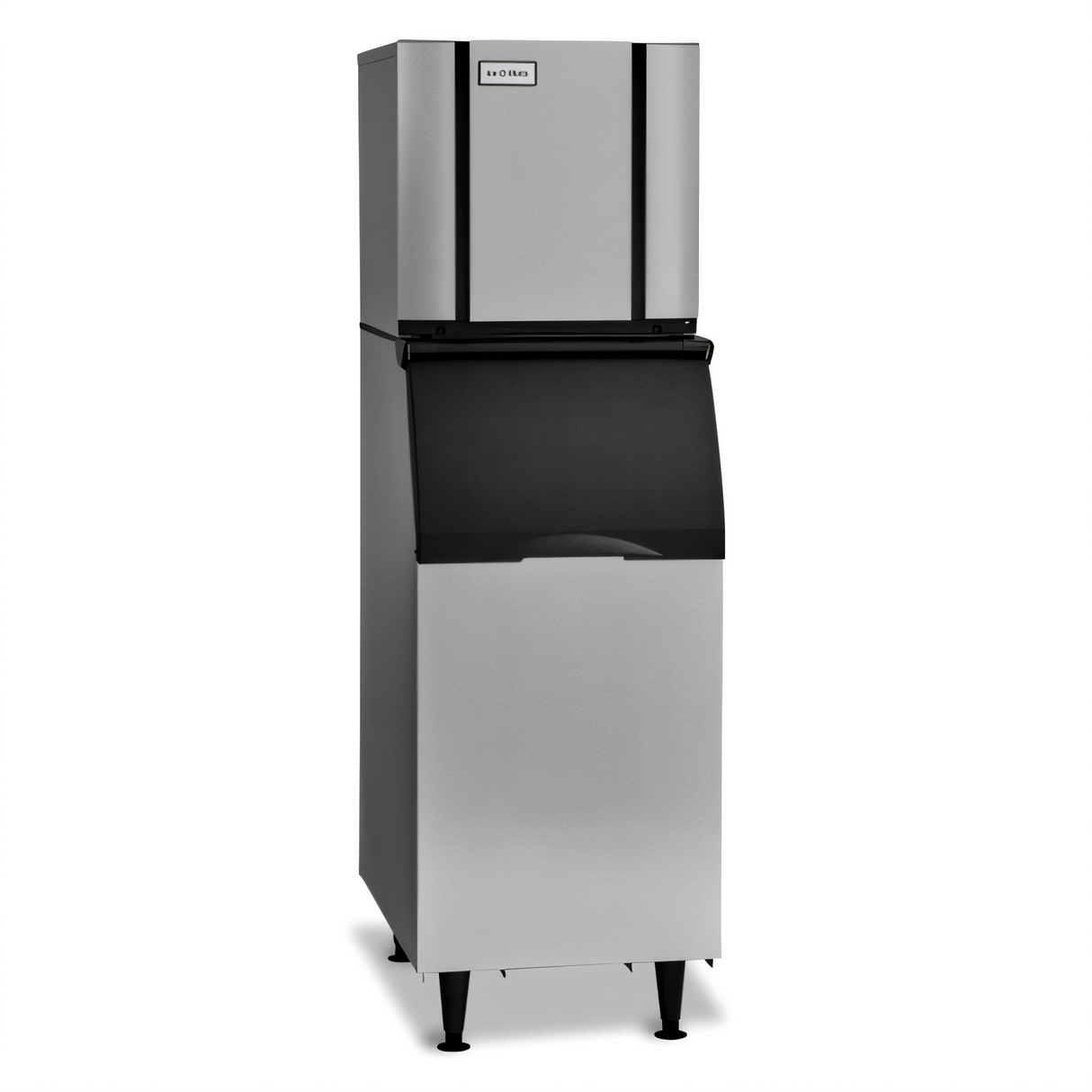

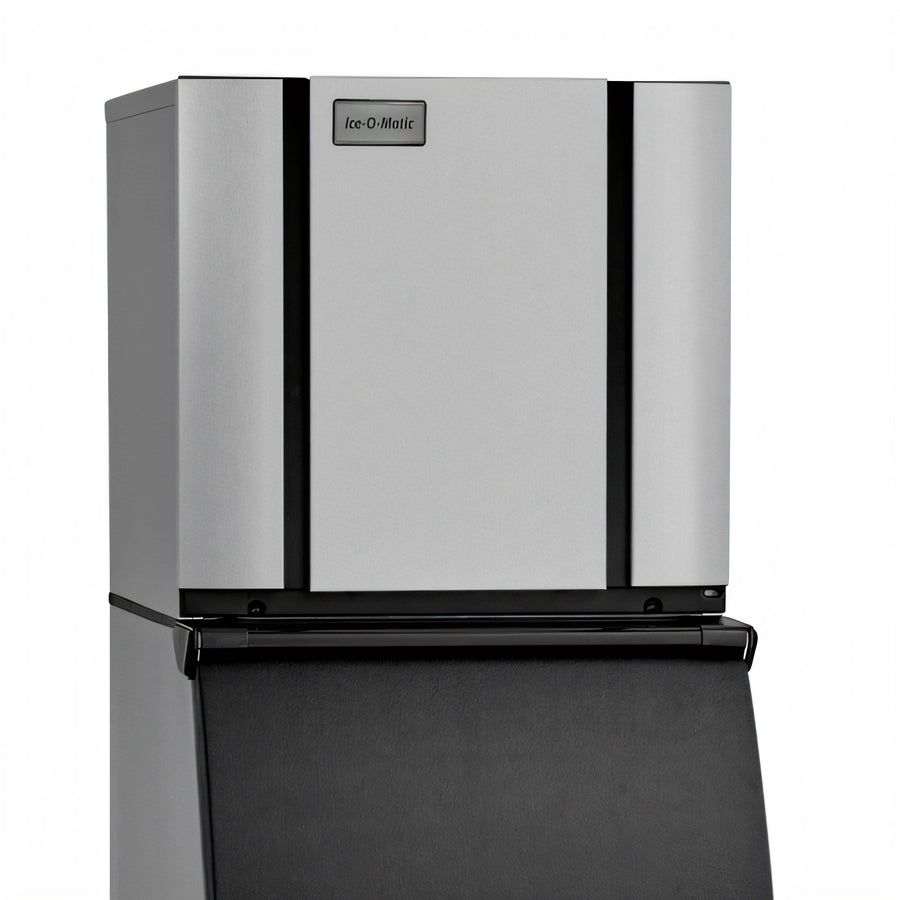

Ice-O-Matic CIM0320FA Elevation Series™ Ice Machines

SKU: CIM0320FA
$3,789.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Ice-O-Matic New Arrivals

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker – CIM0320A

22" Air-Cooled | Full-Cube Output | 313 lb/24 hr

Engineered for busy food-service, hospitality and beverage programs, the Elevation Series™ CIM0320A packs industry-leading performance and hygiene into a compact 22 inch footprint. From effortless one-touch cleaning to Ice-O-Matic’s exclusive dual-exhaust air flow, this unit delivers pure, crystal-clear cubes anywhere you need them.

Why Elevation?

  • High production, small space – up to 313 lb of ice every 24 hr at 70 °F/50 °F.
  • Dual-Exhaust™ design vents hot air from the top and right side, allowing installation against walls or in tight equipment lines with only 6" clearance.
  • PURE ICE® antimicrobial protection is molded into key components to inhibit bacteria and slime growth for the life of the machine.
  • Food-Zone Simplified – BPA-free snap-in parts remove without tools and are 100 % dishwasher safe.
  • One-Touch Sanitize & Descale – spend minutes, not hours, on routine maintenance.
  • Smart LED status light keeps staff informed of machine health at a glance.
  • Energy & Environment – exceeds 2018 DOE standards and uses recyclable plastics.

Recommended Ice Storage Bins

  • B25 (242 lb capacity) – KBT19 adapter required
  • B40 (344 lb) – KBT19 adapter required
  • B42 (351 lb) – no adapter needed
  • B55 (510 lb) – KBT19 adapter required

Ice bin sold separately.

Technical Specifications

Model CIM0320A (Air-Cooled, self-contained)
Ice form Full cube – ⅞" × ⅞" × ⅞" (22 × 22 × 22 mm)
24 hr production 313 lb (142 kg) @ 70 °F air / 50 °F water
244 lb (111 kg) @ 90 °F air / 70 °F water*
Energy use 6.8 kWh per 100 lb of ice
Water use (potable) 20 gal per 100 lb of ice
Electrical 115 V / 60 Hz / 1-phase, 11.0 A, 15 A breaker
Refrigerant R404A
Dimensions (W × D × H) 22.25 " × 24.25 " × 21.25 " (565 × 616 × 540 mm)
Air clearance 6 " (152 mm) top & right side
Approx. shipping weight 150 lb (68 kg)
Certifications cULus, NSF, CE, BPA-Free, ENERGY STAR®†

Ice-O-Matic Commercial Warranty

  • 3 Years parts & labor on the entire machine
  • 5 Years parts on the compressor and evaporator
  • 7 Years parts & labor on the evaporator when enrolled in the Ice-O-Matic water-filter program

*Ice volume is rated at sea level under listed air/water conditions. Site variables may affect actual production.
†ENERGY STAR applies to select configurations; check specification sheet for details.

Overall Dimensions:

27.0"W x 25.0"D x 27.0"H

Product Weight:

130.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus", "BPA Free"]
Height 27.0in
Width 27.0in
Depth 25.0in
Shipping Weight 130.0lbs
Width (side - side) 20 - 29" wide
Ice Type full size / dice cubes
Production per 24 hr 301 - 400 lb = 137 - 182 kg
Refrigeration self-contained refrigeration
Condenser Type air-cooled
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Diagram PDF Download PDF Parts manual PDF Download PDF Slope front storage bins PDF Download PDF Owner's manual PDF Download PDF Web site PDF Download PDF Warranty sheet PDF Download
