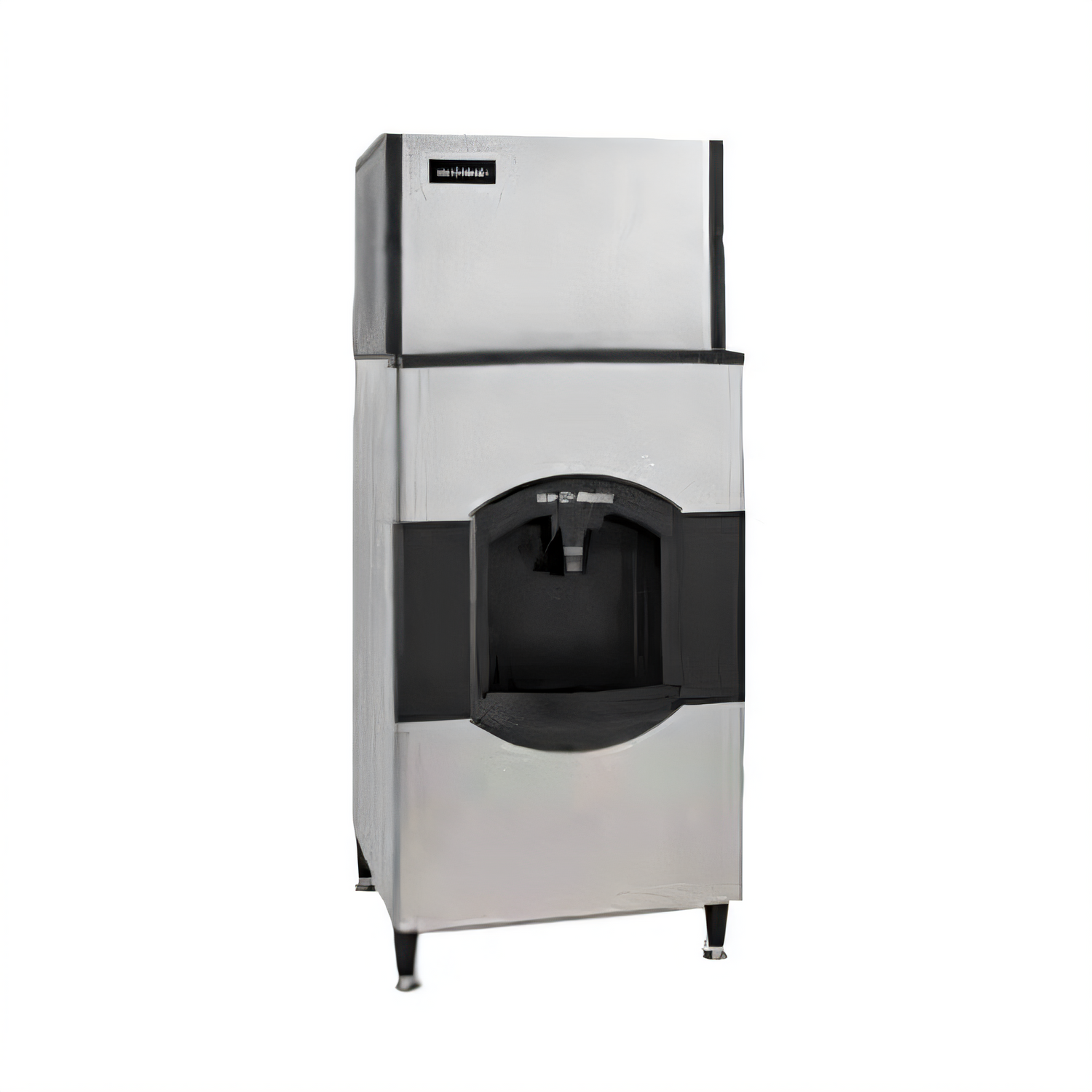

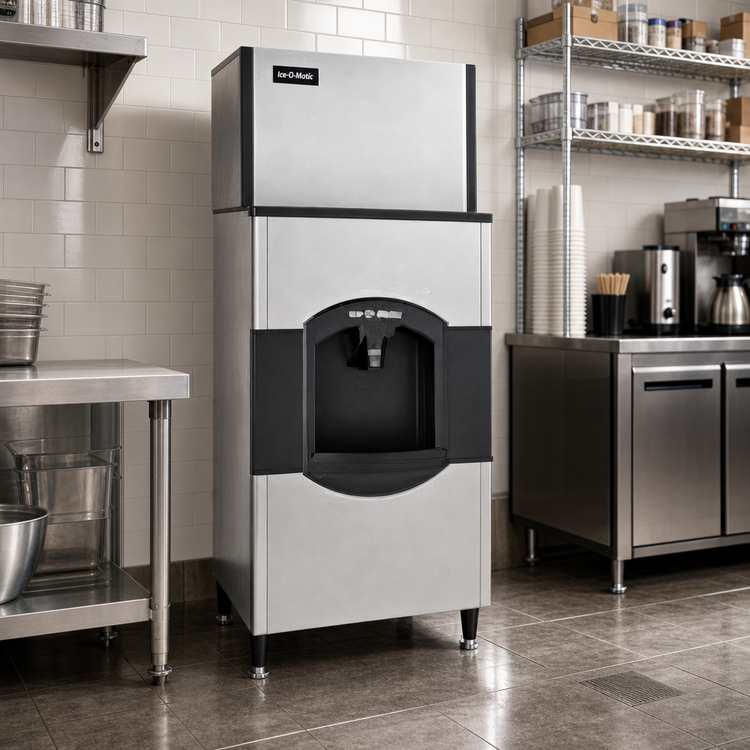

Ice-O-Matic CD40030 ICE Series Floor Model Cube Ice Dispenser, 30-Inch Wide, 180 lb Storage

SKU: CD40030
$4,504.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice & Water Dispensers Ice Dispensers Ice-O-Matic New Arrivals Restaurant Equipment

Ice-O-Matic CD40030 ICE Series Floor Model Cube Ice Dispenser, 30-Inch Wide, 180 lb Storage

Push-dispense, ice-only design for 30-inch CIM Series cube ice makers

A compact floor-model dispenser that stores up to 180 lb of cube ice and delivers fast push dispensing in a 30-inch-wide footprint.

  • Holds approximately 180 lb of cube ice in a compact, space-saving cabinet.
  • Push-to-dispense operation makes ice service simple and user friendly.
  • Turbo Dispense delivers about 1/4 lb of ice per second for quick fills.
  • Power Clean access helps simplify bin cleaning without moving the ice machine.
  • 4-inch foam insulation helps preserve ice and reduce premature melting.
  • Designed to accept 30-inch ICE Series/CIM Series cube ice makers.
  • Corrosion-resistant stainless steel and fingerprint-proof plastic stand up to heavy use.

Product Weight:

195.0 lb

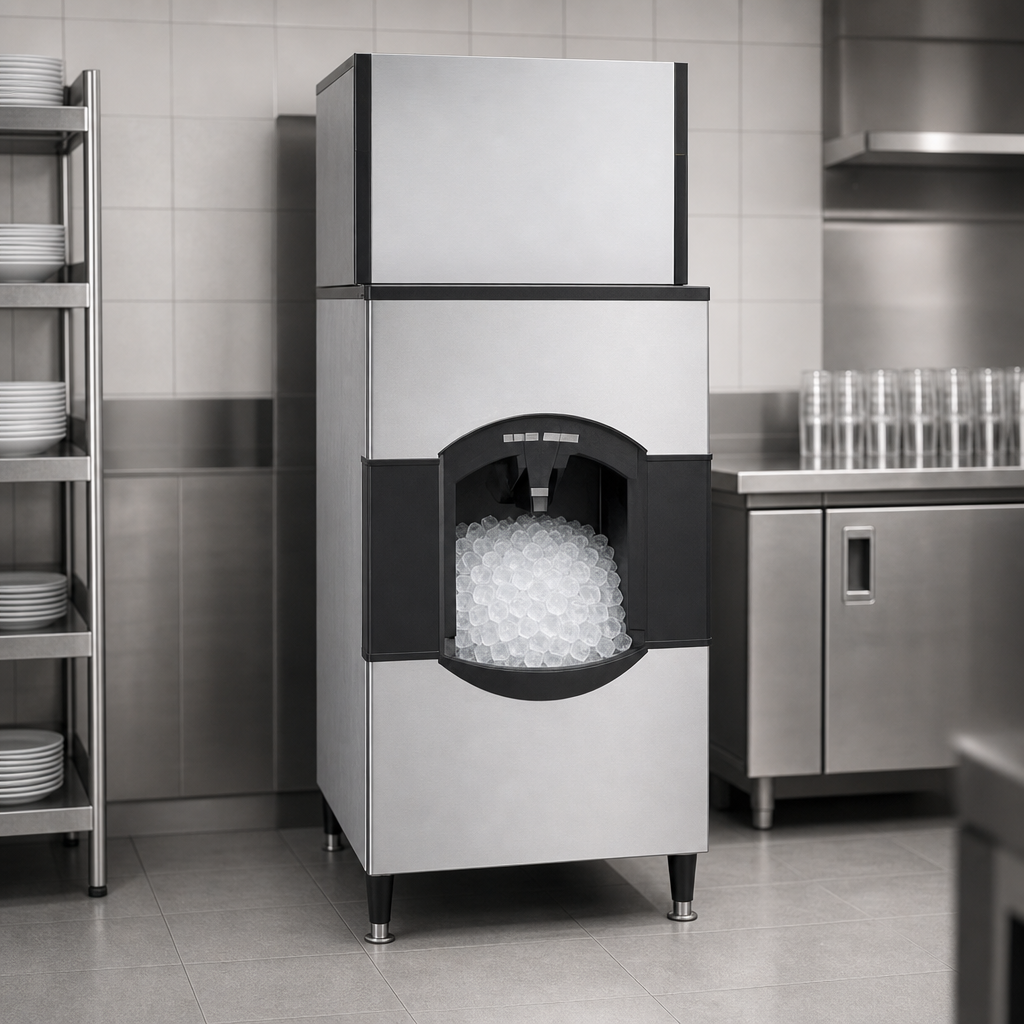

180 lb Ice Storage

Stores a large volume of cube ice in a compact footprint for busy service needs.

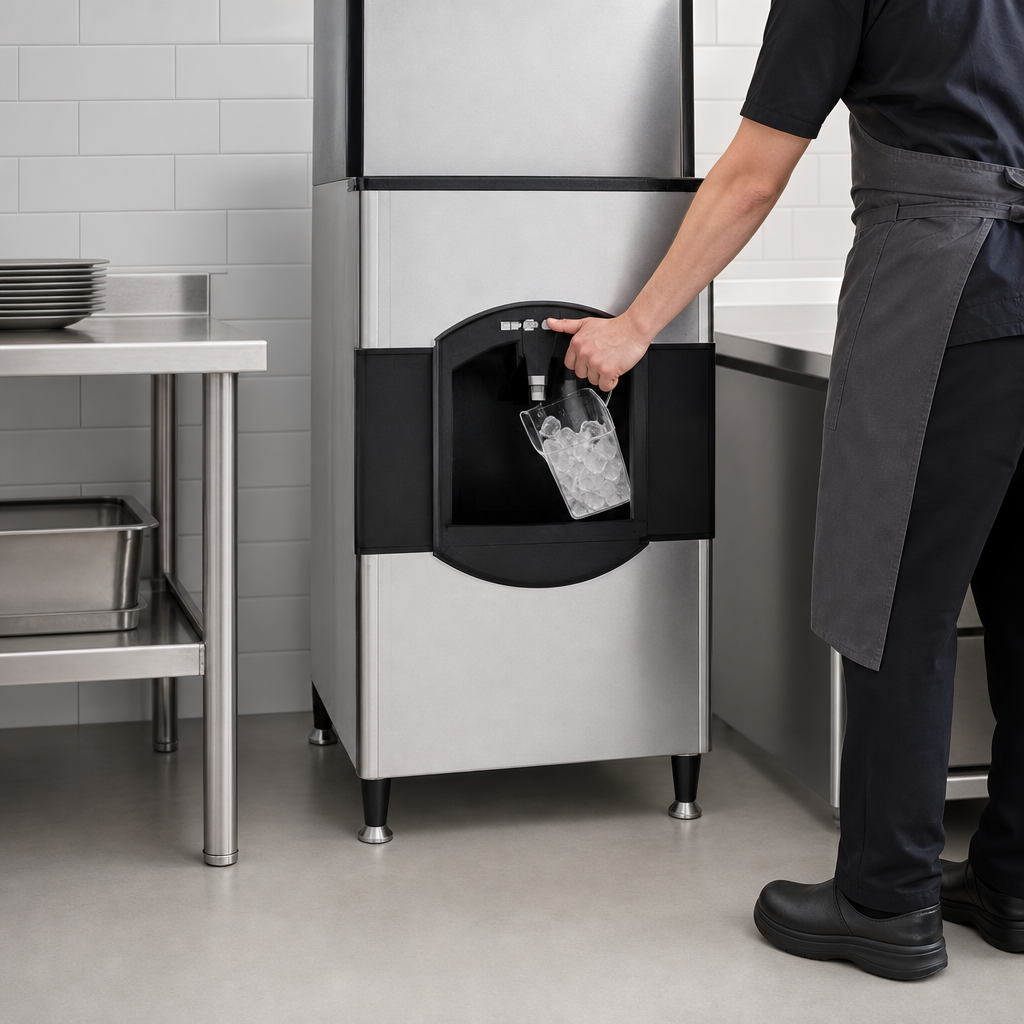

Push Dispensing

User-friendly push-to-dispense operation helps staff and guests get ice quickly.

Turbo Dispense

Dispenses roughly 1/4 lb of ice per second for fast, efficient service.

Power Clean Access

Allows access to the bin for easy cleaning without moving the ice machine, and the interlock safety switch stops agitation when the top-front panel is removed.

4-Inch Foam Insulation

Heavy insulation helps preserve ice longer and reduces quick melting.

Stainless Steel Construction

Corrosion-resistant stainless steel with fingerprint-proof plastic helps the dispenser hold up in demanding environments.

30-Inch Wide, Ultra-Low Profile Design

Fits tight spaces while providing maximum ice storage in a minimum amount of room.

Compatible With 30-Inch CIM Series Cube Ice Makers

Designed to accept 30-inch wide ICE Series/CIM Series cube ice makers; the docs note it should not be used with ICE1506.

Type Cube Ice Dispenser
Style Ice Only
Installation Type Floor Model
Capacity 180 lb
Controls Push
Material Stainless Steel
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Web site PDF Download PDF Product guide PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accepts 30-inch ICE Series/CIM Series cube ice makers, including the models listed in the document such as CIM0330, CIM0430, CIM0530, CIM0636, CIM0836, and CIM1136. The document notes it should not be used with ICE1506.
Approximately 180 lb of ice.
No. CD40030 is push-only, and the document states that water dispensers cannot be field-installed on CD400 Series dispensers.
The document lists 115/60/1 voltage characteristics, which corresponds to 115 Volts, 60 Hz, 1-phase.
The dispenser-only dimensions are 30 inches wide by 33.5 inches deep by 53.25 inches high.
Power Clean allows access to the bin for easy cleaning without moving the ice machine, and an interlock safety switch turns off machine agitation when the top-front access panel is removed.
