Ice-O-Matic B40PS Ice Machine Bins
Description

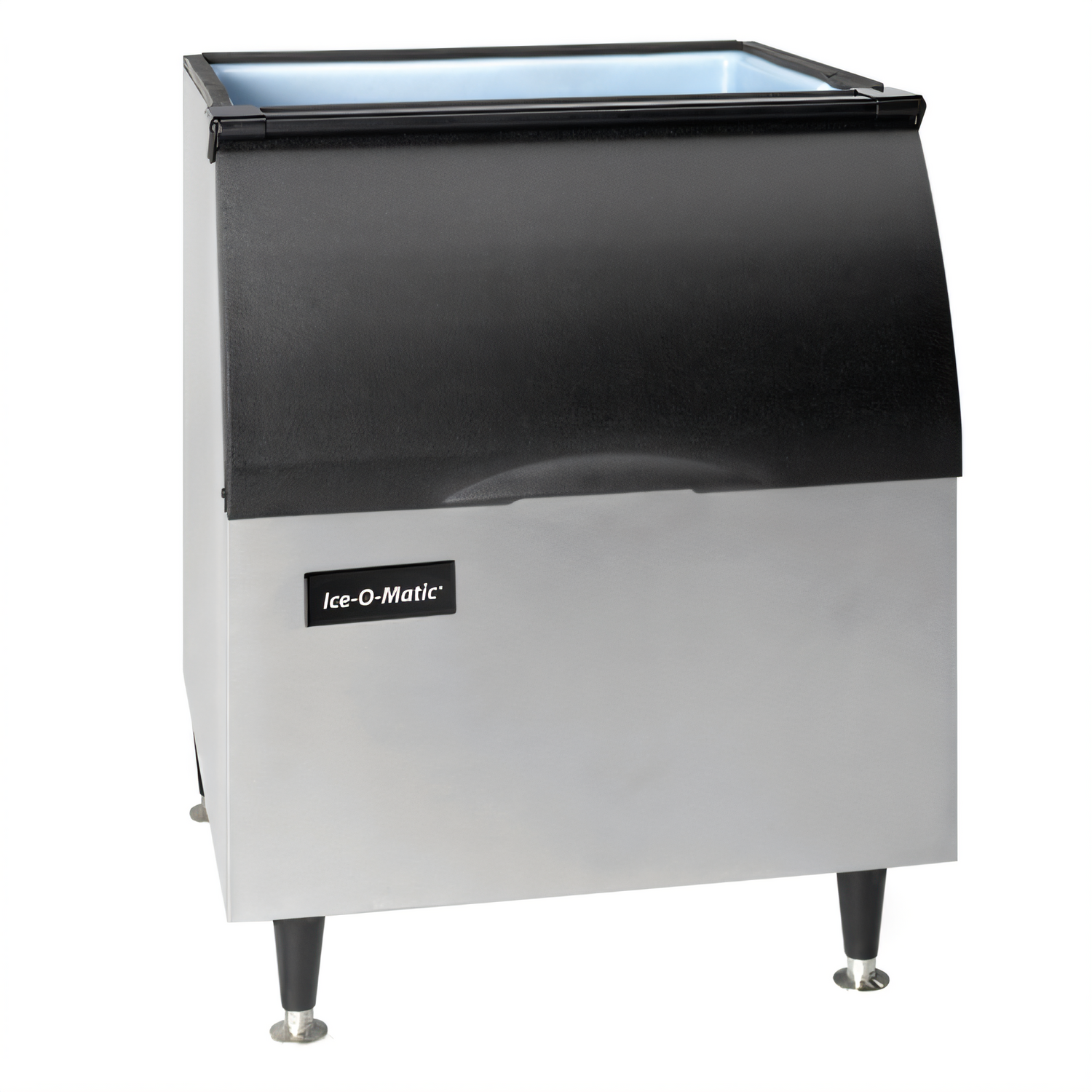

Ice-O-Matic B40PS Slope-Front Ice Storage Bin
344 lb (156 kg) capacity | 30" W x 31" D x 37-1/2" HGive your Ice-O-Matic ice maker the perfect partner. The B40PS holds up to 344 pounds of ice in a compact 30-inch footprint, preserving every cube behind a foam-insulated polyethylene liner and a durable aluminum exterior. A space-saving 31-inch depth and easy-to-lift, slope-front door make loading, scooping and cleaning fast and frustration-free.
Key benefits

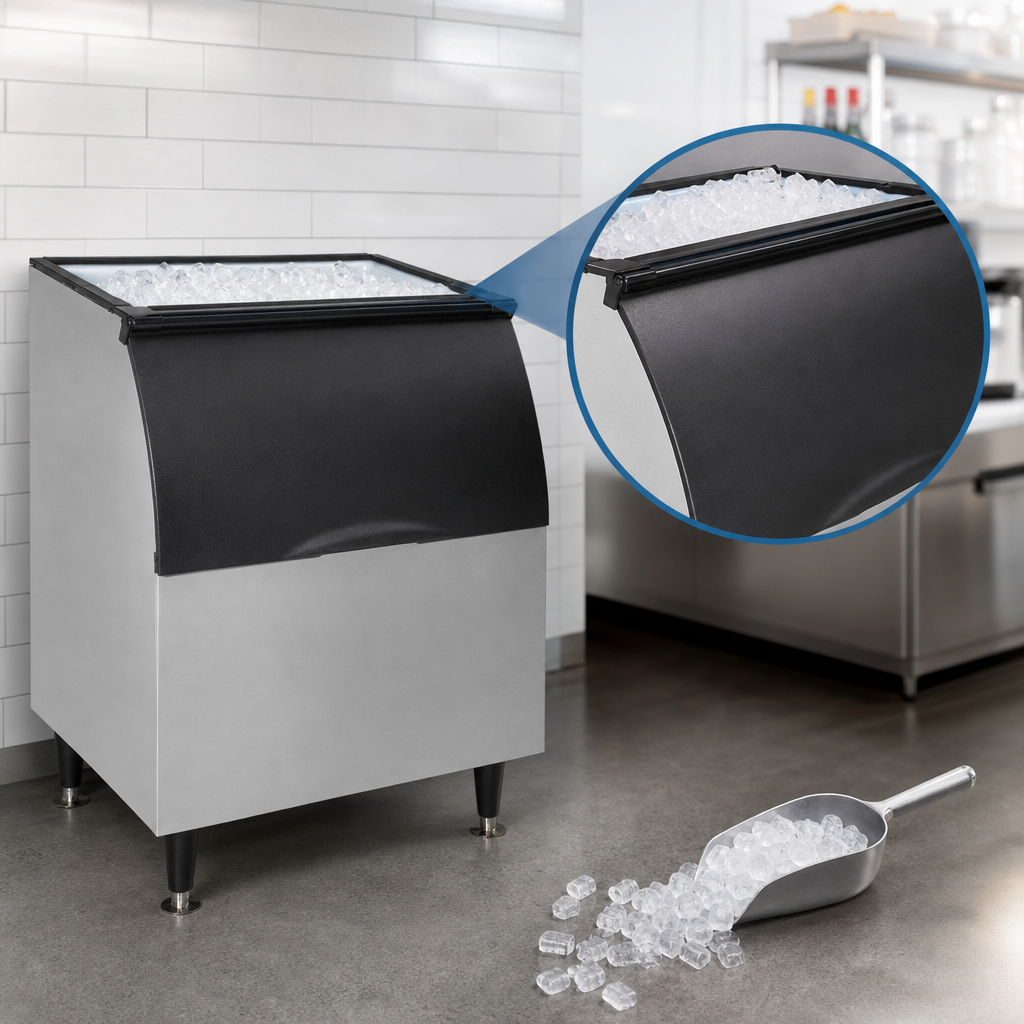

- 344 lb application storage capacity keeps high-volume service stations stocked.
- Top-hinged, slope-front door delivers full-bin visibility and one-handed access.
- Polyethylene interior liner with 1.5"–3" of foam insulation maximizes ice life.
- Rugged aluminum exterior resists dents, corrosion and daily wear.
- 31" deep profile fits tight back-of-house layouts.
- Adjustable 6" NSF-approved legs simplify level installation and cleaning underneath.
- Rear 3/4" FPT drain connection for hassle-free plumbing.
- NSF listed for safe, sanitary ice storage.
Product specifications
| Model | B40PS |
|---|---|
| Storage capacity | 344 lb (156 kg) application capacity |
| Exterior construction | Aluminum finish |
| Interior liner | Polyethylene, foam-insulated (1.5"–3") |
| Door style | Top-hinged, slope-front |
| Dimensions (W × D × H) | 30" × 31" × 37-1/2" |
| Legs | 6" (152 mm) adjustable, NSF approved |
| Drain | Rear 3/4" FPT |
| Approx. shipping weight | 103 lb (47 kg) |
| Certifications | NSF |
Compatible Ice-O-Matic ice makers

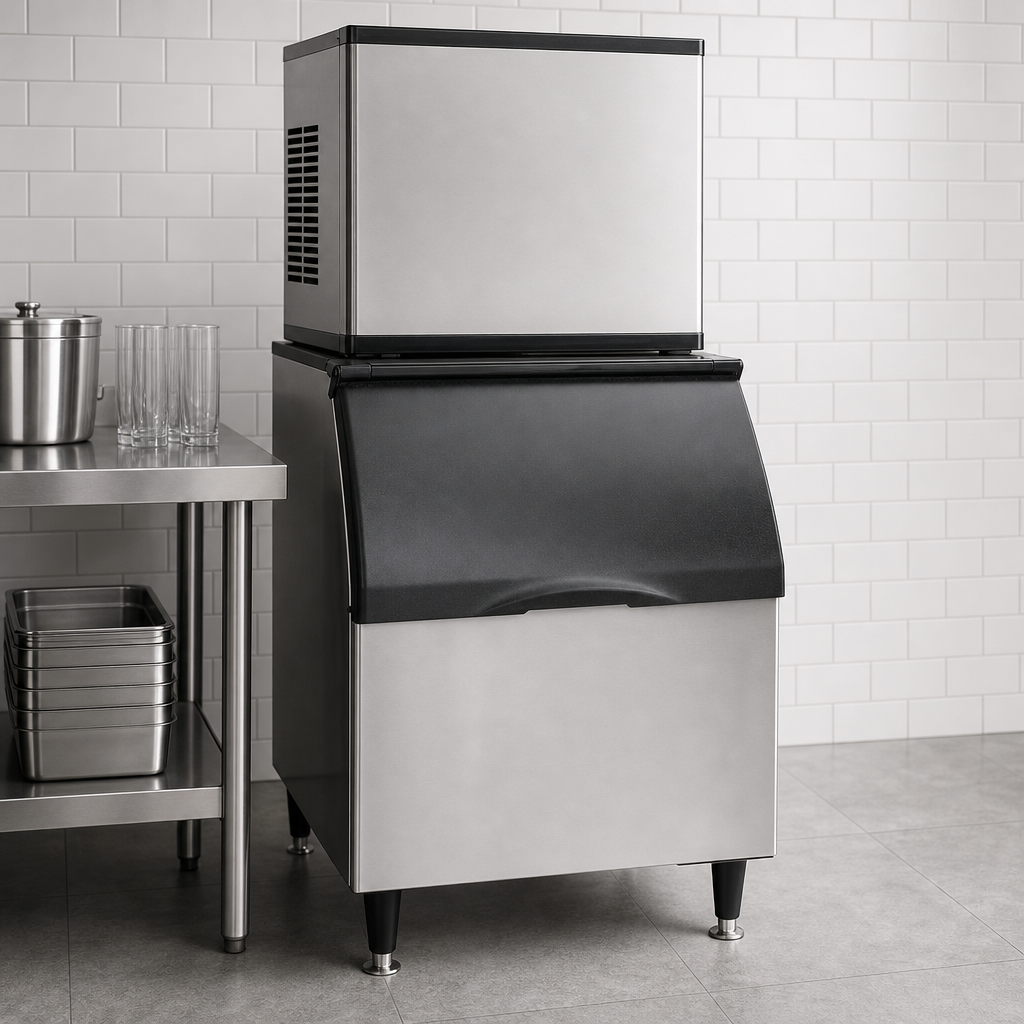

The B40PS is designed for single, top-mounted 22" or 30" wide Ice-O-Matic cube, nugget, or flake ice machines. Use bin top kit KBT19 for a precise, sanitary seal between the ice maker and bin.
Optional accessories (sold separately)
- Plastic ice shovel – part #1011517-22
- Hanging bracket for ice shovel – part #1011517-23
- 46.5" plastic paddle – part #1011517-24
- Hanging bracket for paddle – part #1051517-29
- 82 oz ice scoop – part #9051127-01
Peace-of-mind warranty
Every Ice-O-Matic storage bin is backed by a 2-year parts & labor warranty, ensuring dependable performance shift after shift.
