Ice-O-Matic B1600-60 Ice Machine Bins
Description

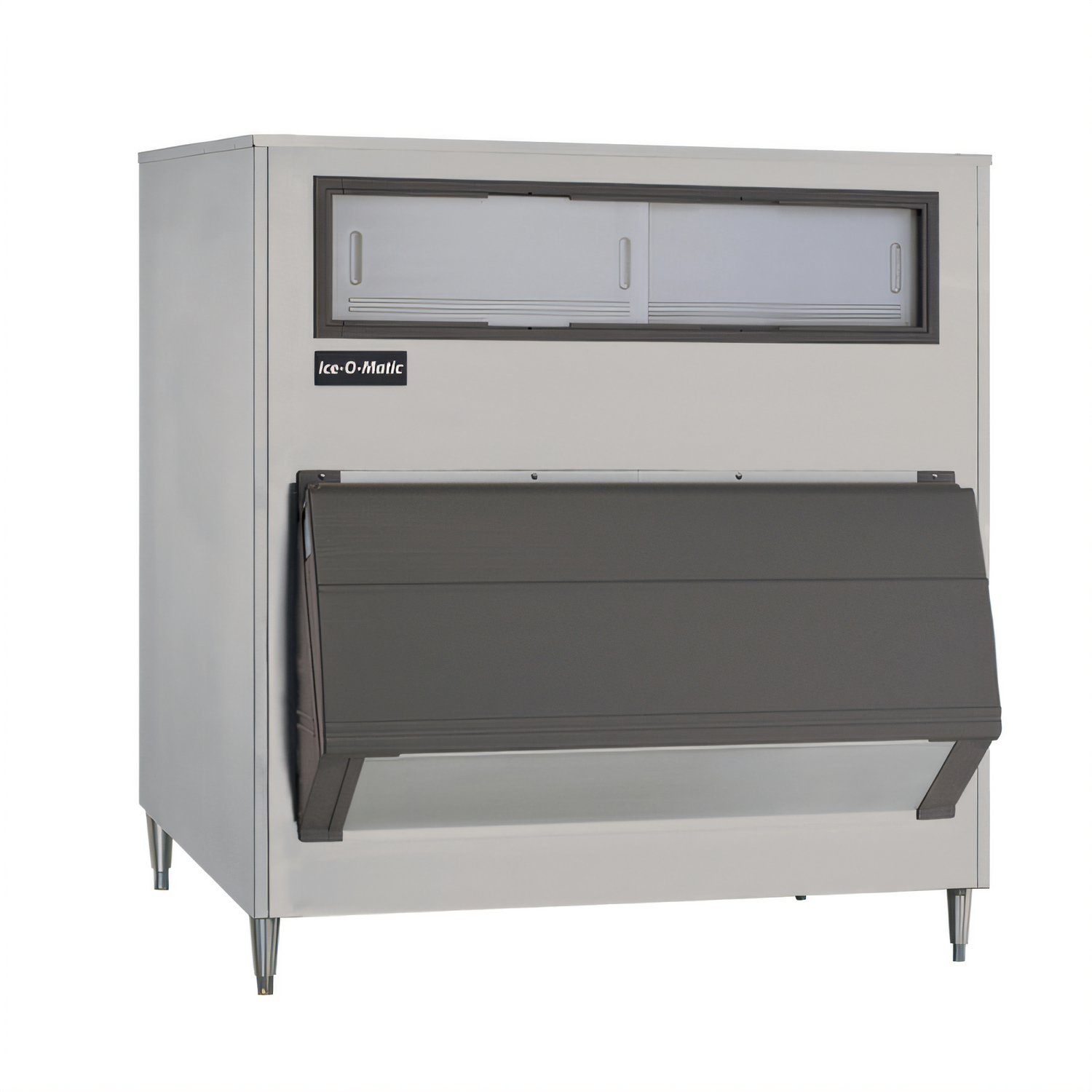

Ice-O-Matic B1600-60 Upright Ice Storage Bin
1,660 lb FIFO ice storage in a space-saving 31" depthWhen every scoop counts, the NSF-listed Ice-O-Matic B1600-60 keeps more than three-quarters of a ton of ice clean, fresh and ready for service. Engineered for demanding foodservice, healthcare and hospitality operations, this upright bin pairs effortlessly with Ice-O-Matic cube, Pearl, flake or nugget ice machines to deliver high-volume, first-in/first-out ice management in a rugged 60" footprint.
Why You’ll Love It
- 1,660 lb application capacity: Handles peak-hour demand without frequent refills.
- First-in, first-out flow: Maintains the freshest ice and minimizes melt-loss.
- Ice Shield gate: Controls flow into the access area to reduce spills and waste.
- Stay-open door: Heavy-duty lift door stays up for safe, one-hand scooping.
- Rugged construction: All-stainless exterior with a corrosion-resistant polyethylene liner.
- Compact depth: Only 31" deep—ideal where back-of-house space is tight.
- Universal adapter kit included: Mounts a single Ice-O-Matic ice maker with no extra top kit.
- Easy sanitation: Smooth poly liner surface wipes clean; interior is food-zone approved.
- NSF & ETL certified and backed by a 2-year parts & labor warranty.
Technical Specifications
| Ice storage capacity | 1,660 lb (753 kg) |
|---|---|
| Interior volume | 52.8 cu ft (1.50 m³) |
| Exterior dimensions (W × D × H) | 60" × 31" × 65" (1524 × 787 × 1651 mm) |
| Bin sill height | 19" (48.3 cm) |
| Required door clearance | 32" (813 mm) minimum |
| Drain connection | 1" FPT, center of bin bottom |
| Shipping weight | 340 lb (154 kg) |
| Construction | Stainless steel cabinet, corrosion-resistant poly liner, stainless steel legs |
| Certifications | NSF, ETL Sanitation & Safety |
Ice Machine Compatibility
The B1600-60 accepts a single 48", 30" or 22" wide Ice-O-Matic CIM or ICE cuber, Pearl Ice® or flake ice head with the supplied universal adapter kit—no additional top required. For dual-machine installations, factory-supplied flex-tops are available (sold separately).
Recommended Accessories (sold separately)
- Plastic ice shovel (Ice-O-Matic #1011517-22)
- 46.5" ice paddle for breaking up congealed ice (Ice-O-Matic #1011517-24)
- 82 oz ergonomic ice scoop with hanging bracket
- IFQ water filtration system for extended equipment life
For indoor use only. Always install in accordance with local codes and the Ice-O-Matic installation manual.
