Ice-O-Matic  |  SKU: B1000-48

Ice-O-Matic B1000-48 Ice Machine Bins

This product is discontinued and no longer available for purchase.

Documents
Cutsheet Owner's manual Web site Warranty sheet
Related Searches
Ice-O-Matic

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

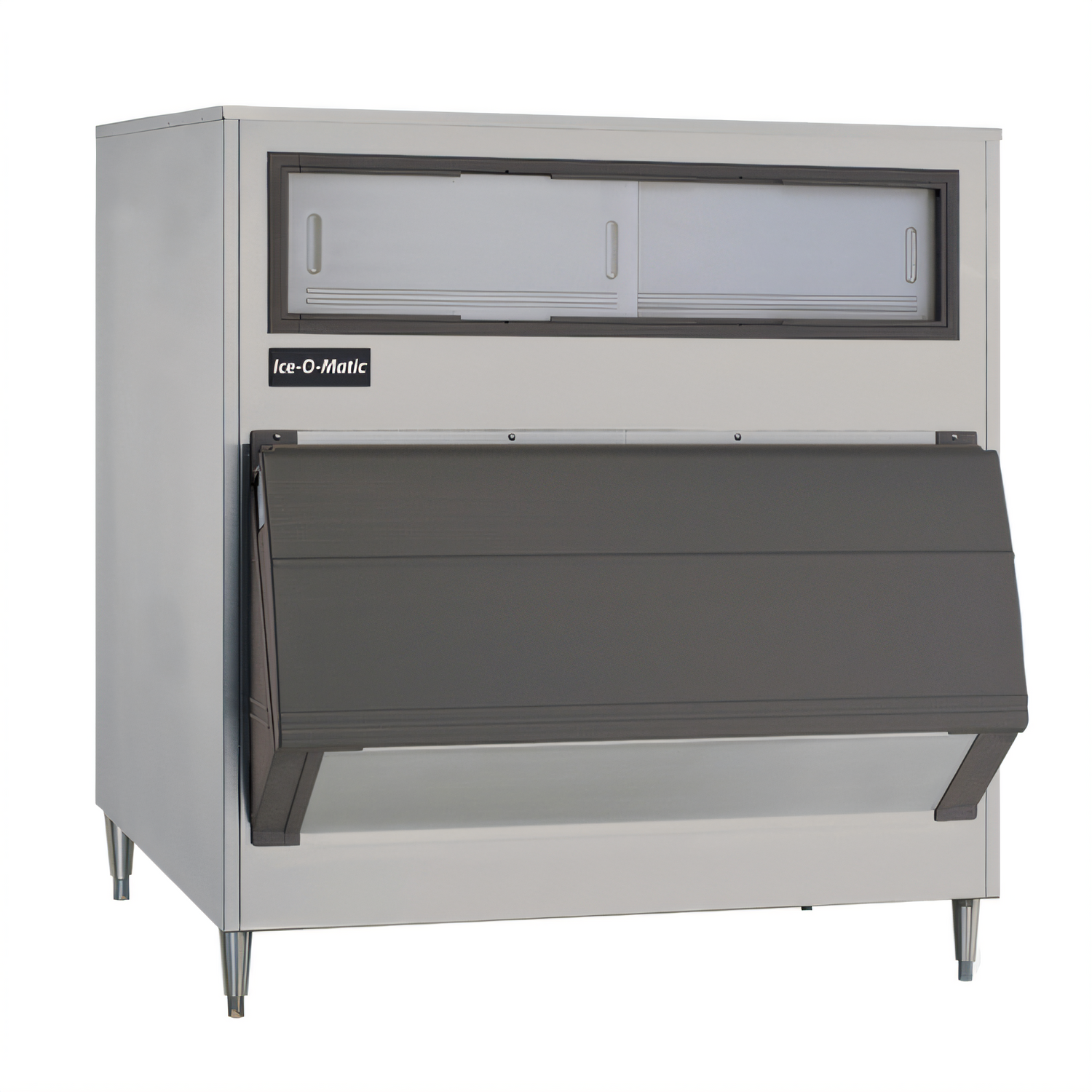

Ice-O-Matic B1000-48 Upright Ice Storage Bin

1000 lb capacity • 48″ W × 31″ D × 56″ H

Designed for high-volume operations with limited floor space, the Ice-O-Matic B1000-48 stores up to 1,000 pounds of fresh ice in only 31 inches of depth. Rugged stainless steel, a food-safe poly liner and smart, first-in/first-out ice management keep every scoop perfectly clean and ready for service.

Key Features

  • 1,000 lb (454 kg) ice storage with first-in/first-out flow for maximum freshness.
  • Space-saving 31″ depth fits tight back-of-house corridors and kitchens.
  • Heavy-duty stay-open door gives one-handed access for quick, safe scooping.
  • Ice Shield baffle directs ice forward, reducing backsplash and floor spills.
  • Corrosion-resistant, seamless Poly Liner protects ice quality and simplifies cleaning.
  • All-stainless exterior stands up to commercial wear and cleans easily.
  • Includes universal adapter kit—mount 22″, 30″ or 48″ Ice-O-Matic cubers, flakers or Pearl Ice® heads with no additional top.
  • NSF listed and cULus certified for food-service compliance.

Specifications

Model B1000-48
Ice Storage Capacity 1,000 lb (454 kg)
Cubic Volume 31.9 ft³ (0.90 m³)
Width (W1) 48″ / 1219 mm
Depth (D1) 31″ / 787 mm
Height (H1) 56″ / 1424 mm (adjustable legs)
Bin Sill Height (H2) 19″ / 483 mm
Drain Connection 1″ FPT, centered on bin bottom
Required Door Clearance 32″ / 813 mm
Shipping Weight ≈ 268 lb (122 kg)
Construction Stainless steel cabinet, molded poly liner

Ice Machine Compatibility

The 48″ wide bin top accepts:

  • One 22″, 30″ or 48″ Ice-O-Matic CIM or ICE series cube ice maker
  • One 21″ or 30″ Pearl Ice® or Flake ice head
  • Two 22″ wide Ice-O-Matic heads side-by-side (no kit required)

Included & Optional Accessories

  • Universal adapter kit (included)
  • 82 oz ice scoop  •  Part No. 9051127-01
  • Plastic ice shovel  •  Part No. 1011517-22
  • 46.5″ ice paddle  •  Part No. 1011517-24

Warranty

Ice-O-Matic storage bins carry a 2-year parts & labor warranty when installed and maintained to manufacturer specifications.

Ice machine heads shown in photos are sold separately. Indoor installation only.

Features & Specs

Manufacturer

Ice-O-Matic

Certifications

NSF

Shipping Weight

266.0lbs

Exterior Finish

all stainless steel exterior

Interior Finish

plastic

Style

sliding upper door(s) & top hinged bottom door(s)

Capacity

860 - 1255 lb

Width (side - side)

40" - 49" wide

Specifications

Ice Bin, 1000 lb storage capacity, 48"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF
