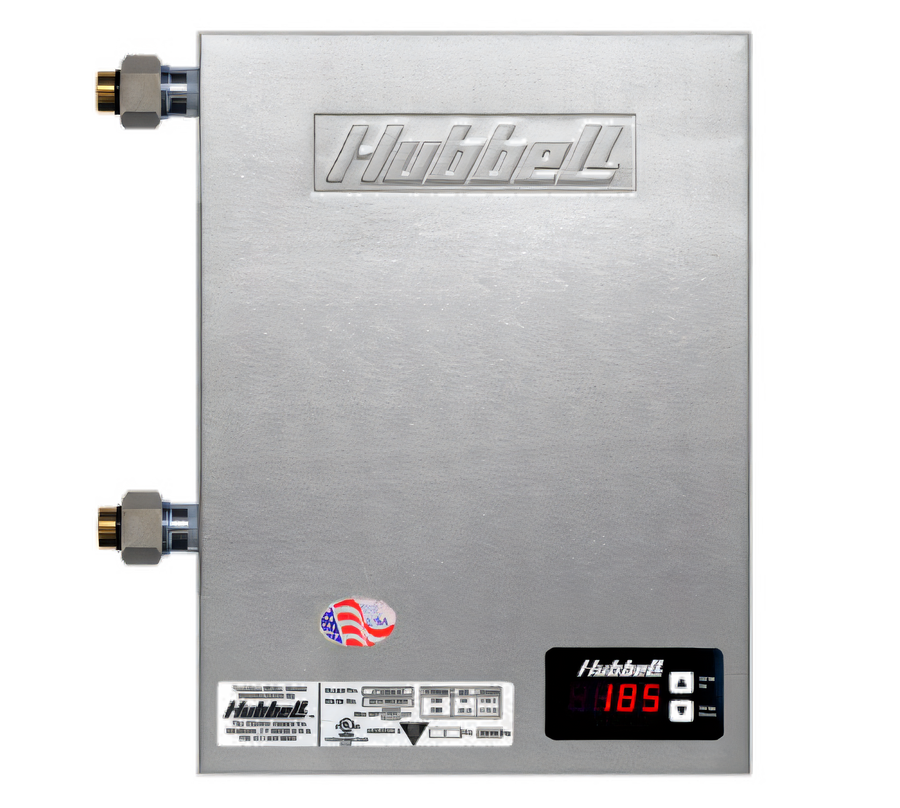

Hubbell JTX054-6T6 Tankless Electric Sanitizing Sink Booster Heater, Wall Mounted, 54 kW, 600V, 3-Phase

SKU: JTX054-6T6
$5,633.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks New Arrivals Restaurant Equipment Sanitizing Sink Heaters

Hubbell JTX054-6T6 Tankless Electric Sanitizing Sink Booster Heater, Wall Mounted, 54 kW, 600V, 3-Phase

6 Incoloy Elements, Digital Display, Stainless Steel Exterior

A compact wall-mounted booster heater that delivers 54 kW of controlled hot water for demanding commercial sanitizing applications.

  • Wall-mounted tankless design saves space in commercial dish areas.
  • Six incoloy-sheathed heating elements deliver 54 kW output.
  • Electronic digital display controller and solid-state switches simplify operation.
  • Brass pressure reducing valve with bypass plus dual temperature and pressure gauges.
  • Stainless steel exterior and dielectric unions support durable installation.
  • 600V, 3-phase, 60 Hz service with 52.0 A draw and 60 A minimum breaker.

Overall Dimensions:

17.69"W x 4.56"D x 25.0"H

Product Weight:

42.0 lb

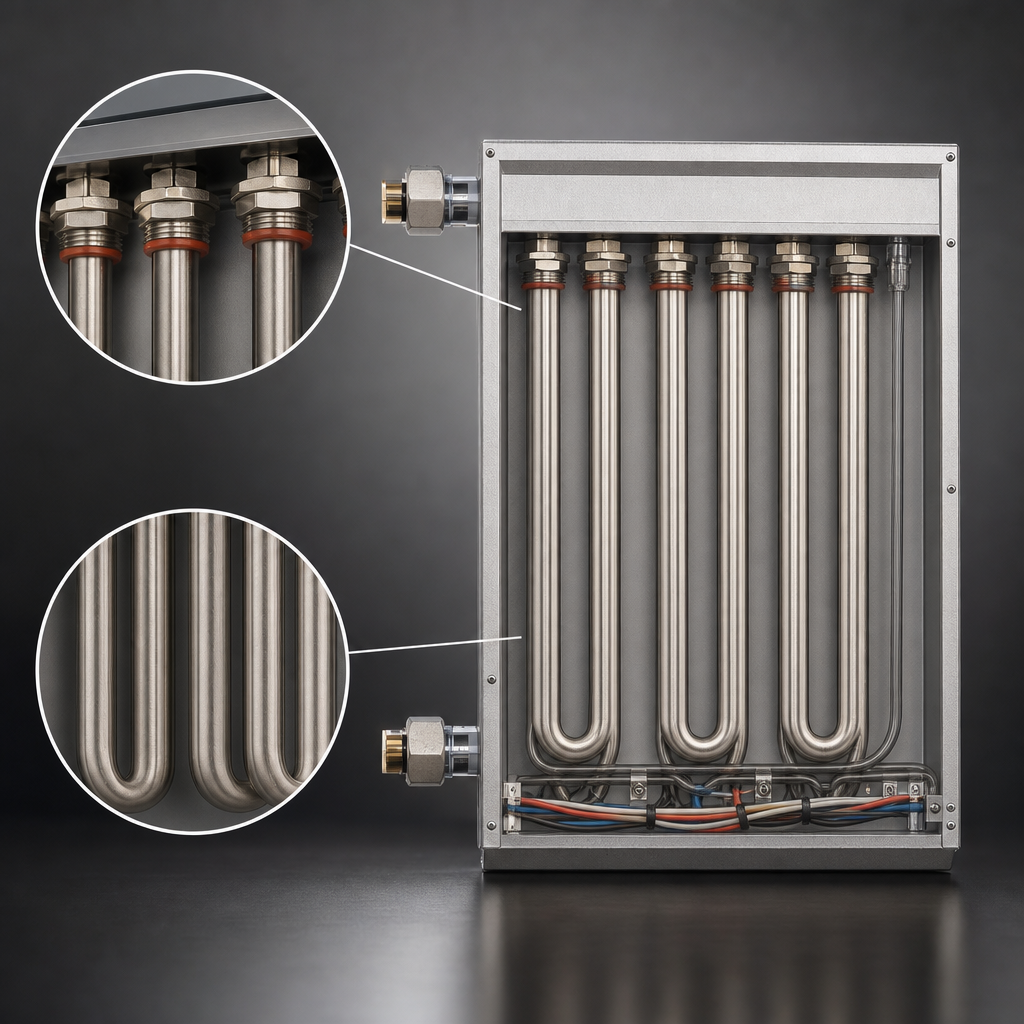

Six Incoloy Heating Elements

Six 9,000W incoloy-sheathed elements provide 54 kW of heating capacity.

Electronic Digital Display Controller

Built-in digital controller provides clear readout and control for setpoint management.

Solid State Switches

Helps provide reliable, responsive heater modulation.

Brass Pressure Reducing Valve With Bypass

Built in to help stabilize incoming pressure and support consistent operation.

Dual Temperature And Pressure Gauges

Two gauges allow quick monitoring of system conditions.

Stainless Steel Exterior

Corrosion-resistant cabinet suited to heavy-use commercial environments.

Dielectric Unions Included

Helps reduce galvanic corrosion at water connections.

Fully Modulating Output

Heaters modulate from 0 to 100% for more precise temperature control.

150 PSI Maximum Water Pressure

Heating chamber is rated for up to 150 PSI water pressure.

Type Booster Heater
Style Tankless
Installation Type Wall Mounted
Material Stainless Steel
Controls Digital
Voltage 600 Volts
Watts 54 kW
Amps 52.0 Amps
Hertz 60 Hz
Phase 3-Phase
Breaker Size 60 Amps
Flow Rate 0.2 to 8 GPM
Shipping Width 18 Inches
Shipping Depth 5 Inches
Shipping Height 25 Inches
Shipping Weight 42 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor on tank and components; 10 years non-pro-rated on tank only.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download PDF Catalog PDF Download

Frequently Asked Questions

It requires 600 V, 3-phase, 60 Hz power and draws 52.0 amps; minimum breaker size is 60 amps.
The unit is rated at 54 kW.
Yes. The heater is designed for wall-mount installation.
It includes an electronic digital display controller, solid-state switches, and dual temperature and pressure gauges.
The heating chamber is rated for up to 150 PSI water pressure.
Tank and components are covered for 1 year parts and labor, and the tank only is covered for 10 years non-pro-rated.
