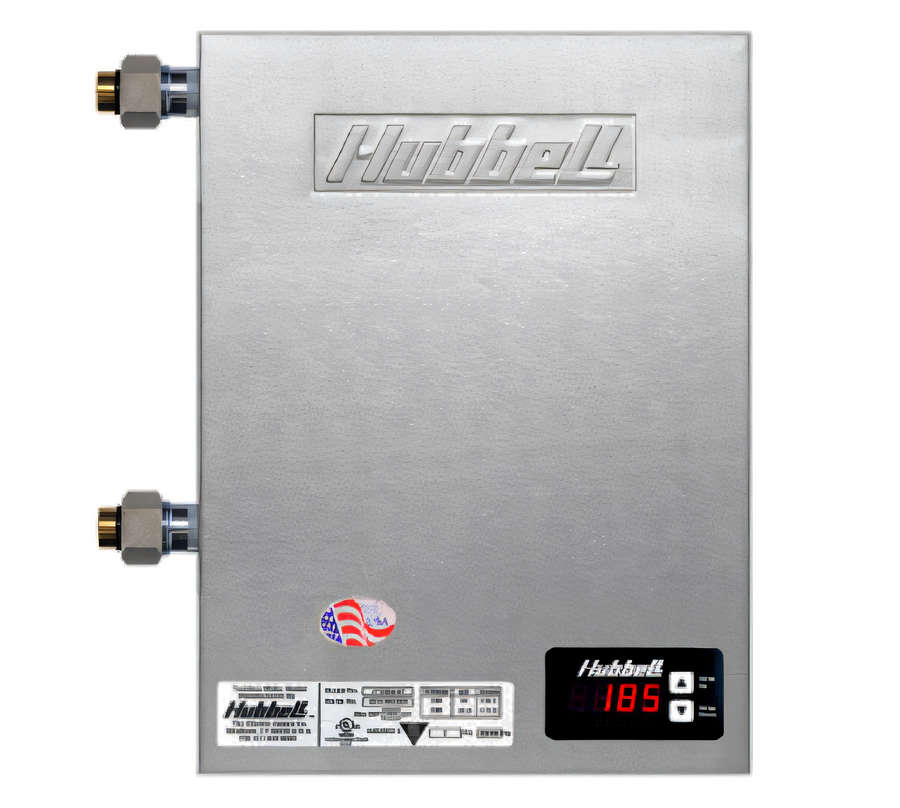

Hubbell Water Heaters JTX054-6T4 Electric Tankless Wall-Mount Sanitizing Sink Booster Heater, 54 kW, 480V, 3-Phase

Stainless Steel Exterior, Digital Controls, Six Heating Elements

Designed for high-demand sanitizing applications, this tankless electric booster heater delivers 54 kW of on-demand heat in a compact wall-mounted cabinet.

  • 54 kW tankless electric booster heater for sanitizing sink service
  • 480V, 60 Hz, 3-phase power with a 65-amp draw
  • Wall-mount design helps save valuable floor space
  • Six incoloy-sheathed heating elements and solid-state switches for dependable operation
  • Electronic digital display controller with dual temperature and pressure gauges
  • Brass pressure reducing valve with bypass and two dielectric unions included
  • Stainless steel exterior built for commercial kitchen durability

Overall Dimensions:

17.69"W x 4.56"D x 25.0"H

Product Weight:

42.0 lb

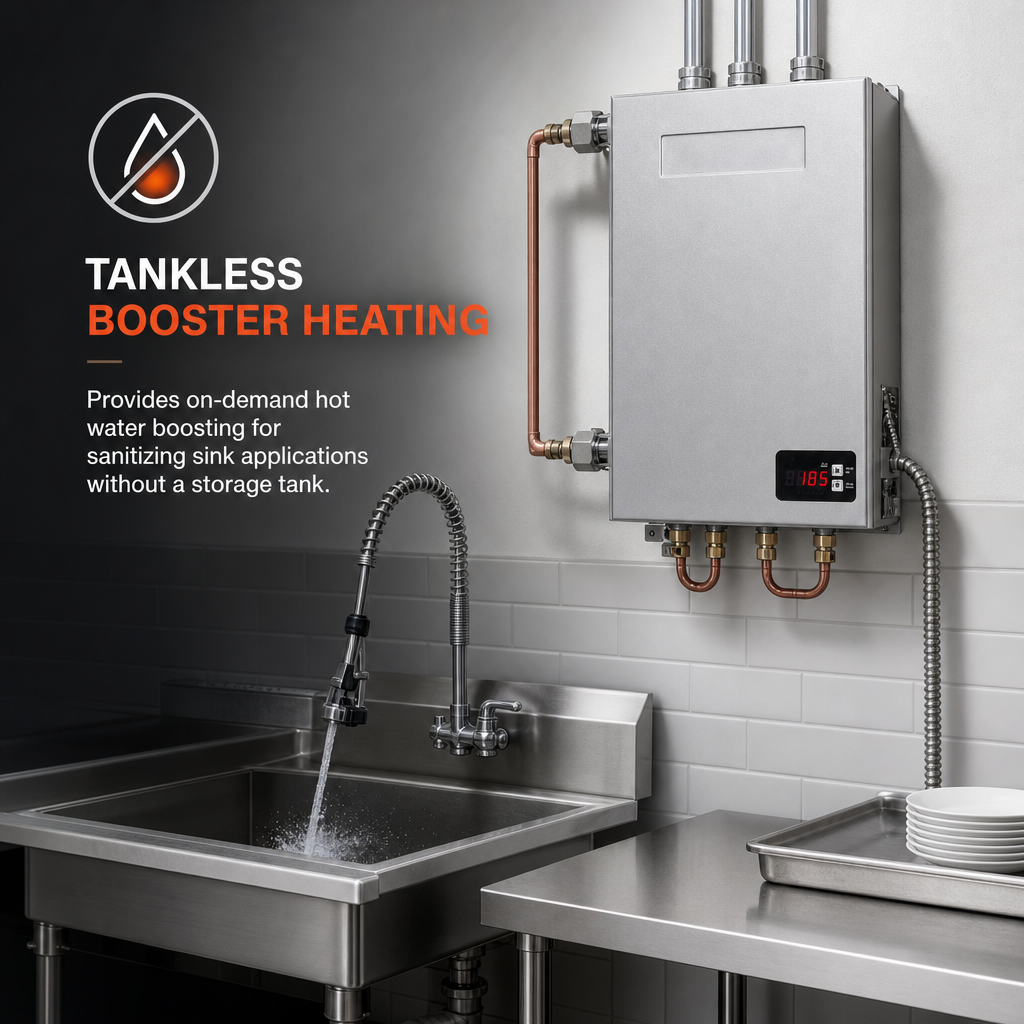

Tankless Booster Heating

Provides on-demand hot water boosting for sanitizing sink applications without a storage tank.

Tankless Booster Heating

Wall-Mount Design

Compact wall-mounted cabinet helps conserve floor space in busy mechanical or kitchen areas.

Six Incoloy-Sheathed Heating Elements

Durable heating elements support reliable electric heat transfer and long service life.

Solid-State Switches

Helps provide precise electrical control and dependable heater operation.

Electronic Digital Display Controller

Makes it easier to monitor and manage heater performance.

Brass Pressure Reducing Valve with Bypass

Helps regulate inlet pressure and maintain consistent water flow through the system.

Dual Temperature & Pressure Gauges

Two gauges allow convenient monitoring of operating conditions.

Two Dielectric Unions

Included unions help isolate plumbing connections and reduce corrosion risk.

Stainless Steel Exterior

Corrosion-resistant exterior is well suited to commercial foodservice environments.

Type Booster Heater
Style Tankless
Installation Type Wall Mounted
Watts 54 kW
Voltage 480 Volts
Amps 65 Amps
Hertz 60 Hz
Phase 3-Phase
Controls Digital
Material Stainless Steel
Finish Stainless Steel
Shipping Width 18 Inches
Shipping Depth 5 Inches
Shipping Height 25 Inches
Shipping Weight 42 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor on tank and components; 10 years non-pro-rated on tank only.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download PDF Catalog PDF Download

Frequently Asked Questions

Yes. It is a tankless electric booster heater designed for sanitizing sink applications.
It requires 480V, 60 Hz, 3-phase power and draws 65 amps.
Yes. The unit is designed for wall-mount installation.
It includes an electronic digital display controller plus two temperature and pressure gauges.
The tank and components are covered for 1 year parts and labor, and the tank only is covered for 10 years non-pro-rated.
