Hubbell Water Heaters

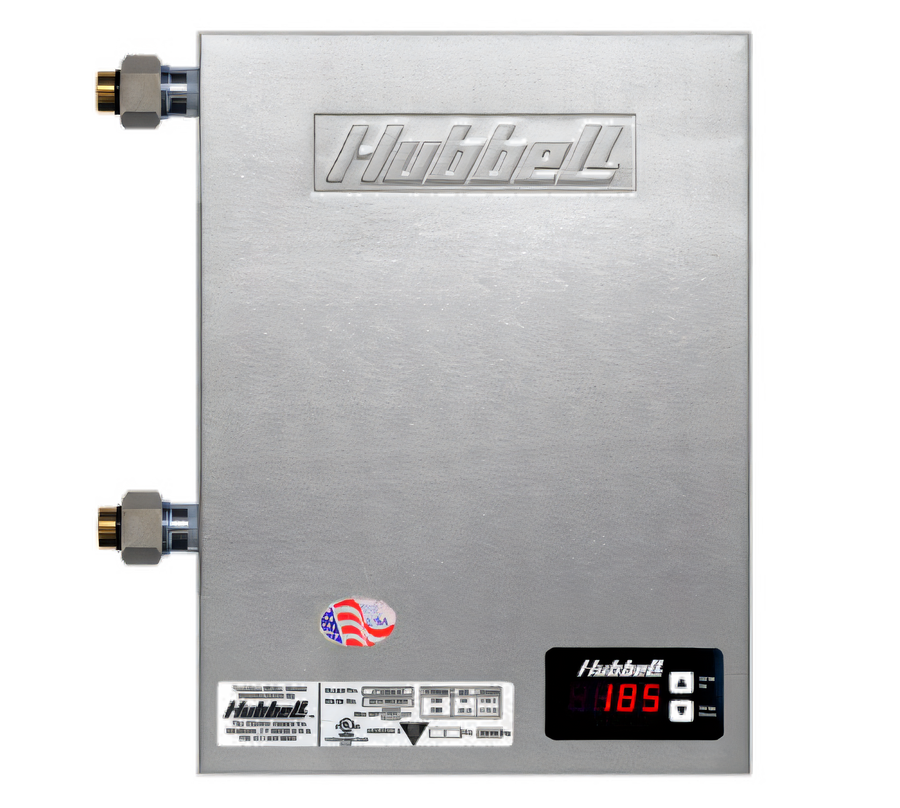

Hubbell Electric Tankless Booster Heater, Wall-Mount, 54 kW, 240V, 3-Phase

SKU: JTX054-6T
$5,633.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks New Arrivals Restaurant Equipment Sanitizing Sink Heaters

Hubbell Electric Tankless Booster Heater, Wall-Mount, 54 kW, 240V, 3-Phase

Stainless Steel Exterior with Digital Controller

A compact, wall-mounted electric booster heater that delivers 54 kW of on-demand hot water with precise digital control.

  • 54 kW electric output provides high-capacity booster heating in a compact footprint.
  • Tankless, wall-mounted design helps save valuable floor space.
  • Six incoloy-sheathed heating elements and solid state switches support dependable operation.
  • Electronic digital display controller simplifies temperature management.
  • Brass pressure reducing valve with bypass, dual temperature/pressure gauges, and dielectric unions aid installation and monitoring.
  • Durable stainless steel exterior is built for demanding commercial environments.
  • Requires 240V, 60 Hz, 3-phase electrical service at 130 amps.

Overall Dimensions:

17.69"W x 4.56"D x 25.0"H

Product Weight:

42.0 lb

Tankless Design

Provides on-demand booster heating without a storage tank.

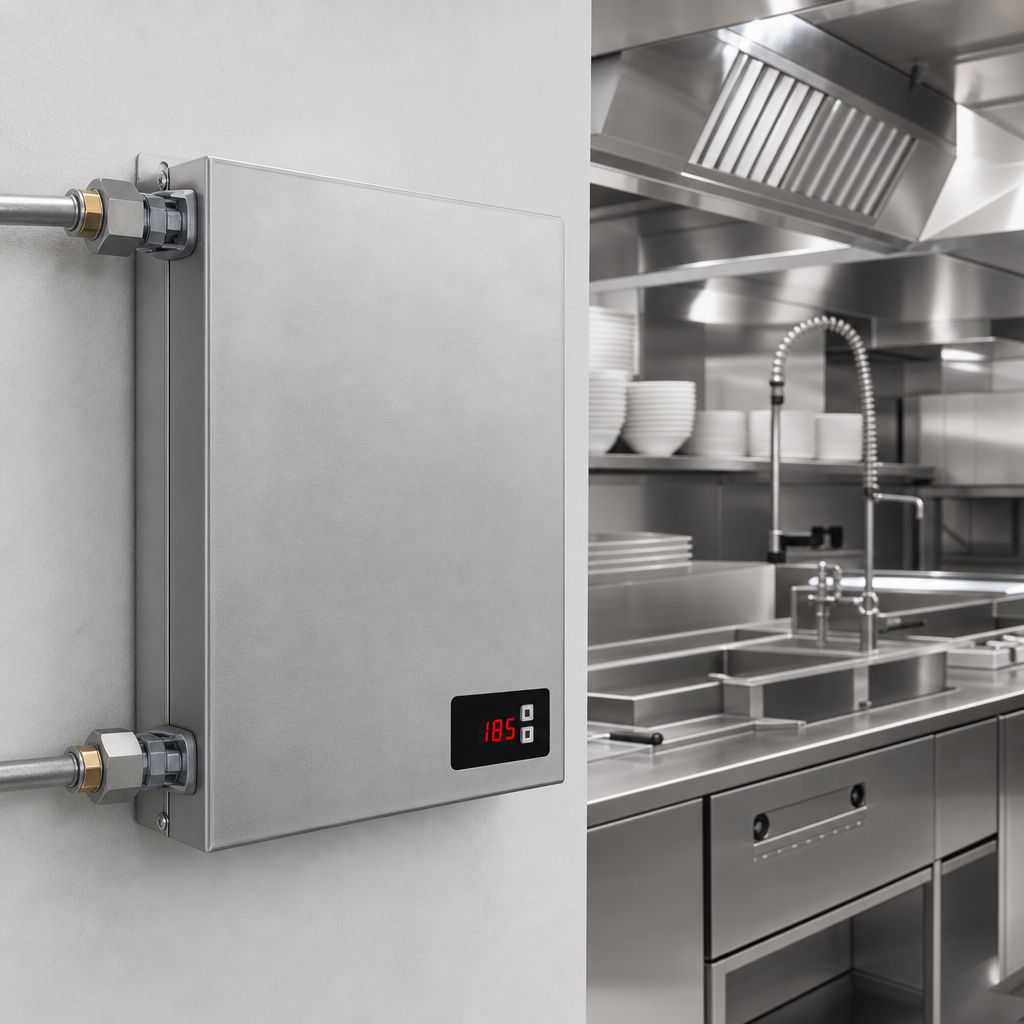

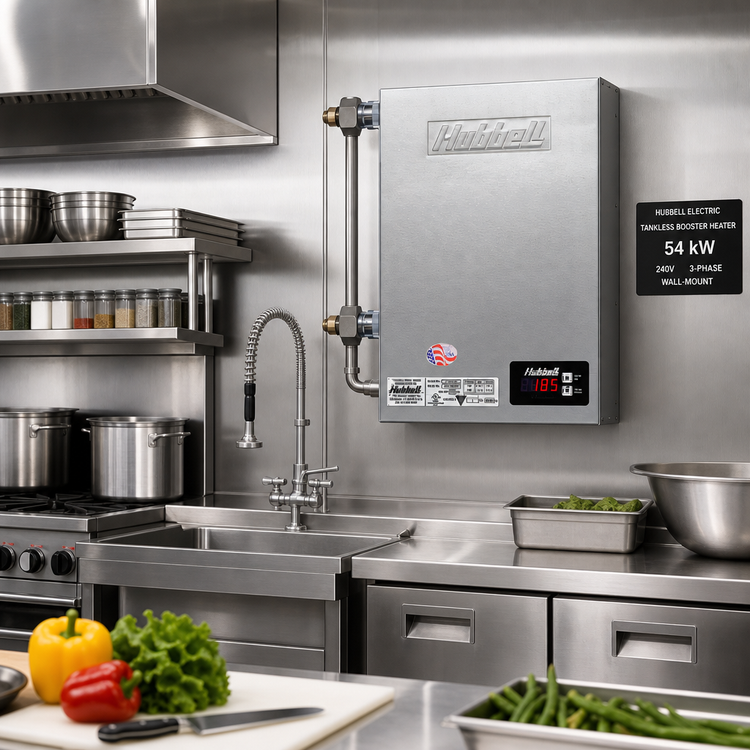

Wall-Mount Installation

Designed to mount on the wall for a smaller footprint.

54 kW Heating Output

High electrical input capacity supports rapid hot-water boosting.

Six Heating Elements

Uses six incoloy-sheathed heating elements for durable heat transfer.

Digital Display Controller

Electronic digital controller makes operation and temperature monitoring straightforward.

Solid State Switching

Solid state switches help provide reliable electrical control.

Pressure and Temperature Components

Includes a brass pressure reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.

Stainless Steel Exterior

Corrosion-resistant exterior suited to commercial kitchen environments.

Type Tankless Booster Heater
Installation Type Wall Mounted
Controls Digital
Material Stainless Steel
Voltage 240 Volts
Watts 54 kW
Amps 130 Amps
Hertz 60 Hz
Phase 3-Phase
Shipping Width 18 Inches
Shipping Depth 5 Inches
Shipping Height 25 Inches
Shipping Weight 42 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor on tank and components; 10 years non-pro-rated on the tank only.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Catalog PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It requires 240V, 60 Hz, 3-phase power and draws 130 amps.
Yes. It is a tankless booster heater.
Yes. The unit is designed for wall-mount installation.
It includes solid state switches, an electronic digital display controller, a brass pressure reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.
The warranty covers the tank and components for 1 year parts and labor, and the tank only for 10 years non-pro-rated.
