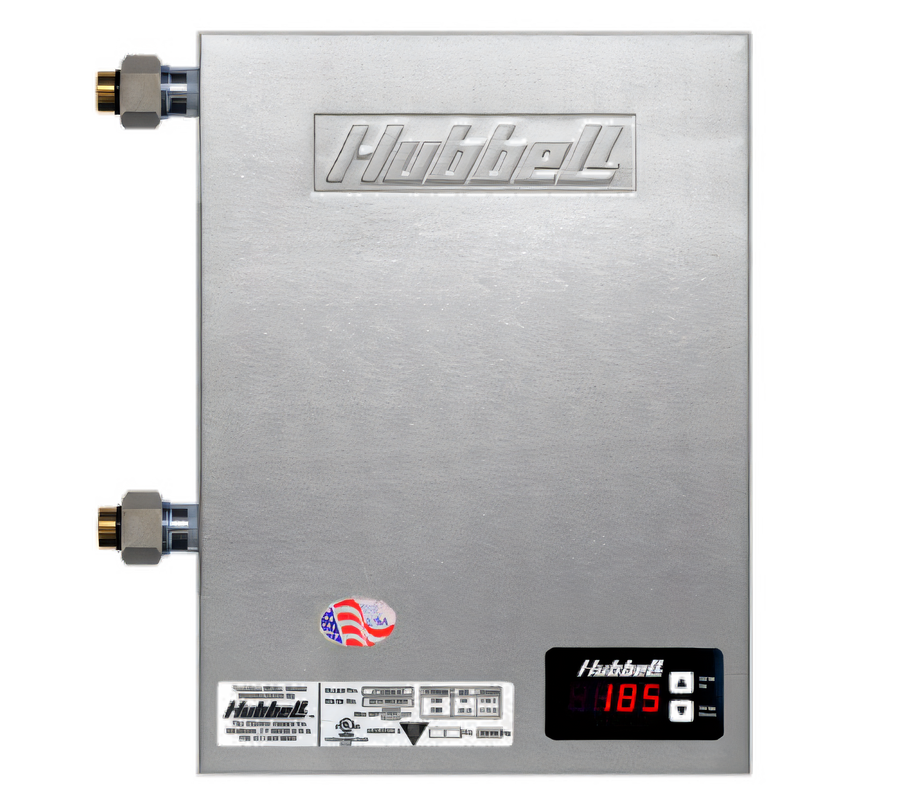

Hubbell Water Heaters JTX054-6S Electric Tankless Booster Heater for Sanitizing Sinks, 54 kW, Wall Mounted, 240V, Digital Display, Stainless Steel
$5,659.50
/each
Ships in 11–14 business days
Free Shipping
- Phase
- Single-phase
- Dimensions
- 17.69"W × 4.56"D × 25.0"H
- Product type
- Tankless electric booster heater
- Mounting
- Wall mount
- Heating capacity
- 54 kW
- Heating elements
- 6 incoloy-sheathed elements
Specifications
Product type
Tankless electric booster heater
Mounting
Wall mount
Heating capacity
54 kW
Heating elements
6 incoloy-sheathed elements
Voltage
240 V
Frequency
60 Hz
Phase
Single-phase
Current
225 A
Flow rate
0.2–8 GPM
Heating chamber pressure rating
150 psi
Switching
Solid-state switches
Display and controller
Electronic digital display controller
Exterior
Stainless steel
Temperature and pressure gauges
2
Dielectric unions
2
Description
The JTX054-6S is a wall-mounted electric tankless booster heater rated at 54 kW and 240 V for sanitizing-sink hot-water service.
- Six incoloy-sheathed heating elements with solid-state switches.
- Electronic digital display controller for temperature control.
- Stainless steel exterior with a brass pressure-reducing valve and bypass.
- Includes two temperature and pressure gauges and two dielectric unions.
Overall Dimensions:
17.69"W x 4.56"D x 25.0"HProduct Weight:
42.0 lbTankless electric heating
Provides 54 kW of electric booster-heating capacity without a storage tank.
Six heating elements
Uses six incoloy-sheathed heating elements.
Digital control
Includes an electronic digital display controller.
Fully modulating operation
The cut sheet specifies modulation from 0% to 100%.
Wall mounting
Designed for wall-mounted installation.
Plumbing components
Includes a brass pressure-reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.
Stainless steel exterior
The exterior is specified as stainless steel.
Documentation
Certifications & Compliance
Frequently Asked Questions
The unit is specified for 240 V, 60 Hz, single-phase operation and 225 A.
The specified flow range is 0.2 to 8 GPM.
The product is 17.69 inches wide, 4.56 inches deep, and 25.0 inches high, with a listed weight of 42.0 lb.
Yes. It includes an electronic digital display controller.
The warranty specifies one year of parts and labor for the tank and components, and ten years non-prorated for the tank only.
