Hubbell JTX048-6T Wall-Mount Electric Tankless Booster Heater for Sanitizing Sinks, 48 kW

SKU: JTX048-6T
$5,433.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Equipment Hubbell Water Heaters New Arrivals Plumbing & Water Treatment Restaurant Equipment Sanitizing Sink Heaters

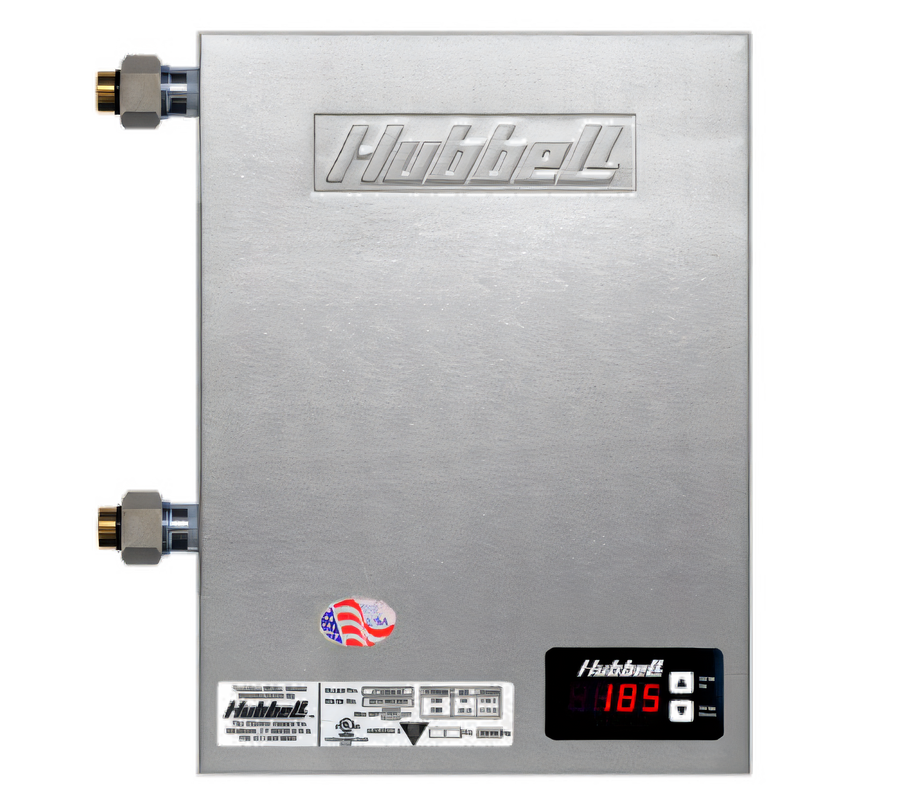

Hubbell JTX048-6T Wall-Mount Electric Tankless Booster Heater for Sanitizing Sinks, 48 kW

240V, 3-Phase, 116 Amps, Stainless Steel Exterior

This wall-mounted electric booster heater delivers 48 kW of on-demand heating for sanitizing sink applications, with digital control and commercial-grade components.

  • 48 kW electric tankless booster heater built for sanitizing sink applications
  • Wall-mounted design saves floor space and keeps service access straightforward
  • Six incoloy-sheathed heating elements help deliver dependable heating performance
  • Electronic digital display controller makes temperature management simple
  • Includes a brass pressure reducing valve with bypass, dual temperature and pressure gauges, and dielectric unions
  • Stainless steel exterior adds durability in demanding commercial kitchens

Overall Dimensions:

17.69"W x 4.56"D x 25.0"H

Product Weight:

42.0 lb

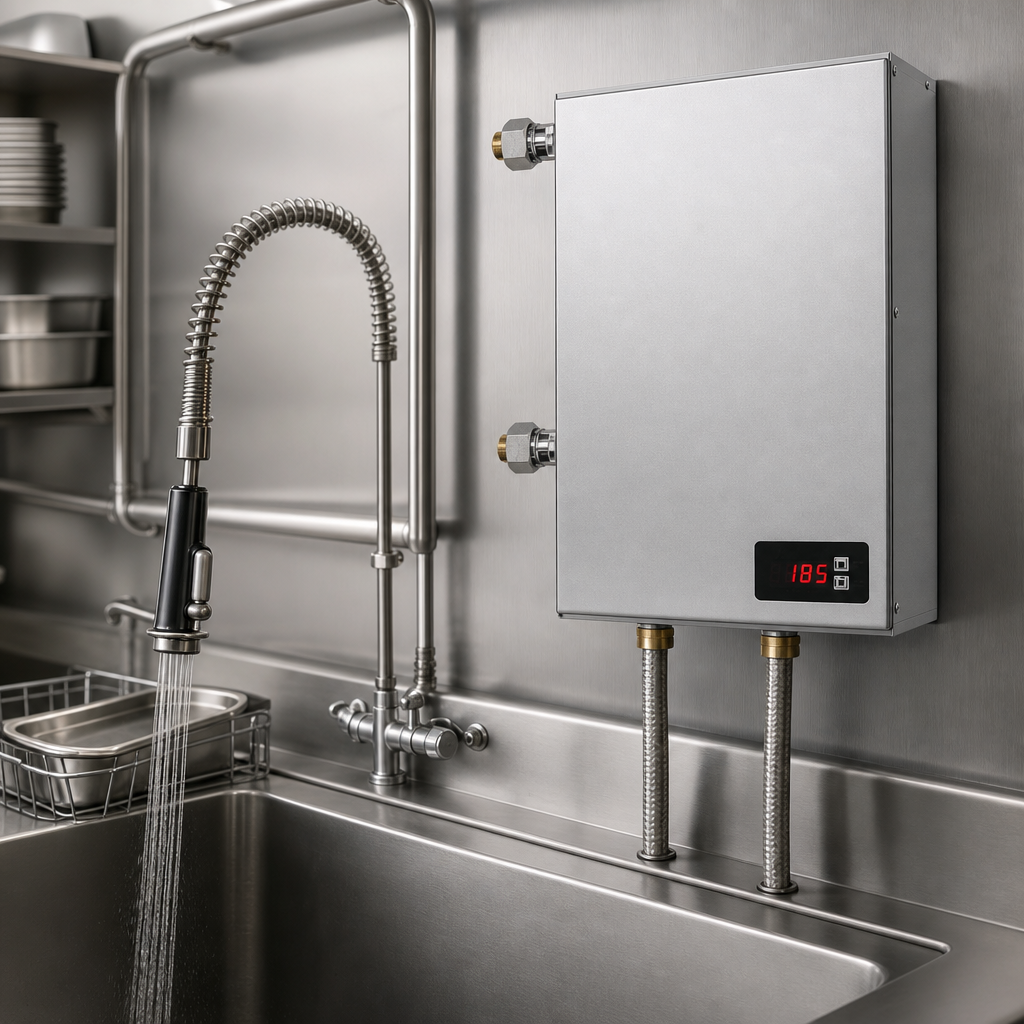

Tankless Booster Heating

On-demand booster heater design supports sanitizing sink applications without a storage tank.

Tankless Booster Heating

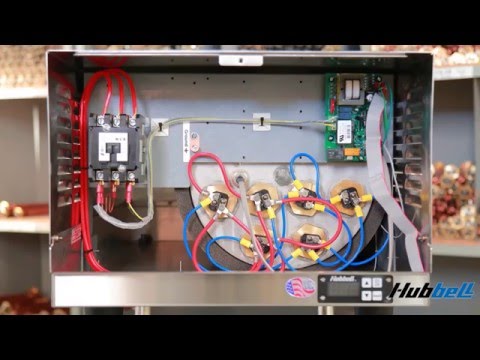

Six Incoloy-Sheathed Heating Elements

Uses six heating elements for reliable electric heat transfer in commercial service.

Electronic Digital Display Controller

Digital controller provides clear, easy-to-use temperature control.

Solid State Switches

Solid state switching supports dependable electrical operation.

Brass Pressure Reducing Valve With Bypass

Included valve helps regulate incoming pressure and supports system performance.

Dual Temperature and Pressure Gauges

Two gauges make it easier to monitor system conditions at a glance.

Dielectric Unions Included

Two dielectric unions are included to help isolate metal connections.

Stainless Steel Exterior

Durable stainless steel housing is suited to demanding commercial environments.

Type Booster Heater
Style Tankless
Installation Type Wall Mounted
Watts 48 kW
Voltage 240 Volts
Amps 116 Amps
Hertz 60 Hz
Phase 3-Phase
Controls Digital
Material Stainless Steel
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor on tank and components; 10 years non-pro-rated on tank only.

Documents

PDF Cutsheet PDF Download PDF Catalog PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It operates on 240V, 60 Hz, 3-phase power and draws 116 amps.
Yes, it is designed for wall mounting.
It uses six incoloy-sheathed heating elements.
It includes a brass pressure reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.
The warranty is one year parts and labor on the tank and components, and ten years non-pro-rated on the tank only.
