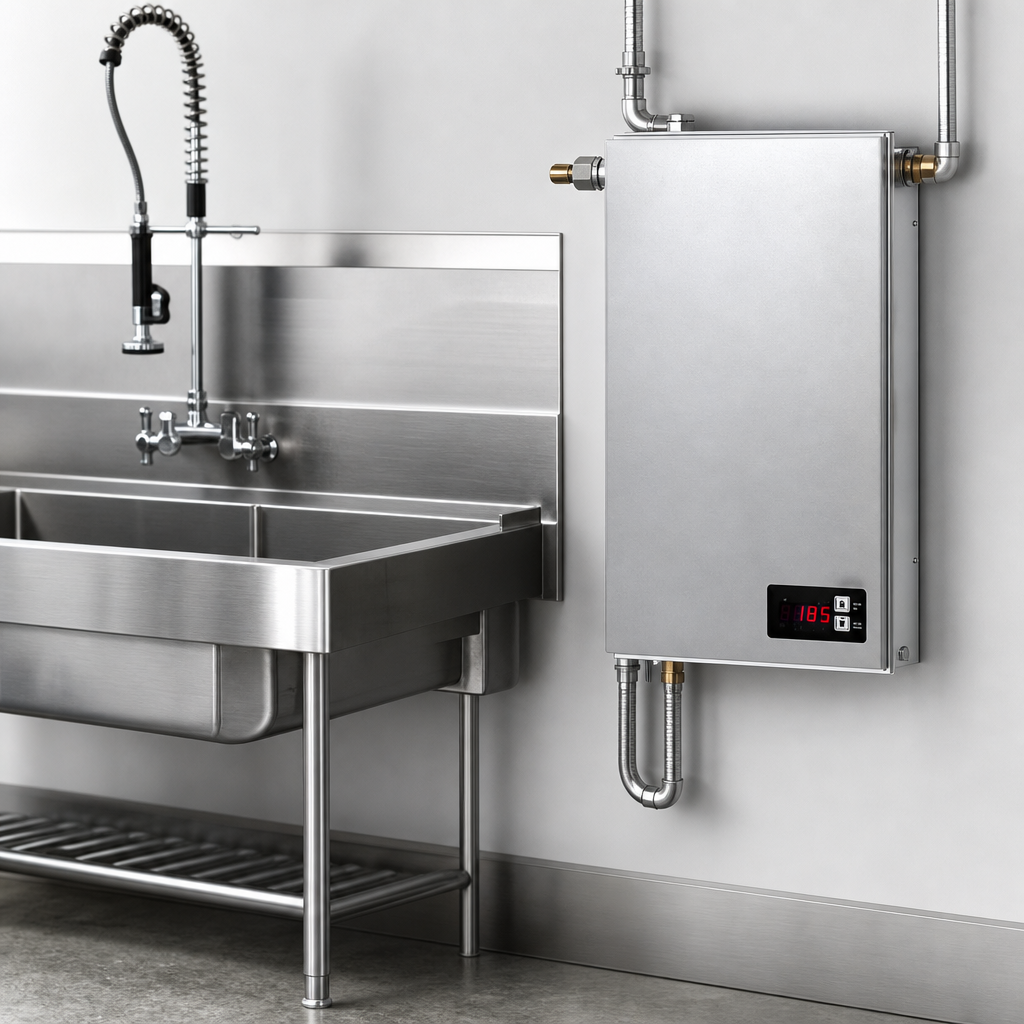

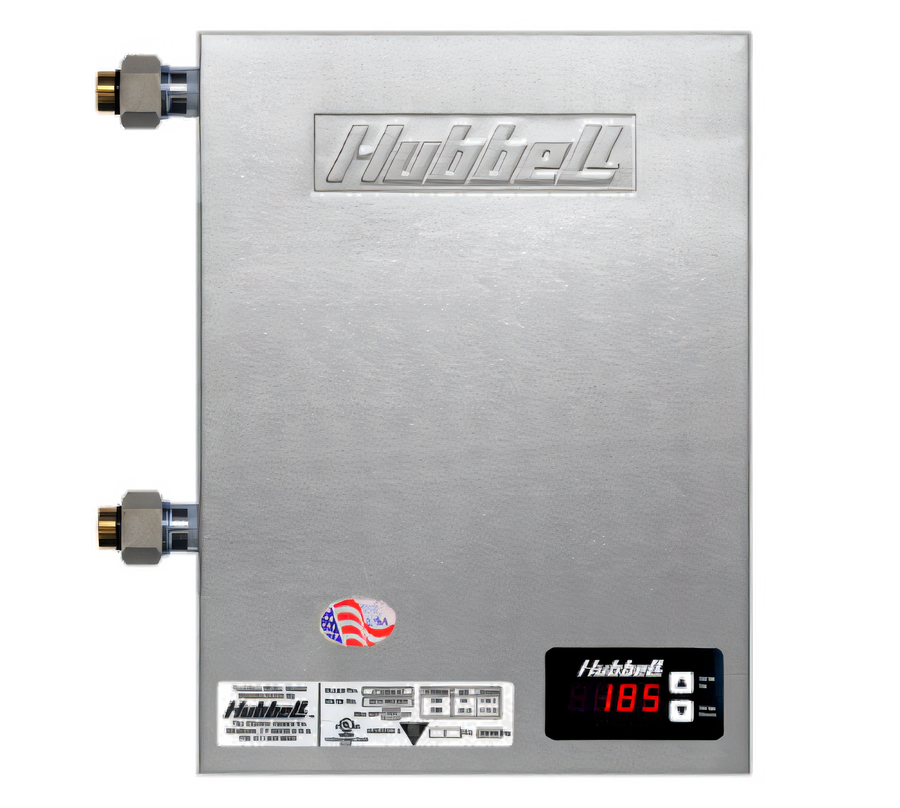

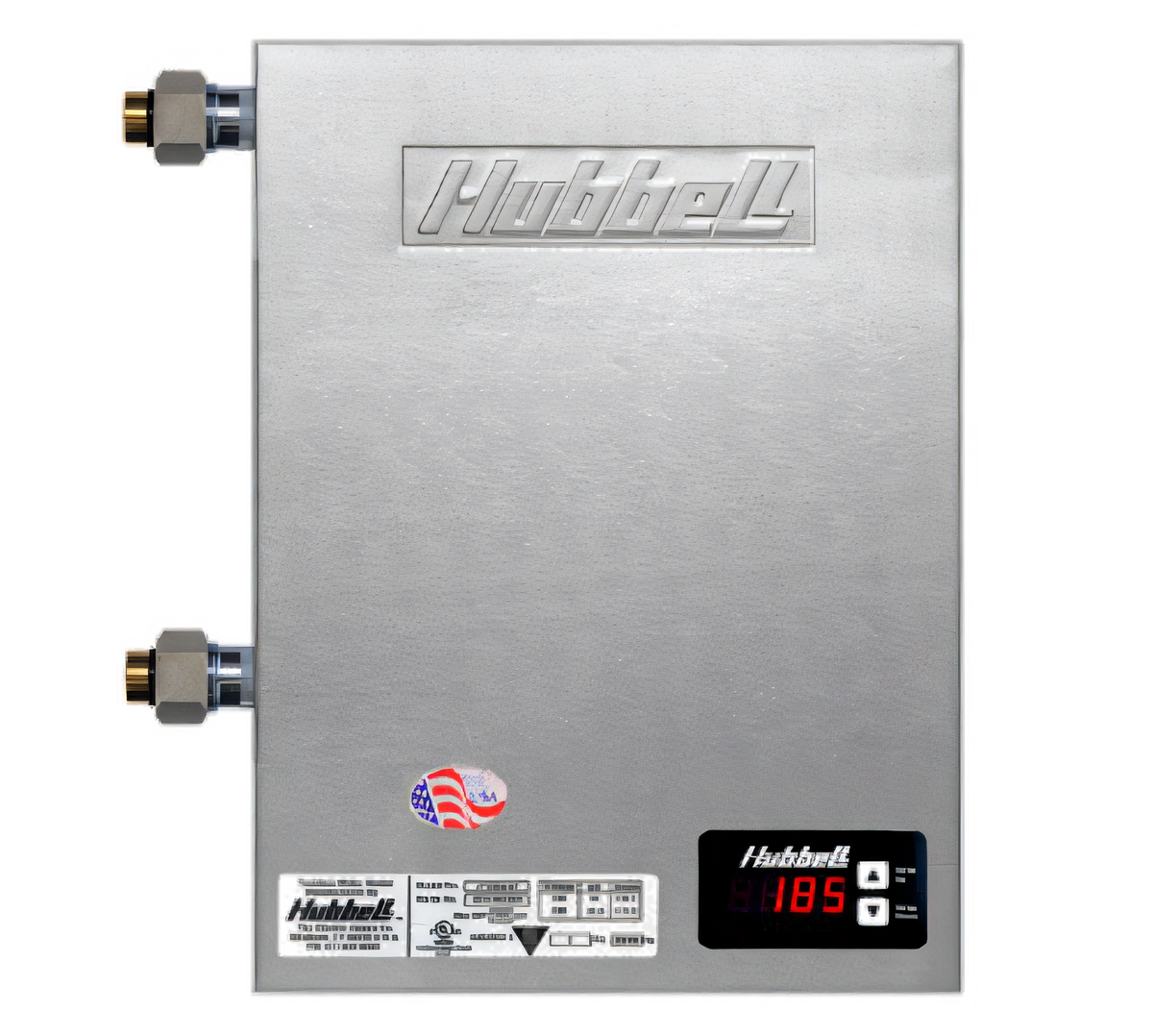

Hubbell Water Heaters JTX048-6RS Tankless Electric Sanitizing Sink Booster Heater, Wall-Mounted, 48 kW, Stainless Steel
- Phase
- Single phase
- Dimensions
- 17.69"W × 4.56"D × 25.0"H
- Heater Type
- Tankless booster heater
- Heating Method
- Electric
- Mounting
- Wall mount
- Power
- 48.0 kW
Specifications
Description
The JTX048-6RS is a 48.0 kW tankless electric booster heater designed for wall mounting. It operates at 208 V, 60 Hz, single phase, with a specified current of 230.0 A.
The unit features six Incoloy-sheathed heating elements, solid-state switches, an electronic digital display controller, a stainless steel exterior, and integrated water-control components.
- Brass pressure-reducing valve with bypass
- Two temperature and pressure gauges
- Two dielectric unions
- Fully modulating operation from 0 to 100%
Overall Dimensions:
17.69"W x 4.56"D x 25.0"HProduct Weight:
42.0 lbTankless electric heating
Provides a 48.0 kW electric booster-heater configuration without a storage tank specification.
Wall mounting
Designed for wall-mounted installation.
Incoloy-sheathed heating elements
Uses six Incoloy-sheathed heating elements.
Electronic digital display controller
Includes an electronic digital display controller.
Solid-state switching
Uses solid-state switches for heater control.
Water-control components
Includes a brass pressure-reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.
Stainless steel exterior
Constructed with a stainless steel exterior.
Modulating operation
The supplied product documentation specifies fully modulating operation from 0 to 100%.
