Hubbell Water Heaters

Tankless Electric Booster Heater, 36 kW, Wall Mounted, 480V, 3-Phase

SKU: JTX036-6T4
$4,215.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks New Arrivals Restaurant Equipment Sanitizing Sink Heaters

Tankless Electric Booster Heater, 36 kW, Wall Mounted, 480V, 3-Phase

Stainless Steel Exterior, Digital Display Controller

Compact, high-output electric boosting delivers on-demand hot water for sanitizing applications while saving valuable floor space.

  • 36 kW tankless electric booster heater for commercial sanitation and dishmachine applications.
  • Wall-mounted design helps conserve floor space in tight mechanical areas.
  • Six incoloy-sheathed heating elements and solid-state switching support dependable operation.
  • Electronic digital display controller makes temperature monitoring and adjustment straightforward.
  • Includes a brass pressure reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.
  • Stainless steel exterior and UL, cUL, and UL EPH listing support demanding commercial use.

Overall Dimensions:

17.69"W x 4.56"D x 25.0"H

Product Weight:

42.0 lb

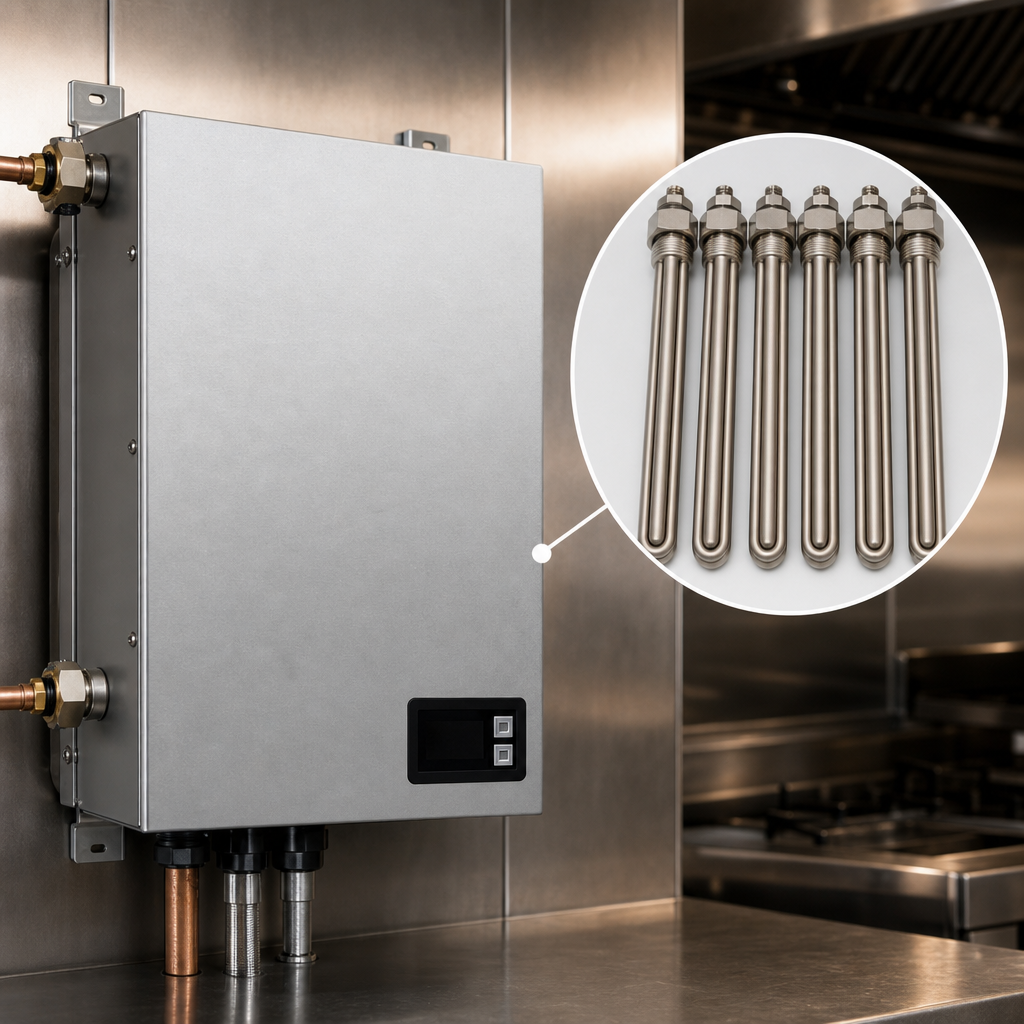

Six Incoloy-Sheathed Heating Elements

Uses six 6,000W incoloy-sheathed elements for durable electric heating performance.

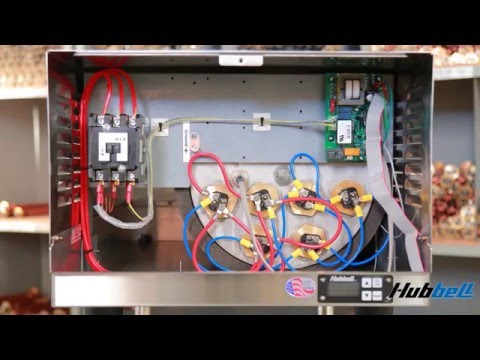

Solid-State Switching

Solid state switches support reliable control and smoother operation.

Electronic Digital Display Controller

Built-in digital controller and LED display make temperature monitoring simple.

Included Plumbing Components

Supplied with a brass pressure reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.

Wall-Mounted Stainless Steel Cabinet

Compact wall mount design with a stainless steel exterior helps save floor space and withstand commercial use.

Fully Modulating Output

Heaters modulate from 0 to 100% to match demand.

Sanitation-Use Listings

Listed for UL, cUL, and UL EPH (ANSI NSF 5) applications.

Wide Operating Range

Designed for 0.2 to 8 GPM flow and a maximum heating chamber pressure of 150 PSI.

Type Tankless Electric Booster Heater
Installation Type Wall Mounted
Watts 36 kW
Voltage 480 Volts
Amps 43.3 Amps
Phase 3-Phase
Hertz 50/60 Hz
Breaker Size 50 Amps
Controls Digital
Material Stainless Steel
Water Inlet Size 3/4 Inch CTS
Flow Rate 0.2 to 8 GPM
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 5 Inches
Shipping Height 25 Inches
Shipping Weight 42 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor on tank and components; 10 years non pro-rated on tank only.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Catalog PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It operates on 480V, 3-phase power and draws 43.3 amps, with a minimum 50 amp breaker size.
The unit is rated at 36 kW and uses six 6,000W heating elements.
The documented flow range is 0.2 GPM minimum to 8 GPM maximum.
The heating chamber is rated for a maximum water pressure of 150 PSI.
The warranty covers tank and components for 1 year parts and labor, and tank only for 10 years non pro-rated.
