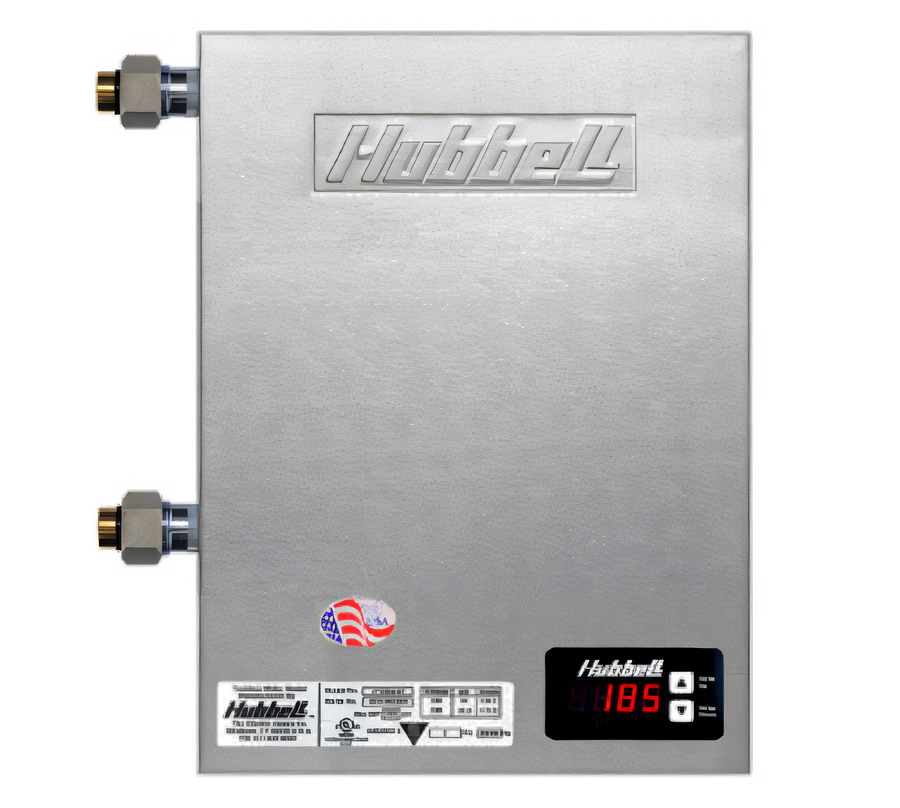

Hubbell JTX036-6R Electric Tankless Booster Heater, Wall Mounted, 36 kW, 208V

3-Phase, Digital Display Control, Stainless Steel Exterior

A compact high-output tankless booster heater built for reliable commercial hot water delivery, digital control, and space-saving wall-mount installation.

  • Tankless electric booster heater design delivers hot water on demand without a storage tank.
  • Wall-mounted construction helps conserve floor space in busy back-of-house areas.
  • 36 kW output with six incoloy-sheathed heating elements for strong heating performance.
  • Electronic digital display controller with solid-state switches for precise operation.
  • Includes a brass pressure reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.
  • Stainless steel exterior supports durability in demanding commercial environments.
  • Listed to UL, cUL, and UL EPH requirements for added confidence.

Overall Dimensions:

17.69"W x 4.56"D x 25.0"H

Product Weight:

42.0 lb

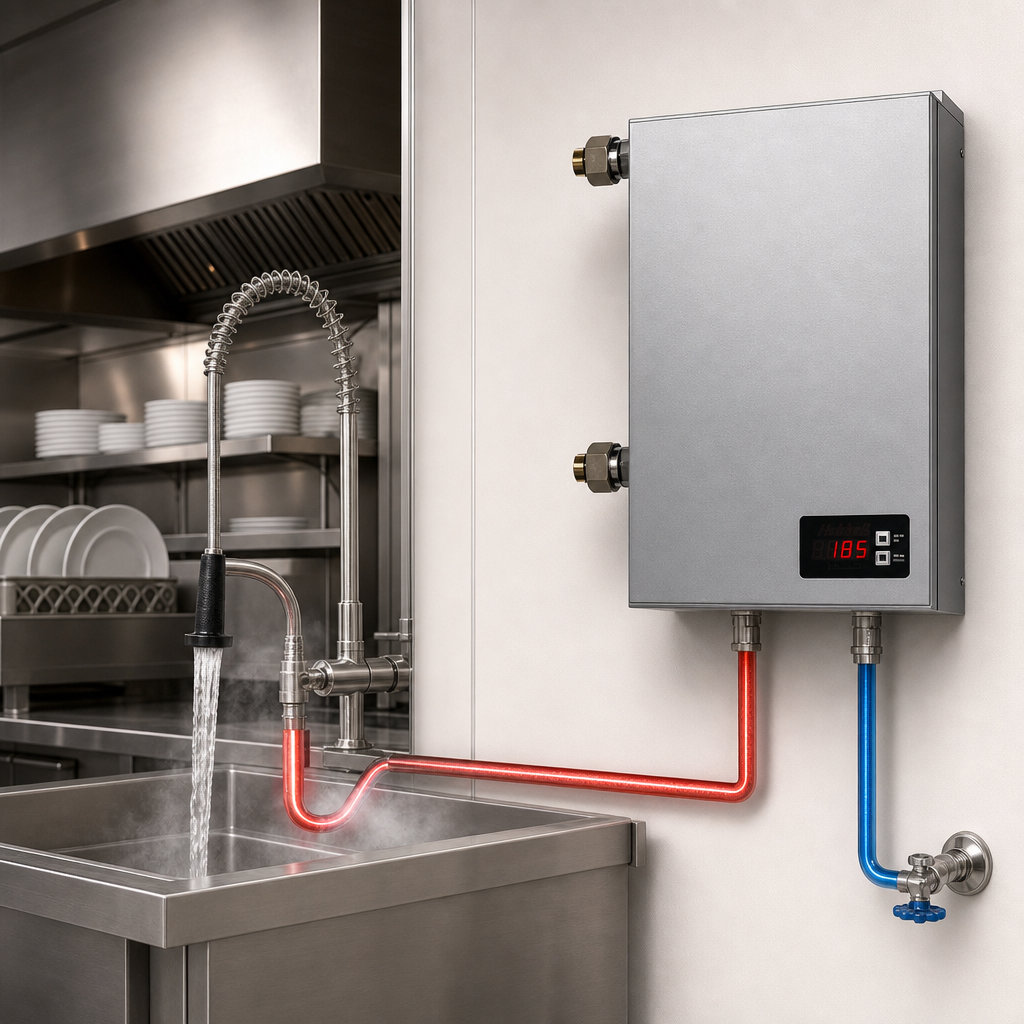

Tankless Booster Design

Provides on-demand hot water heating without the need for a storage tank.

Tankless Booster Design

Wall-Mount Installation

Mounts to the wall to help save valuable floor space.

Six Heating Elements

Uses six incoloy-sheathed heating elements for durable, efficient heat transfer.

Digital Controller

Electronic digital display controller with solid-state switches for straightforward operation.

Included Plumbing Components

Supplied with a brass pressure reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.

Stainless Steel Exterior

Corrosion-resistant exterior built for commercial use.

Commercial Listings

Listed to UL, cUL, and UL EPH (ANSI NSF 5) requirements.

Type Tankless Booster Heater
Style Electric
Installation Type Wall Mounted
Controls Digital
Watts 36 kW
Voltage 208 Volts
Amps 100 Amps
Hertz 60 Hz
Phase 3-Phase
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 5 Inches
Shipping Height 25 Inches
Shipping Weight 42 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor on tank and components; 10 years non-prorated on tank only.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Catalog PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It requires 208 volts, 60 Hz, 3-phase power and draws 100 amps.
Yes. The heater is designed for wall-mounted installation.
It includes a brass pressure reducing valve with bypass, two temperature and pressure gauges, and two dielectric unions.
It uses an electronic digital display controller with solid-state switches.
The tank and components are covered for 1 year parts and labor, and the tank only is covered for 10 years non-prorated.
