Hubbell Water Heaters JTX027-3T Tankless Electric Booster Heater, Wall-Mounted Stainless Steel, 27 kW, 240V 3-Phase
- Amps
- 65.0 Amps
- Phase
- 3-Phase
- Dimensions
- 16.19"W × 3.56"D × 17.0"H
- Type
- Booster Heater
- Style
- Tankless
- Installation Type
- Wall Mounted
Specifications
Description

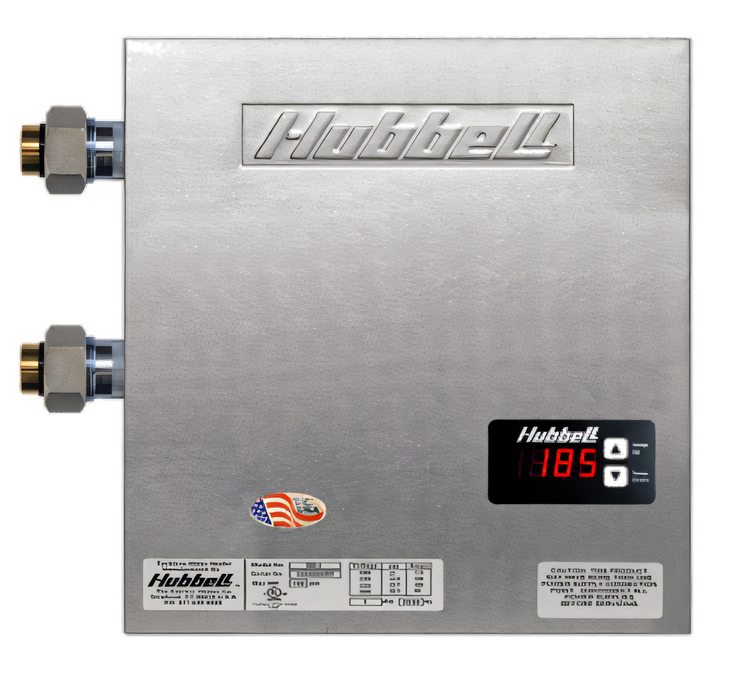

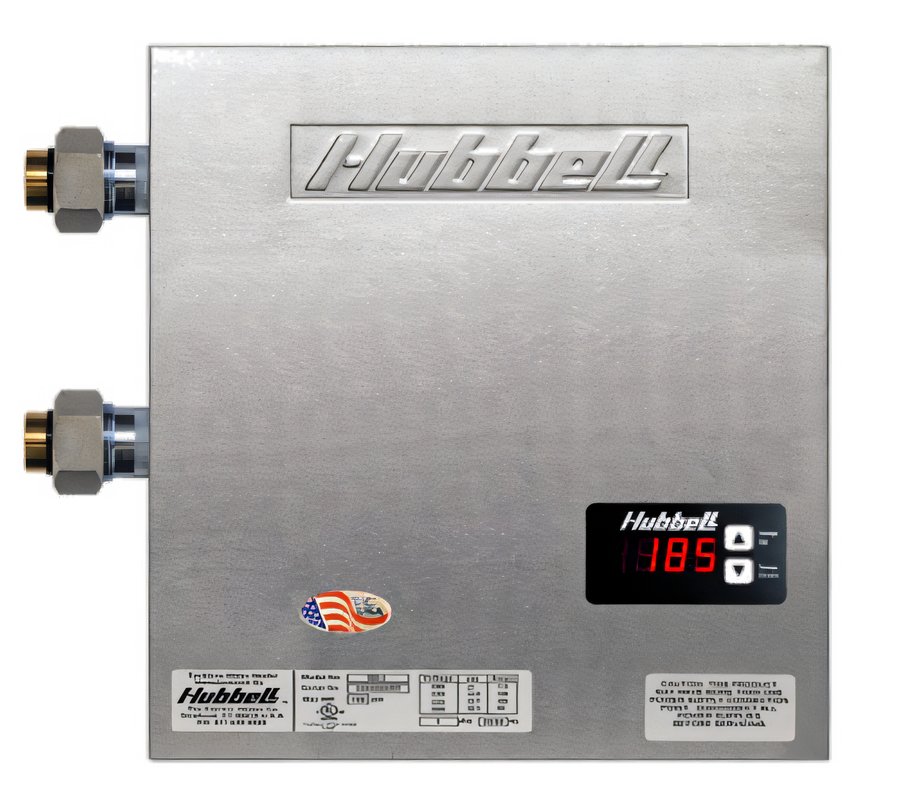

Hubbell JTX027-3T Tankless Electric Booster Heater, Wall Mounted, 27 kW, 240V, 3-Phase
Stainless steel exterior with electronic digital display controller
This wall-mounted tankless booster heater delivers 27 kW of on-demand electric heating with precise digital control and durable stainless steel construction.
- 27 kW tankless electric booster heater for commercial warewashing and sanitizing applications.
- Space-saving wall-mounted design with a stainless steel exterior.
- Three incoloy-sheathed heating elements and fully modulating output from 0% to 100%.
- Electronic digital display controller with solid-state switching for precise operation.
- Brass pressure reducing valve with bypass, dual T&P gauges, and dielectric unions included.
- 240V, 3-phase operation at 65.0 amps; UL, cUL, and UL EPH (ANSI NSF 5) listed.
Overall Dimensions:
16.19"W x 3.56"D x 17.0"HProduct Weight:
24.0 lbTankless On-Demand Heating
Provides booster heat only when needed, helping keep hot water available without a storage tank.
Wall-Mounted Stainless Steel Exterior
Compact wall-mounted construction saves floor space and offers durable stainless steel protection.
Three Incoloy-Sheathed Heating Elements
Uses three heating elements rated at 9 kW each for a total output of 27 kW.
Electronic Digital Display Controller
Digital controller with LED display makes temperature monitoring and operation straightforward.
Solid-State Switching
Supports reliable, precise electrical control for smoother heat modulation.
Brass Pressure Reducing Valve with Bypass
Helps regulate incoming water pressure and supports stable system performance.
Dual Gauges and Dielectric Unions
Includes two temperature/pressure gauges and two dielectric unions for monitoring and corrosion reduction.
Fully Modulating Output
Heaters modulate from 0% to 100% to match changing demand.
Flow Meter and Pressure Rating
Built-in flow meter supports 0.2 to 8 GPM, and the heating chamber is rated for 150 PSI.
Commercial Listings
Listed to UL, cUL, and UL EPH (ANSI NSF 5) requirements for commercial installation.
