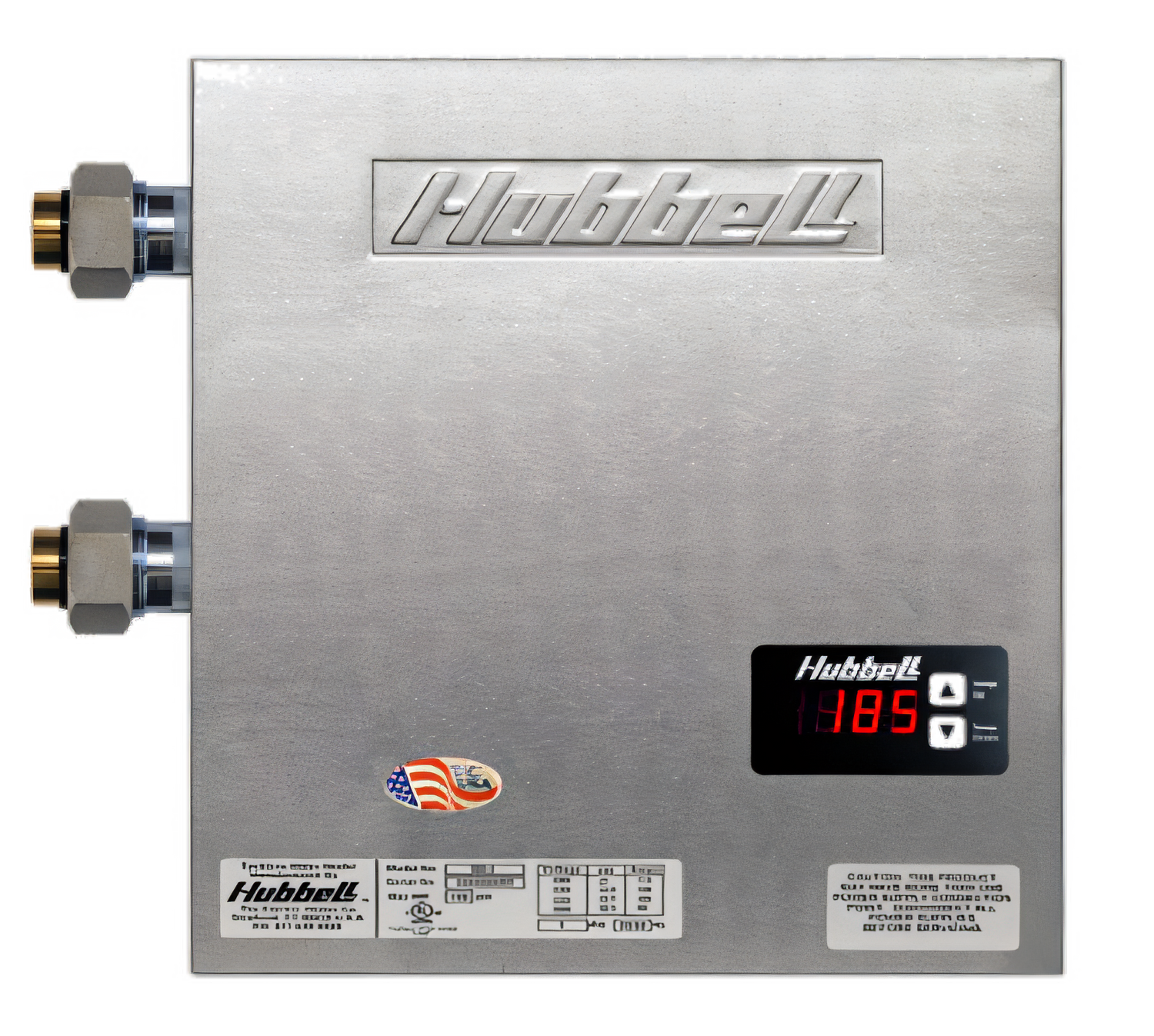

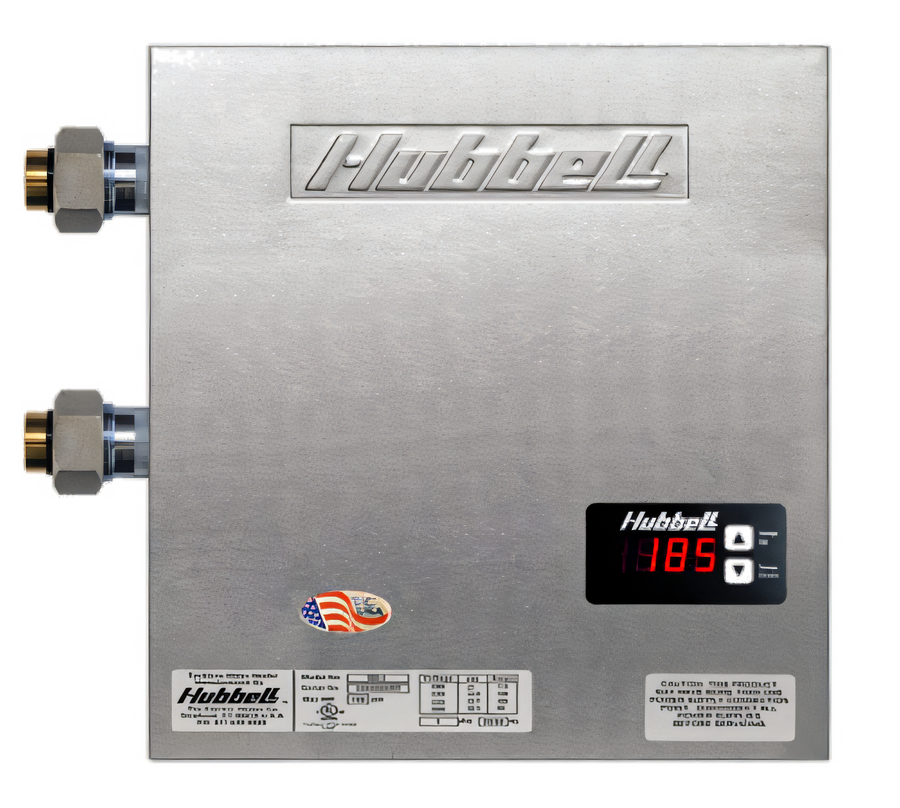

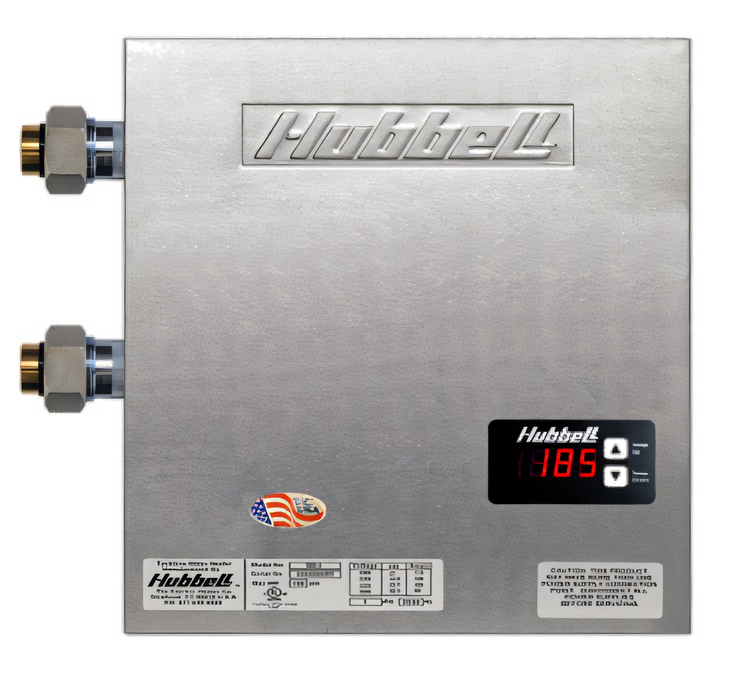

Hubbell Water Heaters JTX027-3S Tankless Electric Sanitizing Sink Booster Heater, Wall-Mounted, 27 kW, 240V, 1-Phase
- Amperage
- 113.0 A
- Phase
- 1-phase
- Dimensions
- 16.19"W × 3.56"D × 17.0"H
- Type
- Tankless booster heater
- Mounting
- Wall mount
- Heating method
- Electric
Specifications
Description
The Hubbell Water Heaters JTX027-3S is a wall-mounted tankless electric booster heater rated at 27.0 kW, 240 V, and single phase.
It features three incoloy-sheathed heating elements, solid state switches, an electronic digital display controller, a brass pressure-reducing valve with bypass, temperature and pressure gauges, dielectric unions, and a stainless steel exterior.
- Fully modulating operation from 0 to 100%
- Flow rate range of 0.2 to 8 GPM
- Heating chamber rated for 150 PSI maximum water pressure
Overall Dimensions:
16.19"W x 3.56"D x 17.0"HProduct Weight:
24.0 lbTankless electric operation
Provides electric booster heating without a storage tank.
Wall-mount design
Configured for wall mounting.
Three heating elements
Uses three incoloy-sheathed heating elements.
Fully modulating operation
The cutsheet specifies modulation from 0 to 100%.
Electronic digital display controller
Includes an electronic digital display controller.
Pressure control
Includes a brass pressure-reducing valve with bypass.
Temperature and pressure monitoring
Includes two temperature and pressure gauges.
Stainless steel exterior
Has a stainless steel exterior.
