Howard-McCray

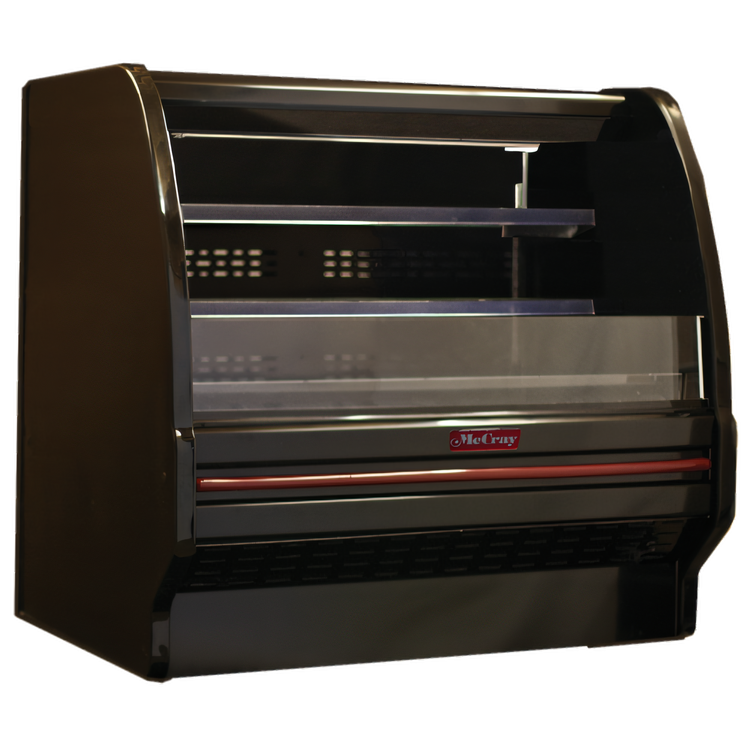

Howard-McCray 40E Series 75-Inch Curved End Self-Contained Open Merchandiser, Black, LED

SKU: SC-OD40E-6L-B-LED
$9,143.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Howard-McCray Merchandising & Display Refrigeration New Arrivals Open-Air Coolers Refrigeration, Freezing & Ice Restaurant Equipment

Howard-McCray 40E Series 75-Inch Curved End Self-Contained Open Merchandiser, Black, LED

Endless design with 2 shelves and solid end panels; drain required.

This 75-inch open merchandiser combines self-contained cooling, LED lighting, and a clean black finish to showcase refrigerated products with strong visual appeal.

  • 75-inch curved-end open merchandiser designed for dairy and multi-purpose refrigerated display.
  • Self-contained refrigeration with a 3/4 HP compressor and electronic temperature control.
  • Black exterior and interior with LED top lighting for a modern, uniform presentation.
  • 2 shelves create 3 levels of product display for effective merchandising.
  • Endless design, solid end panels, and a removable front grille support lineup installation and easier service.
  • Requires a drain and operates on 115/208-230V, 60 Hz, 1-phase power at 16 amps.

Overall Dimensions:

75.0"W x 40.0"D x 53.0"H

Product Weight:

850.0 lb

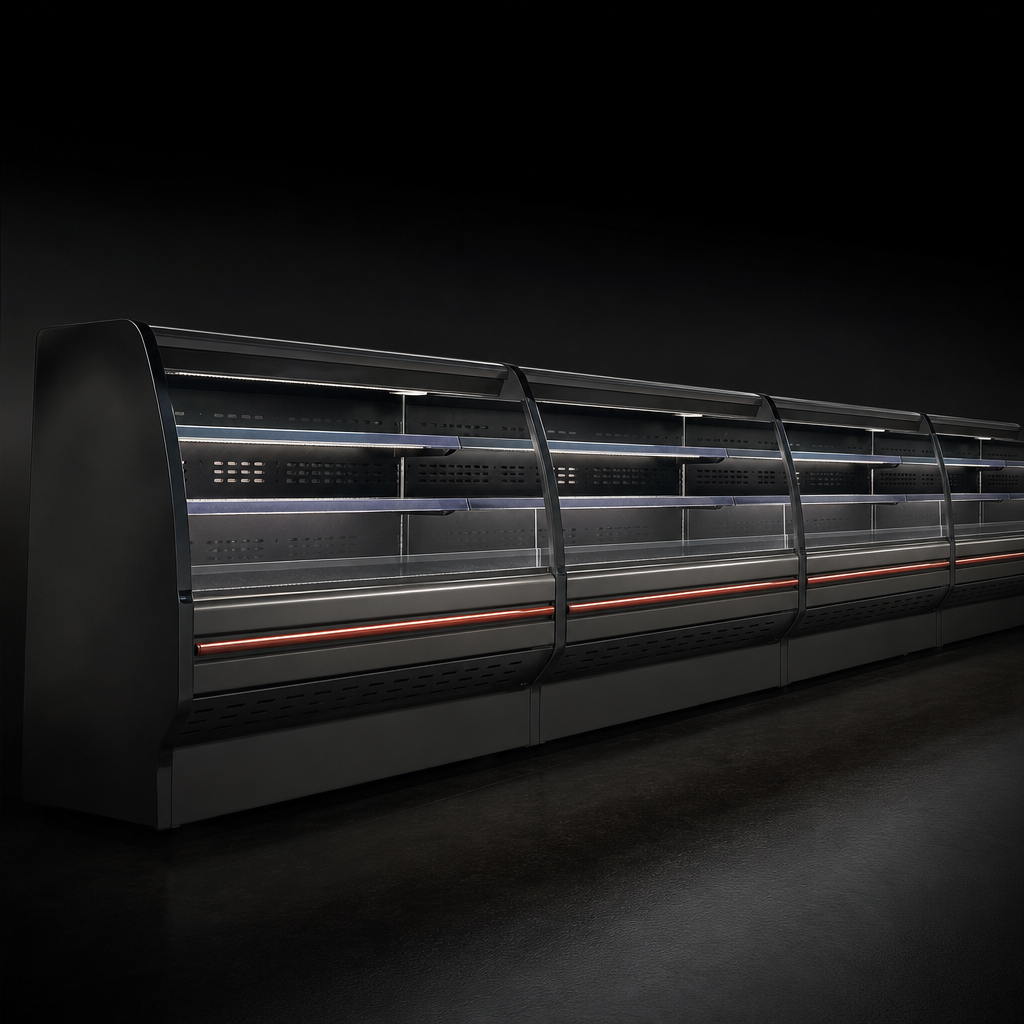

Endless Design

Built for seamless lineup installations so multiple cases can be arranged in a continuous merchandising run.

Endless Design

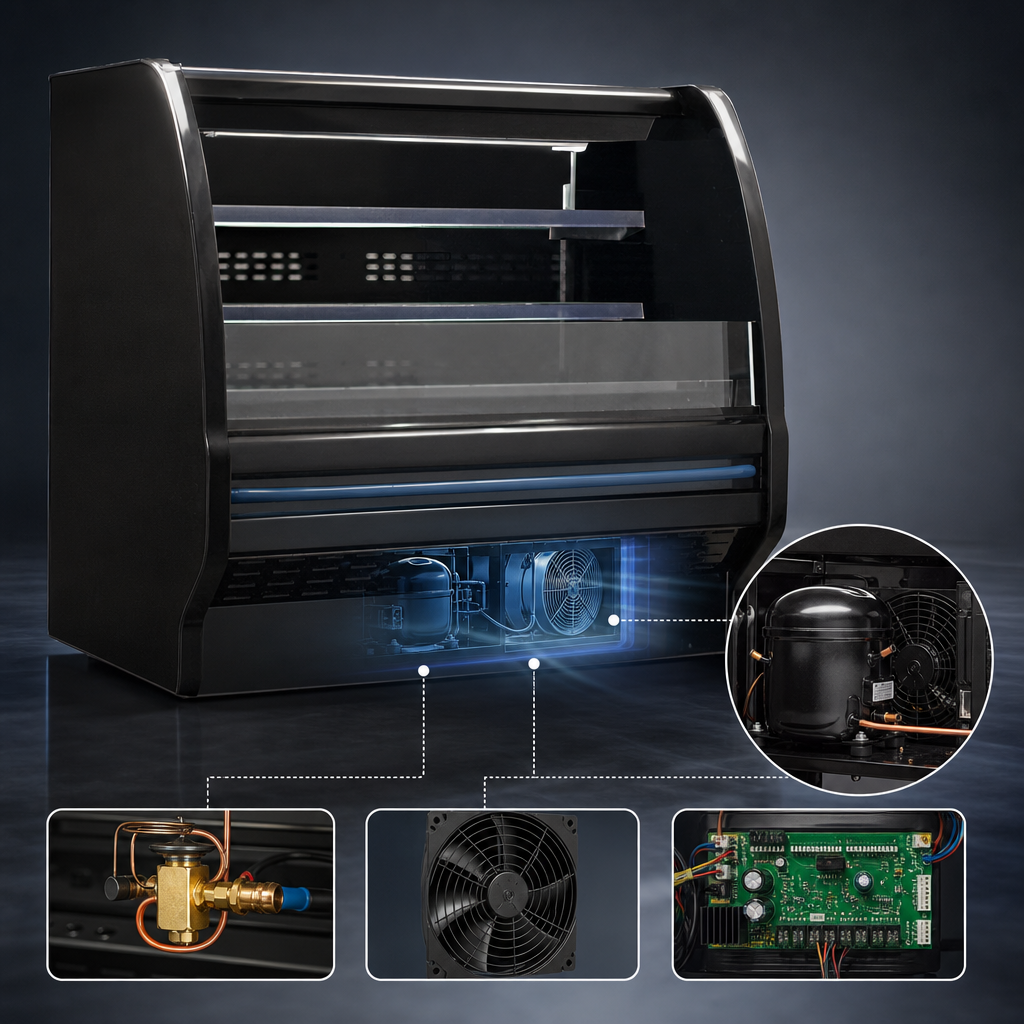

Self-Contained Refrigeration

Uses an expansion valve system with a Copeland hermetic unit, low-velocity fans, and electronic controls to help maintain balanced temperatures.

Self-Contained Refrigeration

LED Lighting

Full-length top LED lighting helps illuminate products across the case for better visibility.

Black Finish

Black exterior and interior surfaces create a clean, consistent display appearance.

Two Shelves / Three Display Levels

Includes 2 shelves and provides 3 levels of product display for flexible merchandising.

Drain Required

The case is equipped with drains, and the specification sheet states that a drain connection is required.

Controlled Ambient Operation

Designed to operate at 75°F and 55% relative humidity.

Removable Front Grille

Front grille removes for easier cleaning and service access.

Type Open Merchandiser
Style Curved End
Design Endless Design
Refrigeration Type Self-Contained
Drain Connection Required
Temperature Range 36°F to 40°F
Horsepower 3/4 HP
Color Black
Interior Finish Black
Material Steel
Voltage 115/208-230 Volts
Amps 16 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type L14-20P
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It measures 75 inches wide, 40 inches deep, and 53 inches high.
Yes. This SC model uses a self-contained refrigeration system.
It includes 2 shelves and provides 3 levels of product display.
Yes. The unit is equipped with drains and the specification sheet states that a drain is required.
It requires 115/208-230V, 60 Hz, 1-phase power at 16 amps with an L14-20P cord and plug.
The cases are designed to operate at 75°F and 55% relative humidity.
