Howard-McCray 40E Series 51-Inch Dairy Curved-End Open Merchandiser, Self-Contained Refrigerated Display Case with LED Lighting

SKU: SC-OD40E-4L-LED
$7,798.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Howard-McCray Merchandising & Display Refrigeration New Arrivals Open-Air Coolers Refrigeration, Freezing & Ice Restaurant Equipment

Howard-McCray 40E Series 51-Inch Dairy Curved-End Open Merchandiser, Self-Contained Refrigerated Display Case with LED Lighting

Endless Design, White Exterior/Interior, 2 Shelves

Showcase dairy items in a 51-inch curved-end merchandiser with self-contained cooling, LED lighting, and endless lineup capability.

  • Endless design supports seamless lineup merchandising for larger displays.
  • Self-contained refrigeration simplifies installation with built-in cooling.
  • LED lighting and white interior/exterior create a bright, clean presentation.
  • Includes 2 shelves and 3 display levels for flexible product display.
  • Drain required; unit is equipped with drains and must be connected per local code.
  • Designed for 115V, 1-phase power with a NEMA 5-20P plug.

Overall Dimensions:

51.0"W x 40.0"D x 53.0"H

Product Weight:

685.0 lb

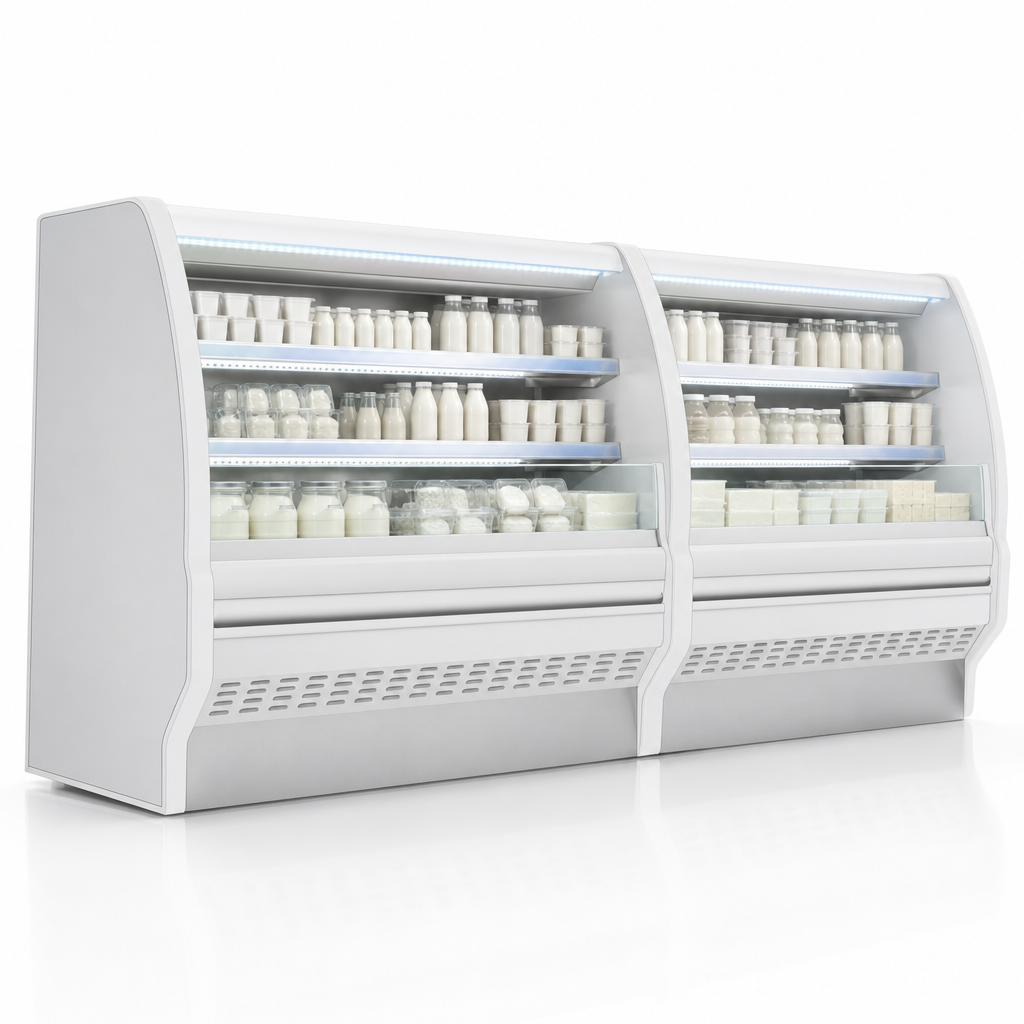

Endless Design

Designed for continuous case lineup merchandising without visual breaks.

Endless Design

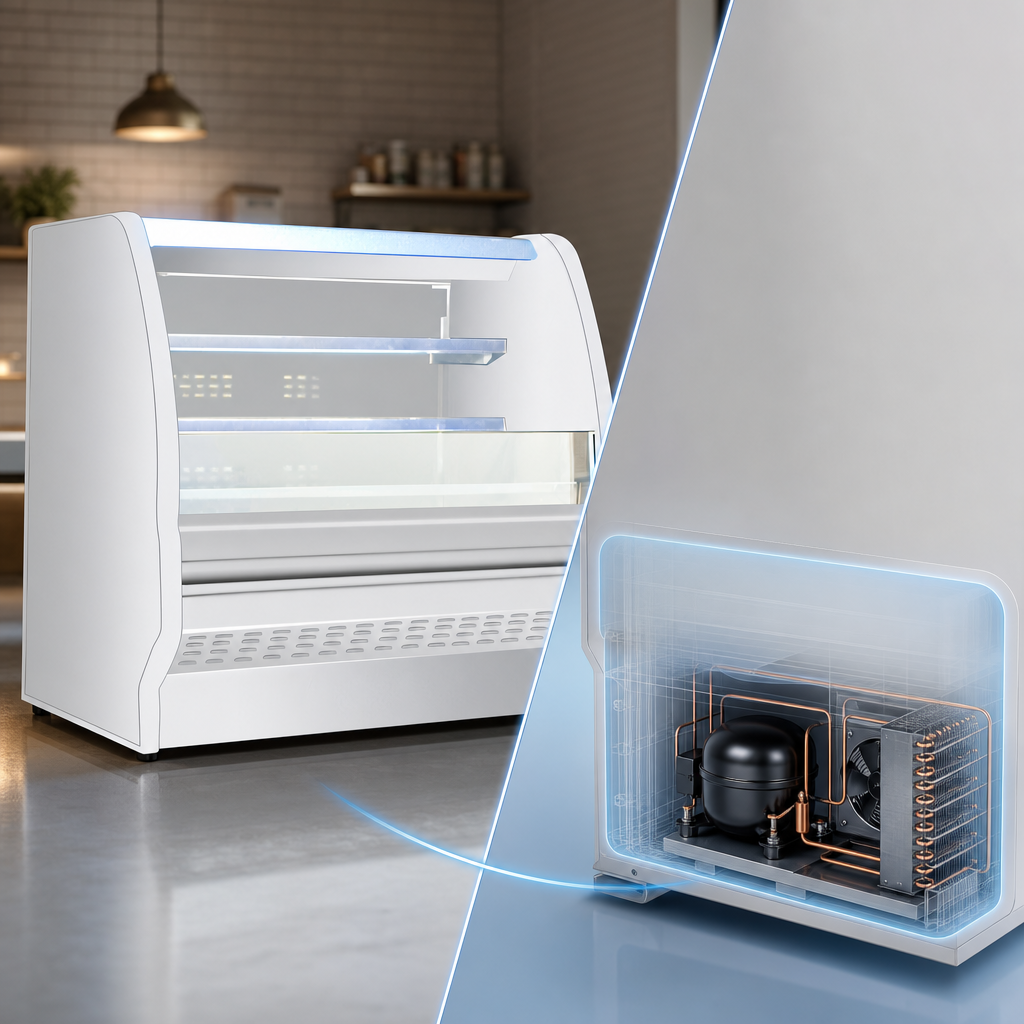

Self-Contained Refrigeration

Built-in refrigeration system simplifies installation and eliminates the need for a remote condensing unit.

Self-Contained Refrigeration

LED Lighting

Top-mounted LED lighting helps illuminate and showcase products.

Two Shelves / Three Display Levels

Includes 2 shelves and 3 levels of product display for flexible merchandising.

White Exterior and Interior

All-white presentation provides a clean, uniform look inside and out.

Drain Required

The case is equipped with drains and requires a drain connection per local building codes.

1/2 HP Compressor

Self-contained refrigeration uses a 1/2 HP compressor for cooling performance.

Balanced Temperature Control

Electronic control system helps maintain even temperatures for refrigerated product display.

Type Open Merchandiser
Style Curved End
Installation Type Floor Model
Refrigeration Type Self-Contained
Controls Electronic
Temperature Range 36°F to 40°F
Voltage 115 Volts
Amps 15 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Color White
Finish White
Interior Finish White
Material Steel
Shipping Width 61 Inches
Shipping Depth 47 Inches
Shipping Height 58 Inches
Shipping Weight 685 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is self-contained.
Yes. The case is equipped with drains, and a drain connection is required per local building codes.
It operates on 115V, 60 Hz, 1-phase power and uses a NEMA 5-20P plug.
This model includes 2 shelves and 3 levels of product display.
The operating temperature range is 36°F to 40°F.
This model has a white exterior and white interior.
