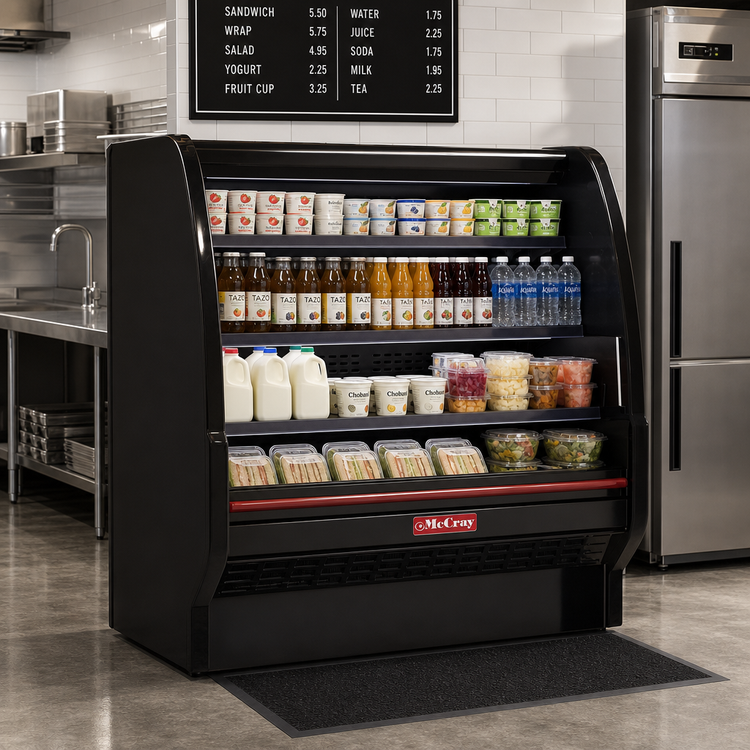

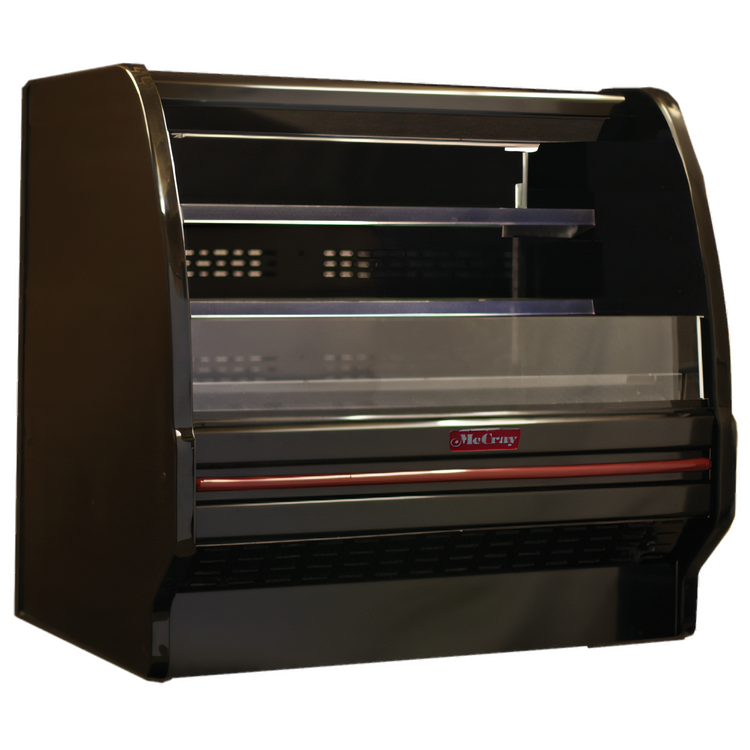

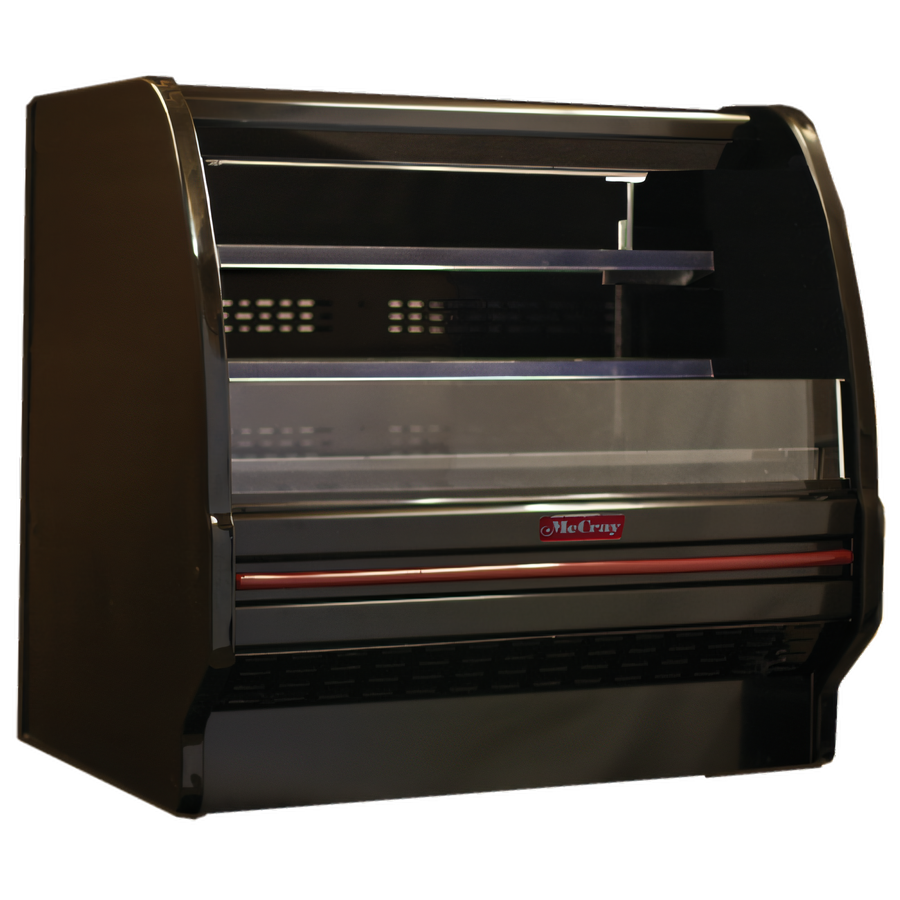

Howard-McCray 40E Series 39-Inch Dairy Curved End Open Merchandiser with Self-Contained Refrigeration and LED Lighting - Black

Endless design, 2 shelves, 115V, 1/2 HP

This 39-inch curved merchandiser combines self-contained cooling, LED lighting, and a sleek black finish to maximize product visibility in a compact footprint.

  • 39-inch curved open merchandiser designed for dairy and multi-purpose display applications.
  • Self-contained refrigeration with a 1/2 HP compressor and electronic temperature control.
  • LED lighting at the top helps showcase products clearly.
  • Includes 2 levels of shelving and 3 levels of product display.
  • Black exterior and interior create a clean, uniform presentation.
  • Drain is required and the case is equipped with drains for installation planning.
  • Designed to operate at 36°F to 40°F in a 75°F, 55% RH environment.

Overall Dimensions:

39.0"W x 40.0"D x 53.0"H

Product Weight:

655.0 lb

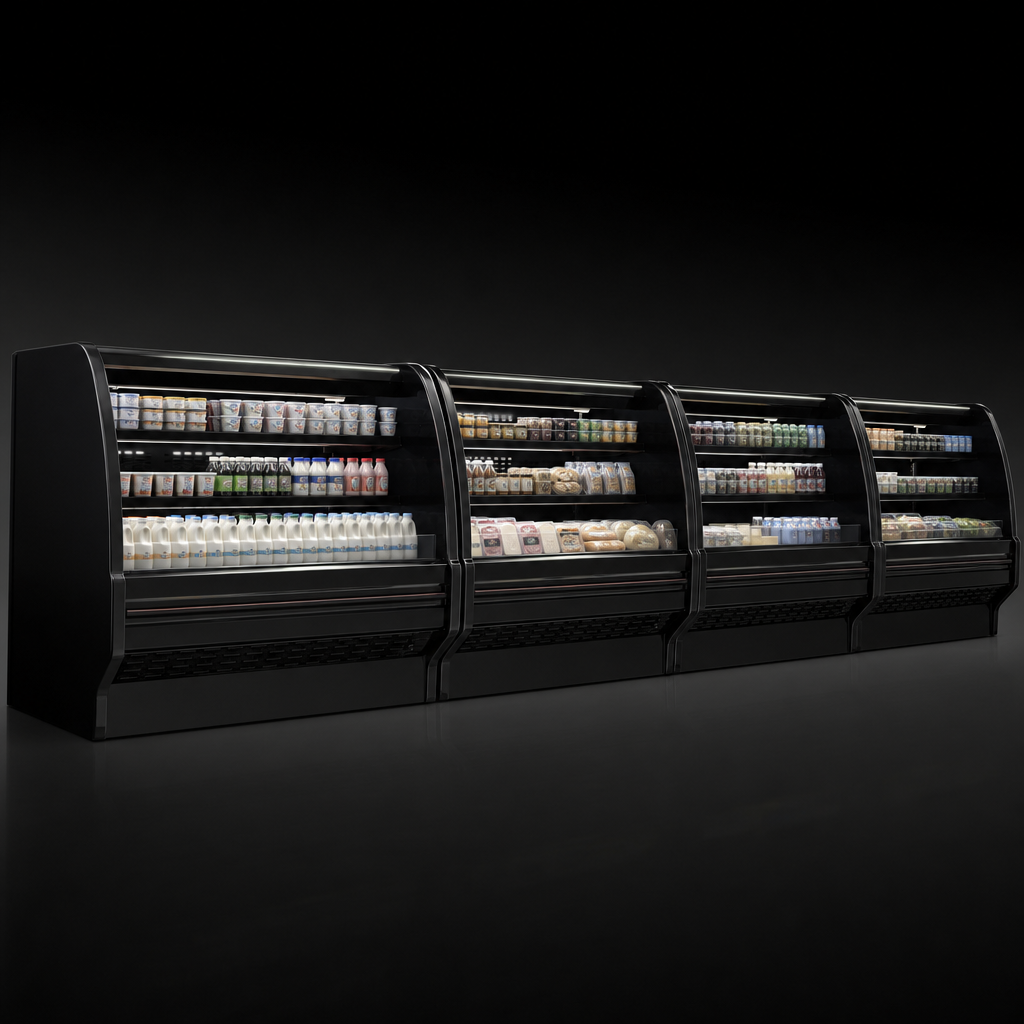

Endless Design

Built for continuous lineup installations so multiple cases can be merchandised together seamlessly.

Endless Design

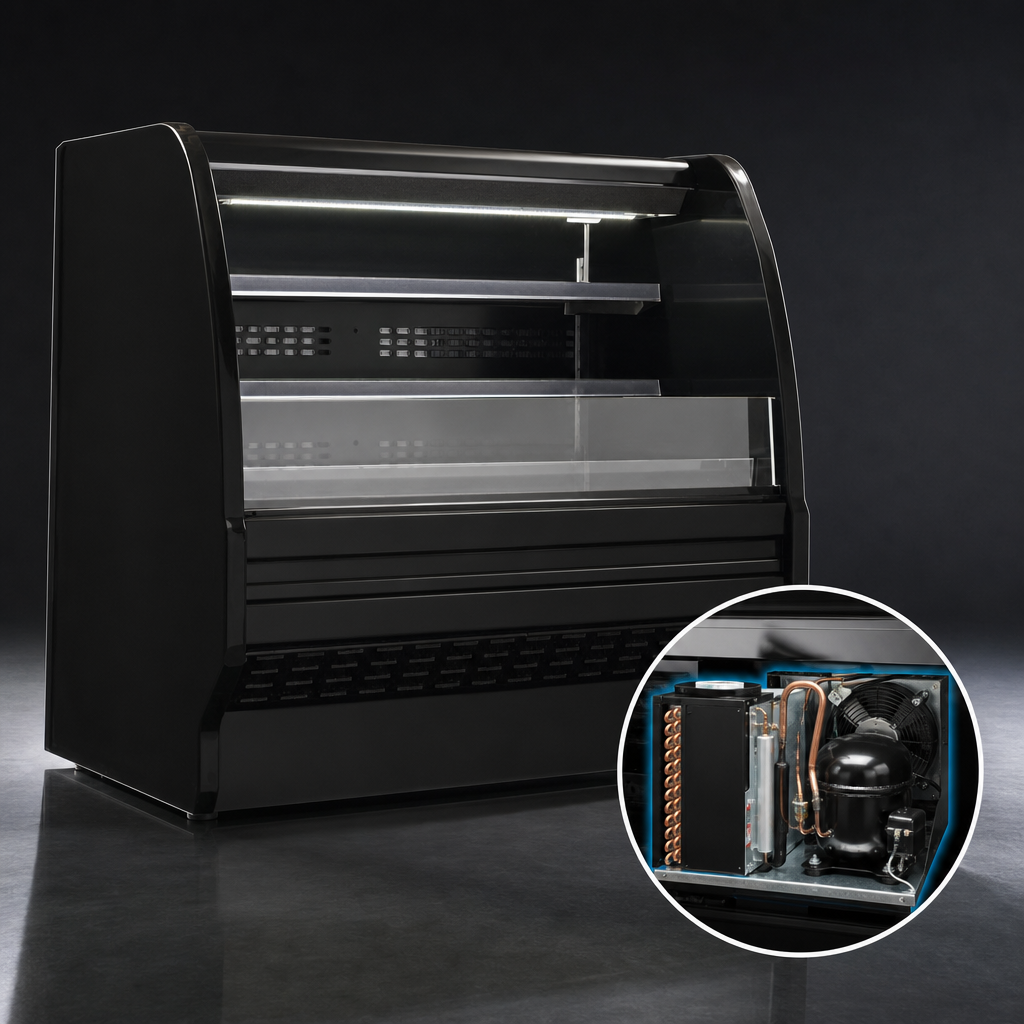

Self-Contained Refrigeration

Integrated refrigeration system with expansion valve operation and a Copeland hermetic unit; no remote refrigeration system is required.

Self-Contained Refrigeration

LED Top Lighting

Factory-installed LED lighting at the inside top improves product visibility and presentation.

Two Shelf Levels

Includes 2 levels of shelving and 3 levels of product display for flexible merchandising.

Black Finish

Black exterior and black interior provide a coordinated, modern look for the sales floor.

Solid End Panels

Solid end panels help complete the display and support a clean presentation.

Drain Required

The case is equipped with drains and must be connected according to local building code requirements.

Service-Friendly Construction

Features a removable front grille for easier cleaning and servicing, plus foamed-in-place CFC-free insulation and a heavy gauge steel super structure.

Type Open Merchandiser
Style Curved
Installation Type Floor Model
Refrigeration Type Self-Contained
Controls Electronic
Temperature Range 36°F to 40°F
Voltage 115 Volts
Amps 14 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-20P
Color Black
Interior Finish Black
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is self-contained and does not require a remote refrigeration system.
It includes 2 levels of shelving and 3 levels of product display.
It requires 115V, 60 Hz, 1-phase power and draws 14 amps.
Yes. The case is equipped with drains, and drain connection is required based on local code requirements.
The case is designed to operate at 36°F to 40°F.
