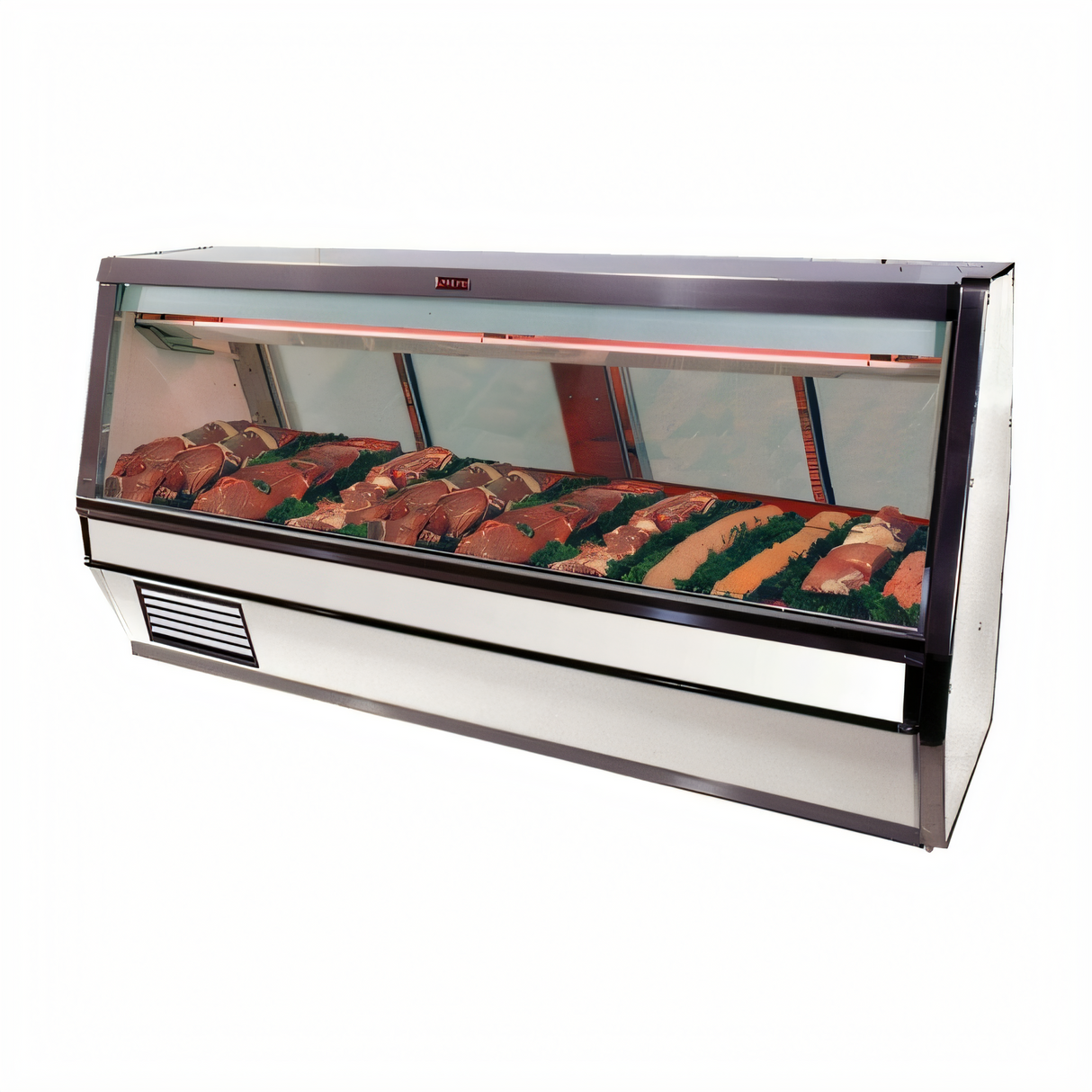

Howard-McCray 40E Series Self-Contained Full-Service Red Meat Service Case, 52-1/2 Inch, Straight Glass, LED

White Exterior and Interior, Endless Design, 115V, 1/4 HP

Purpose-built for full-service meat merchandising, this endless-design case keeps product at 34°F to 36°F while delivering bright LED presentation and humidity control.

  • Self-contained red meat service case designed for continuous endless lineups.
  • Maintains a 34°F to 36°F operating range with electronically controlled refrigeration and automatic defrost.
  • Full-length gravity coil system and extra humidity coil help protect product appearance.
  • 52-1/2 inch wide unit with straight, thermal-insulated front glass for strong product visibility.
  • Two rows of LED lighting improve display brightness across the case.
  • White exterior and interior with stainless steel top for a clean merchandising look.
  • Main deck only is standard; mezzanine shelf, pilaster, and shelf lighting are optional add-ons.

Overall Dimensions:

52.5"W x 40.0"D x 53.0"H

Product Weight:

530.0 lb

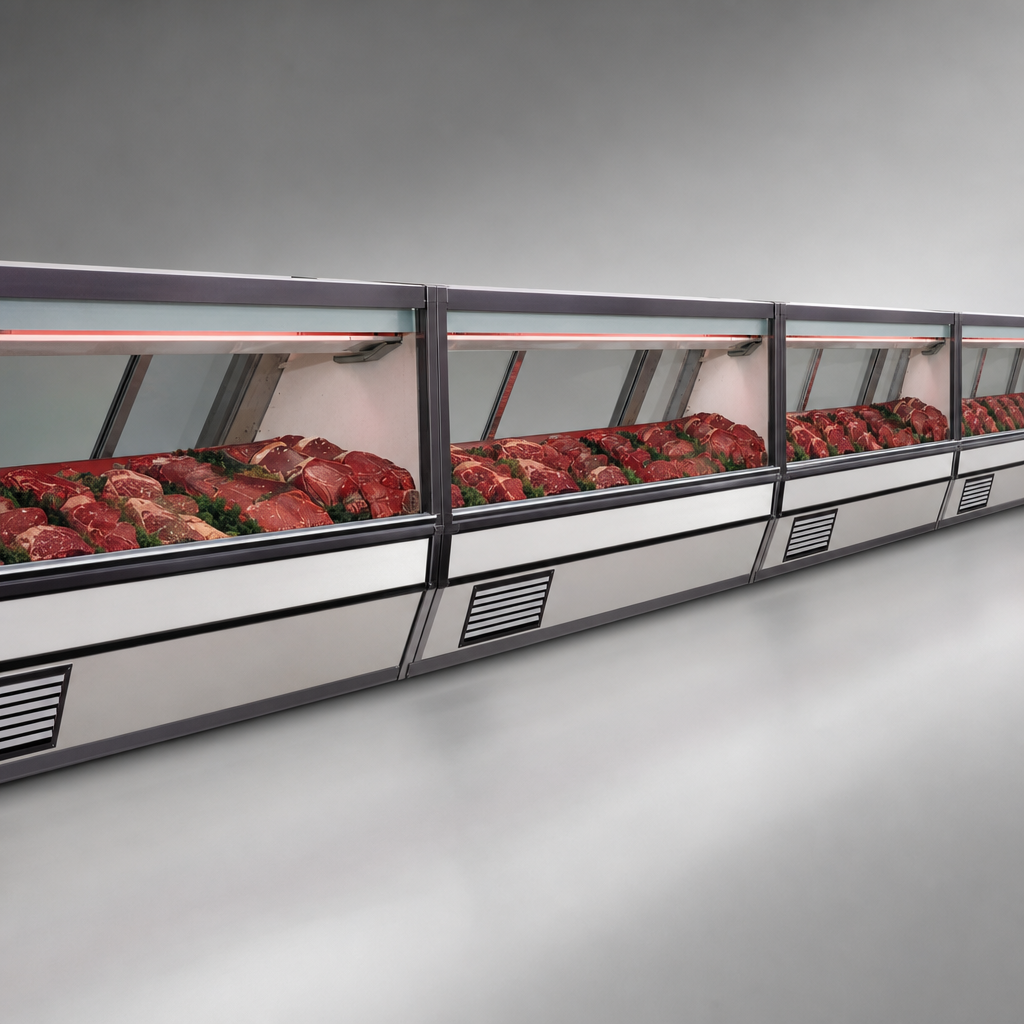

Endless Design

Allows multiple cases to line up seamlessly for continuous merchandising runs.

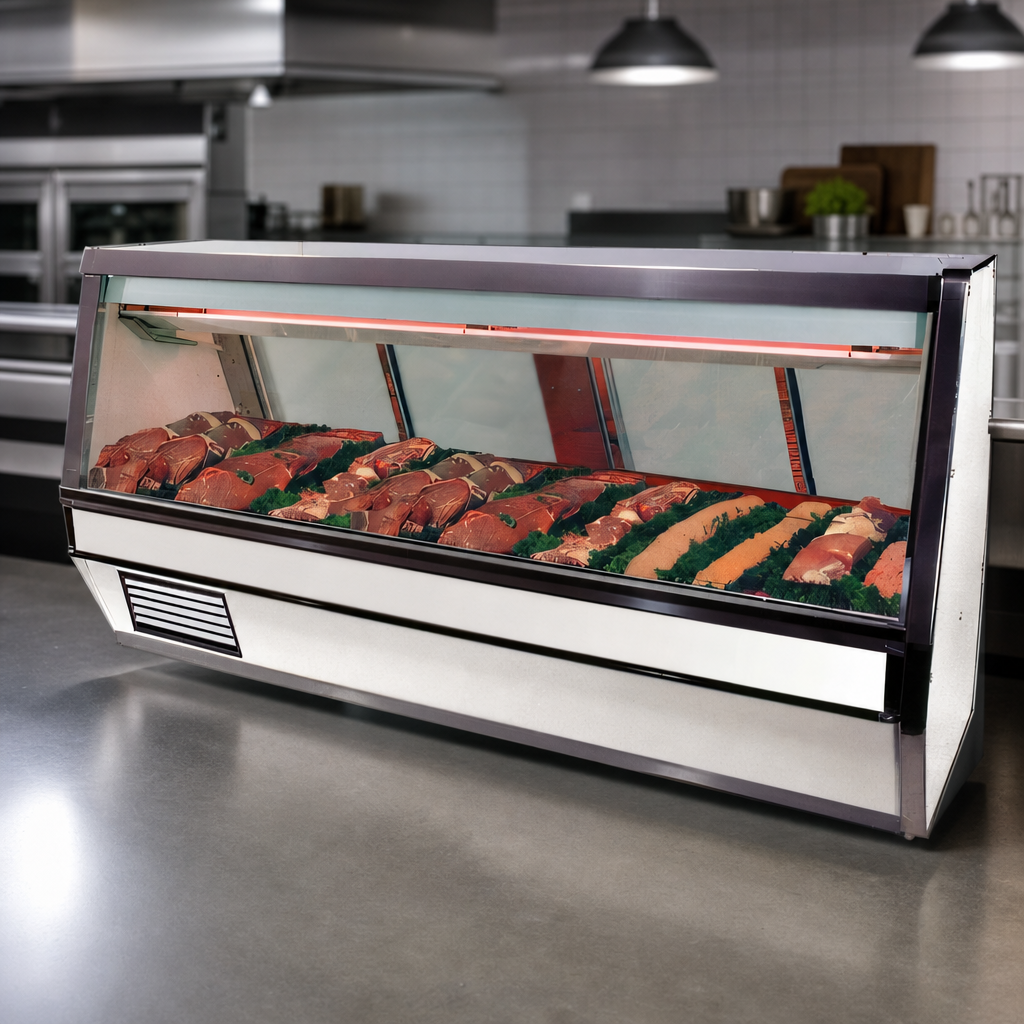

Self-Contained Refrigeration

Built-in refrigeration simplifies installation and eliminates the need for a remote refrigeration system.

Full-Length Gravity Coil System

Provides even cooling across the display area to help maintain product quality.

Humidity Coil at Main Deck

Adds moisture control at the main deck to help preserve the appearance of red meat displays.

Thermal Insulated Front Glass

Insulated front glass helps retain cold temperatures while showcasing product.

LED Lighting

Two rows of LED lighting at the top of the unit brighten the display area.

Rear Service Access

Double-pane rear removable doors and removable grilles make cleaning and service easier.

Main Deck Only Standard

Red meat cases ship with the main deck only; mezzanine shelf, pilaster, and shelf lighting must be added as options.

Type Red Meat Service Case
Style Endless Design
Installation Type Floor Model
Refrigeration Type Self-Contained
Capacity 24 Cubic Feet
Color White
Controls Electronic
Temperature Range 34°F to 36°F
Voltage 115 Volts
Amps 12 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Horsepower 1/4 HP
Shipping Width 53 Inches
Shipping Depth 40 Inches
Shipping Height 53 Inches
Shipping Weight 530 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is self-contained. The documentation also notes that remote versions are available in the series.
The self-contained 4-foot model uses 115V, 1-phase power, draws 12.0 amps, and uses a NEMA 5-15P plug.
The operating temperature is listed as 34°F to 36°F.
Yes. The documentation states that a drain is included and that a drain is required.
The case includes self-contained refrigeration, endless design, LED lighting, thermal insulated front glass, and a main deck. Red meat cases come with the main deck only.
No. The notes state that the mezzanine shelf, pilaster, and shelf lighting need to be added as options.
