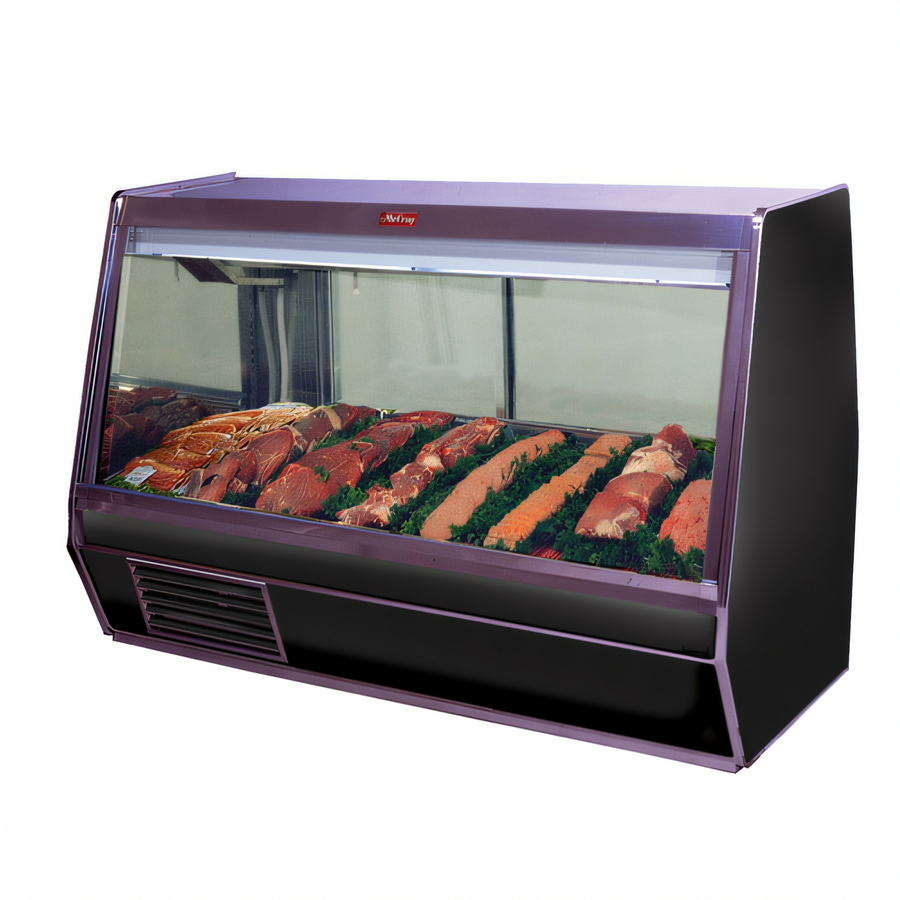

Howard-McCray 32E Series 74-Inch Self-Contained Red Meat Refrigerated Service Case with LED Lighting

Endless Design, Black Exterior / White Interior, Stainless Steel Top, 115V

Built for full-service meat merchandising, this 74-inch endless case combines self-contained refrigeration, humidity control, and LED lighting for reliable presentation.

  • 74-inch red meat service case designed for full-service butcher and deli displays.
  • Self-contained refrigeration simplifies installation with the cooling system built into the case.
  • Full-length gravity coil system and main-deck humidity coil help maintain product quality and appearance.
  • LED top lighting and thermal insulated front glass improve product visibility.
  • Black exterior, white interior, and stainless steel top create a clean, professional presentation.
  • Main deck only; mezzanine shelf, pilaster, and shelf lighting are optional additions.

Overall Dimensions:

74.0"W x 30.5"D x 49.63"H

Product Weight:

680.0 lb

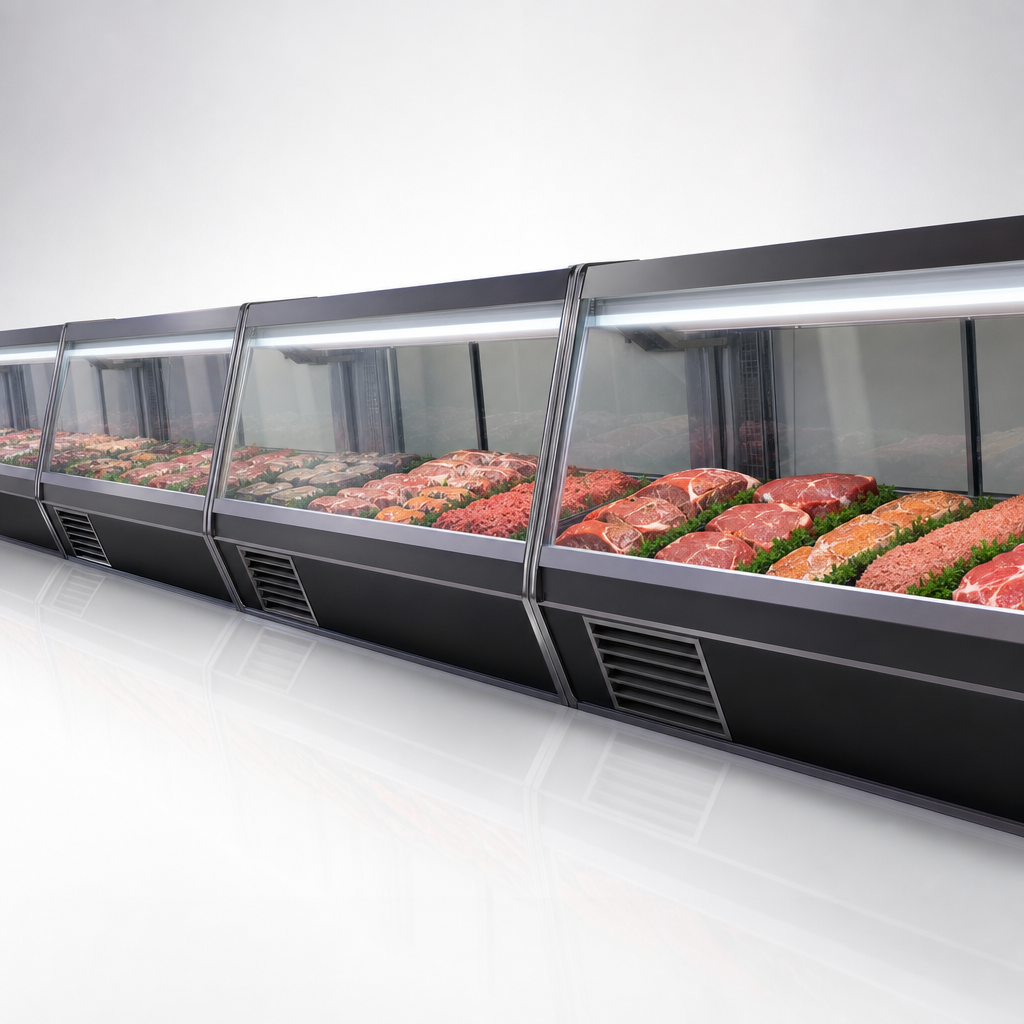

Endless Design

Supports continuous lineup installations for a seamless multi-case display.

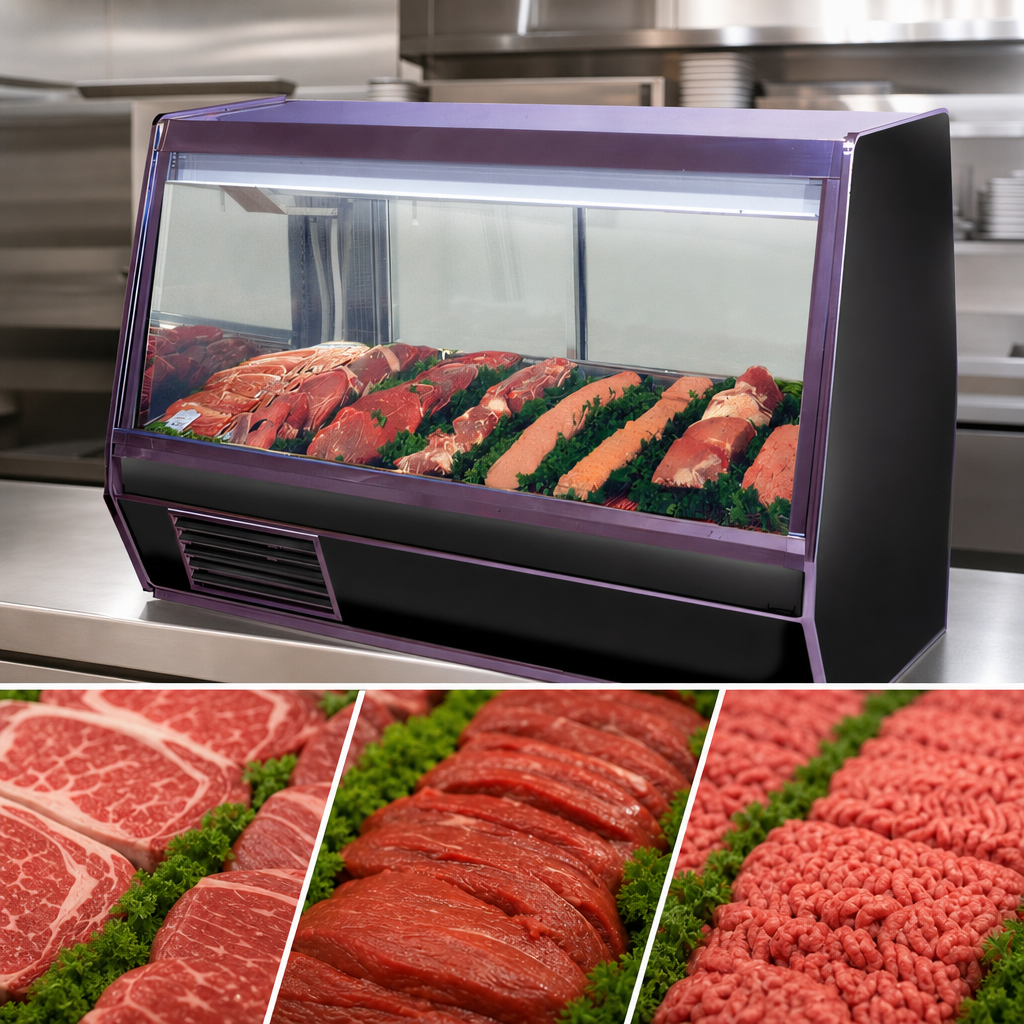

Single-Duty Display

Designed specifically for red meat merchandising.

Self-Contained Refrigeration

Built-in refrigeration package simplifies installation and keeps the cooling system integrated with the case.

Copevap System

Helps eliminate the need for a condensate pan on self-contained units.

Full-Length Gravity Coil System

Provides cooling across the display area from the top of the unit.

Main-Deck Humidity Coil

Adds humidity at the main deck to help maintain meat appearance and display quality.

LED Lighting

Two rows of LED lighting at the top of the unit brighten the display area.

Thermal Insulated Front Glass

28-inch insulated front glass helps retain cold air while keeping products visible.

Removable Rear Doors and Grilles

Double-pane rear doors and removable front and rear grilles make cleaning and service easier.

Drain Included

The case is equipped with a drain; local code requirements determine the drain connection.

Main Deck Only

Red meat cases ship with the main deck only; mezzanine shelf, pilaster, and shelf lighting are optional.

Operating Environment

Designed to operate at 75°F ambient temperature and 55% relative humidity.

Type Red Meat Service Case
Style Endless Design
Installation Type Floor Model
Refrigeration Type Self-Contained
Capacity 34.5 Cubic Feet
Horsepower 1/3 HP
BTU 2,100 BTU
Temperature Range 34°F to 36°F
Controls Electronic
Color Black Exterior / White Interior
Drain Connection Required
Voltage 115 Volts
Amps 12.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 74 Inches
Shipping Depth 31 Inches
Shipping Height 50 Inches
Shipping Weight 680 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed to operate at 34°F to 36°F.
Yes. This model uses self-contained refrigeration with a Copevap system and electronically controlled automatic defrost.
Yes. The case is equipped with a drain, and drain connection requirements depend on local building codes.
It operates on 115 Volts, 60 Hz, 1-phase power and uses a NEMA 5-15P plug.
No. Red meat cases come with the main deck only; the mezzanine shelf, pilaster, and shelf lighting are optional.
The case is designed to operate in a 75°F environment at 55% relative humidity.
