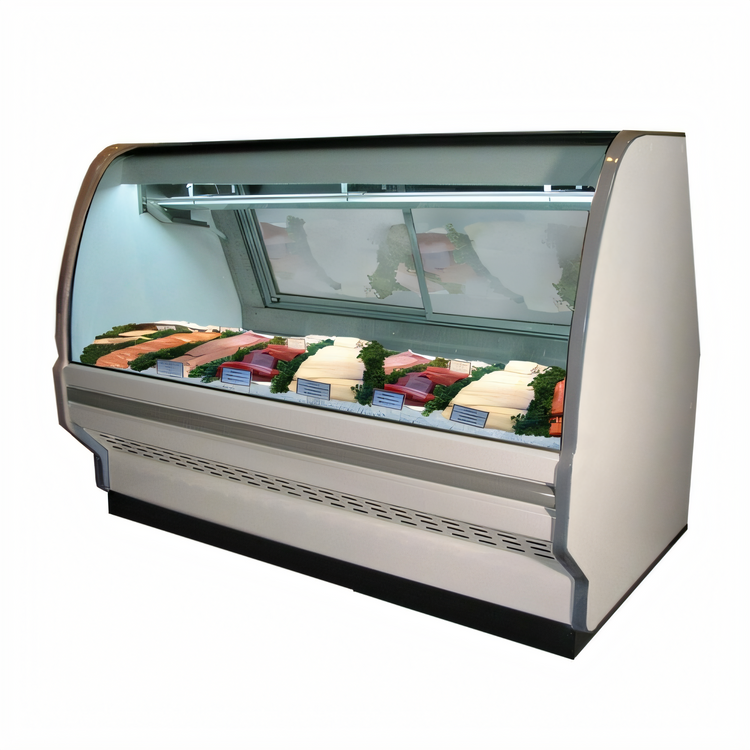

Howard-McCray 40E Series 99.5-Inch Self-Contained Endless Design Curved Glass Fish/Poultry Service Case with LED Lighting

White Exterior and Interior, Stainless Steel Top, 4 Ice Pans, 115V

Built for high-visibility seafood and poultry merchandising, this 99.5-inch self-contained case pairs curved glass, LED lighting, and a gravity-coil refrigeration system.

  • Endless design supports continuous case lineups for larger merchandising runs.
  • Double-bend curved glass improves visibility and presentation from the customer side.
  • Self-contained refrigeration with gravity coil and electronic temperature control simplifies installation.
  • Includes four stainless steel ice pans with drains for fish and poultry display.
  • White exterior and interior create a clean presentation with a stainless steel top.
  • One row of LED top lighting helps brighten the display area.
  • Designed to operate in a 75°F, 55% relative humidity environment.

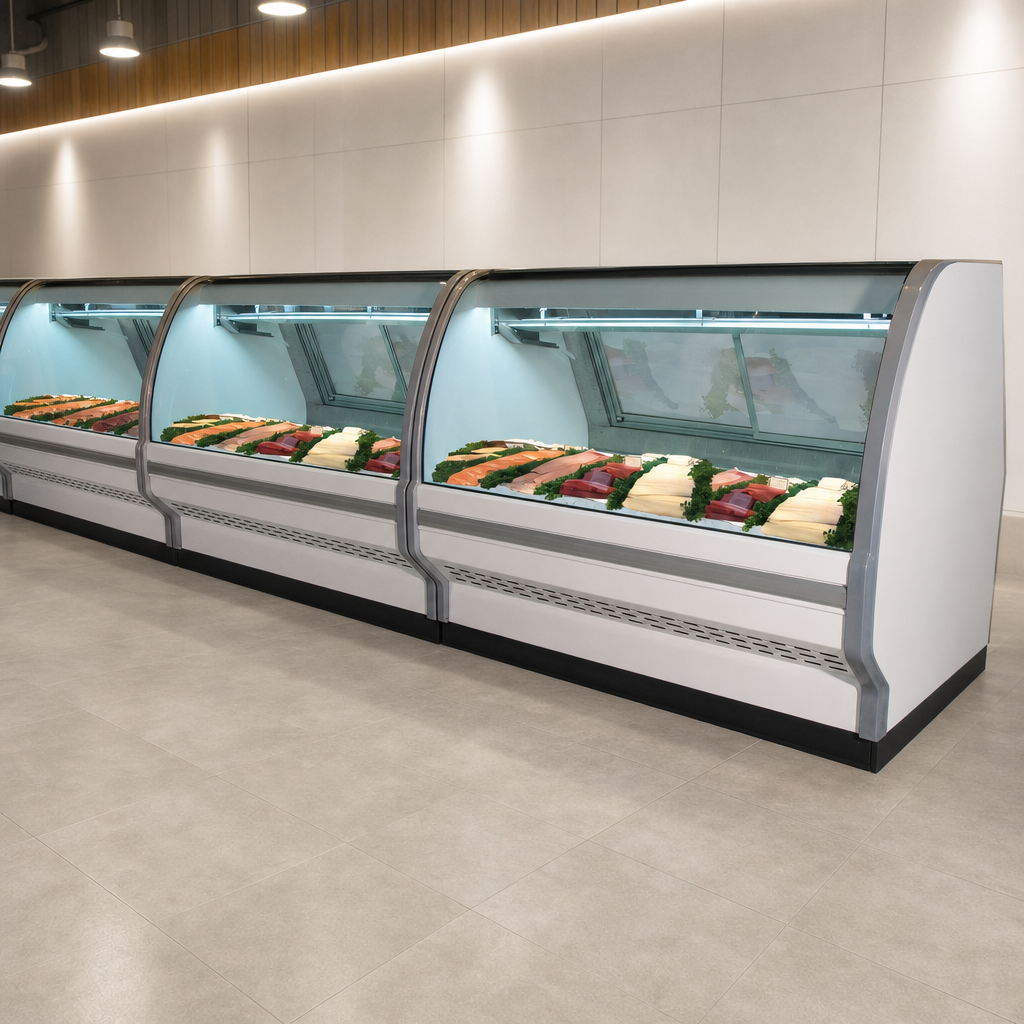

Endless Design

Allows the case to line up continuously with other cases in the series.

Endless Design

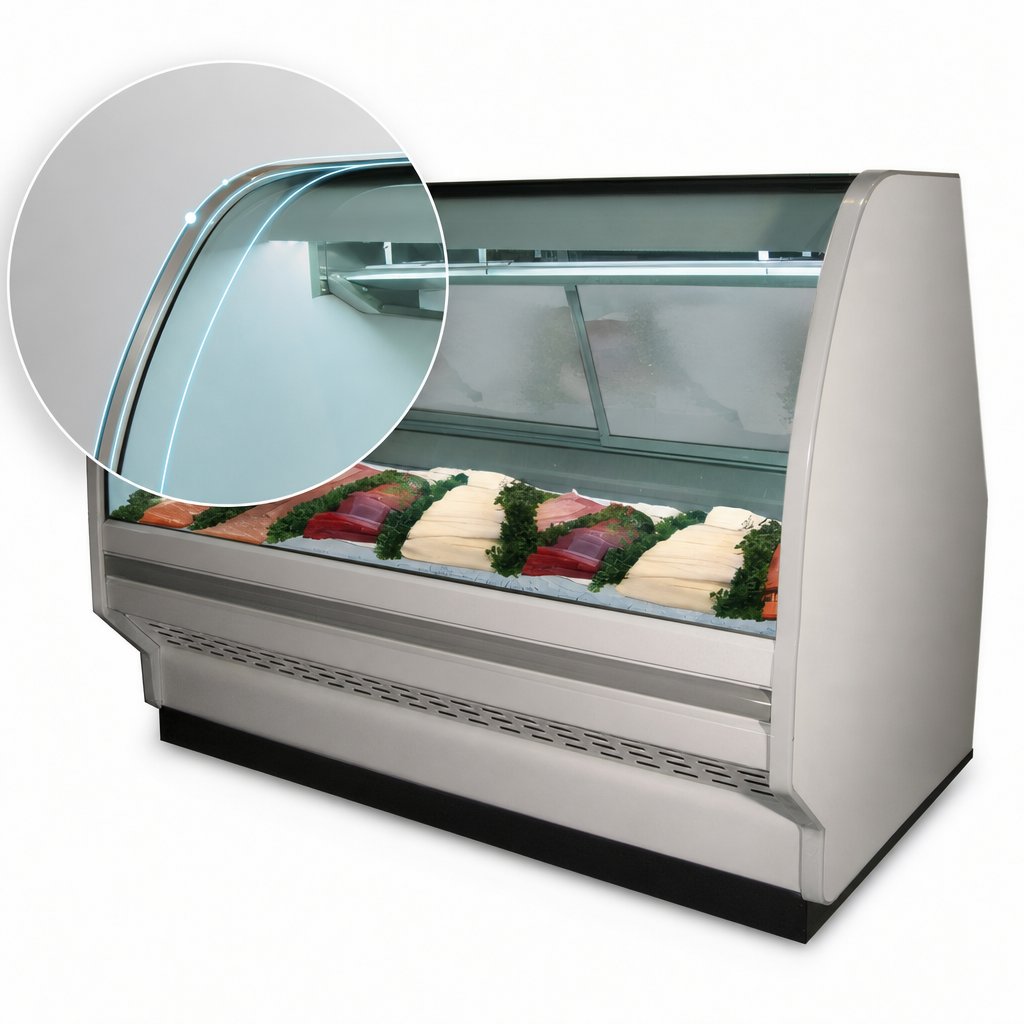

Double-Bend Curved Glass

Creates a premium front display and improves product visibility.

Double-Bend Curved Glass

Self-Contained Refrigeration

Built-in refrigeration simplifies installation and uses a gravity coil system.

Gravity Coil System

Top-mounted gravity coil helps maintain consistent temperatures across the display area.

Four Stainless Steel Ice Pans

Includes four pans with drains for merchandising fish or poultry on ice.

LED Top Lighting

One row of LED lighting illuminates the display.

White Exterior and Interior

All-white presentation with a stainless steel top for a clean look.

Rear Access Doors

Double-pane rear removable doors with the McGlide system help with loading and service access.

Drain Included

The case includes drains for cleaning and is shown with a 1-inch PVC drain connection.

Designed for Ambient Conditions

Engineered to operate at 75°F and 55% relative humidity.

Type Fish/Poultry Service Case
Style Curved Glass
Installation Type Floor Model
Refrigeration Type Self-Contained
Capacity 49 Cubic Feet
Temperature Range 36°F to 40°F
Controls Electronic
Voltage 115 Volts
Amps 16.0 Amps
Plug Type 5-20P
Horsepower 1/3 HP
Drain Connection Required
Drain Connection Size 1 Inch PVC
Color White
Finish White
Pan Capacity 4
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

SC-CFS40E-8C-LED is the self-contained version of the 40E series. Remote versions are also offered in the series, but this model is self-contained.
This model includes four stainless steel ice pans with drains.
It operates on 115V and 16.0 amps and uses a 5-20P plug.
Yes. The case is equipped with drains, and the drawings show a 1-inch PVC drain connection. Local code requirements should be checked before installation.
The case measures 99.5 inches wide, 40 inches deep, and 53 inches high.
