Howard-McCray 40E Series 100.5 Inch Self-Contained Straight Glass Fish and Poultry Refrigerated Display Case, Stainless Steel

SKU: SC-CFS40E-8-S-LED
$14,677.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Displays & Merchandisers Howard-McCray Merchandising & Display Refrigeration New Arrivals Refrigerated Display Cases Refrigeration, Freezing & Ice Restaurant Equipment

Howard-McCray 40E Series 100.5 Inch Self-Contained Straight Glass Fish and Poultry Refrigerated Display Case, Stainless Steel

Single Duty, Endless Design, LED Lighting

Display fish and poultry with a self-contained, straight-glass refrigerated case built in stainless steel for durable, high-visibility merchandising.

  • Self-contained refrigeration simplifies installation and keeps cooling equipment built into the case.
  • Straight thermal-insulated front glass and LED lighting create a clear, attractive display.
  • Endless design supports continuous lineup installations for larger merchandising runs.
  • Stainless steel top, exterior, and interior help with durability and sanitation.
  • Includes 4 stainless steel ice pans with drains for fish and poultry presentation.
  • Runs on 115V, 60Hz, 1-phase power with a 5-20P cord and plug at 16.0 amps.

Overall Dimensions:

100.5"W x 34.25"D x 55.0"H

Product Weight:

983.0 lb

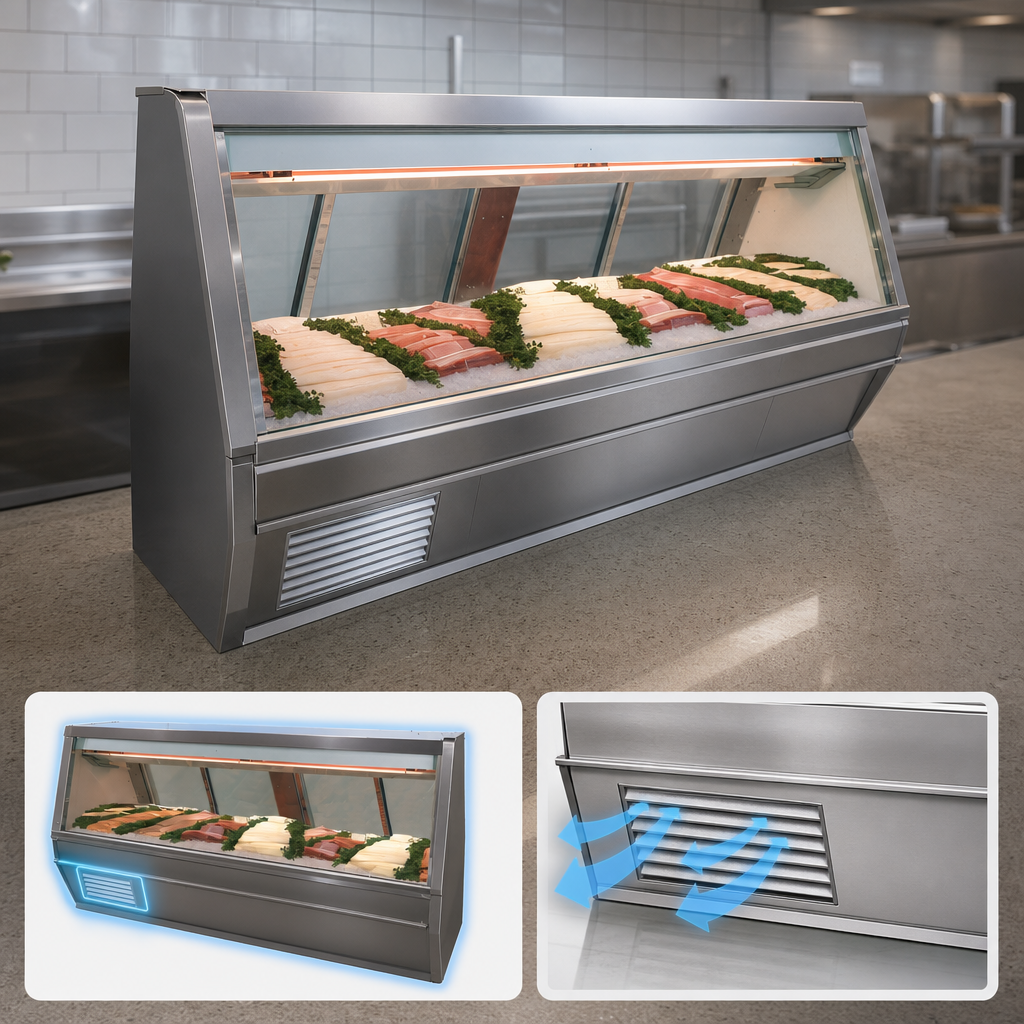

Self-Contained Refrigeration

Built-in refrigeration system keeps the case compact and eliminates the need for remote refrigeration equipment.

Self-Contained Refrigeration

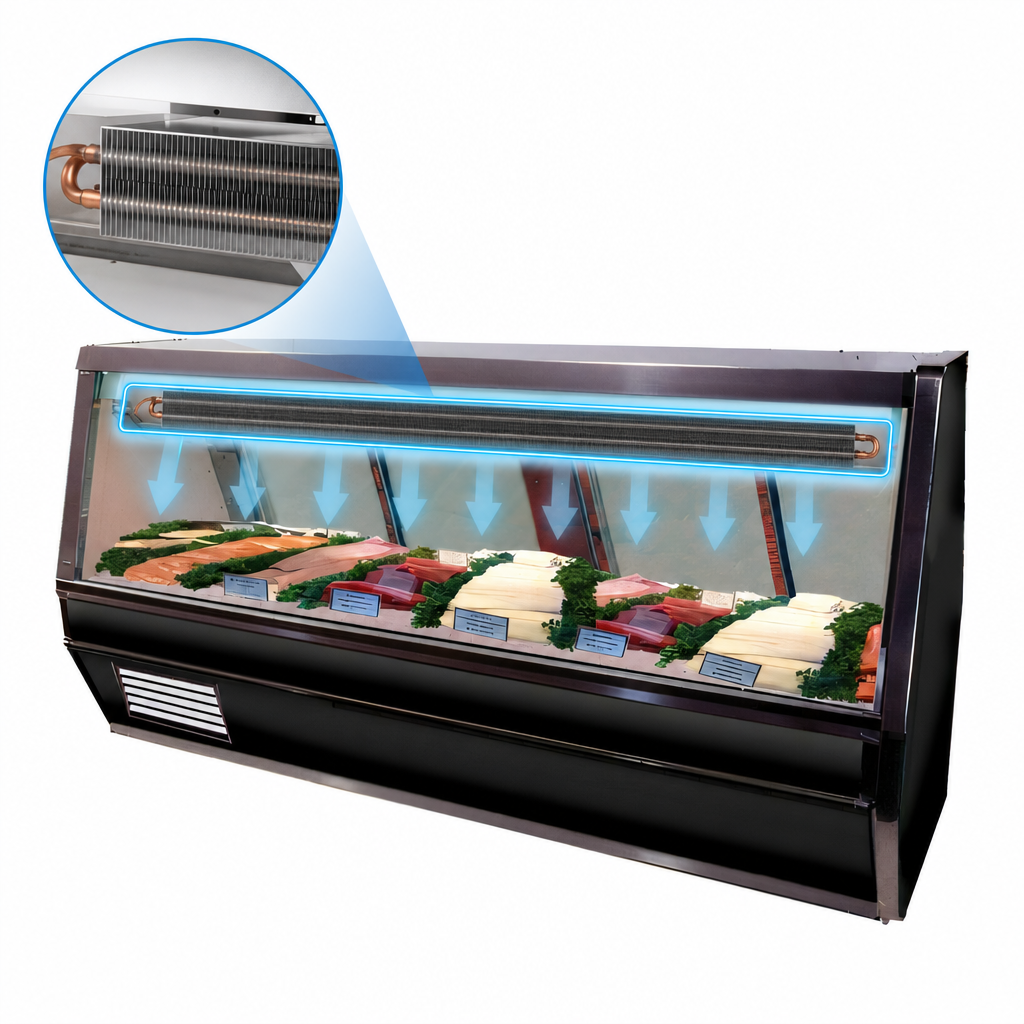

Gravity Coil Cooling

Full-length gravity coil is located at the inside top of the unit for consistent product cooling.

Gravity Coil Cooling

Straight Glass Front

Thermal-insulated straight front glass improves display visibility while helping maintain temperature.

Endless Design

Designed for continuous lineup installations when multiple cases are arranged together.

Stainless Steel Construction

Stainless steel top, exterior, and interior provide a durable, easy-to-clean merchandising surface.

LED Lighting

Two rows of LED lighting at the top illuminate the display area.

Ice Pans With Drains

Includes 4 stainless steel ice pans with drains for fish and poultry display applications.

Rear Service Access

Double-pane rear removable doors and removable grilles help simplify cleaning and servicing.

Automatic Defrost

Electronically controlled automatic defrost is standard on self-contained units.

Drain Included

Drain is included for cleaning, and a drain connection is required.

Type Fish and Poultry Service Case
Style Endless Design
Installation Type Floor Model
Refrigeration Type Self-Contained
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Capacity 49 Cubic Feet
Horsepower 1/3 HP
Controls Electronic
Temperature Range 38°F to 40°F
Voltage 115 Volts
Amps 16.0 Amps
Phase 1-Phase
Hertz 60 Hz
Plug Type 5-20P
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 101 Inches
Shipping Depth 35 Inches
Shipping Height 55 Inches
Shipping Weight 983 lb.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model uses self-contained refrigeration with a full-length gravity coil system.
It operates on 115V, 60Hz, 1-phase power and draws 16.0 amps. The 8-foot model uses a 5-20P cord and plug.
It includes 4 stainless steel ice pans with drains.
Yes. The documentation states that a drain is included for cleaning and that a drain connection is required.
The case is designed to operate at 38°F to 40°F in a 75°F environment at 55% relative humidity.
Yes. It includes two rows of LED lighting at the top of the unit.
