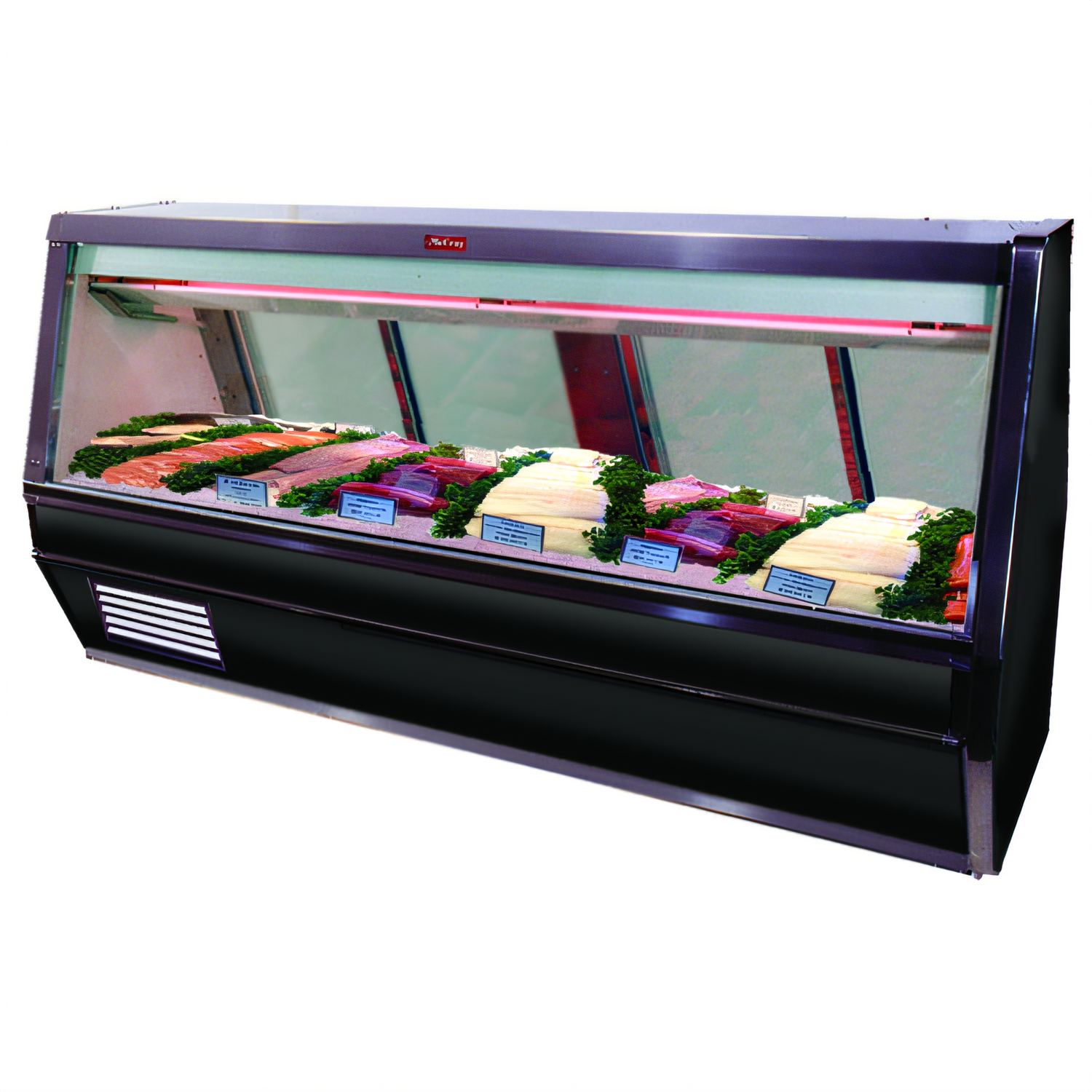

Howard-McCray SC-CFS40E-8-BE-LED 40 Series 100-1/2" Fish/Poultry Refrigerated Service Case

SKU: SC-CFS40E-8-BE-LED
$8,895.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Howard-McCray SC-CFS40E-8-BE-LED 40 Series 100-1/2" Fish/Poultry Refrigerated Service Case

Self-Contained, Single Duty, Straight Glass, Black Exterior, White Interior

Showcase your fresh fish and poultry perfectly with this self-contained, endless design refrigerated service case, featuring a full-length gravity coil system for optimal preservation.

  • 100-1/2 inch width provides ample display space for high-volume operations.
  • Self-contained refrigeration with a gravity coil system ensures consistent cold temperatures between 38°F and 40°F.
  • Equipped with 4 stainless steel ice pans and drains, ideal for displaying fresh fish and poultry on ice.
  • Straight thermal-insulated front glass offers clear product visibility while maintaining internal temperatures.
  • Endless design allows for seamless line-up with other 40 Series cases for a continuous display.
  • Durable heavy-gauge steel superstructure with a black exterior and white interior for a clean, professional look.
  • Features 2 rows of LED lighting at the top to brilliantly illuminate your products.

Overall Dimensions:

100.5"W x 34.25"D x 55.0"H

Product Weight:

983.0 lb

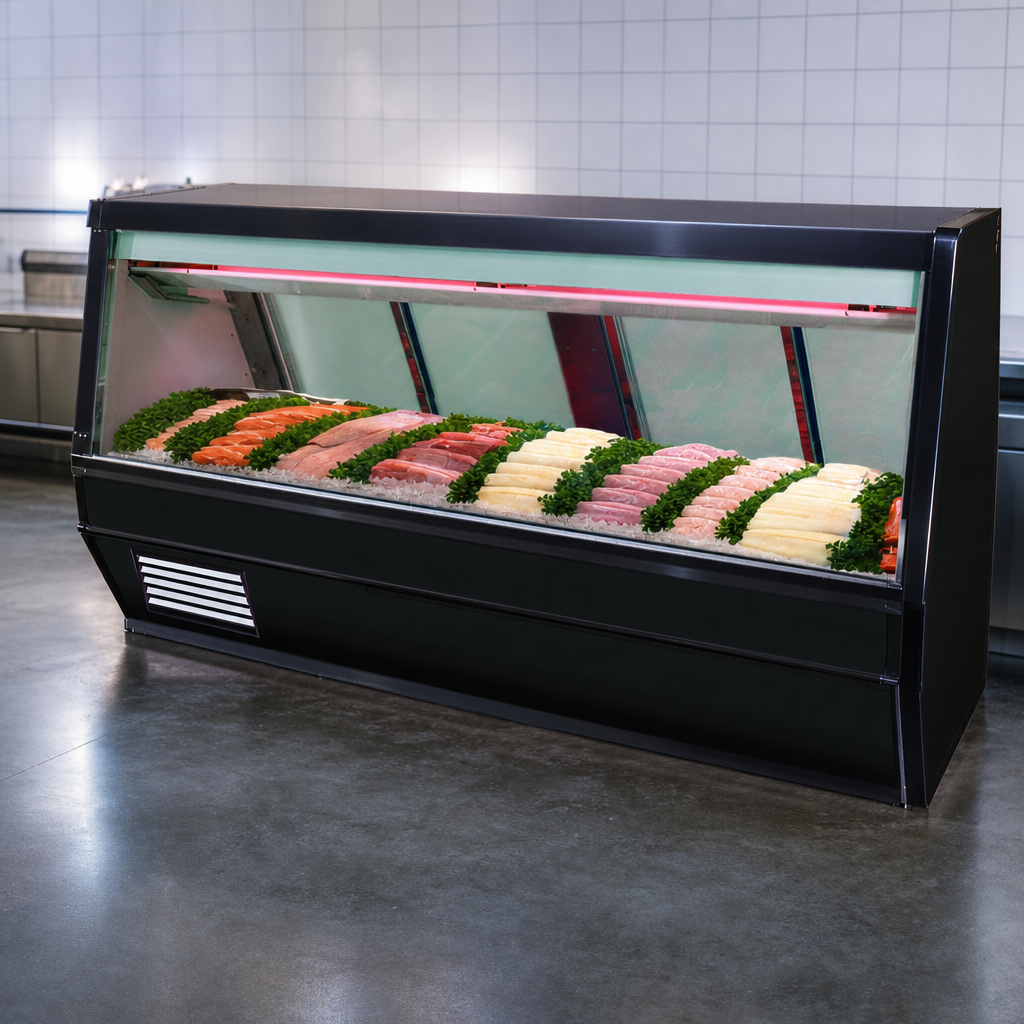

UL Classified Construction

UL Classified to ANSI/NSF 7 standards, ensuring safety and sanitation compliance.

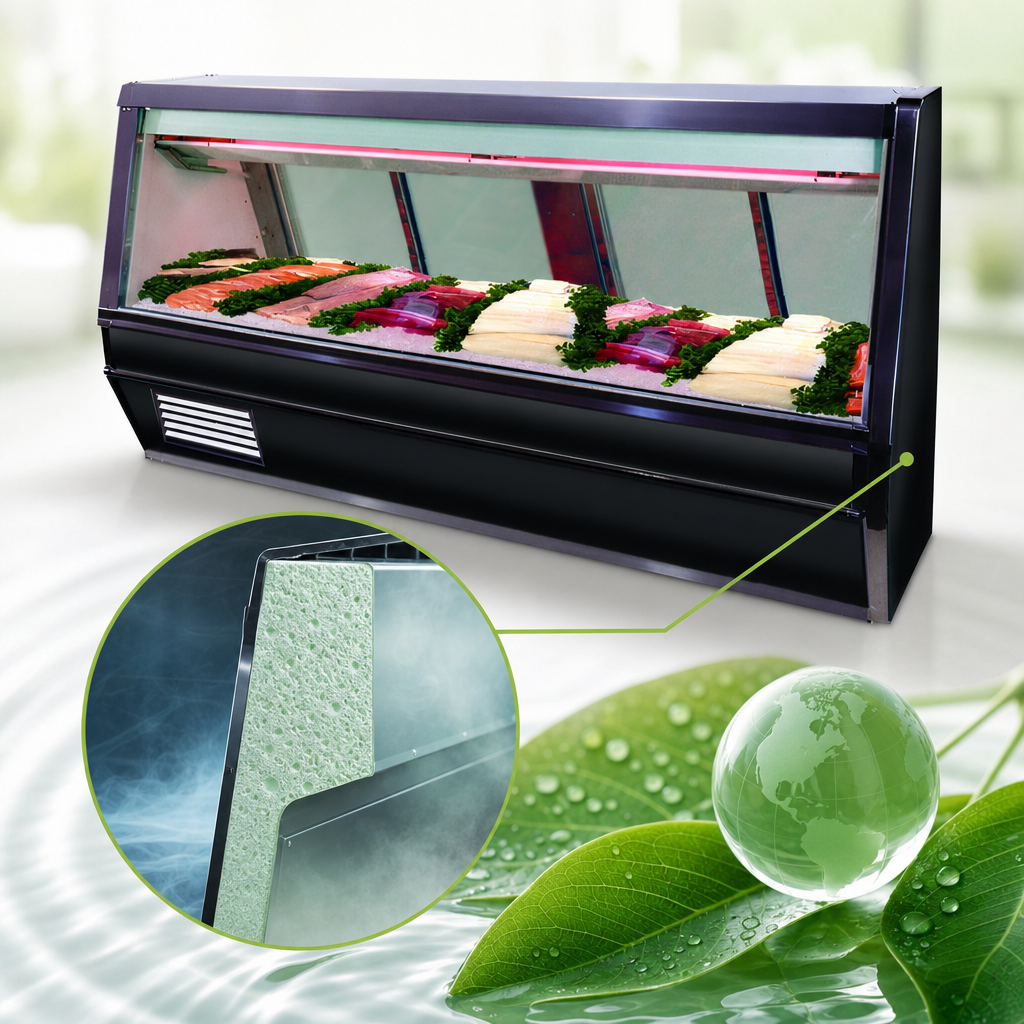

CFC-Free Foam Insulation

Environmentally friendly foamed-in-place CFC free foam provides superior thermal insulation.

Thermal Insulated Front Glass

28-inch high thermal insulated front glass prevents temperature fluctuations and condensation.

Heavy Gauge Steel Superstructure

Constructed with a heavy gauge steel superstructure for long-lasting durability and stability.

Single Duty Display

Designed for single duty display, specializing in optimal conditions for fish and poultry.

Endless Design

Features an endless design, allowing multiple cases to be seamlessly lined up for a continuous merchandising presentation.

Integrated Drain

Includes a drain for easy cleaning and maintenance, requiring connection to local building codes.

Air Insulated Baffle

An air insulated baffle prevents moisture from dripping into the display area, keeping products fresh and appealing.

Double Pane Rear Removable Doors

Equipped with double pane rear removable doors for easy stocking and access, featuring a newly designed rear compression door jamb.

Removable Grilles

Front and rear grilles are removable, simplifying cleaning and servicing access.

LED Lighting

Two rows of LED lighting are located at the top of the unit to enhance product visibility.

Copevap System

Utilizes a Copevap system, which eliminates the need for a separate condensate pan.

Gravity Coil System

A gravity coil system located at the inside top of the unit provides consistent and gentle cooling.

Automatic Electronic Defrost

Self-contained units feature automatic defrost electronically controlled for hassle-free operation.

Electronic Temperature Control

Electronically maintains constant temperatures to ensure optimal product preservation.

Stainless Steel Top

Features a heavy gauge 20-inch wide stainless steel top for durability and hygiene.

1-inch Bumper

Includes a 1-inch bumper for protection against impacts.

Type Refrigerated Service Case
Style Single Duty
Installation Type Floor Model
Width 100.5 Inches
Depth 40 Inches
Height 53 Inches
Weight 983 lb
Shipping Width 109 Inches
Shipping Depth 47 Inches
Shipping Height 63 Inches
Shipping Weight 983 lb
Voltage 115 Volts
Amps 16.0 Amps
Phase 1-Phase
Hertz 60 Hz
Plug Type 5-20P
Refrigeration Type Self-Contained Gravity Coil
Compressor Size 1/3 HP
Temperature Range 38°F to 40°F
Defrost System Automatic Air Defrost
Pan Capacity 4 Stainless Steel Ice Pans
Front Straight Glass
Exterior Finish Black
Interior Finish White
Material Stainless Steel and Heavy Gauge Steel
Lighting LED
Drain Connection Required
Endless Design Yes
Capacity 49 Cubic Feet
Selling Unit Each
Units Per Case 1

Warranty & Protection

Please contact Howard McCray directly for specific warranty details.

Frequently Asked Questions

This display case is designed to operate optimally in an environment with ambient temperatures up to 75 degrees Fahrenheit and 55% relative humidity.
Yes, the SC-CFS40E-8-LED model comes with a 5-20P power cord.
The SC-CFS40E-8-BE-LED model is equipped with 4 stainless steel ice pans.
Yes, a drain is included and required for cleaning purposes. Please check local building codes for connection requirements.
Yes, this model features an 'endless design' allowing it to be seamlessly joined with other 40 Series cases for a continuous display.
