Howard-McCray

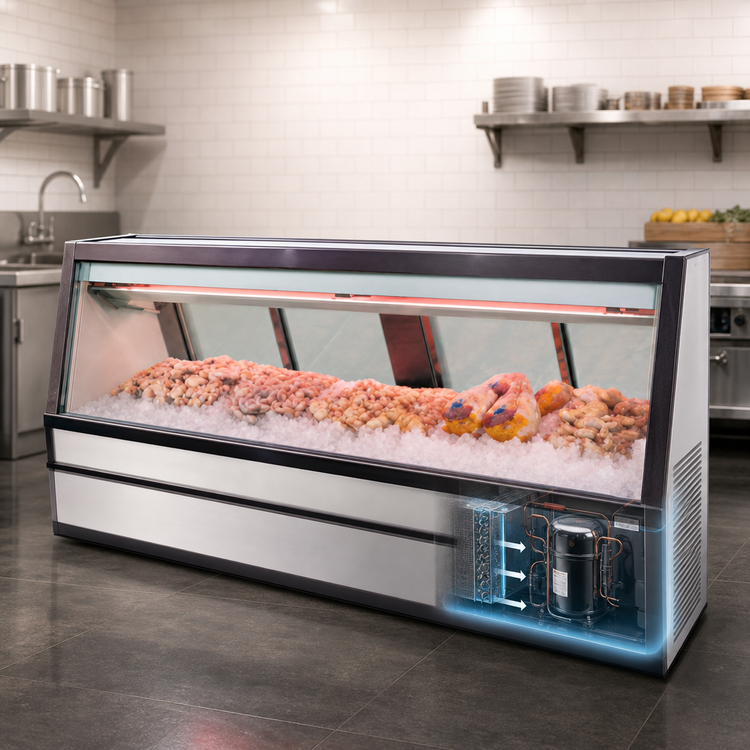

Howard-McCray 40E Series 76-1/2-Inch Self-Contained Fish and Poultry Refrigerated Display Case, Straight Glass

SKU: SC-CFS40E-6-LED
$8,096.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Displays & Merchandisers Howard-McCray Merchandising & Display Refrigeration New Arrivals Refrigerated Display Cases Refrigeration, Freezing & Ice Restaurant Equipment

Howard-McCray 40E Series 76-1/2-Inch Self-Contained Fish and Poultry Refrigerated Display Case, Straight Glass

Single Duty, Endless Design, White Exterior/Interior, LED Lighting

This self-contained fish and poultry case combines straight-glass visibility, LED lighting, and a gravity coil refrigeration system for dependable cold display merchandising.

  • Self-contained refrigeration simplifies installation and keeps cold display performance built in.
  • Straight glass front and dual rows of LED lighting improve product visibility.
  • Endless design supports continuous lineup installations for larger merchandising runs.
  • Includes 3 stainless steel ice pans with drains and a stainless steel top.
  • White exterior and white interior create a clean, bright presentation.
  • Designed to operate at 38°F to 40°F in 75°F ambient conditions at 55% RH.

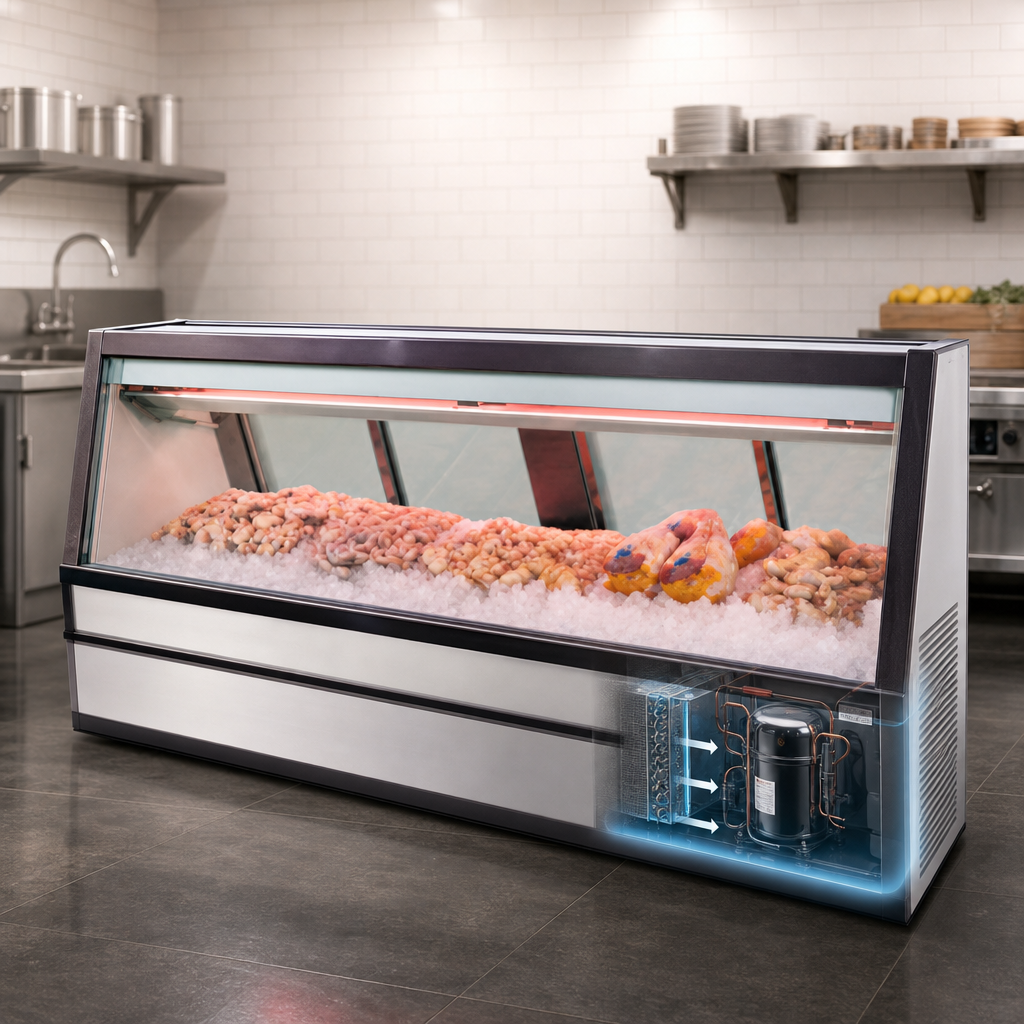

Self-Contained Refrigeration

Built-in refrigeration reduces installation complexity and eliminates the need for a remote refrigeration system.

Self-Contained Refrigeration

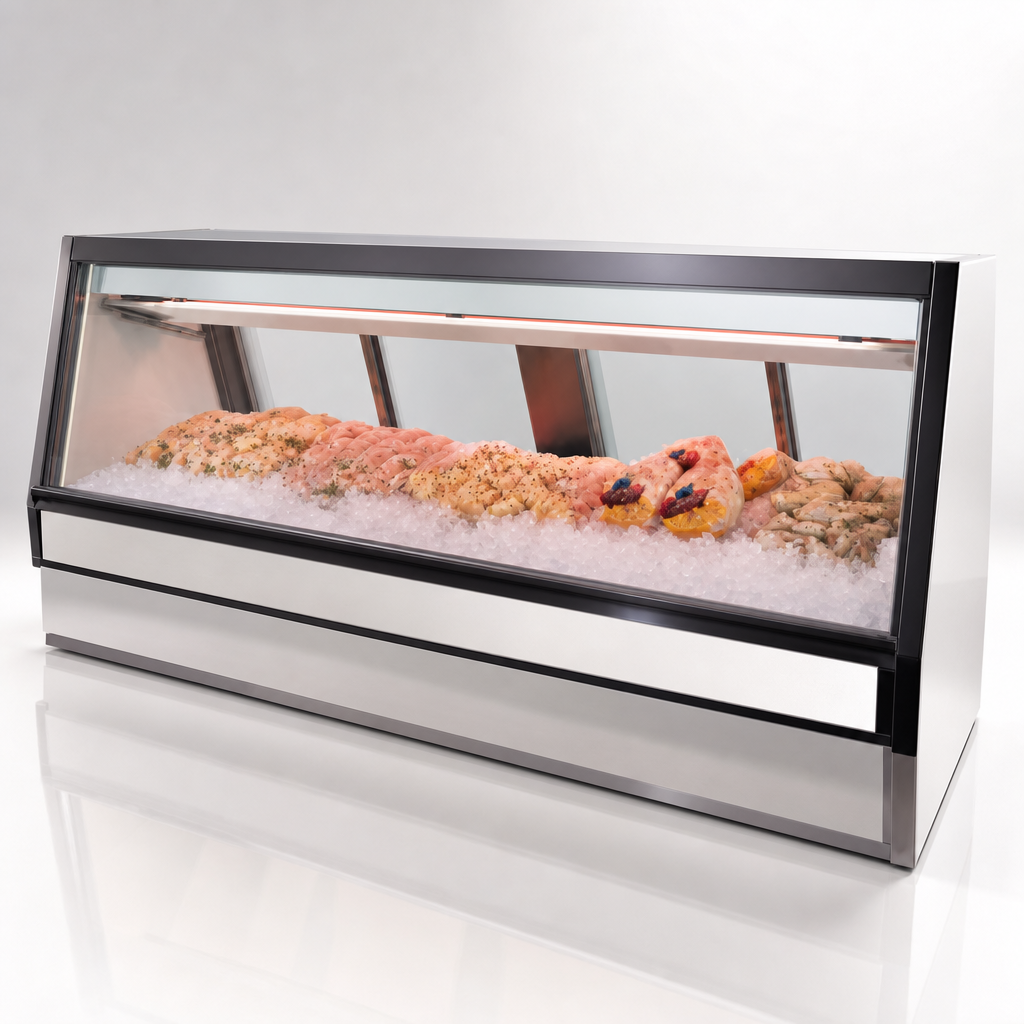

Straight Glass Front

The straight glass front provides a direct, high-visibility view of displayed fish and poultry.

Straight Glass Front

Endless Design

Designed to line up continuously with adjacent cases for longer merchandising runs.

Gravity Coil System

A full-length gravity coil is located at the inside top for even cooling across the display area.

LED Display Lighting

Two rows of top-mounted LED lighting brighten the merchandising area.

Stainless Steel Ice Pans

Includes 3 stainless steel ice pans with drains for wet display presentation.

White Cabinet Finish

White exterior and white interior deliver a clean, bright appearance.

Thermal Insulated Front Glass

28-inch-high insulated front glass helps retain temperature while maintaining visibility.

Automatic Defrost

Self-contained units feature electronically controlled automatic defrost.

Drain Required

The case is equipped with a drain for cleaning and installation must follow local code requirements.

Type Fish and Poultry Service Case
Style Endless Design
Installation Type Floor Model
Refrigeration Type Self-Contained
Voltage 115 Volts
Amps 12.0 Amps
Phase 1-Phase
Hertz 60 Hz
Plug Type 5-15P
Horsepower 1/4 HP
Temperature Range 38°F to 40°F
Capacity 36 Cubic Feet
Pan Capacity 3
Color White
Shipping Width 87 Inches
Shipping Depth 47 Inches
Shipping Height 63 Inches
Shipping Weight 741 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is self-contained refrigeration.
It includes 3 stainless steel ice pans with drains.
The case operates on 115V, 60 Hz, single-phase power and draws 12.0 amps with a 5-15P plug.
The operating temperature range is 38°F to 40°F.
Yes. The case is equipped with a drain, and installation should follow local code requirements.
The case measures 76.5 inches wide, 40 inches deep, and 53 inches high with ends.
