Howard-McCray 40E Series SC-CFS40E-12-BE-LED Fish and Poultry Refrigerated Display Case, 148-1/2-Inch, Self-Contained, Straight Glass
$11,044.50
/each
Ships in 16–19 business days
- Amperage
- 13.8 A
- Phase
- Single phase
- Dimensions
- 148.5"W × 40.0"D × 53.0"H
- Case type
- Fish and poultry service case
- Duty
- Single duty
- Refrigeration
- Self-contained
Specifications
Case type
Fish and poultry service case
Duty
Single duty
Refrigeration
Self-contained
Cooling system
Full-length gravity coil system
Front glass
Straight glass
Design
Endless design
Ice pans
6 stainless steel ice pans with drains
Top
Stainless steel
Exterior finish
Black
Interior finish
White
Lighting
LED
Compressor
1/2 HP
Voltage
115 V
Frequency
60 Hz
Phase
Single phase
Amperage
13.8 A
Operating temperature
38°F to 40°F
Display capacity
74 cu. ft.
Power connection
Hard wired; no power cord
Drain
Included
Estimated shipping weight
1,414 lb
Description

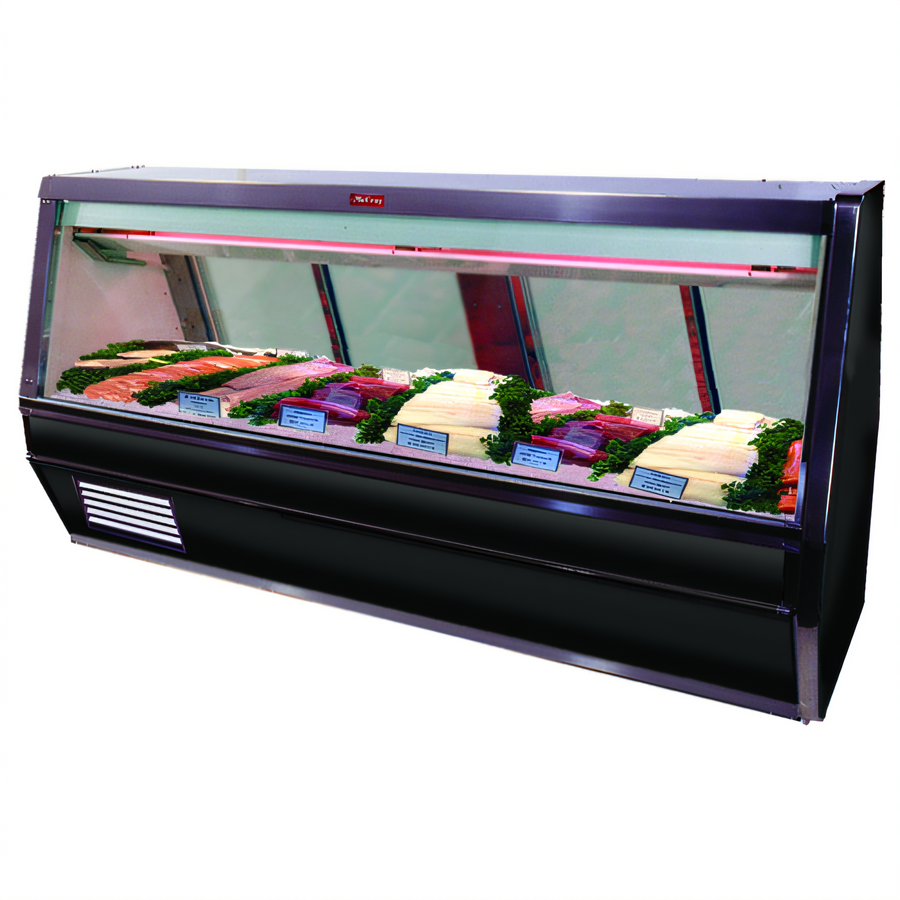

The Howard-McCray SC-CFS40E-12-BE-LED is a 148-1/2-inch fish and poultry refrigerated display case with self-contained refrigeration, straight glass, and an endless design for continuous lineups.
- Refrigeration: Full-length gravity coil system with self-contained refrigeration.
- Construction: Stainless steel top, black exterior, and white interior.
- Display support: Six stainless steel ice pans with drains.
- Electrical: 115 V, 60 Hz, single phase, 13.8 amps, and a 1/2 HP compressor.
- Lighting: LED lighting.
Overall Dimensions:
148.5"W x 40.0"D x 53.0"HProduct Weight:
1414.0 lbSelf-contained refrigeration

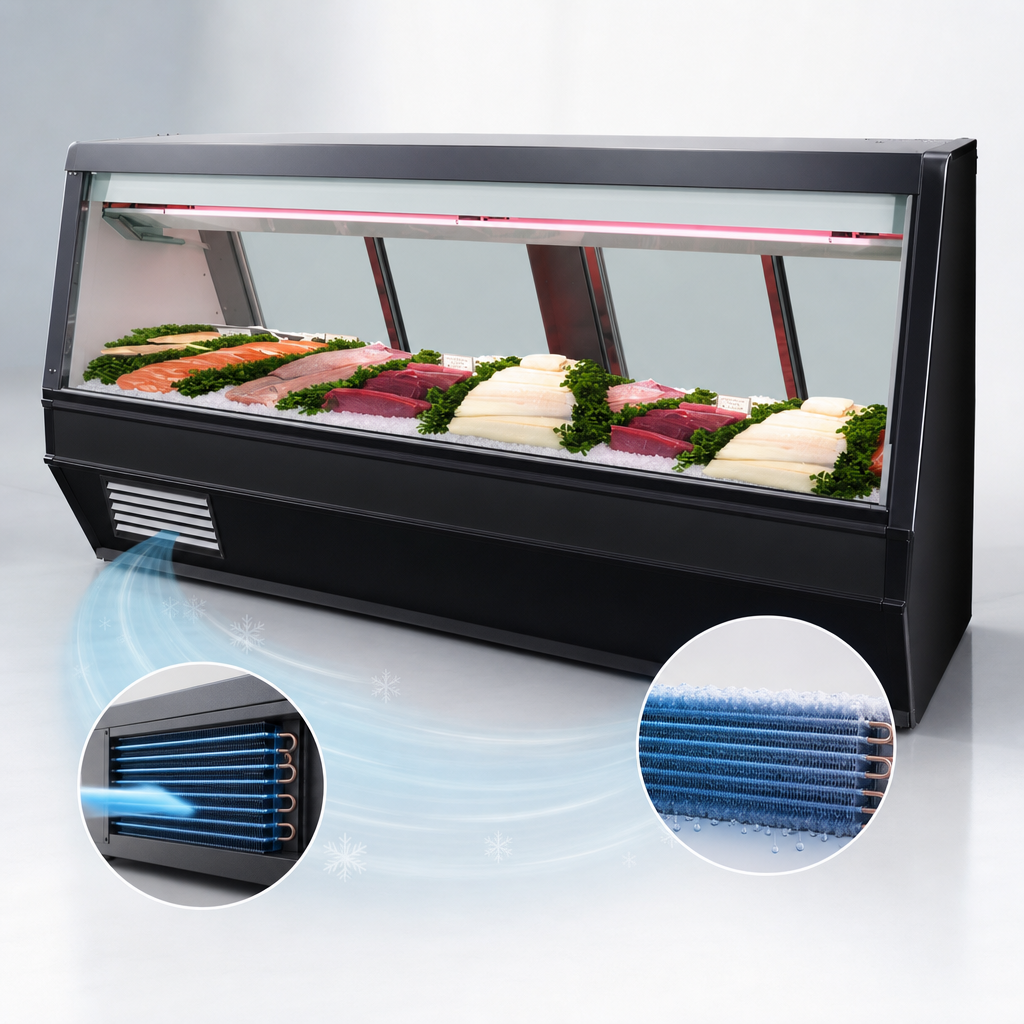

The case uses self-contained refrigeration with a full-length gravity coil system.
Straight glass
The front uses straight glass for product visibility.

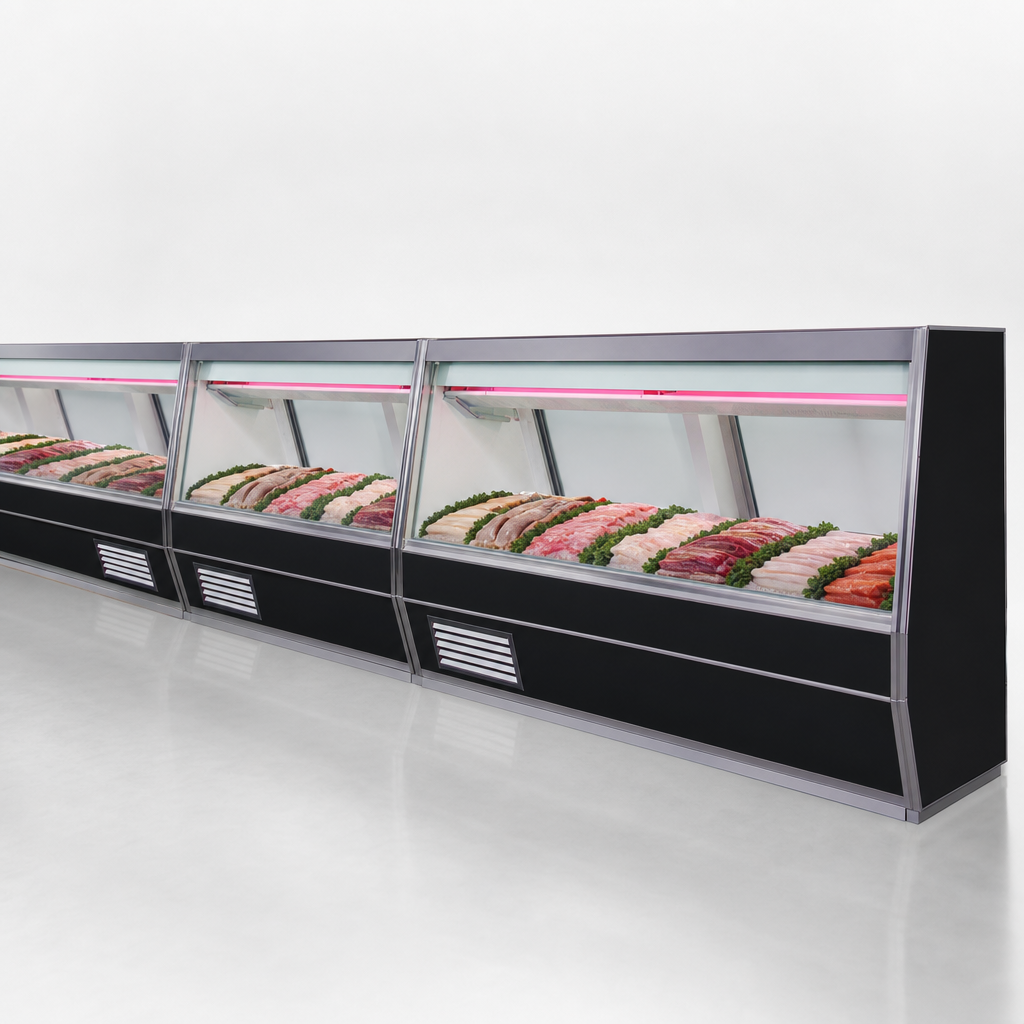

Endless design
The endless design supports continuous lineups.
Fish and poultry service
Designed as a single-duty fish and poultry service case.
Stainless steel ice pans
Includes six stainless steel ice pans with drains.
Finish
Specified with a black exterior, white interior, and stainless steel top.
LED lighting
The exact model is specified with LED lighting.
Documentation
Certifications & Compliance
Frequently Asked Questions
Yes. This model uses self-contained refrigeration with a full-length gravity coil system.
The case is 148.5 in wide, 40 in deep, and 53 in high.
It is rated for 115 V, 60 Hz, single-phase power at 13.8 amps. The specification sheet indicates that the 12-foot case must be hard wired and has no power cord.
It uses straight front glass.
Yes. Its endless design allows continuous lineups.
The warranty sheet specifies one year of parts-and-labor coverage and a five-year compressor warranty, subject to the manufacturer's terms and exclusions.
