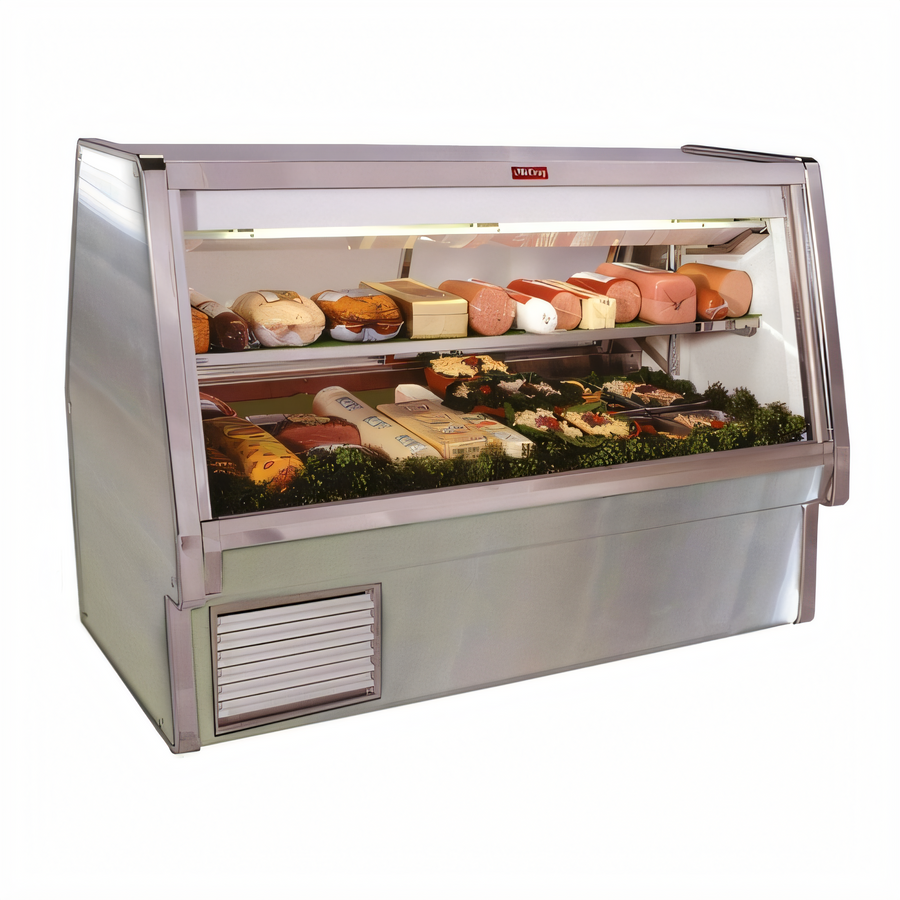

Howard-McCray 34E Series 10-Foot Endless Design Self-Contained Stainless Steel Deli Meat & Cheese Service Case with LED Lighting

Full-Service Straight Glass Front, Upper & Lower Compartments

Built for continuous lineups and high-visibility merchandising, this 10-foot self-contained deli case pairs stainless steel construction with LED lighting and gravity-coil refrigeration.

  • 10-foot endless design deli case for full-service meat and cheese merchandising
  • Self-contained refrigeration with gravity coil system and electronically controlled automatic defrost
  • Stainless steel top, exterior, and interior for durability and easy cleaning
  • LED lighting and a thermally insulated straight glass front improve product presentation
  • Upper and lower compartments with one adjustable stainless steel mezzanine shelf
  • Designed to hold 36°F to 40°F in 75°F ambient conditions at 55% relative humidity; drain included

Overall Dimensions:

124.5"W x 34.5"D x 53.0"H

Product Weight:

1150.0 lb

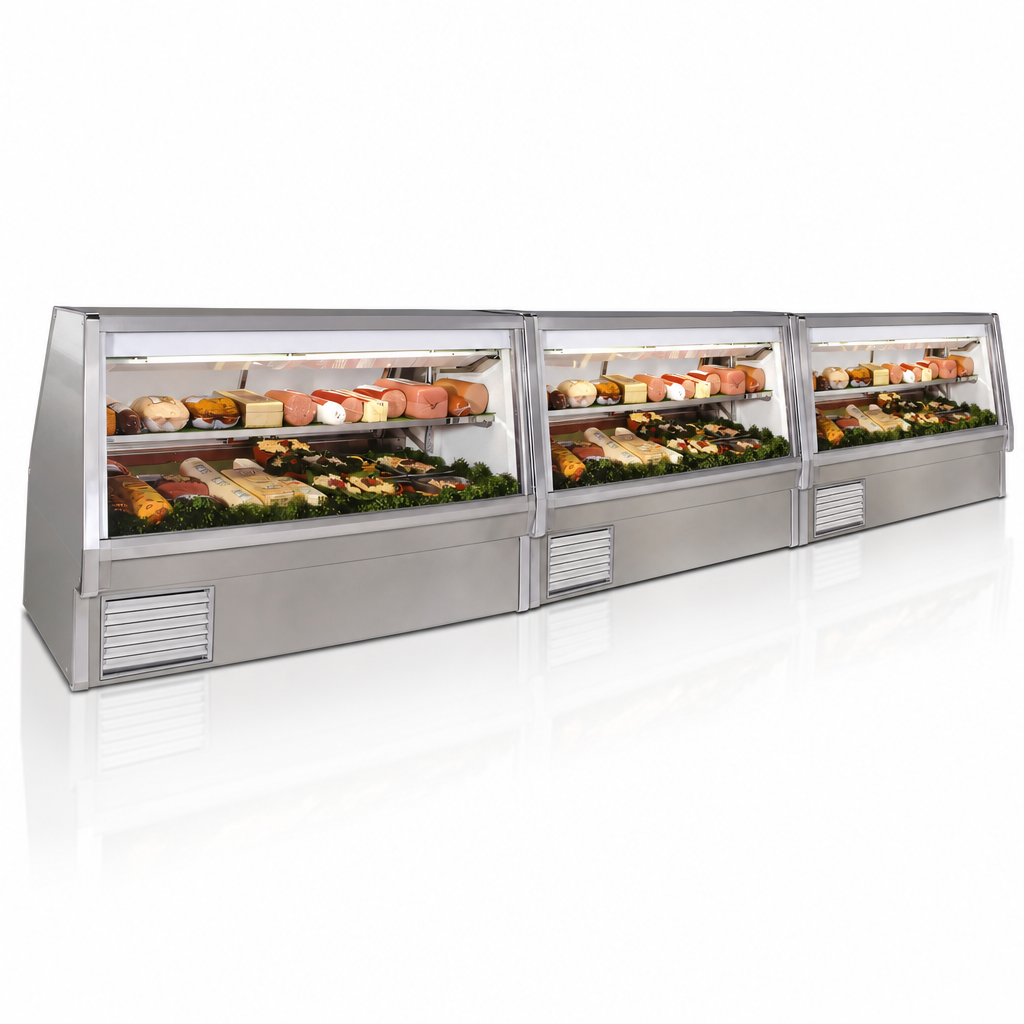

Endless Design

Allows cases to be lined up continuously for custom merchandising runs and long display banks.

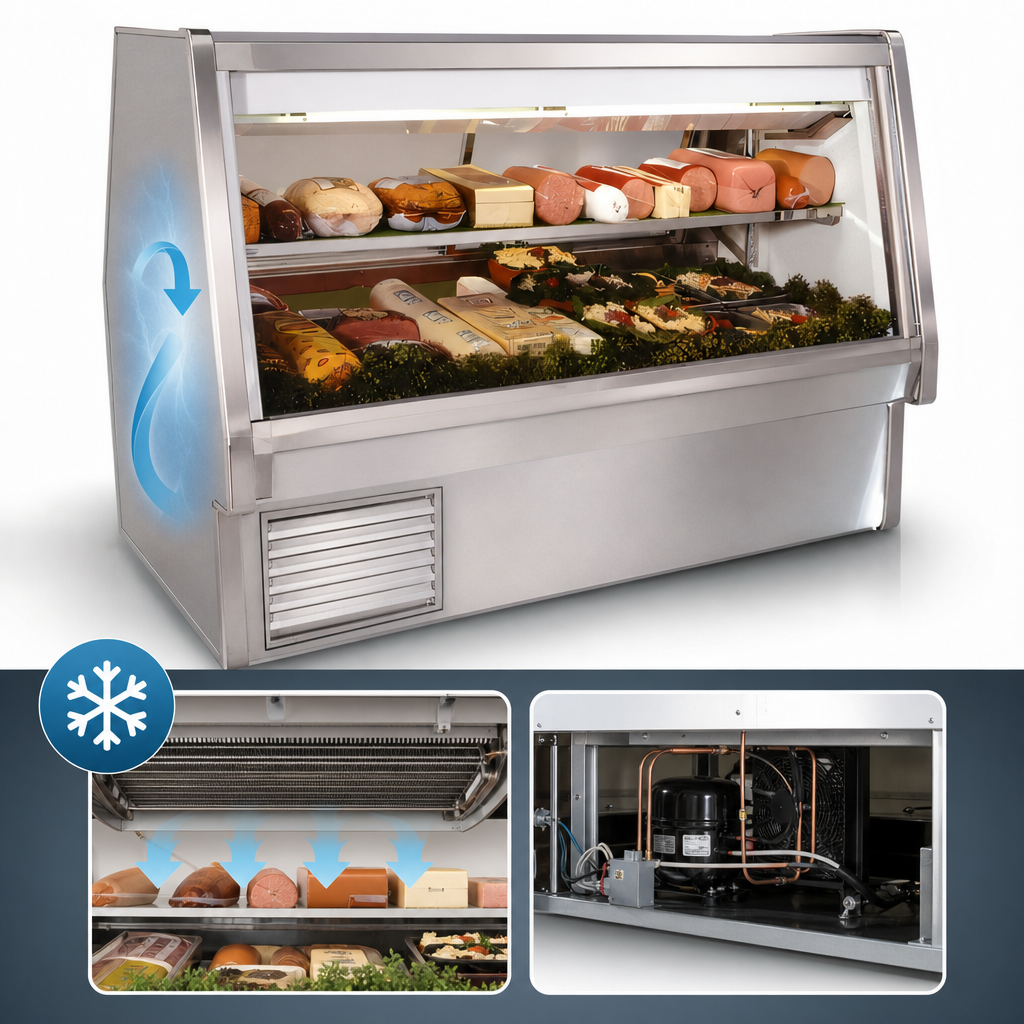

Self-Contained Refrigeration

Built-in refrigeration uses a Copevap system with a gravity coil located at the inside top of the unit.

Automatic Defrost

Self-contained units feature electronically controlled automatic defrost for easier operation.

Stainless Steel Construction

Stainless steel top, exterior, and interior provide a durable, easy-clean build.

LED Lighting

Top-mounted LED lighting enhances product visibility across the display.

Adjustable Mezzanine Shelf

Includes one adjustable stainless steel mezzanine shelf for flexible merchandising.

Straight Glass Front

Thermally insulated straight glass front helps showcase product while supporting cabinet performance.

Drain Included

Equipped with a drain for cleaning; local building code requirements apply for connection.

Ambient Operating Conditions

Designed to operate at 75°F and 55% relative humidity, with a display temperature range of 36°F to 40°F.

Type Deli Meat & Cheese Service Case
Style Straight Glass
Installation Type Floor Model
Refrigeration Type Self-Contained
Material Stainless Steel
Interior Finish Stainless Steel
Color Stainless Steel
Capacity 75 Cubic Feet
Compartments 2
BTU 3500 BTU
Voltage 115 Volts
Amps 13.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Hardwired
Shipping Width 125 Inches
Shipping Depth 35 Inches
Shipping Height 53 Inches
Shipping Weight 1150 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is self-contained. Remote versions are also available in the series.
The unit requires 115V, 60 Hz, single-phase power and draws 13.8 amps. The 10-foot model must be hard wired and does not use a cord and plug.
The case is designed to operate in the 36°F to 40°F range.
Yes. It is equipped with a drain, and local code requirements may apply for connection.
The case includes one adjustable stainless steel mezzanine shelf.
